| Brand | Vorel |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Min. grout thickness | 3 mm |
| Max. tile thickness | 14 mm |
| Dimensions | 45x25x3 (clip), 66x21x11 (wedge) mm |
| Capacity | 10 l |
| Bucket dimensions | 385x255x195 mm |
| Material | PE (clip), PP (wedge) |
| Pcs | 700+200 |
| Set includes | x700 clips, wedges x200, pliers |
| Application | ceramic tiles, porcelain stoneware, rectified floor and wall tiles |
| Symbol | 04740 |

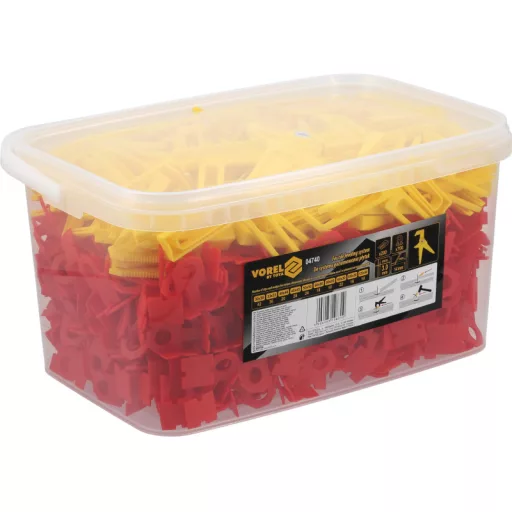

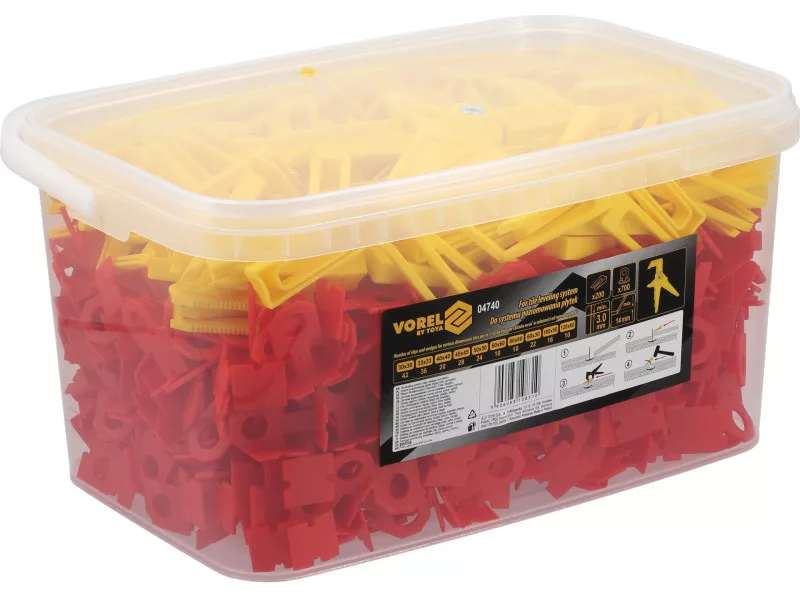

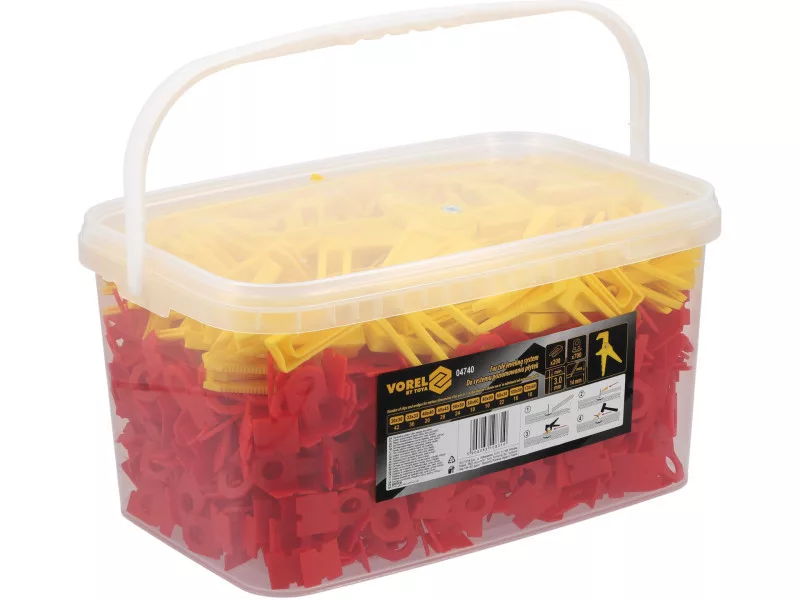

A tile levelling system that makes laying tiles quick and easy. The kit consists of 700 pieces of breakaway clips, 200 pieces of reusable wedges and pliers to make assembly easier and quicker. The system helps to eliminate surface irregularities. It is designed for ceramic, porcelain stoneware, rectified floor and wall tiles of various sizes and thicknesses in the range 7-14 mm. The system replaces traditional crosses. Prevents displacement during installation and adhesive setting, speeds up tiling with perfect joints and levelness. No additional tools are required. It can be applied to walls and floors and is easy to install for all skill levels.

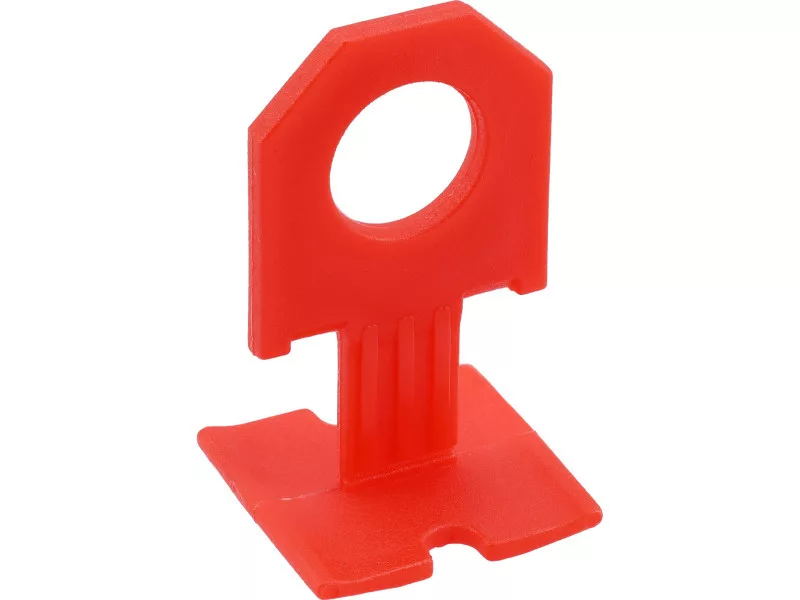

- clip height: 45 millimeters
- clip width: 25 millimeters
- clip base dimensions: 24x25 mm
- clip thickness: 3 mm
- number of clips: 700 pc
- clip colour: red
- number of wedges: 200 pc
- wedge length: 66 millimeters
- wedge width: 21 millimeters
- max. wedge height: 11 millimeters
- colour of wedge: yellow
- minimum joint width: 3 mm
- for tile thicknesses: 7-14 mm
- bucket capacity: 10 l
- bucket length: 385 millimeters
- width of bucket: 255 millimeters
- bucket height: 195 millimeters
- clip material: PE
- wedge material: PP
- set weight: 3.14 kg
