VOREL Tencuiala manuala pneumatica

Brand	Vorel
Entity responsible for this product in the EU	TOYA S.A.More
Series	GRF
Required air flow	350-400 l/min
Recommended working pressure	0.4-0.6 MPa
Max. working pressure	0.6 MPa
volume	50 m²/h
Tank capacity	4 l
Dimensions	715x220x200 mm
Outlet nozzle quantity	4
Nozzle diameter	18 mm
Air supply hose inside diameter	10-14 mm
Length of handle	600 mm
Air connection diameter (PT)	standard
Max. sand grains diameter	6 mm
Acoustic pressure	91.8 ± 2.5 dB(A)
Acoustic power	102.8 ± 2.5 dB(A)
Vibrations	2.5 m/s²
Weight	2 kg
Symbol	09900

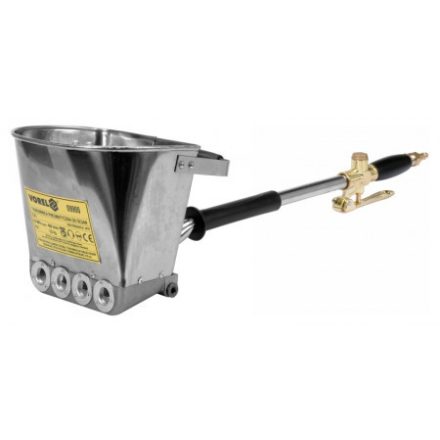

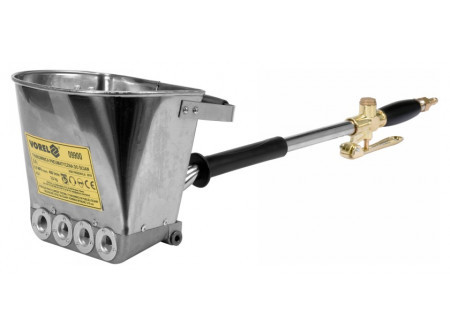

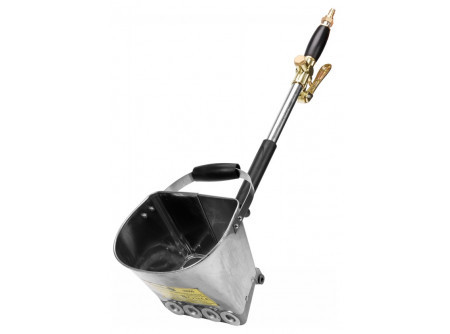

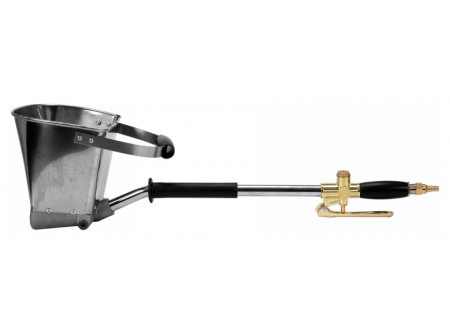

Pneumatic plaster made of stainless steel and quality plastic sheet with a brass valve and air connections. Designed for quick and effective spray plastering by a majority of typical plasters and masonry mortars. The use of plastering allows for a significant acceleration of plastering while increasing its quality. The useor is required for the work of the plaster. The capacity of the tank is about 4.5l, the number of exhaust nozzles-4 average performance-ok 50 m²/1h, layer about 10 mm, when working one person, weight of the device 2.1 kg required air pressure 4-5 bar required compressor performance OK OK 350 l/min for quick and effective spray plastering by a majority of typical plasters. Requires a compressor connection. Connect the device with a pneumatic cable to the compressor, apply the right amount of mortar/ plaster to the tank, direct holes towards the plastered wall, open the intake valve, spray evenly depending on the needs. After finishing work, dip the plaster tank in water and rinse. Plaster without a snake and compressor

Usage warnings:

Warning! Always use personal safety equipment at work.
Always keep the plasterer close to the wall when working.
The distance of the nozzles from the wall should be 5-10 cm.
