| Brand | Fala |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Body length | 600 mm |
| Series | Tocantins |
| Cover design | Tocantins |
| Material | 304 stainless steel |
| Body width | 70 mm |
| Flange width | 20 mm |
| Siphon height | 52 mm |
| Outlet size | 50/40 mm |
| SMARTthru | yes |
| EASYclean | yes |
| GRIPstrong | yes |
| HYDROcloth | yes |
| STRAINer | yes |
| HQwelding | yes |
| EXTRAslim | yes |
| EASYfix | yes |
| Application | bathrooms - shower cabins, swimming pools - swimming pools, laundry rooms, boiler rooms, balconies, terraces |
| Set includes | grate, drainage channel with siphon, sewage reduction, adjustable mounting feet, insulating mat, hook for lifting the grate |
| Symbol | 75370 |

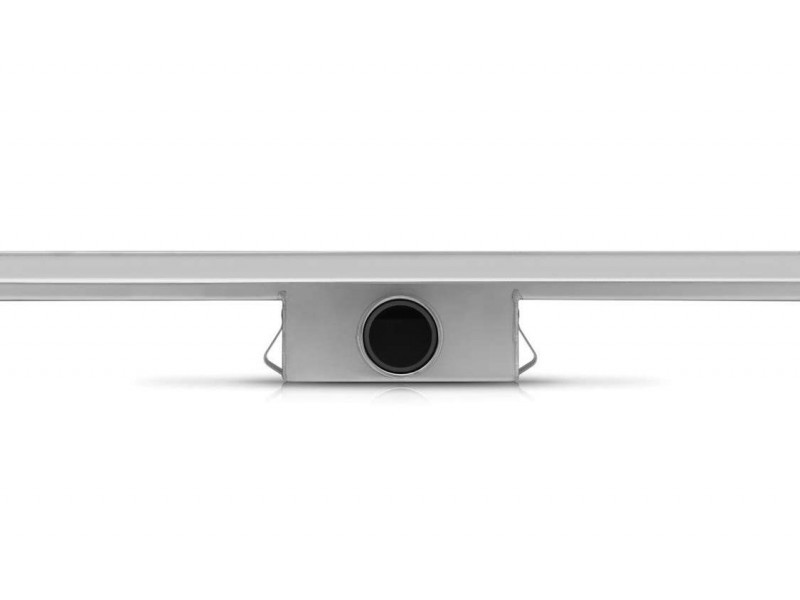

The Wave linear drain is an excellent idea for elegant and practical arrangement of bathroom space.
A wide selectionór of available sizesów allows you to optimally match its length to the dimensionsów of the shower enclosure or tiles, and allows you to plan your shower space with greater freedom than with traditional shower trays.
It is made entirely of AISI 304 stainless steel, whichóra is characterized by resistance to corrosion, detergents and mechanical damage.
Fala shower drains are equipped with facilities that guarantee comfortable and efficient operation for many years:

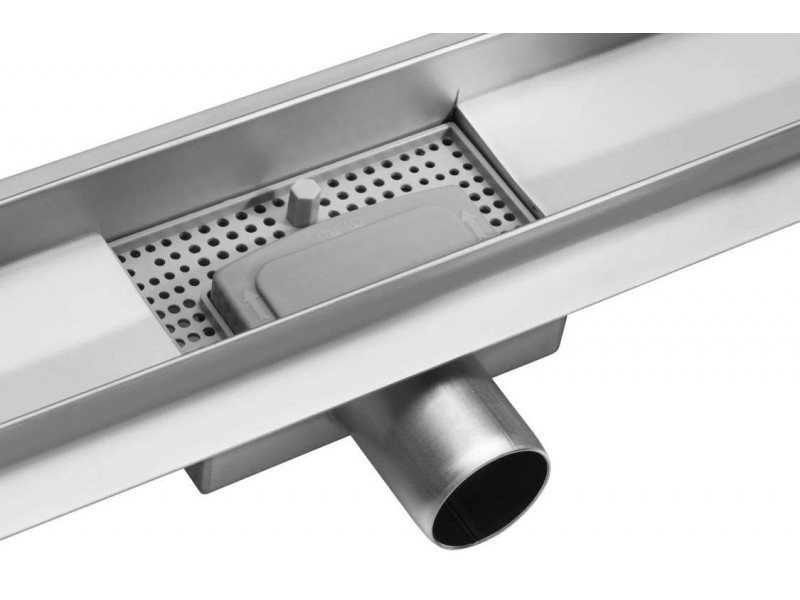

- SMARTthru – special inspection window is 100% patency control and convenient cleaning;
.br />- EASYclean – is easy to clean, thanks to the hook thatós included;
- GRIPstrong – handles to stabilize the body, additional stiffening of the structure in the floor;
- HYDROcloth – HYDROcloth &ndash.HYDROcloth – sealing mat is included – indispensable part for waterproofing;
- STRAINer – Sealing mat is included – indispensable part for waterproofing;

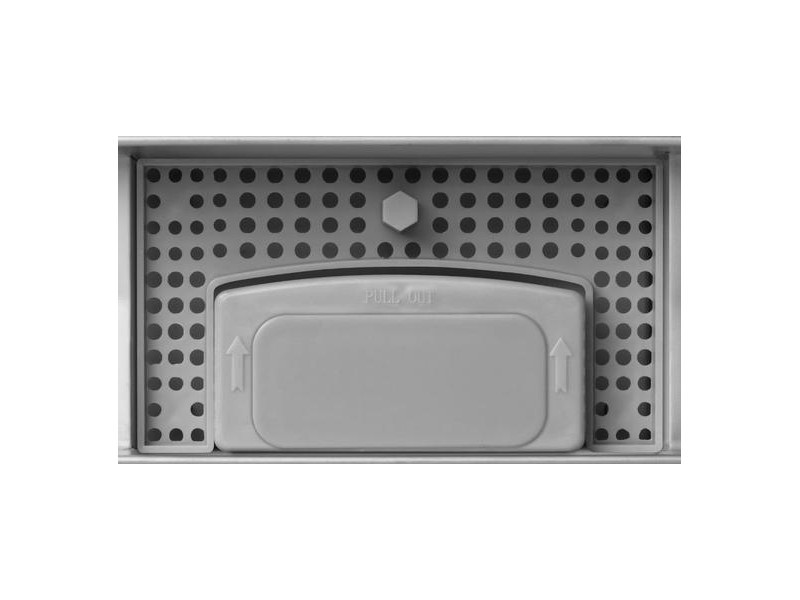

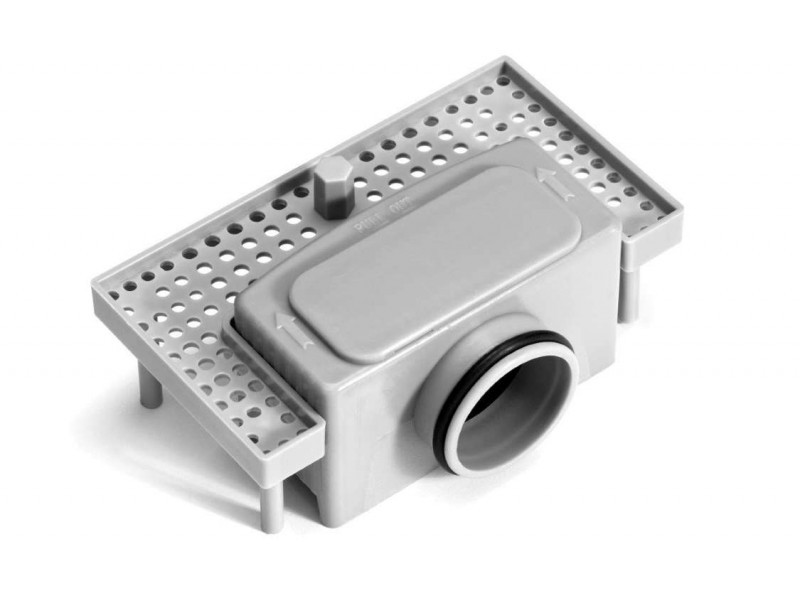

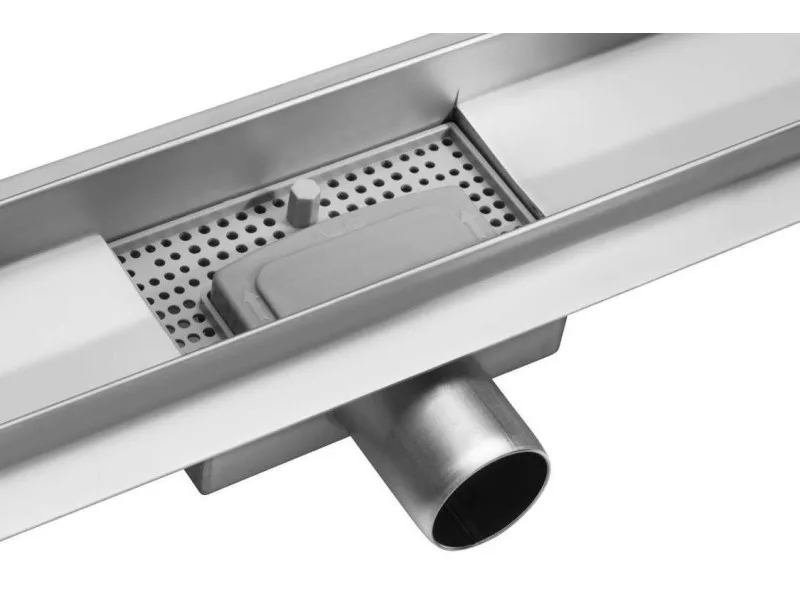

- STRAINer – an effective and durable strainer thatóre prevents clogging of the trap and facilitates the day-to-day operation of the drain;

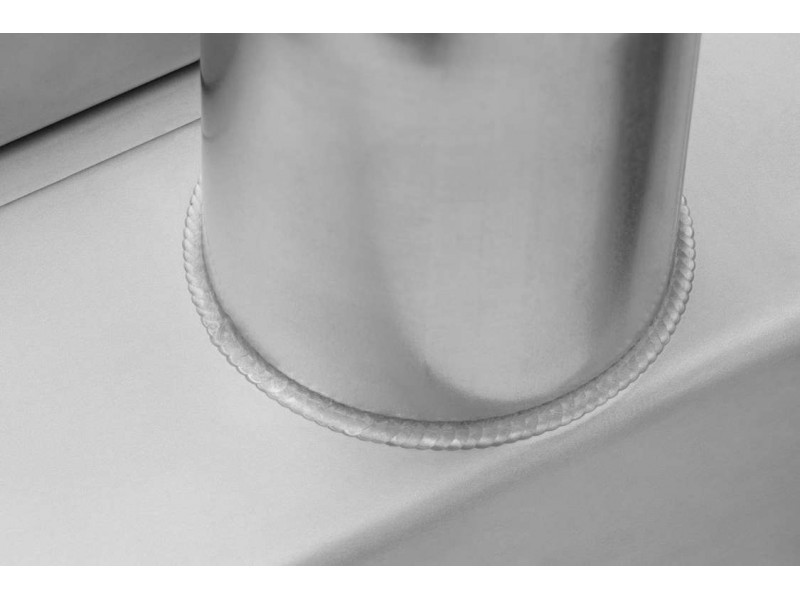

- HQwelding – high quality precision welds whichóre guarantee the tightness of the drain;

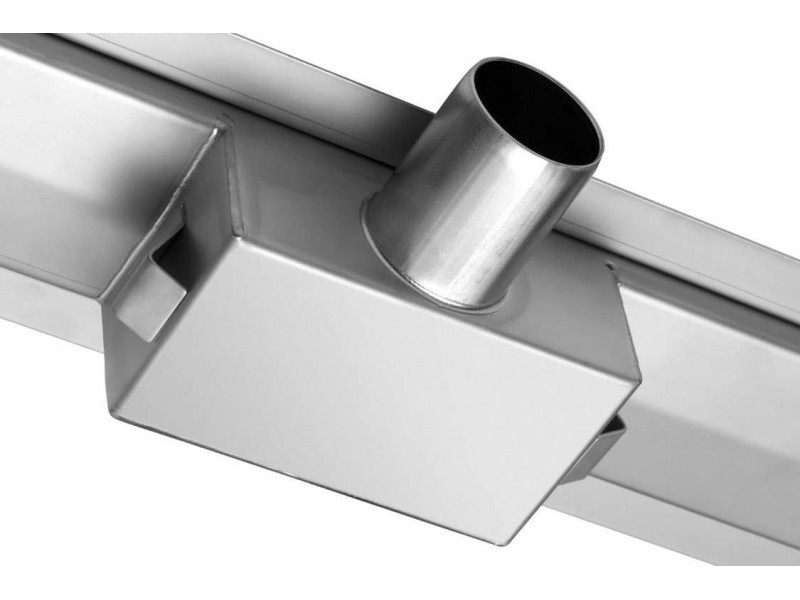

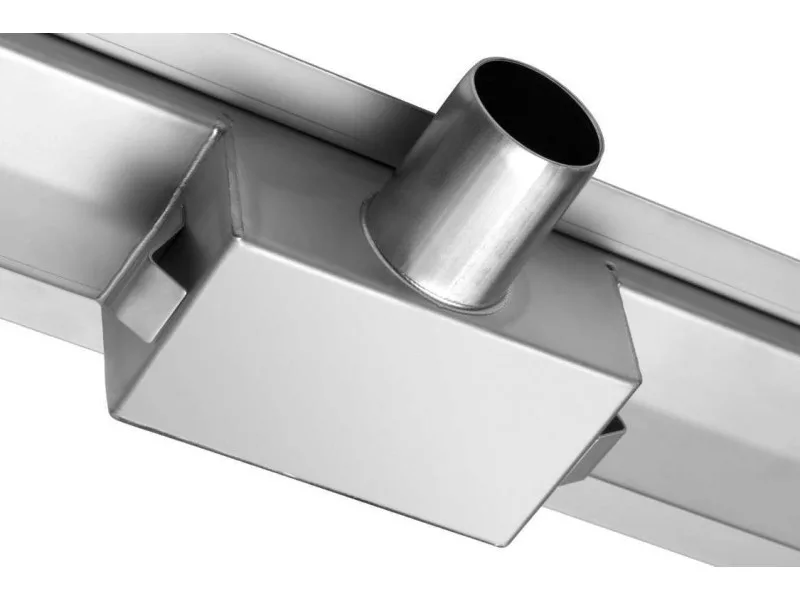

- EXTRAslim – made of AISI 304 stainless steel a very low siphon that&oac;y simplifies installation;
- Simpler and easier installation;
- Simpler and easier installation

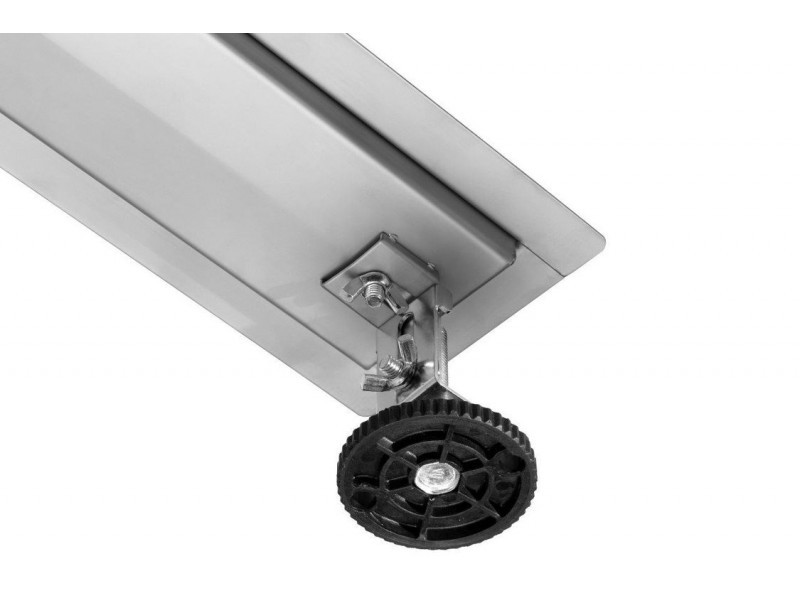

- EASYfix – a wide height adjustment range thatóry allows you to adjust the drain to the floor surface.
You will install the Wave drain without worry – all our drains come with a 10-year warranty!
Data:
- gutter length: 60 cm

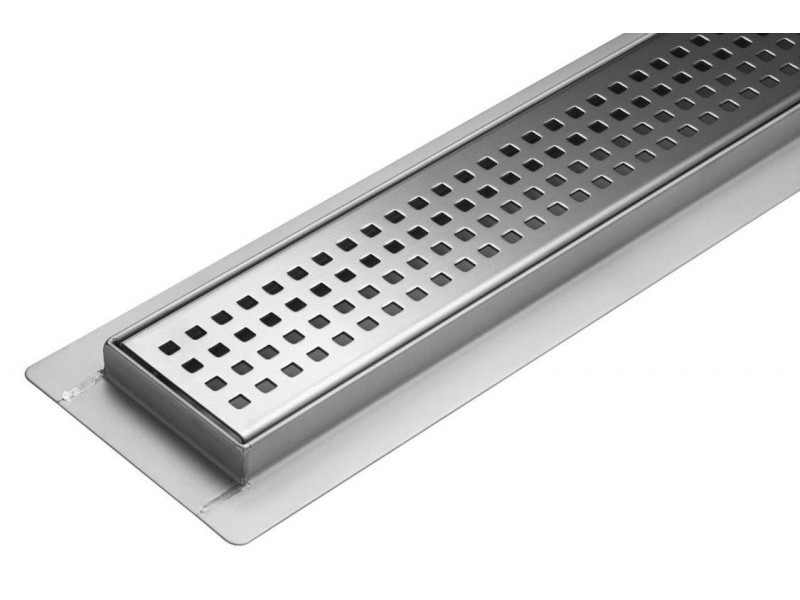

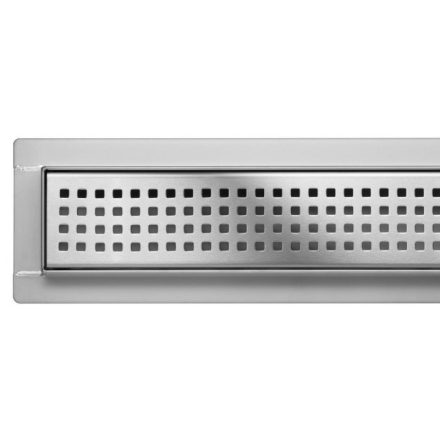

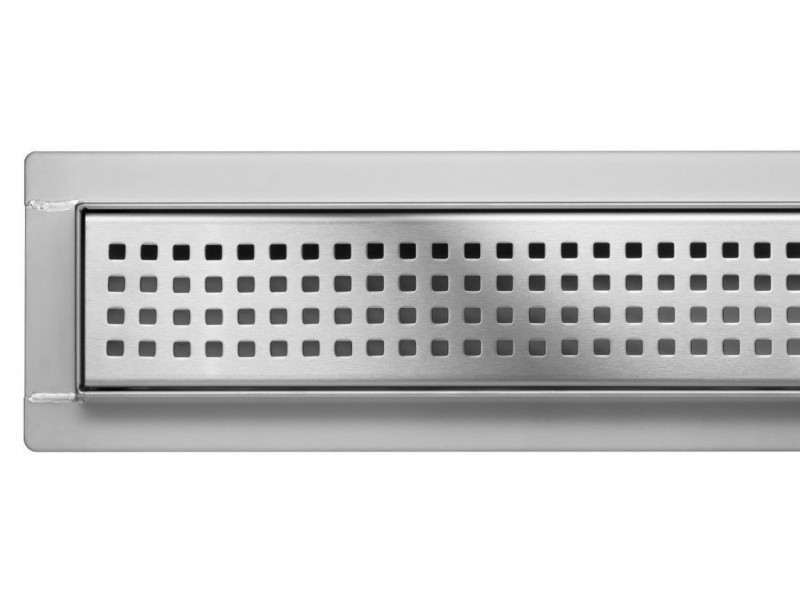

- grate pattern – Tocantins
- material: stainless steel AISI 304

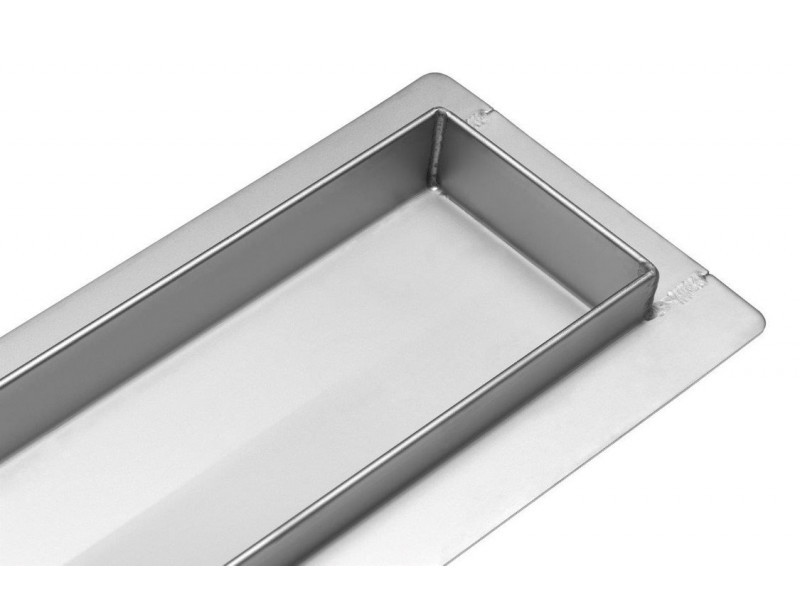

- width: 70 mm (additional flange approx. 2 cm on each side)
- siphon height: 52 mm
Thickness of steel of linear drainsós:
- brine: 1.2 mm
- pipe: 1.5 mm
Product in accordance with EN 1253-1
Capacity class: K3 (surfaces without wheeled traffic)
Product thermal behavior class: Class A (no installation restrictions)
Flow rate: more than 36 l/min (the shower faucet has a maximum flow rate of 18 l/min)
- bathrooms, shower rooms - swimming pools, swimming pools - laundries, boiler rooms - balconies, terraces - drain trough with trap - grate - sewage reduction 50/40 mm - adjustable fixing feet - insulation mat - hook for lifting the grate - instruction manual - warranty card
