| Brand | Sthor |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Working mode | S3 (max. 2 h on, min. 20 min off: total 12 h on) |
| Power | 280 W |
| Max. capacity | 1020 l/h |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Water outlet diameter | G1/2 |
| Max. head | 68 m |
| Max. submersion depth | 5 m |
| Max. water temperature | 35 ˚C |
| Wire length | 10 m |
| Wire section area | 3Gx0.75 mm² |
| Wire insulation type | H05RN-F |
| Electric insulation class | I |
| Protection grade | IPX8 |
| Weight | 3.9 kg |
| Symbol | 79943 |

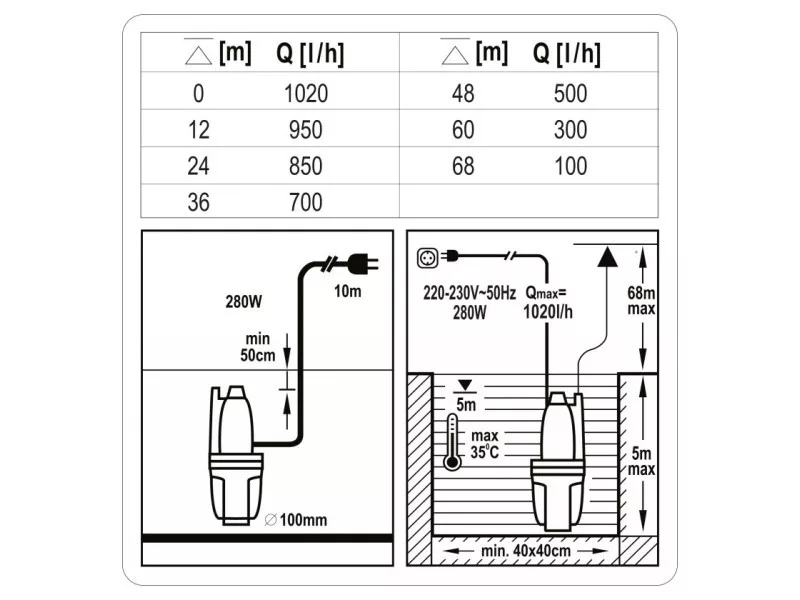

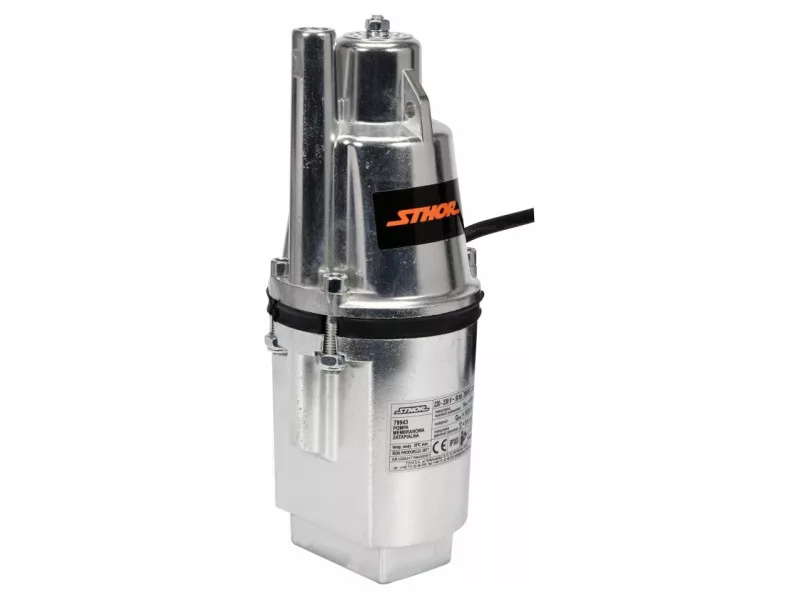

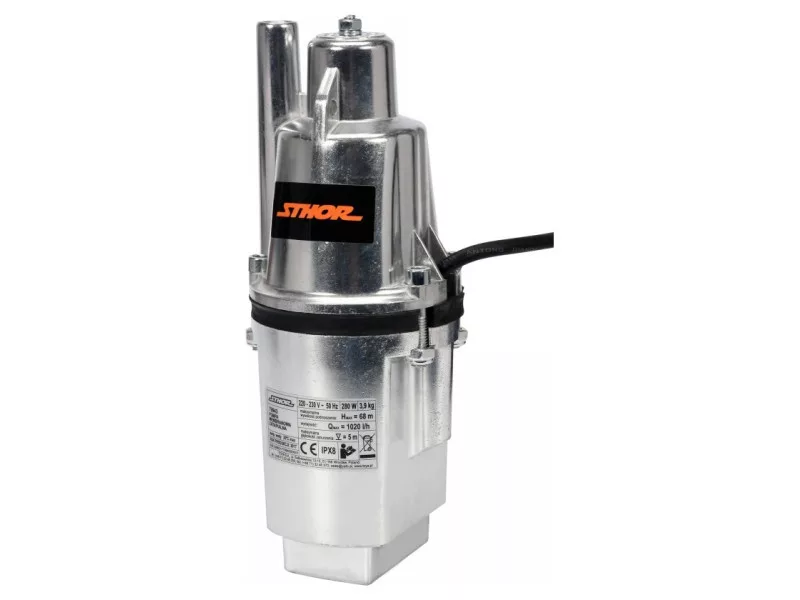

The pump is designed for pumping clean water in domestic and garden applications. It is recommended that the pump be operated in intermittent mode. The permissible operating time should not exceed 2 hours, after which operation should be interrupted, for at least 20 minutes. The total operating time in such cycles should not exceed 12 hours.
Parameters:
- Rating voltage [V~]: 220 - 230
- Rating frequency [Hz]: 50
- Rating power [W]: 280
- Electrical protection class: I
- Industrial protection rating (IP): IPX8
- Maximum capacity [dm3 /h]: 1020
- Diameter of hose connection (ext.) [”]: 1/2
- Diameter of hose connection (ext.) [mm]: 19
- Max. discharge height [m]: 68
- Max. immersion depth [m]: 5
- Cable length [m]: 10
- Max. water temperature [deg. C]: 35
- Weight [kg]: 3.9
- Operation type: max. 2 h on, min. 20 min off: total 12 h on).
