VOREL Kit hidraulic demolare 12 piese 10 t

Brand	Vorel
Entity responsible for this product in the EU	TOYA S.A.More
Series	GRE
Max. load capacity	10 t
Operating pressure	620 bar
Piston stroke	150 mm
Connector thread size	13/16-20 UNEF
Weight	35.4 kg
Pcs	15

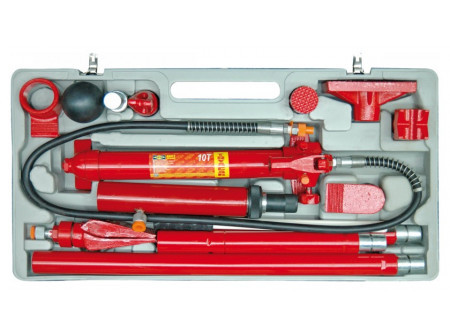

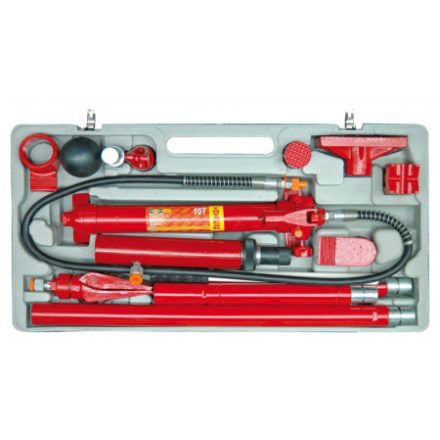

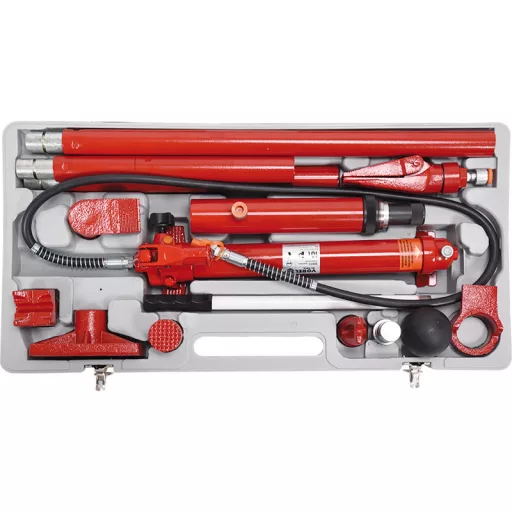

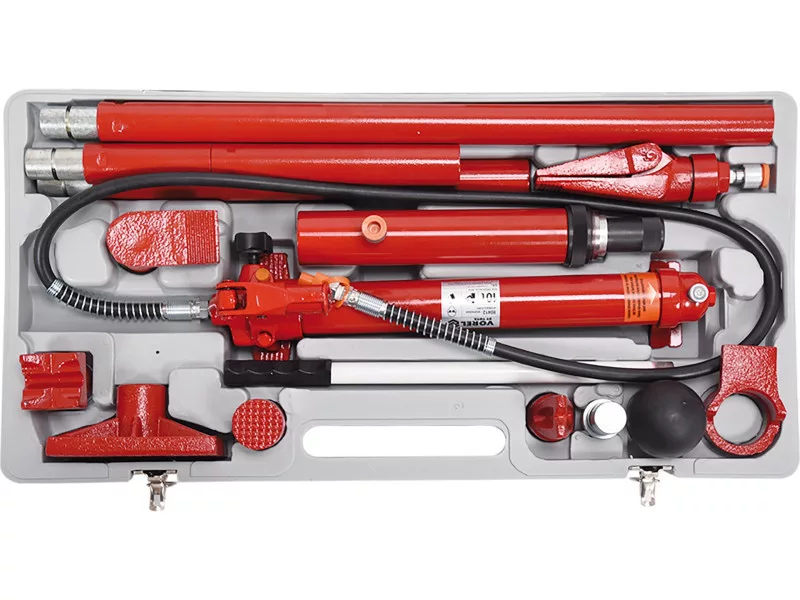

Set includes	hydraulic pump, actuator, extension x4, spreading jaws, round cap, flat cap, actuator hook, piston hook, crevice attachment, V-type cap, rubber cap, male connector
Symbol	80412

The hydraulic spreader is intended for workshop work and can be used for assembly and bodywork, to perform works requiring the use of significant static forces. The device is intended for lifting, stretching, spreading, bending, straightening and pulling out. Set placed in the transport suitcase Weight [kg] - 35.4 Working pressure [bar] - 620 Size of the connection thread ["] - 13/16-20Unef Maximum load [thousand kg] - 10 stroke piston of the actuator [mm] - 150 spreader It can be used for assembly and bodywork to perform works requiring the use of significant static forces. Installation and use of the hydraulic system: - connect the pump hose with the cylinder connector, winding the screw cap on the thread. Make sure that the nut has been properly tightened. - close the drain valve. , turning it in the direction consistent with the movement of the clock guidelines. - Moving the pump lever up and down, create pressure in it. After a few moves, the actuator will start working. To eliminate the pressure in the pump, turn the valve in the opposite direction of the clockwise. Opening the drain valve by the actuator will automatically begin to return to the resting position. Do not dismantle the hydraulic system at the pressure. The pump can be used in any both vertical and horizontal position. At the vertical position of the pump, the end of the snake must always be directed down. Checking the oil level: To check the oil level in the pump, set it in a vertical position, a hose directed down. Open the drain valve. Unscrew the vent valve and remove the rod oil level indicator and read the oil level. If necessary, correct the oil level in such a way that the oil covers the entire flat surface of the indicator. The device has been factory -filled with hydraulic oil. Use the oil only. It is recommended to use hydraulic oil Hydrol with the symbol L-HL-46. Pump venting: To vent the hydraulic system of the pump, set the pump in a vertical position, a hose directed down. Open the drain valve. Unscrew the vent valve and remove the rod oil level indicator. Make a few pump -full movements. Close the drain valve, mount the oil level indicator and close the vent valve. - hydraulic pump - actuator - extension pipes 4 pcs
