| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Connecting elements type | nails |
| Connecting elements length | 65-100 mm |
| Connecting elements dimensions | 65-100x2.5-3.3x6.5-7.5 mm |
| Max. working pressure | 0.8 MPa |
| Recommended working pressure | 0.4-0.8 MPa |
| Air connection diameter (PT) | standard |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Dispenser capacity | 150-300 szt. |
| Dimensions | 417x156x336 mm |
| Body material | aluminum |
| Handle material | rubber |
| Wire collated nail angle | 15 ˚ |
| Functions | sequential operating mode, side loading system |
| Dust cover | yes |
| Fuse | yes |
| Acoustic pressure | 97.6 ± 2.5 dB(A) |
| Acoustic power | 110.6 ± 2.5 dB(A) |
| Vibrations | 7.99 ± 1.5 m/s² |
| Weight | 5.3 kg |
| Application | upholstery, carpentry, finishing works |
| Symbol | YT-09224 |

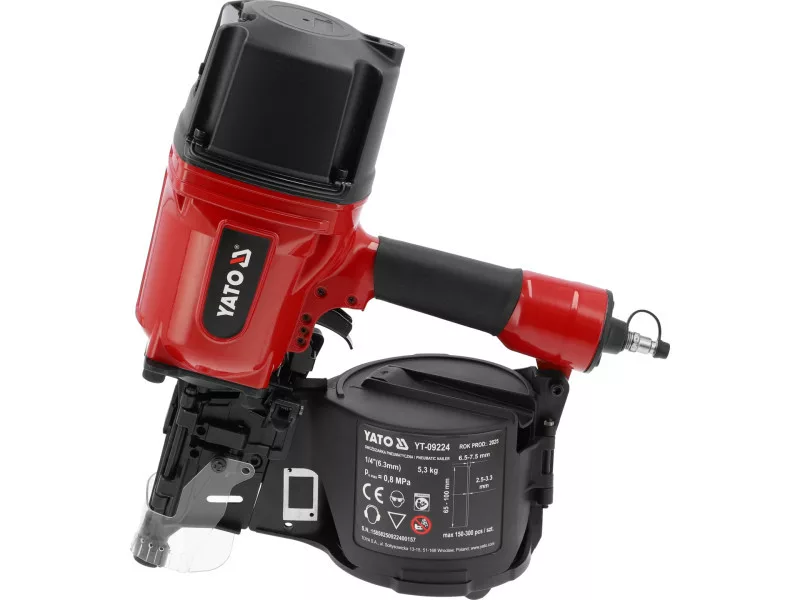

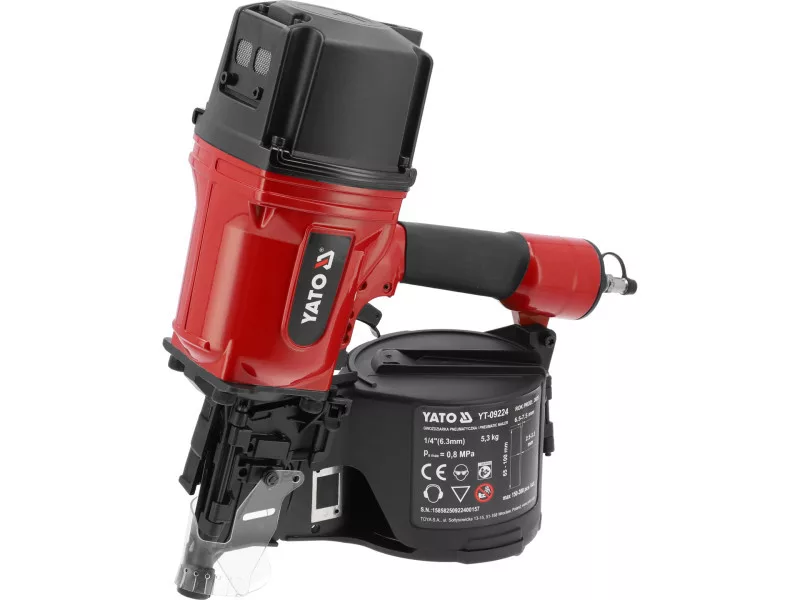

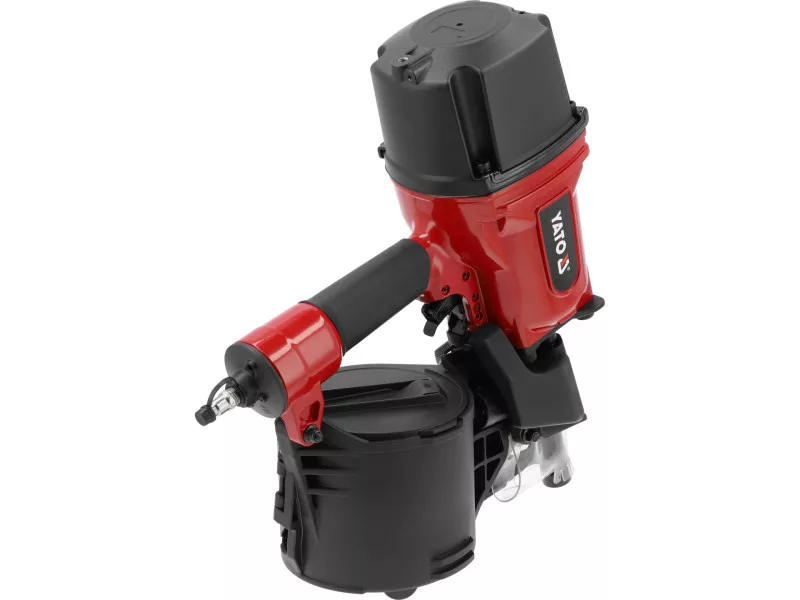

A professional drum nailer ensures precise, fast, and durable fastening of materials using nails. Designed for demanding and intensive carpentry, assembly, and upholstery work, it also works well for light finishing tasks.
It has protection against accidental firing, a side loading system, and a dust cover. The sequential mode improves work efficiency, increasing assembly productivity.
- length of connecting elements: 65-100 mm
- nail wire joining angle: 15°
- dimensions of connecting elements: 65-100 x 2.5-3.3 x 6.5-7.5 mm
- max. working pressure: 0.8 MPa

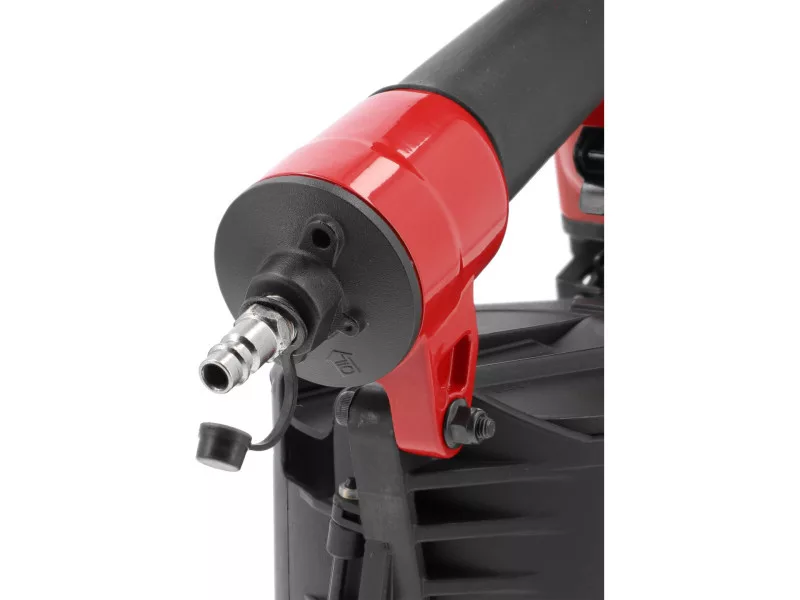

- air inlet diameter: standard
- inner diameter of the air supply hose: 3/8" (9.5 mm)
- 150-300 nail capacity magazine enables longer continuous work
- sequential mode function allows controlled, rhythmic driving of connecting elements, improving accuracy and increasing user safety

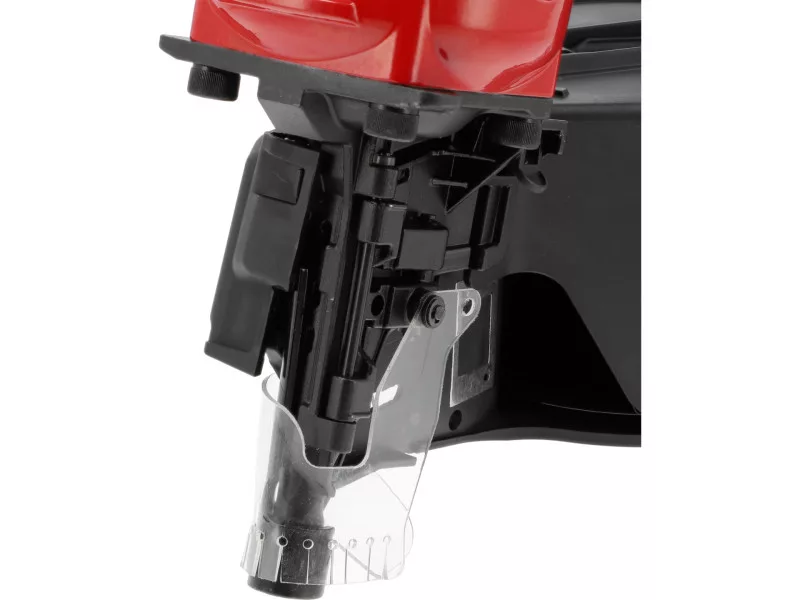

- fuse minimizes the risk of accidental tool activation
- dust cover increases the tool's lifespan and protects the mechanism inside under intensive use conditions

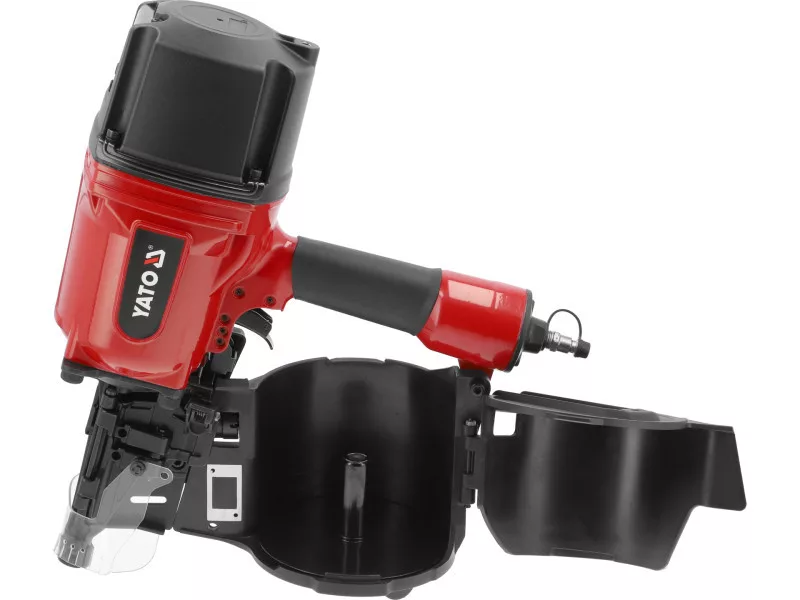

- side loading system facilitates and speeds up magazine refilling, which is particularly important for serial work
- aluminum body ensures high resistance to mechanical damage while maintaining a low device weight, especially appreciated during long hours of work
- anti-slip rubber handle provides a secure grip and reduces vibration transfer to the hand
- dimensions: 417 x 156 x 336 mm
- weight: 5.3 kg
