| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Connecting elements type | nails |
| Connecting elements length | 50-100 mm |
| Connecting elements dimensions | 50-100x2.9-3.3x7 mm |
| Max. working pressure | 0.8 MPa |
| Recommended working pressure | 0.4-0.8 MPa |
| Air connection diameter (PT) | standard |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Dispenser capacity | 40 x2 szt. |
| Dimensions | 475x366x163 mm |
| Body material | aluminum |
| Handle material | rubber |
| Functions | sequential operating mode, side loading system, adjustable penetration depth |
| Dust cover | yes |
| Fuse | yes |
| Acoustic pressure | 95.9 ± 2.5 dB(A) |
| Acoustic power | 108.9 ± 2.5 dB(A) |
| Vibrations | 5.17 ± 0.59 m/s² |
| Weight | 4.25 kg |
| Symbol | YT-09240 |

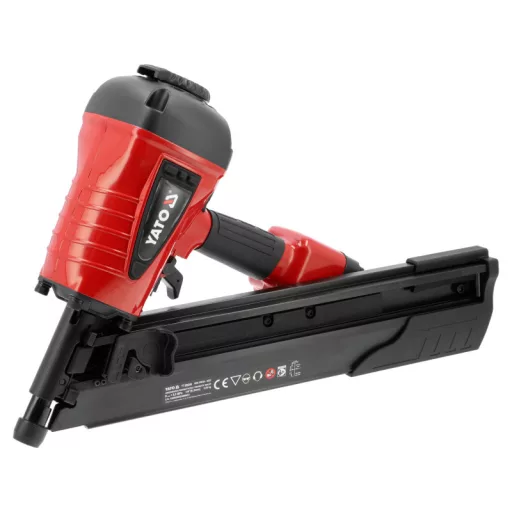

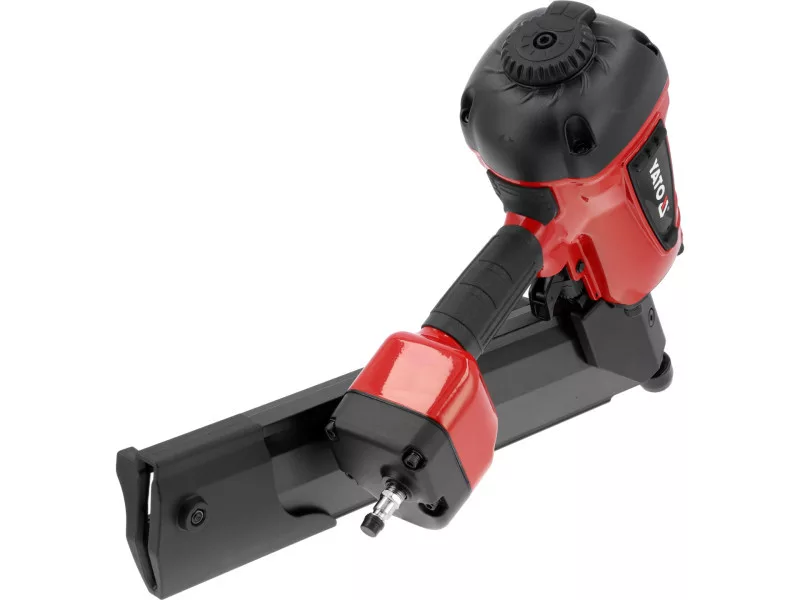

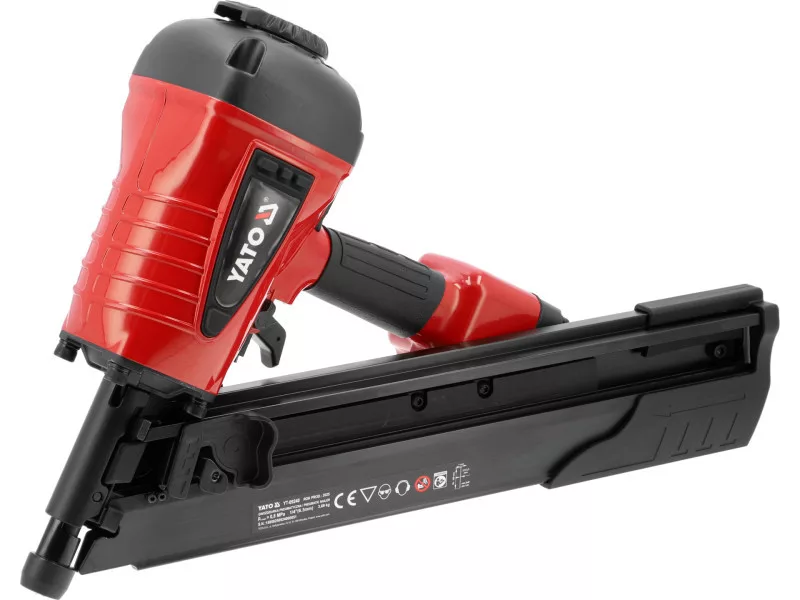

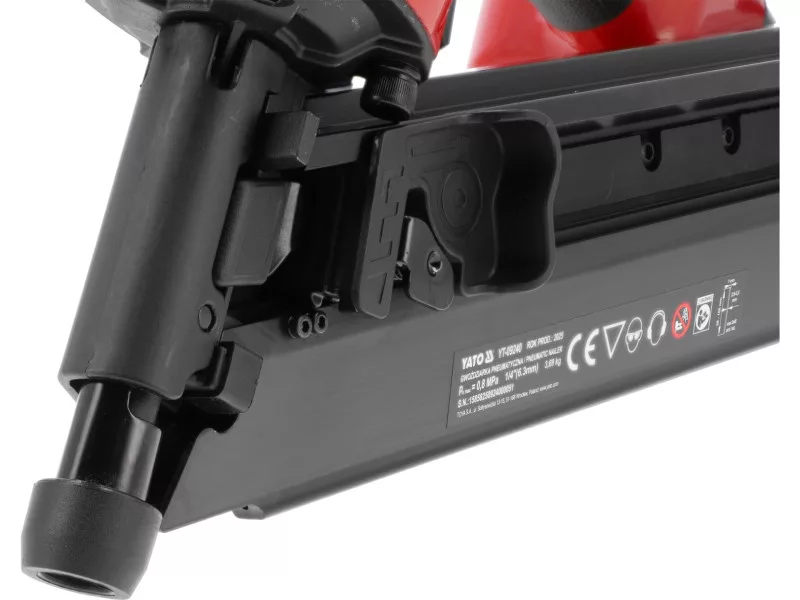

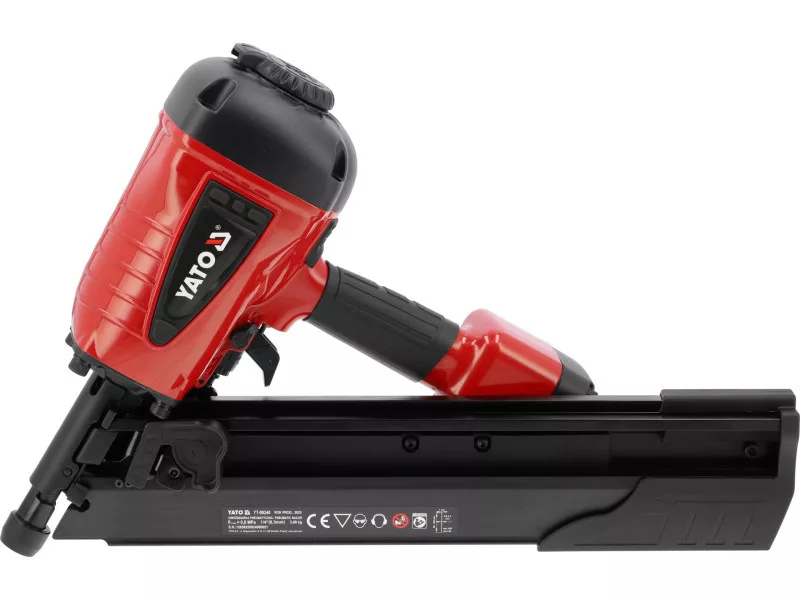

A professional pneumatic nailer ensures precise, fast, and durable fastening of materials using glued nails. Created for demanding and intensive carpentry, assembly, and upholstery work, it also works well for light finishing tasks.
It has protection against accidental application, a side loading system, and a dust cover. The sequential mode streamlines work, increasing assembly efficiency.
- fastener length: 50-100 mm
- nail joining angle on paper tape: 34°
- fastener dimensions: 50-100 x 2.9-3.3 x 7 mm
- max. operating pressure: 0.8 MPa

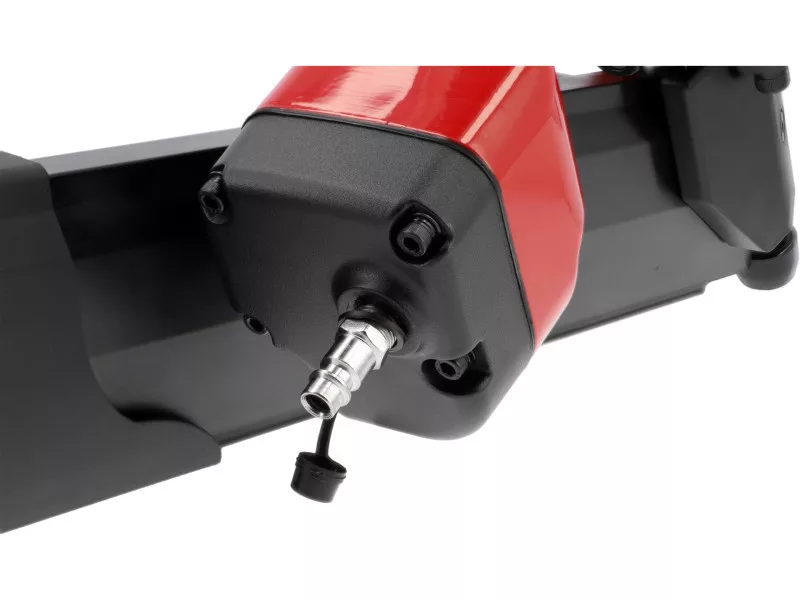

- air inlet diameter: standard
- inner diameter of the air supply hose: 3/8" (9.5 mm)
- a magazine with a capacity of 40 x 2 nails allows for longer uninterrupted work
- the sequential mode function allows for controlled, rhythmic driving of fasteners, improving accuracy and user safety
- a safety lock minimizes the risk of accidental tool activation
- a dust cover increases the tool's lifespan and protects the interior mechanism under intensive use
- a side loading system facilitates and speeds up magazine refilling, which is particularly important for serial work
- depth adjustment allows for precise adaptation to the material being processed
- an aluminum body ensures high resistance to mechanical damage while maintaining a low device weight, especially appreciated during long hours of work
- a non-slip rubber handle provides a secure grip and limits vibration transfer to the hand
- dimensions: 475 x 366 x 163 mm
- weight: 4.25 kg
Compatible nails: VOREL 72010, 72011, 72012, 72013.
