| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Max. lifting capacity | 4 t |
| Lifting range | 150-400 mm |
| Min. lifting height | 150 mm |
| Max. lifting height | 400 mm |
| Operating pressure | 0.8-1.2 MPa |
| Air connection diameter (PT) | standard |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Material | iron, rubber |
| Working temperature | -30 ~ +50 ˚C |
| Acoustic pressure | 70 dB(A) |
| Acoustic power | 80 dB(A) |
| Weight | 15.3 kg |
| Symbol | YT-17228 |

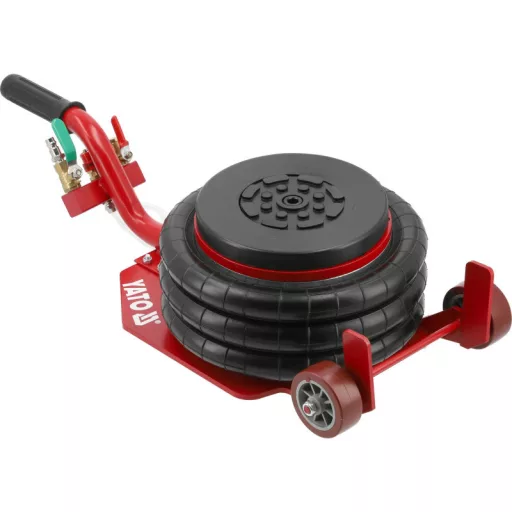

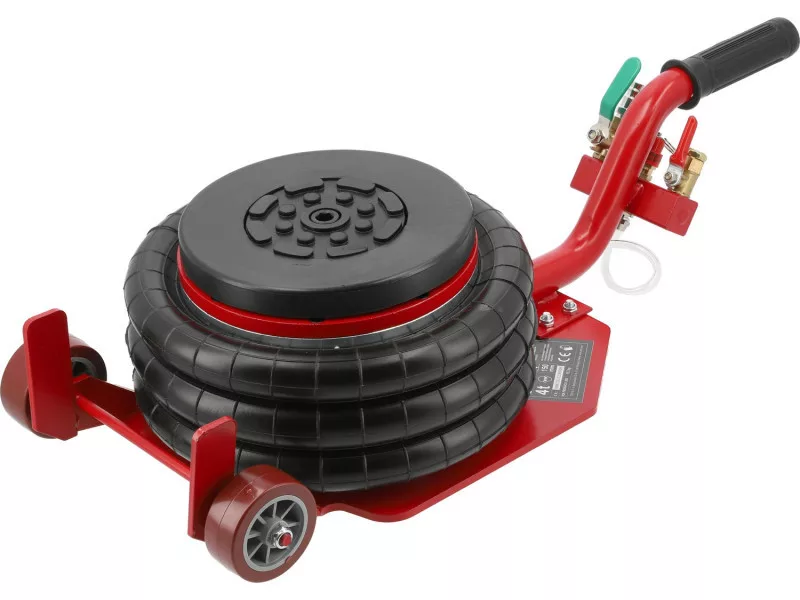

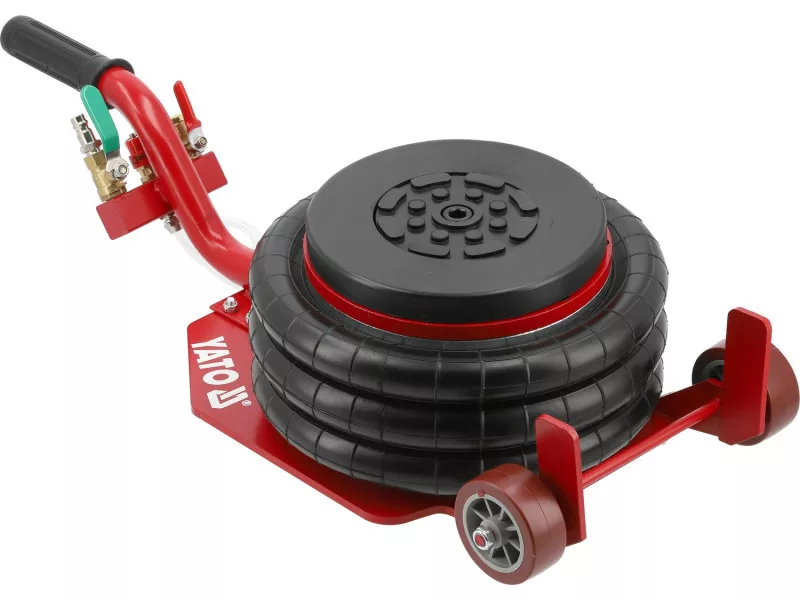

The pneumatic lift with a capacity of 4 tons is a professional tool for the quick and effortless lifting of passenger cars, SUVs, and commercial vehicles. Thanks to the pneumatic lifting mechanism, working with the vehicle becomes more ergonomic and safer compared to traditional hydraulic or mechanical-screw lifts.
The construction combines solid materials - a steel frame with rubber elements, ensuring durability and protection for the lifted vehicle components. The model is equipped with wheels that facilitate maneuvering, and the working height range allows for lifting low-slung bodies as well as providing comfortable access to the undercarriage.
Main features and specifications:
- load capacity of 4 tons - the lift is designed to work with vehicles with a maximum weight of up to 4000 kg, making it suitable for lifting a wide range of cars
- lifting range - the minimum working height of 15 cm allows for sliding under low-slung cars, while the maximum lifting height of 40 cm provides access to the undercarriage during maintenance and repairs
- pneumatic mechanism - the device uses an air cushion with a diameter of 25.5 cm and operates within a working pressure range of 0.8-1.2 MPa (10-12 BAR), smoothly lifting the vehicle upon connection to compressed air

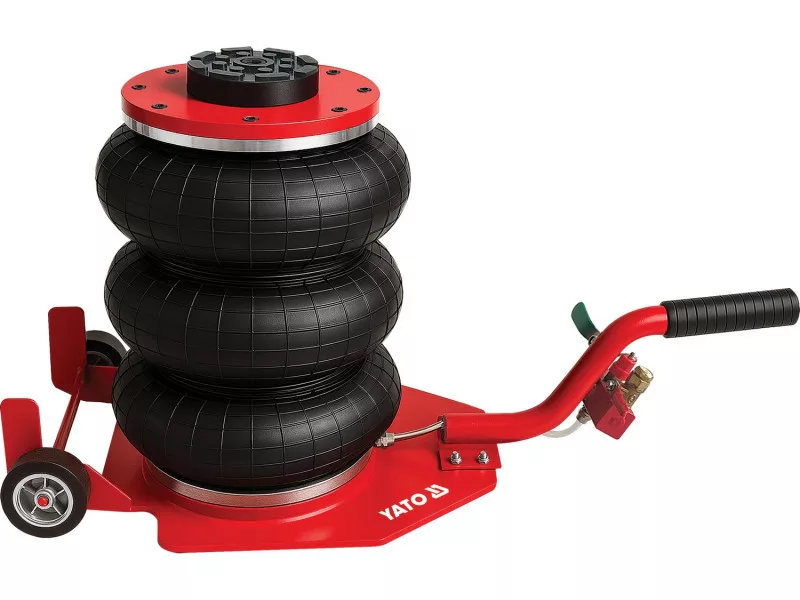

- triple pneumatic cushion increases stability during lifting and ensures even load distribution

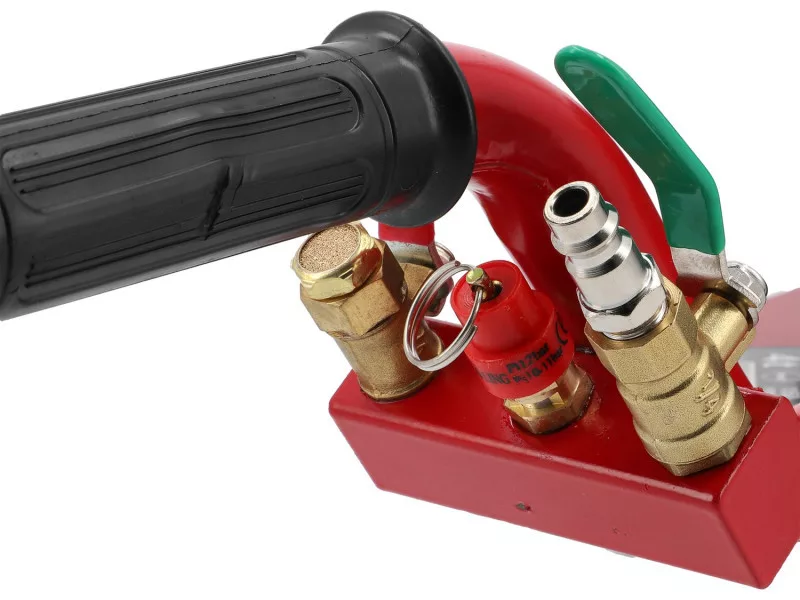

- valves allowing for quick connection to the compressed air system
- steel construction (iron) guarantees high strength and load resistance
- rubber elements enhance vibration absorption and protect the vehicle's surface at the support point

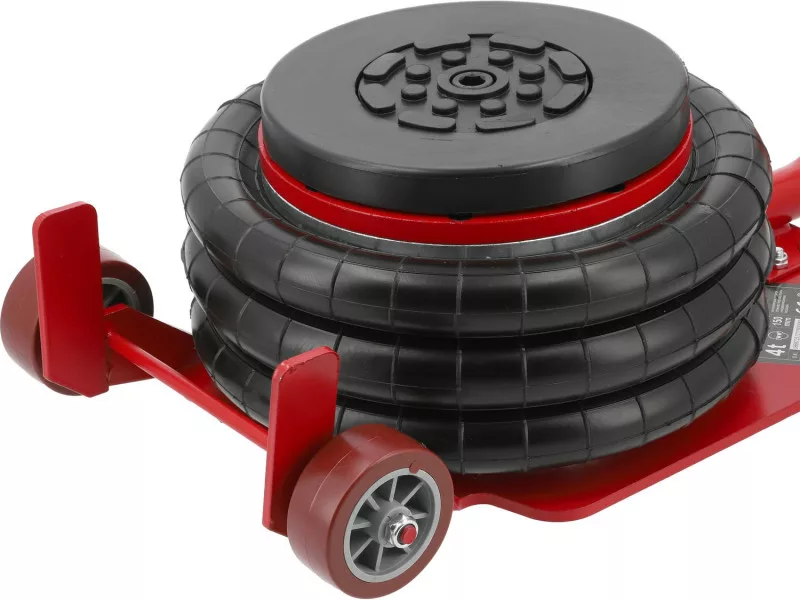

- transport wheels facilitate movement and positioning under the vehicle, even in limited workshop space
- compact design weighing 15.3 kg takes up little space during operation and storage
Technical data:
- load capacity: 4 t
- minimum lifting height: 15 cm
- maximum lifting height: 40 cm
- working pressure: 10-12 bar
- diameter of cushions: 25.5 cm
- weight: 15.3 kg (net), 15.8 kg (gross)
- material: iron and rubber
Usage warnings:
Do not exceed the lifting capacity of the elevator.
It is imperative to place the jack on a firm, level and stable surface.
Do not perform any activities under an elevated and unsecured vehicle.
