| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Max. lifting capacity | 4 t |
| Lifting range | 150-400 mm |
| Min. lifting height | 150 mm |
| Max. lifting height | 400 mm |
| Operating pressure | 0.8-1.2 MPa |
| Air connection diameter (PT) | standard |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Material | iron, rubber |
| Working temperature | -30 ~ +50 ˚C |
| Acoustic pressure | 70 dB(A) |
| Acoustic power | 80 dB(A) |
| Weight | 15 kg |
| Symbol | YT-17229 |

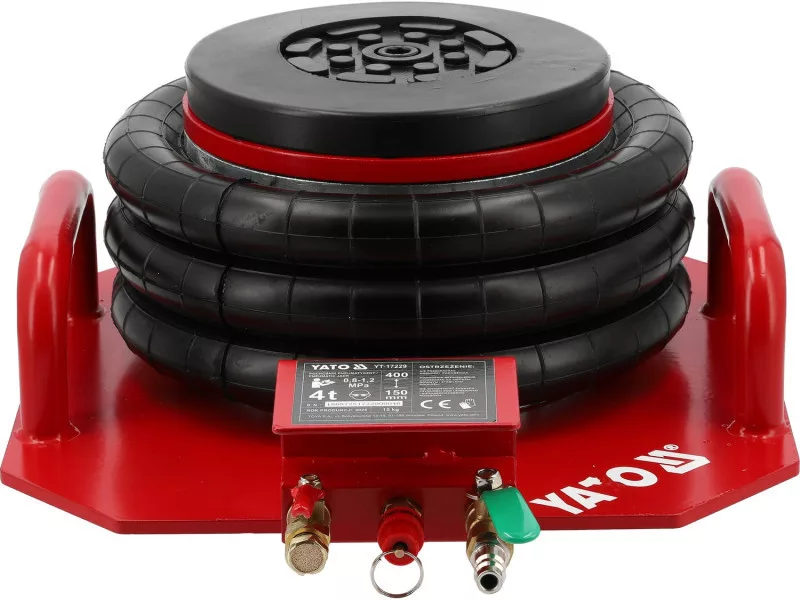

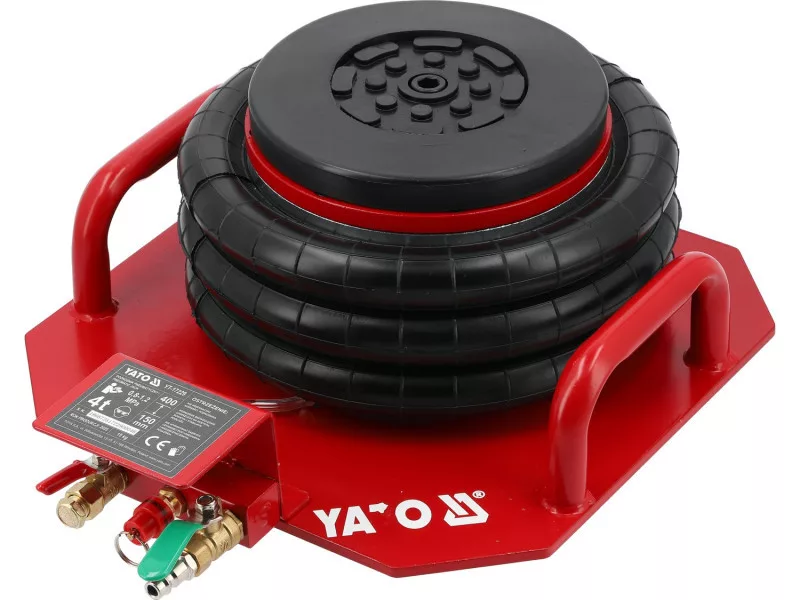

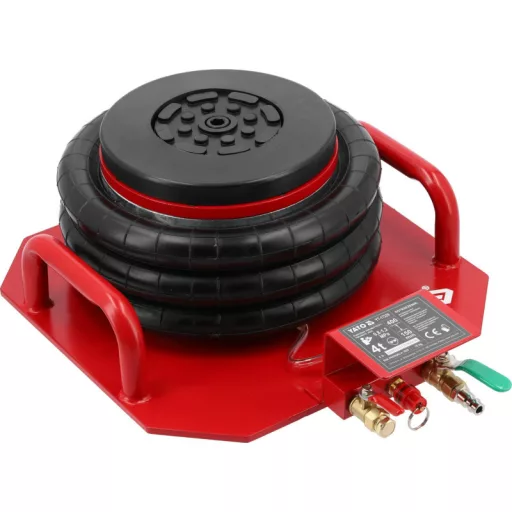

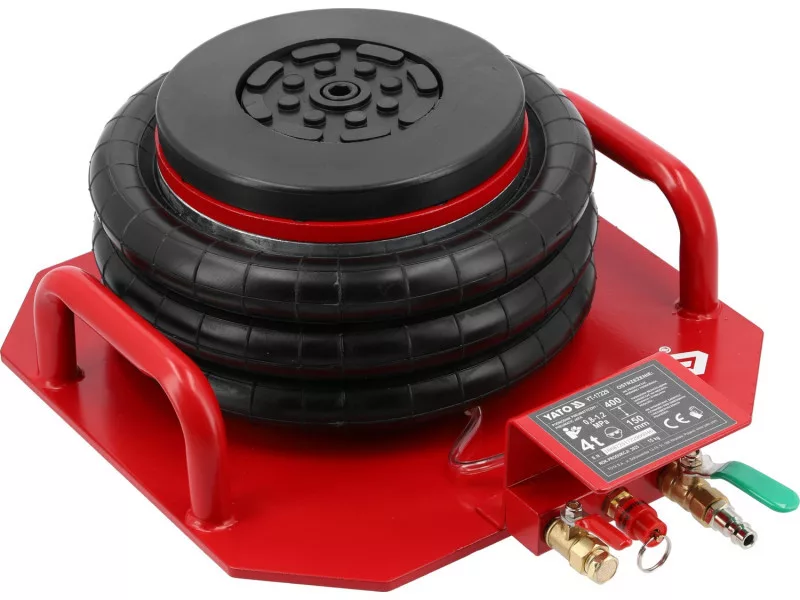

The pneumatic jack with a lifting capacity of 4 tons is a professional tool for quick and effortless lifting of passenger cars, SUVs, and vans. Thanks to the use of a pneumatic lifting mechanism, working with the vehicle becomes more ergonomic and safer compared to traditional hydraulic or mechanical-screw jacks.
The construction combines solid materials - a steel frame with rubber elements, ensuring durability and protection for the lifted parts of the vehicle. The working height range allows for lifting low-slung bodies as well as providing comfortable access to the undercarriage.
Main features and specifications:
- lifting capacity of 4 tons - the jack is designed to work with vehicles with a maximum weight of up to 4000 kg, suitable for lifting a wide range of cars
- lifting range - the minimum working height of 15 cm allows for sliding under low-slung cars, while the maximum lifting height of 40 cm provides access to the undercarriage during maintenance and repairs
- pneumatic mechanism - the device uses an air cushion with a diameter of 25.5 cm and operates within a working pressure range of 0.8-1.2 MPa (10-12 BAR), smoothly lifting the vehicle once connected to compressed air

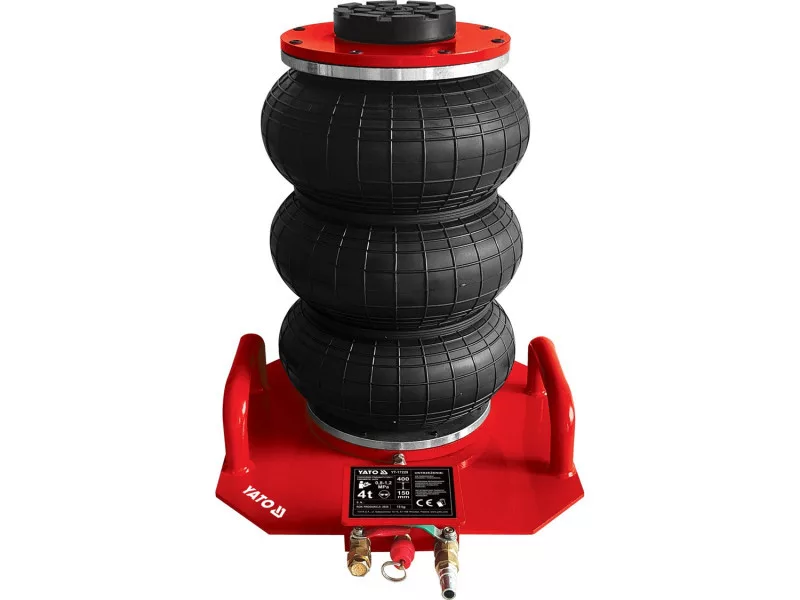

- triple, reinforced pneumatic cushion increases stability during lifting and ensures even load distribution

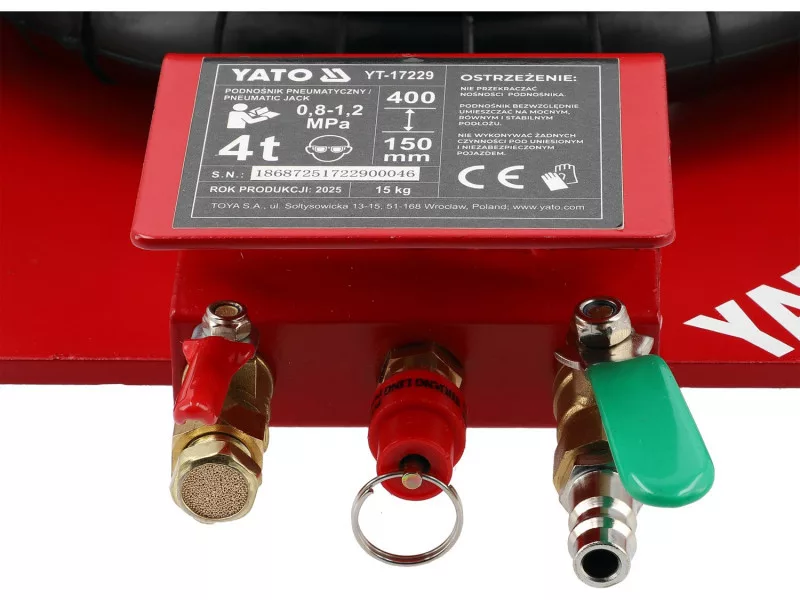

- valves allowing for quick connection to the compressed air system
- steel construction (iron) guarantees high strength and resistance to loads
- rubber elements increase vibration absorption and protect the vehicle's surface at the support point
- compact design weighing 15 kg takes up little space during use and storage
- two sturdy side handles facilitate transportation
Technical specifications:
- lifting capacity: 4 t
- minimum lifting height: 15 cm
- maximum lifting height: 40 cm
- working pressure: 10-12 bar
- diameter of cushions: 25.5 cm
- weight: 15 kg (net), 16 kg (gross)
- material: iron and rubber
Usage warnings:
Do not exceed the lifting capacity of the elevator.
It is imperative to place the jack on a firm, level and stable surface.
Do not perform any activities under an elevated and unsecured vehicle.
