| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Cutting diameter | 22-60 mm |
| Force pressure | 6 t |
| Max. steel sheet thickness | 4 mm |
| Rotary head | no |
| Application | for cutting round holes in sheet metal, for cutting holes in the production of switchboards, for mounting boxes or switches |
| Symbol | YT-18907 |

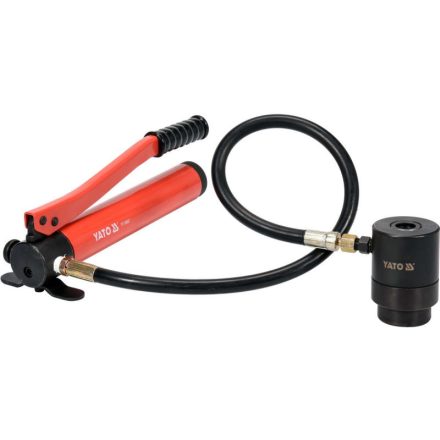

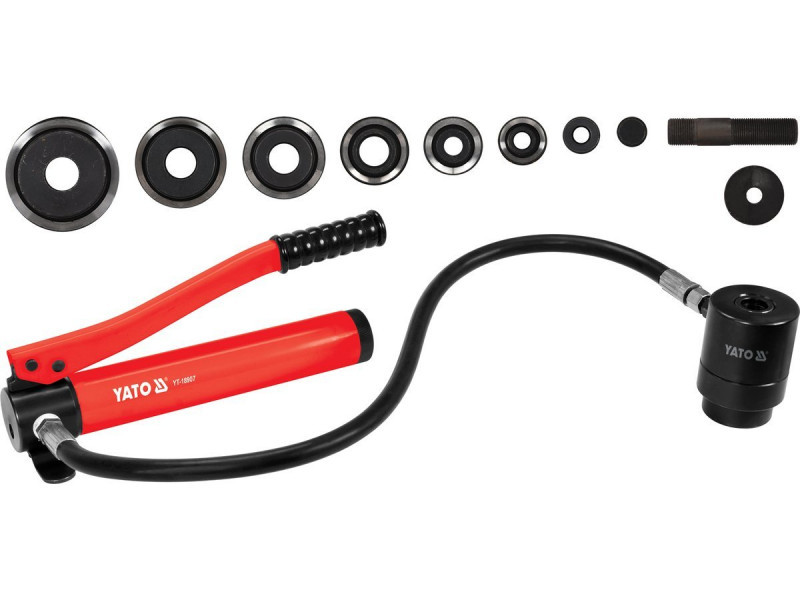

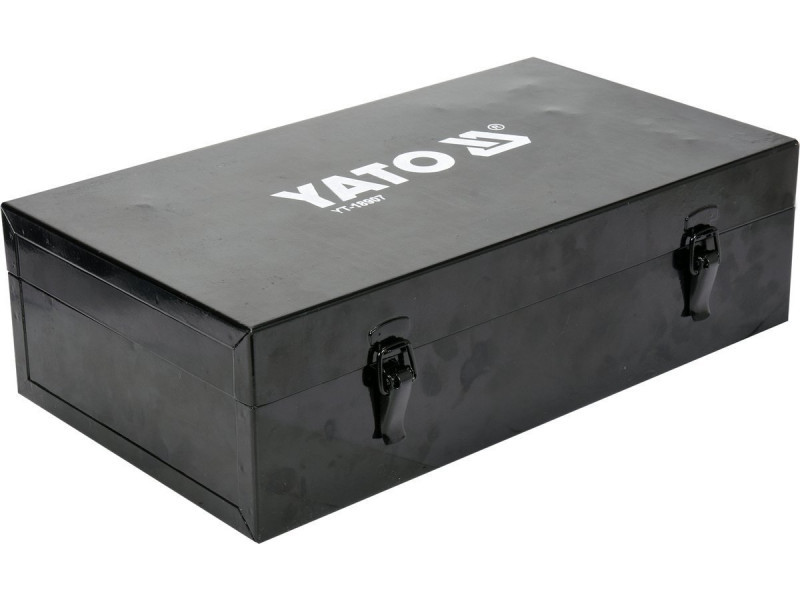

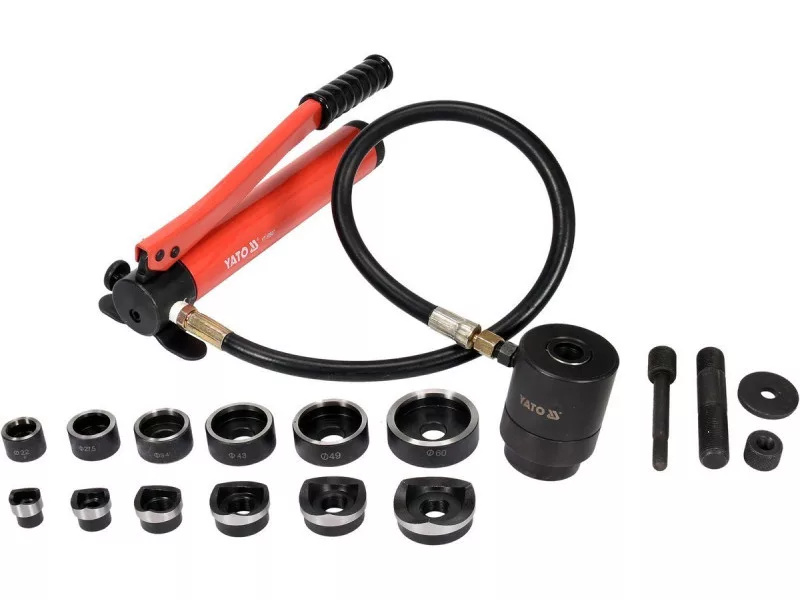

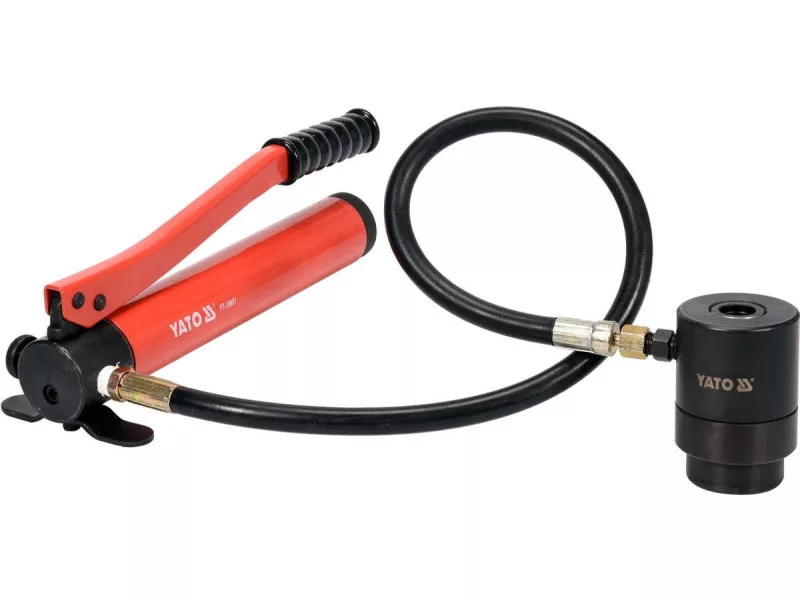

Set for cutting round holes in sheets in the diameter range from 22-60 mm. The cutting head is connected to a hose with a hydraulic cylinder pump. The set is intended for cutting holes in the production of switchgear cabinets for mounting cans or switches. When cutting the holes, the surface of the sheet is not deformation and damage. The set is easy to transport and store - packed in a durable suitcase. Contains matrices and stamps cutting holes with diameters 22 mm/0.9 ", 27.5 mm/1.1", 34 mm/1.3 ", 43 mm/1.7", 49 mm/2.0 ", 60 mm/2.4. The emphasis on the material when cutting is about 6 tons. Suitable for cutting holes in steel sheets, stainless sheets and colored metals. The thickness of the cut material depending on its type up to 4 mm. The set includes 6 Steam of the dies of Fi 22, 27.5, 34, 43, 49, 60 mm, 2 pads for fastening 7/16x3/4 inches and 3/4x3/4 inches, manual cylinder with a snake, 1 sealing set. For quick cutting in sheets large precise holes with diameters from 22-60 mm. According to the instructions for the user's user with a pump and hose, cutting stamps with diameters 22 mm/0.9 ", 27.5 mm/1.1", 34 mm/1.3 " , 43 mm/1.7 ", 49 mm/2.0", 60 mm/2.4 "matrices with diameters appropriate to 22 mm/0.9", 27.5 mm/1.1 "stamps, 34 mm /1.3 ", 43 mm/1.7", 49 mm/2.0 ", 60 mm/2.4" Fastening mandes 7/16x3/4 inches and 3/4x3/4 inch sealing set packed in a suitcase
