| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Functions | cutting wires, insulation stripper |
| Max. cutting diameter | 10.5 mm |
| Cross section F mm2 | 0.75-2.5 |
| Cross section F AWG | 18~14 |
| Length | 175 mm |
| Body material | steel 65Mn |
| Handle material | PP, TPR |
| Spring | yes |
| Lock | yes |
| Symbol | YT-19692 |

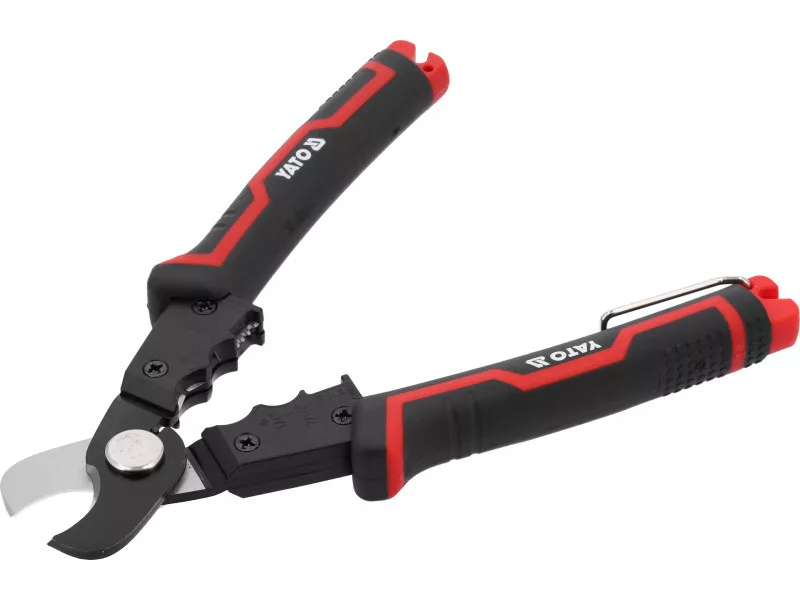

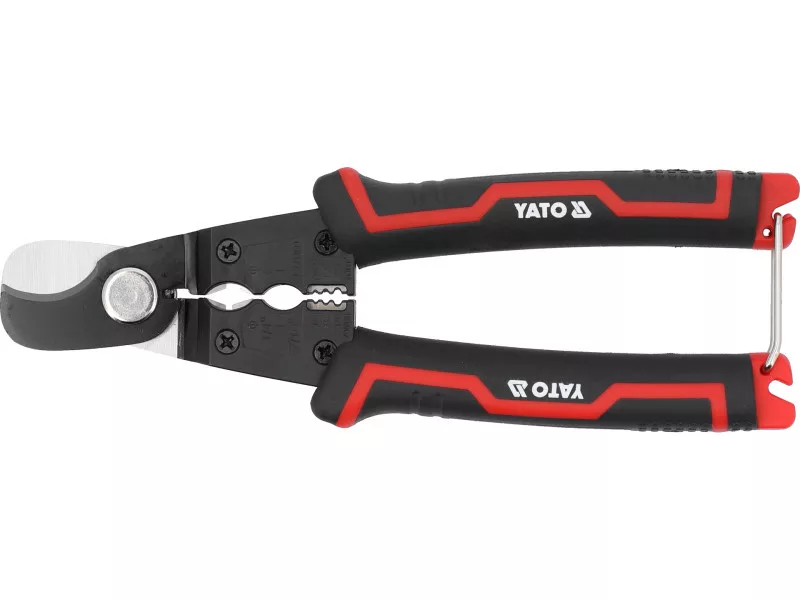

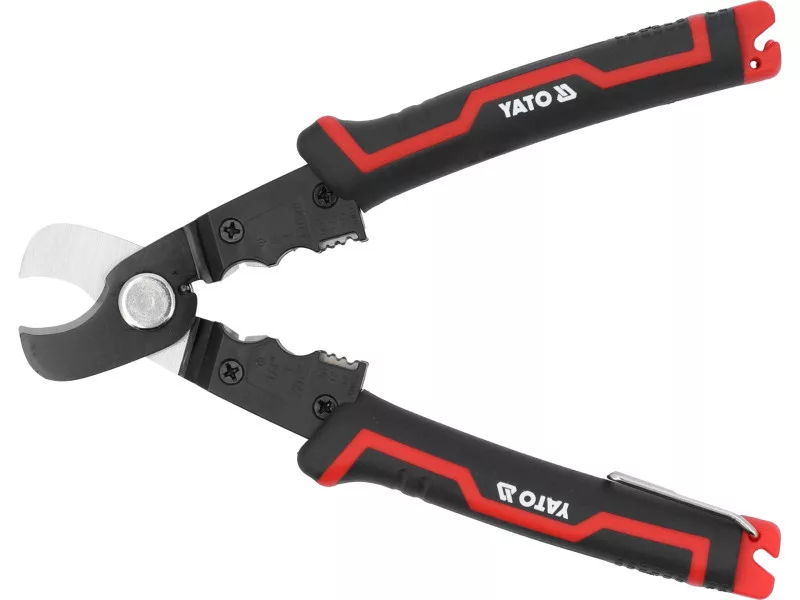

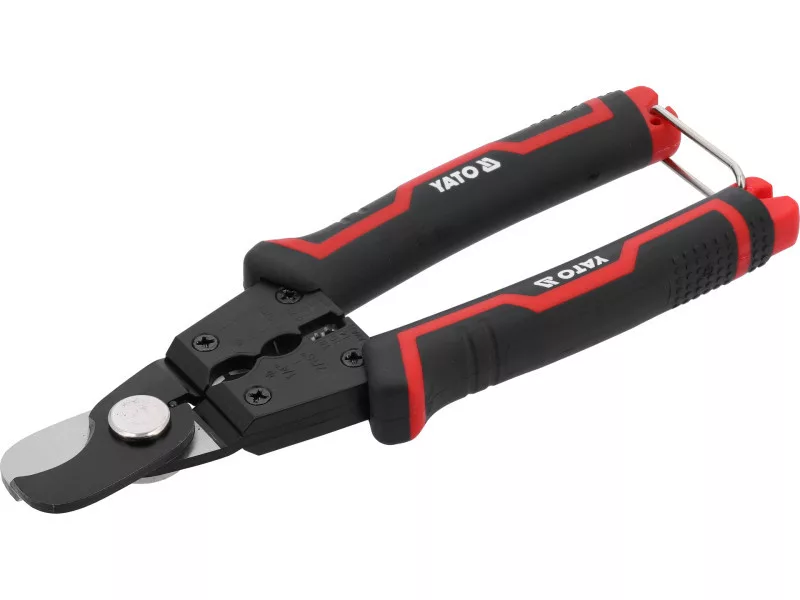

Wire cutting and insulation stripping pliers are a versatile tool that works well both in an electrical workshop and during home installation work.
- The body made of 65 Mn steel guarantees durability and resistance to wear
- The cutting blade with a thickness of 3 mm ensures precise and clean cutting
- The ergonomic handle made of TPR and PP improves work comfort and reduces hand fatigue
- The massive rivet with a built-in rebound spring automatically allows the pliers to work smoothly within a certain range of motion, maintaining cutting repeatability and precision
- The opening lock allows safe storage and controlled use of the tool
The pliers allow for convenient removal of insulation in various ways:
- Longitudinal insulation stripping from a round wire with a diameter of 6-11 mm (middle hole in the body)
- Cross insulation stripping from a round wire with a diameter of 6-11 mm (upper hole)
- Insulation stripping from individual wires with cross-sections of 0.75/1.5/2.5 mm² (18/16/14 AWG) (lower hole)
Technical data:
- Length: 175 mm
- Blade thickness: 3 mm
- Maximum cutting diameter: 10.5 mm
- Single wire sections: 0.75/1.5/2.5 mm2 (18/16/14 AWG)
- Insulation stripping wire range: 6–11 mm
- Body material: 65 Mn steel
- Handle: TPR+PP
- Spring mechanism hidden under the rivet
- Weight: 170 g
Usage warnings:
Warning! Always use personal safety equipment at work.
