| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Functions | cutting wires, screw cutter, insulation stripper |
| Cross section F mm2 | 0.5-5 |
| Cross section F AWG | 20~10 |
| Cross section A mm2 | 0.5-5 |
| Cross section A AWG | 20~10 |
| Cross section B mm2 | 0.5-5 |
| Cross section B AWG | 20~10 |
| Cross section C mm2 | 0.5-5.5 |
| Cross section C AWG | 20~10 |
| Bolt diameter | 2.6, 3, 3.5, 4, 5 mm |
| Length | 250 mm |
| Body material | carbon steel |
| Surface finish | blackened, oxidized |
| Handle material | PP |
| Application | electric |
| Symbol | YT-2254 |

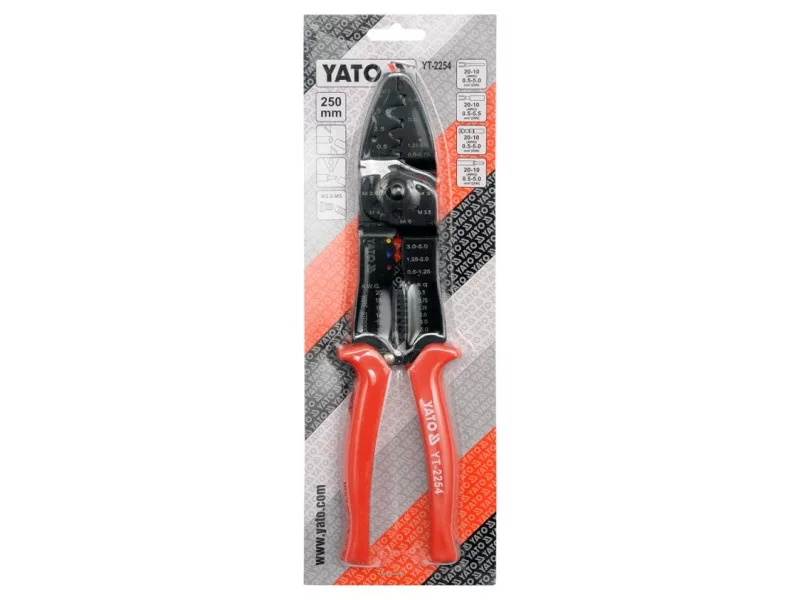

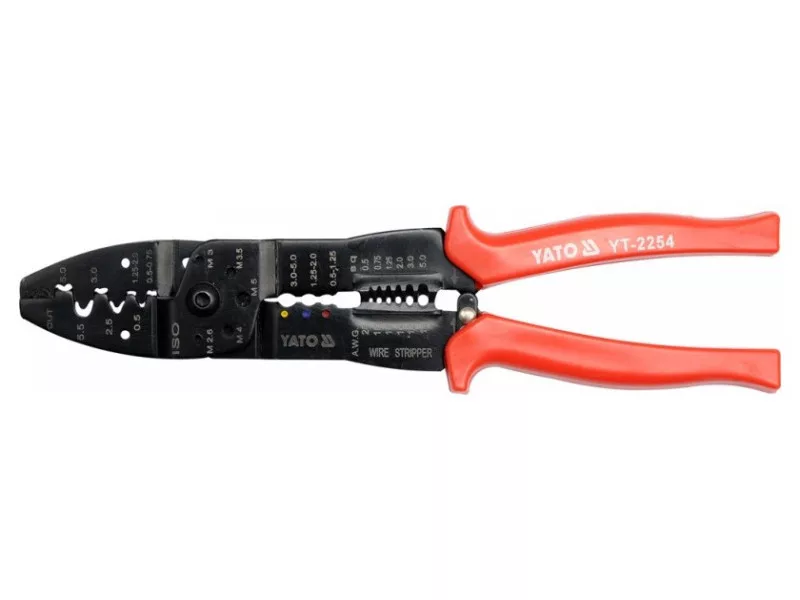

Pincers YT-2254 made of thick hardened steel with a blackened surface thatóra protects against corrosion. Handles protected by plastic caps.
- capable of crimping uninsulated connectors
- capable of crimping insulated connectors
- capable of crimpingoacute;w izolowanych
- możliwość zaciskania konektorów zaciskowych
- ability to strip insulation from round wiresós between 0.5 mm2 and 5.0 mm2
- ability to shorten screws with a diameter of 2.6 mm to 5.0 mm
- possibility to cut wiresów

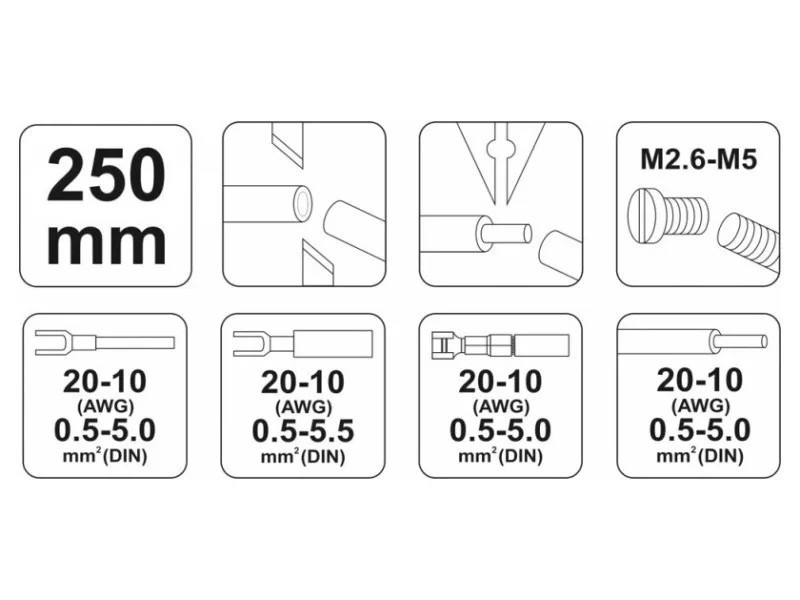

YT-2254 pliers application table:
Usage warnings:
Warning! Always use personal safety equipment at work.
