| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Functions | cutting wires, screw cutter, insulation stripper, crimping ignition cable ends |
| Cross section B mm2 | 1.25-2.5 |
| Cross section B AWG | 8~12 |
| Cross section C mm2 | 1 |
| Cross section C AWG | 8 |
| Bolt diameter | 2.6, 3, 3.5, 4, 5 mm |
| Auto ignition terminals diameter | 7-8 mm |
| Length | 215 mm |
| Body material | carbon steel |
| Surface finish | blackened, oxidized |
| Blade material | steel 65Mn |
| Hardness | 50-53 HRC |
| Handle material | PVC |
| Application | electric |
| Symbol | YT-2293 |

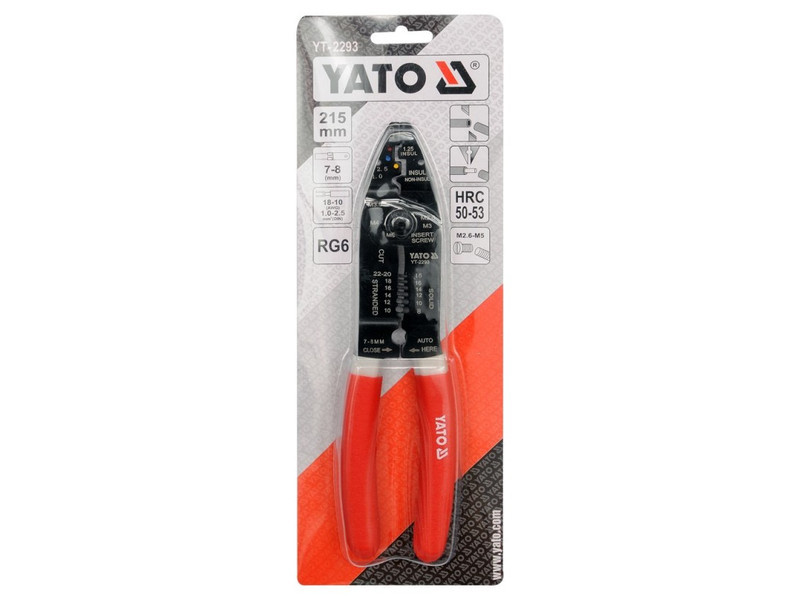

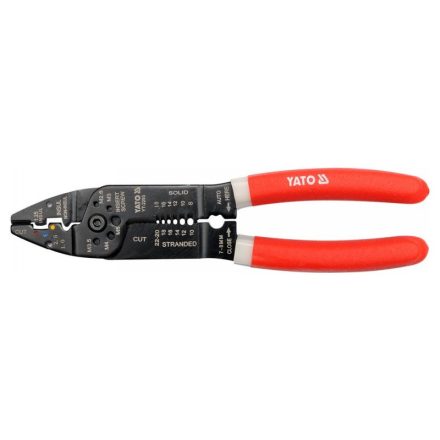

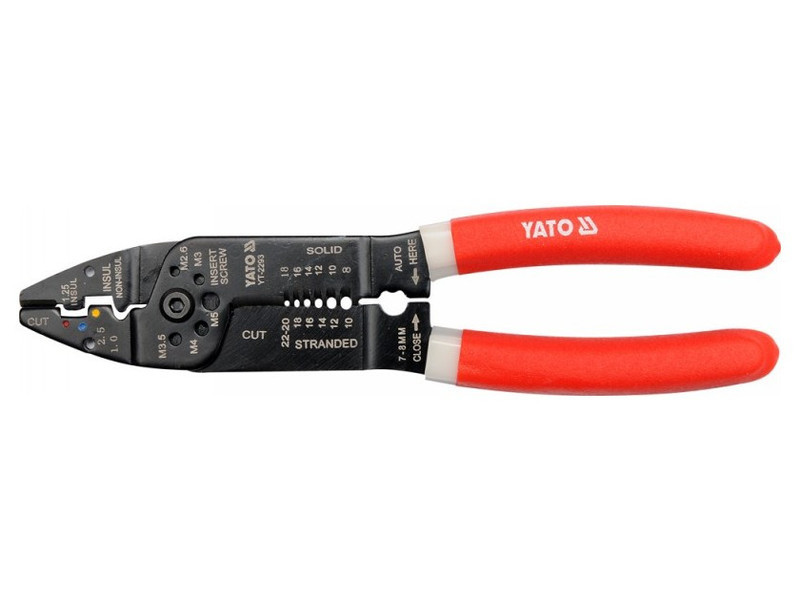

Pliers YT-2293 made of thick hardened steel with a blackened surface that protects against corrosion. Handles protected by double plastic overlays.
- possibility of clamping insulated connectors
- possibility of clamping clamping connectors
- possibility of stripping insulation from round wires in the range from 0.75 mm2 to 2.6 mm2
- possibility of crimping spark plug wires
- possibility of shortening screws with a diameter from 2.6 mm to 5.0 mm
- possibility of cutting wires

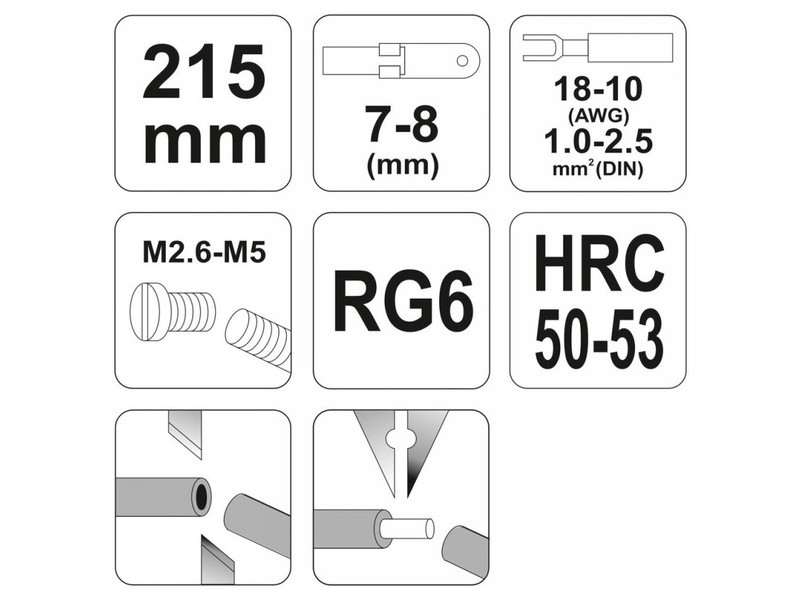

Pliers YT-2293 application table:
Usage warnings:
Warning! Always use personal safety equipment at work.
