| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Alternating voltage | 6-1000 V a.c. |
| Direct voltage | 6-1000 V d.c. |
| Resistance | 0 -1999 Ω |
| Regularity | 50-400 Hz |
| Continuity test | 0-400 MΩ |
| Phase sequence test | yes |
| Voltage detection | yes, mechanical |
| Polarity detection | yes, full range |
| Measurement accuracy | ± (3% + 5) |
| Reaction time | 1 (LED lights), ≤1 (LCD display) s |
| Dimensions | 280x74x34 mm |
| Display type | LCD |
| Display resolution | 1 V a.c./V d.c. |
| Display range | 1999 |
| LED display thresholds | 12, 24, 50, 120, 230, 400, 690, 1000 V a.c./V d.c.. |
| Auto measurement range | yes |
| RCD tripping | ~30 mA / 230 V |
| Max. measurement duration | 30 s |
| Regeneration time (time between consecutive RCD tests) | 240 s |
| Low impedance voltage test mode | yes, approx. 7kΩ (to eliminate noise) |
| Peak current Is (load) | 150 mA |
| Impedance / peak current | 350 kΩ / Is 3.5 mA (does not trigger RCD) |
| Bell ring | yes |
| Automatic start-up | ≥12 V a.c./V d.c. (LED indicators), ≥6 V a.c./V d.c. (LCD display) |
| Power supply | battery |
| cell type | 2x1.5V; AAA |
| Working temperature range | -10 ~ +50 ˚C |
| Operating relative humidity Rh | 85 % |
| Storage temperature | -10 ~ +50 ˚C |
| Protection grade | IP64 |
| Weight | 285 g |
| Application | electric |
| Symbol | YT-28330 |

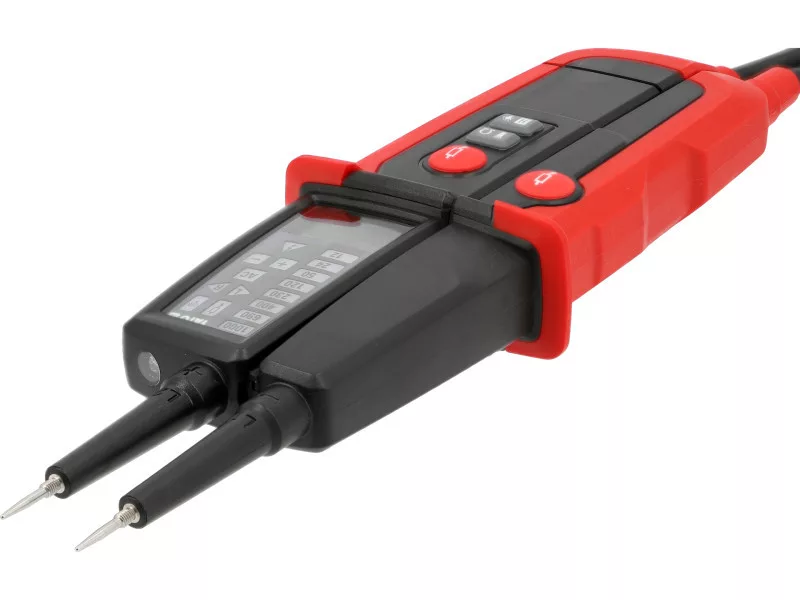

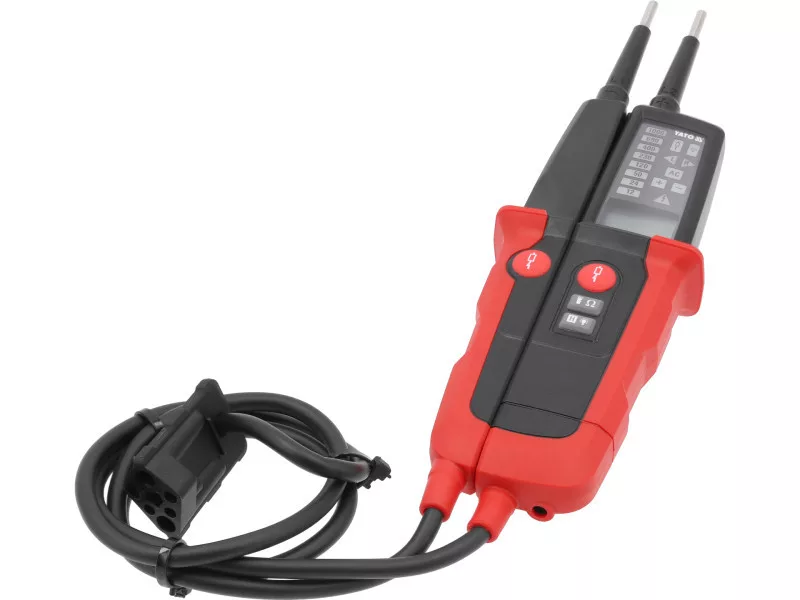

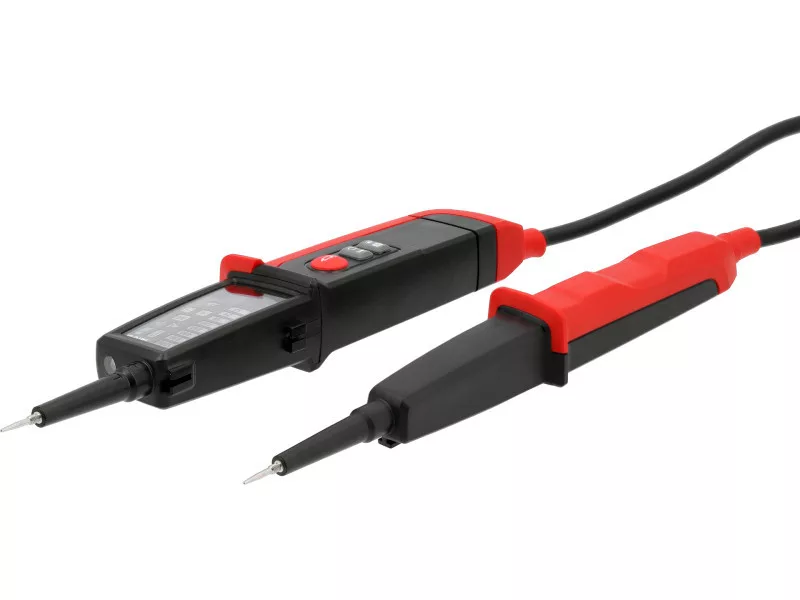

Bipolar voltage tester in a solid housing with flexible cables in silicone insulation. Detects and measures AC and DC voltages in the range of 6 to 1000 V. The result is indicated on the LCD display and via LED indicators. The tester also allows you to:
- check the phase rotation sequence in three-phase systems
- check the voltage in low impedance mode (to eliminate noise)
- test the operation of RCD switches with a rated current of 30 mA or less
- perform circuit continuity test and measure resistance up to 1999 ohms

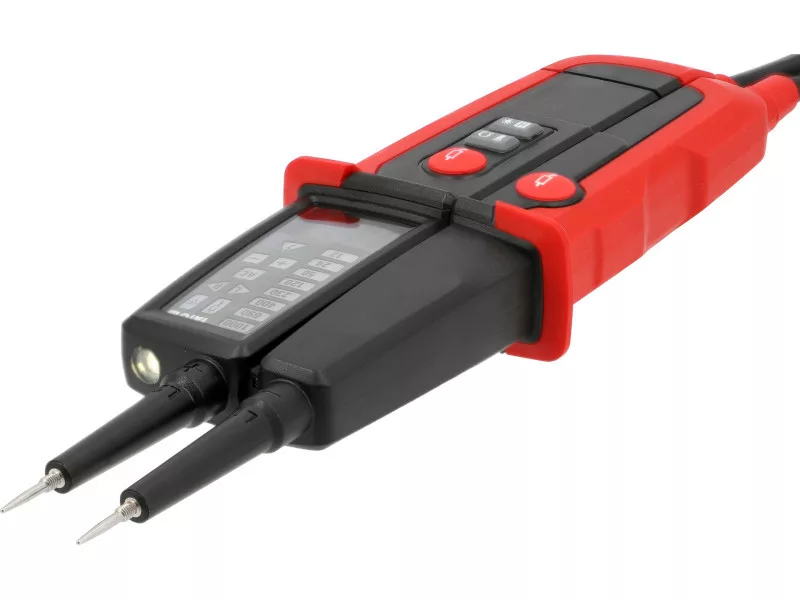

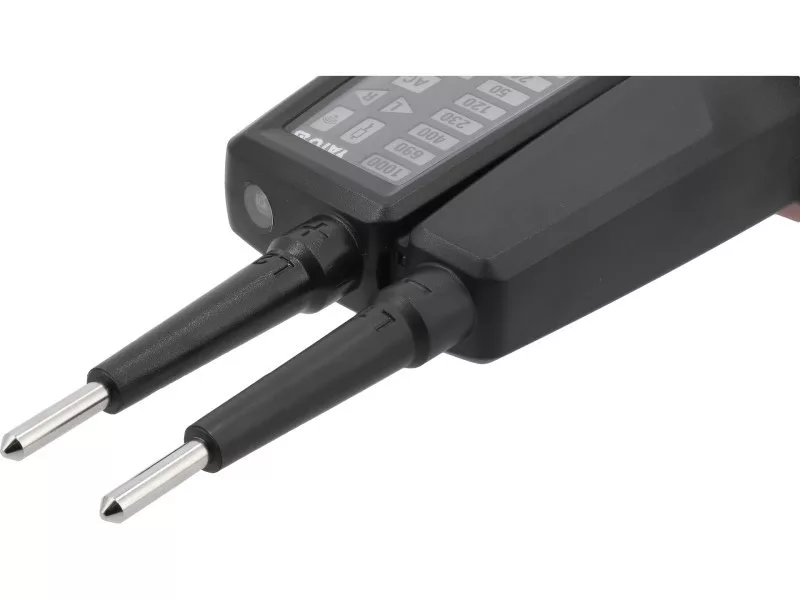

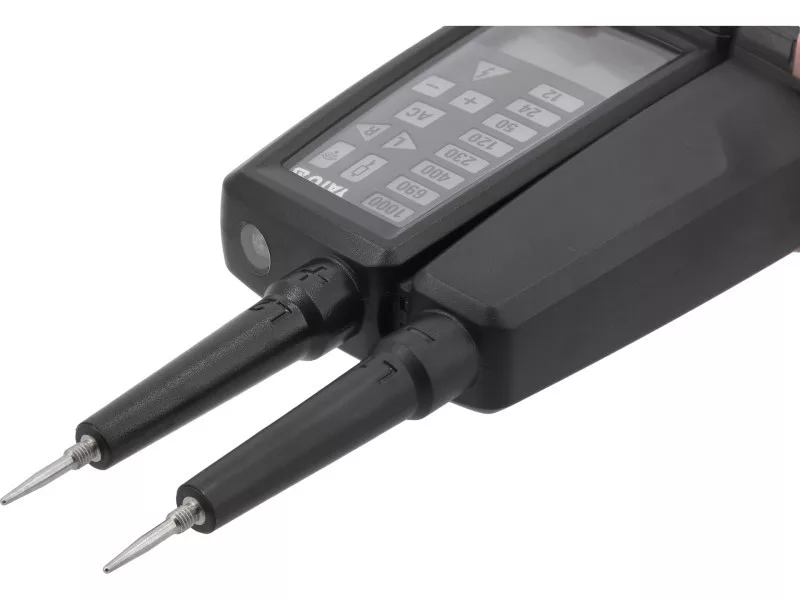

Measurements in low light conditions are facilitated by the built-in LED flashlight. Measurement safety is supported by a solid and sealed housing with IP64 standard. The set includes screw-on probe caps to facilitate measurements in sockets. The meter meets the requirements of CAT III 1000 V / CAT IV 600 V surge protection categories.
- DC voltage measurement: 6-1000 V d.c.
- AC voltage measurement: 6-1000 V a.c.
- Resistance measurement: 0-1999 Ω
- Frequency measurement: 50-400 Hz
- Circuit continuity test: 0-400 MΩ
- Measurement accuracy: ± (3% + 5)
- Impedance (peak current): 350 kΩ / Is 3.5 mA (does not trigger RCD)
- Response time: 1 s (LED indicators), ≤1 s (LCD display)
- Automatic activation: ≥12 V a.c./V d.c. (LED indicators), ≥6 V a.c./V d.c. (LCD display)
- Dimensions: 280 x 74 x 34 mm
- Display: LCD
- Screen resolution: 1 V a.c./V d.c.
- LED display thresholds: 12, 24, 50, 120, 230, 400, 690, 1000 V a.c./V d.c.
- RCD triggering: ~30 mA / 230 V
- Max. measurement duration: 30 s
- Regeneration time (for next RCD test): 240 s
- Power supply: 2 AAA 1.5 V batteries
- Operating and storage temperature: -10 ~ +50˚C
- Relative humidity: 85%
- Weight: 285 g
- Protection class: IP64
