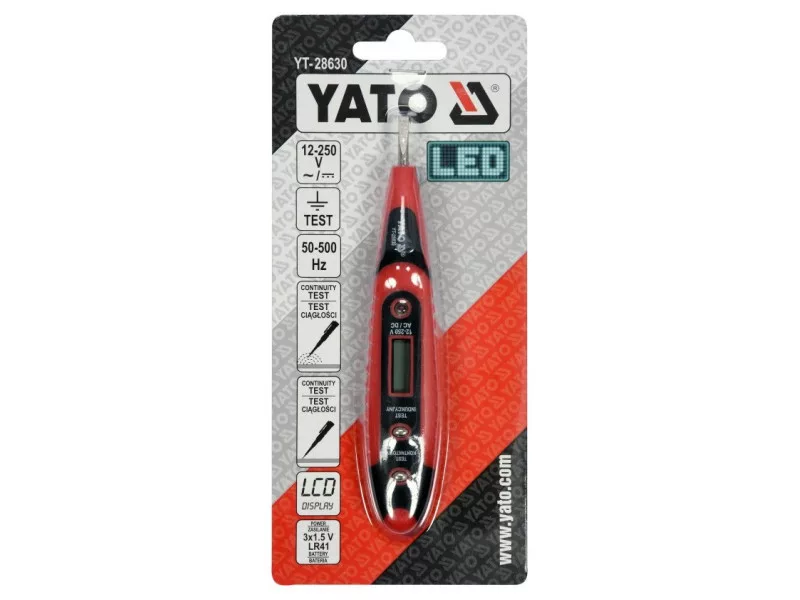

Voltmetru YATO digital

Brand	Yato
Entity responsible for this product in the EU	TOYA S.A.More
Series	GRD
Voltage - contact test	12-250 V a.c.
Voltage - non-contact test	12-250 V a.c.
Measured voltage frequency	50-500 Hz
Tip	flat
Slotted tip size	2.9 mm
Length	145 mm
Voltage	12-250 V d.c.
Continuity test	yes
Ground test	yes
Display type	LCD
LED indicators	yes
Power supply	battery
cell type	3x1.5V; LR41
Application	electric
Symbol	YT-28630

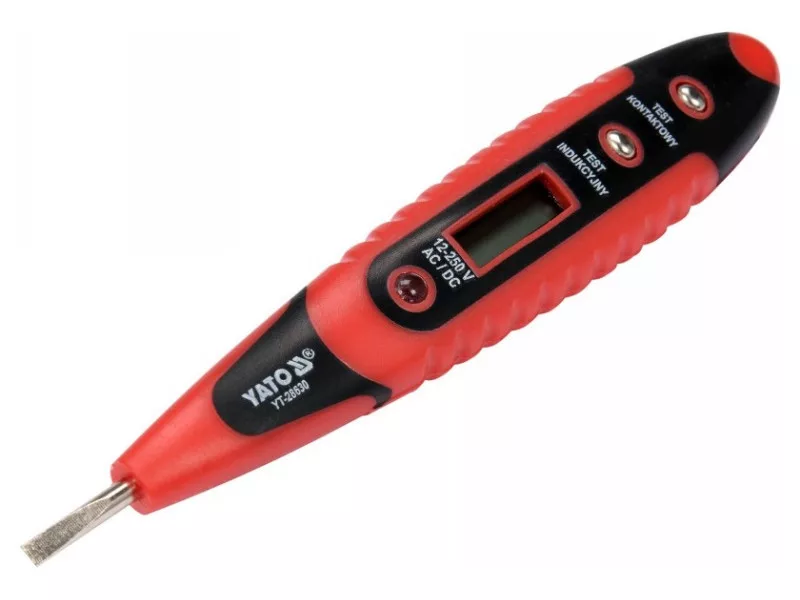

The YT-28630 electric indicator with the LCD display allows the presence of AC and DC electrical voltage, AC voltage detection by the induction method, as well as conducting a cable continuity test. The presence of voltage is signaled by an indication on the LCD display and lighting diode. Function indicating the AC and DC voltage. The contact method: 12-250VV TRANSTING AC by the inductive method. : 12, 36, 55, 110 and 220VVSIGNALLATION Lighting (LED) Power supply: 3x1.5V; LR41METODA CONTACTS TO THE DIRUCH LOCK. The display will display the voltage values, and the diode cavity means the electric current flow through this element. The indicator will show the highest voltage range for the tested circuit and all lower lines, e.g. when measuring the voltage from the 230V home socket, the display will appear on the indications [12, 36, 55, 110, 220], which means a voltage above 220V. The display indicates the correct voltage ranges for AC while holding the "contact test" field. For DC, the correct ranges are displayed when holding the "induction test" field. The induction -metering method allows you to detect AC voltage in an insulated cable. To do this, put a finger to the "induction test" field and bring the cave to the insulated cable. The presence of lightning symbol on the LCD display informs about the presence of voltage. This method allows r & oacute; contactless & none; Detection of a break in the electrical cable at voltage. At the interruption site, the tester will stop signaling the presence of tension. Craze continuity is checked by applying the tester cave to one end of the cable, then holding the "contact test" field, catch the other end of the cable. Less LEDs means the continuity of the tested cable. & Nbsp

Usage warnings:

Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
