| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Power | 1.28 kW |
| Flame temperature | 1600 ˚C |
| Gas type | butane from an external cylinder |
| Gas tank type | disposable, threaded, self-sealing, under direct pressure, type EN417 |
| Gas tank connection type | 90˚ TWIST |
| Gas usage | 93 g/h |
| Piezo ignition | yes |
| Operation angle | 360 ˚ |
| Head offset | 360 ˚ |
| Flame adjustment | yes |
| Air ingress adjustment | yes |
| Weight with empty tank | 0.19 kg |
| Application | jewelry, handicraft, modeling, gastronomy, burning small metal or wooden surfaces, lighting fireplaces, grills and stoves, bending and warm forming, |
| Application contd | heat welding and gluing, unscrewing stuck screws, reheating and thawing, shrinking of heat-shrinkable materials |
| Symbol | YT-36709 |

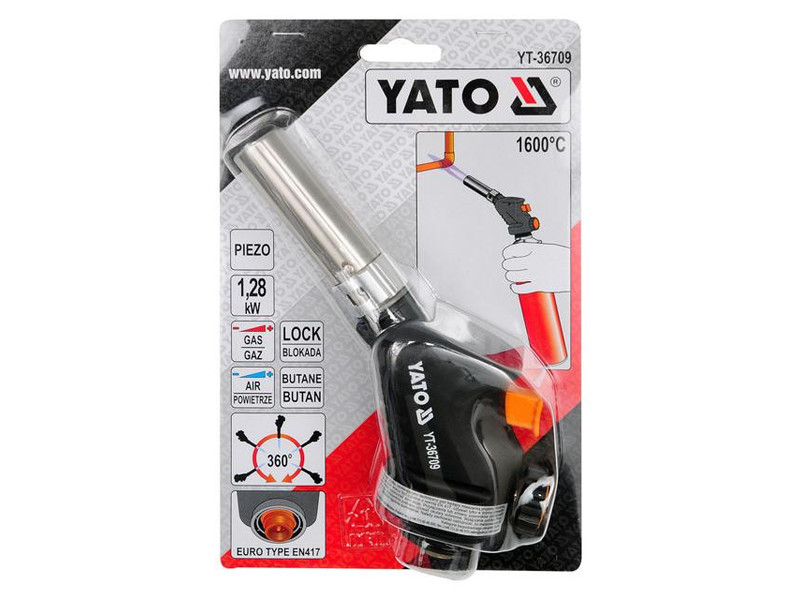

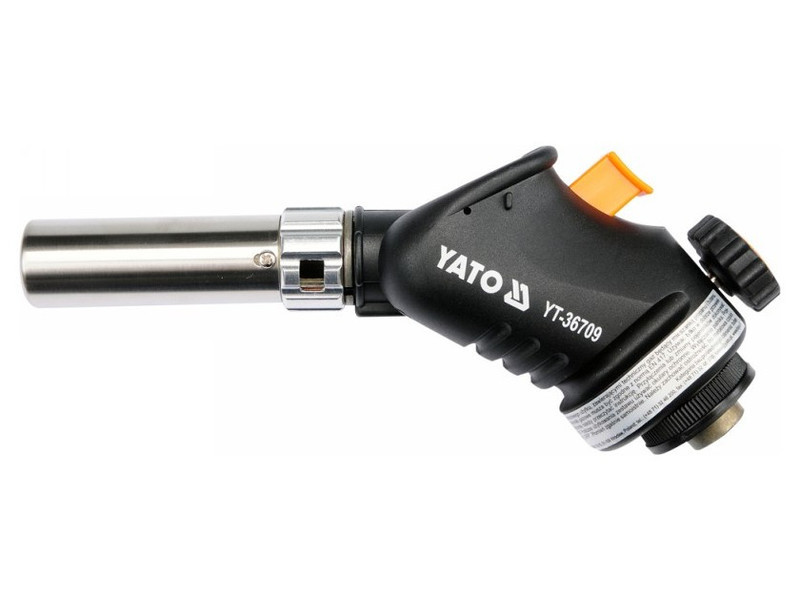

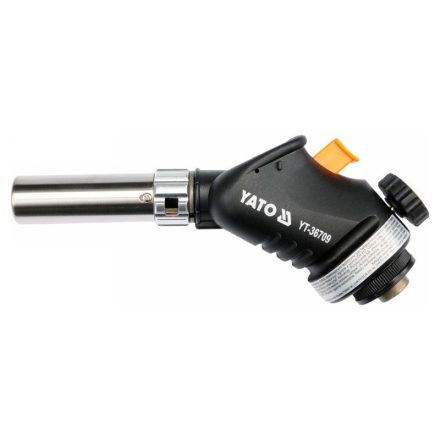

Gas burner with ignition piezo brand YATO YT-36709.
Powered by gas propane-butane from an external cylinder with EN417 connector o power of 1.28kW reaches a maximum temperature 1600 ºC. Gas consumption is 110g/h. With built-in flame power and air supply adjustment it is possible to set the desired flame size.

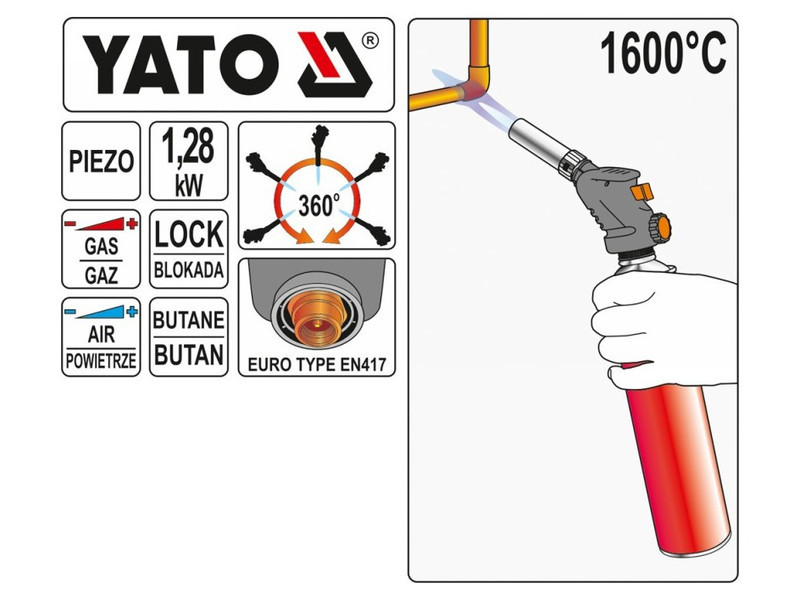

Thanks to its special design, it allows operation at an angle 360º. Thus, it can be used in any position.
It is particularly useful for, among other things:
- soft and hard soldering of copper pipes in central heating systems. and water systems
- tinning
- superheating
- paint burning
- defrosting
./li> - lighting stoves, fireplaces and grills
- loosening screws
- maintenance
Purpose:
It is designed for soft and hard soldering of copper pipes in central heating and water installations
Usage warnings:
The device should be used only with reusable containers containing technical propane-butane gas, equipped with a threaded connector.
Gas containers must comply with EN 417.
Use only in well-ventilated areas.
Read the instructions before using this device.
Make connections or changes to containers in a flameless atmosphere, away from bystanders.
Use safety glasses when using the kit.
Turning off the burner: Turn the control knob all the way in the direction marked "OFF". The flame will go out spontaneously.
Be careful, because the metal parts of the burner have been heated during operation. Leave to cool down.
