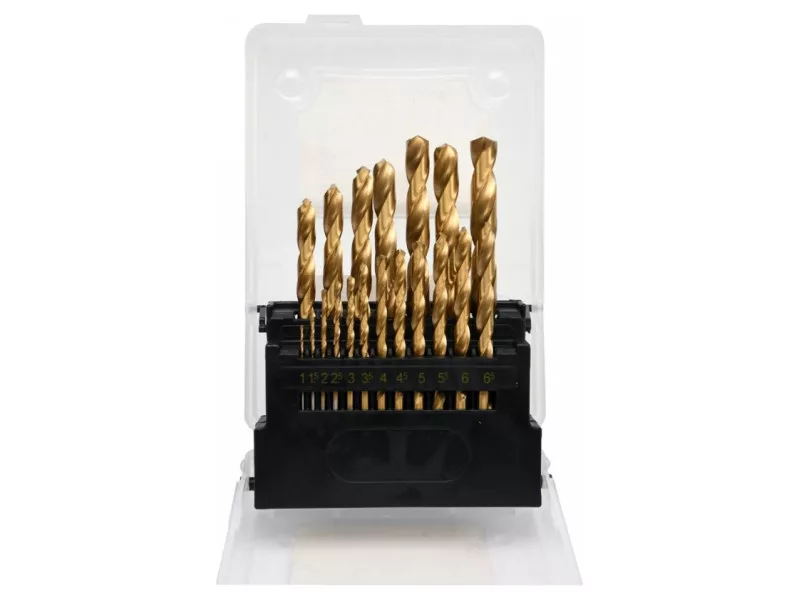

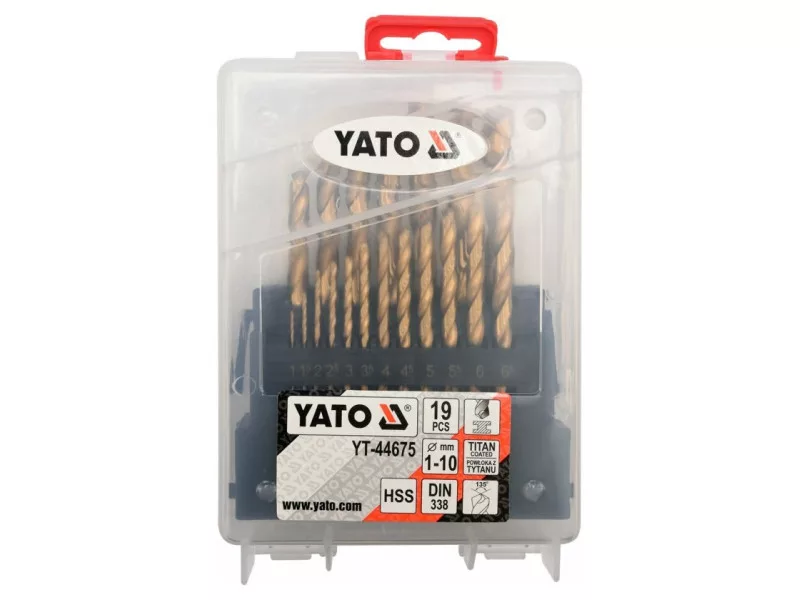

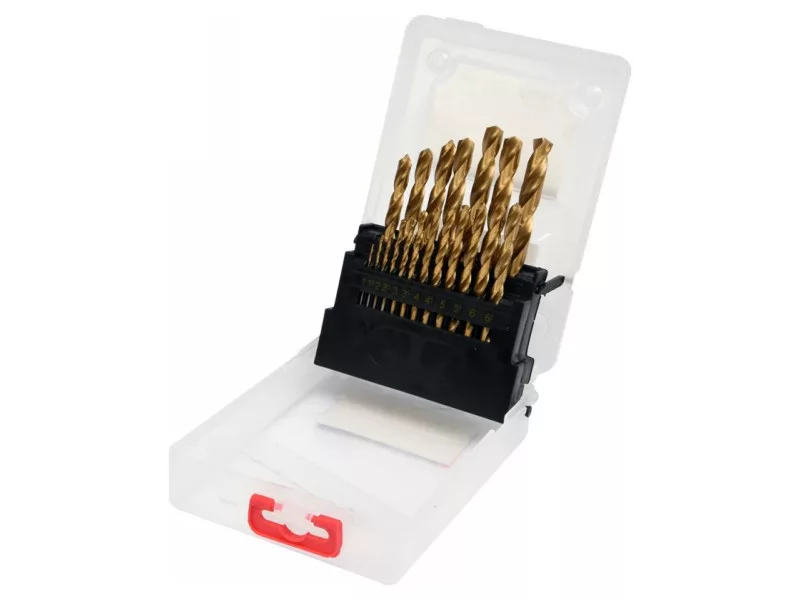

YATO Set de burghie elicoidale 19 piese 1-10 mm HSS-TiN

Brand	Yato
Entity responsible for this product in the EU	TOYA S.A.More
Series	GRD
Diameter	1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10 mm
Overall length	34, 40, 49, 57, 61, 70, 75, 80, 86, 93, 93, 101, 109, 109, 117, 117, 125, 125, 133 mm
Working part length	12, 18, 24, 30, 33, 39, 43, 47, 52, 57, 57, 63, 69, 69, 75, 75, 81, 81, 87 mm
Holder size	1/4" (6.3 mm)
Toolholder type	hexagonal
Rotations	3800, 3800, 4000, 3200, 2600, 2300, 2000, 1800, 1600, 1500, 1300, 1200, 1100, 1100, 1000, 900, 900, 800, 800 min⁻¹
Material	HSS 6524
Surface finish	coated with titanium nitride, polished
DIN	338
Drill bit point angle	135 ˚
Split point	yes
Pcs	19
Application	stainless steel, acid-resistant steel, cold rolled steel
Symbol	YT-44675

Sanded drills with aggressive blade geometry. Thanks to the titanium nitride coating, they drain the heat very efficiently and do not move when working in hard steel species. The blade attack angle of 135 ° allows drilling even without prior use of a point. Made according to the DIN 338 standard for professional applications in industry. A drill with a cylindrical handle designed for standard self -stacking drilling holders and key. High pressure resistance also allows the use of column and magnetic drills. The set consists of 19 drills with a diameter [mm]: 1; 1.5; 2; 2.5; 3; 3.5; 4; 4.5; 5; 5.5; 6; 6.5; 7; 7.5; 8; 8.5; 9; 9.5; 10

Usage warnings:

Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
