| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Diameter | 4-12 (4, 6, 8, 10, 12 mm), 4-22 (4, 6, 8, 10, 12, 14, 16, 18, 20, 22 mm), 6-38 (6, 8, 11, 14, 17, 20, 23, 26, 29, 32, 35, 38 mm) mm |
| Rung quantity | 10 |
| Max. cutting capacity | 4 mm |
| Toolholder type | triangle |
| Material | HSS 4241 |
| Surface finish | blackened |
| Pcs | 3 |
| Application | high-quality stainless steel, structural steel, cold rolled steel, non-ferrous metals, steel sheets, plastic |
| Symbol | YT-44732 |

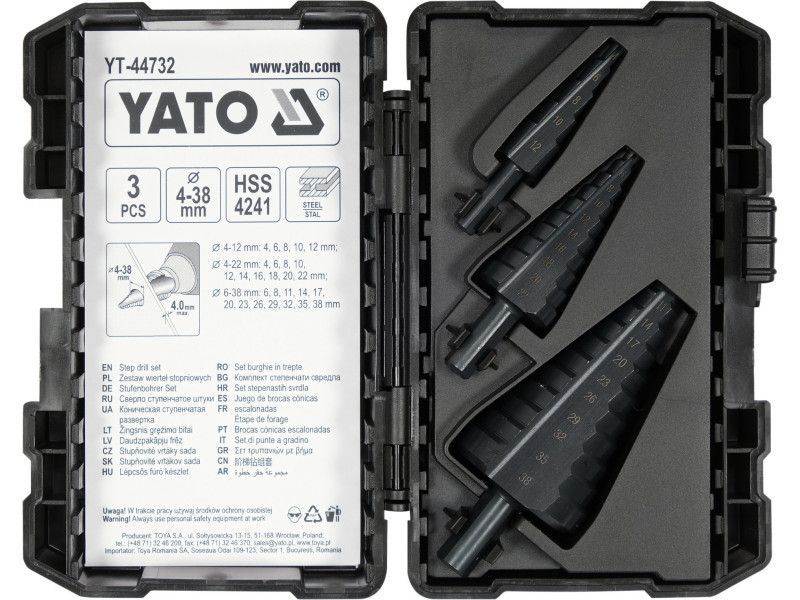

Set of three step drills for drilling in high-grade stainless steel, structural steel, cold-rolled steel, non-ferrous metals, steel sheets and plastics.

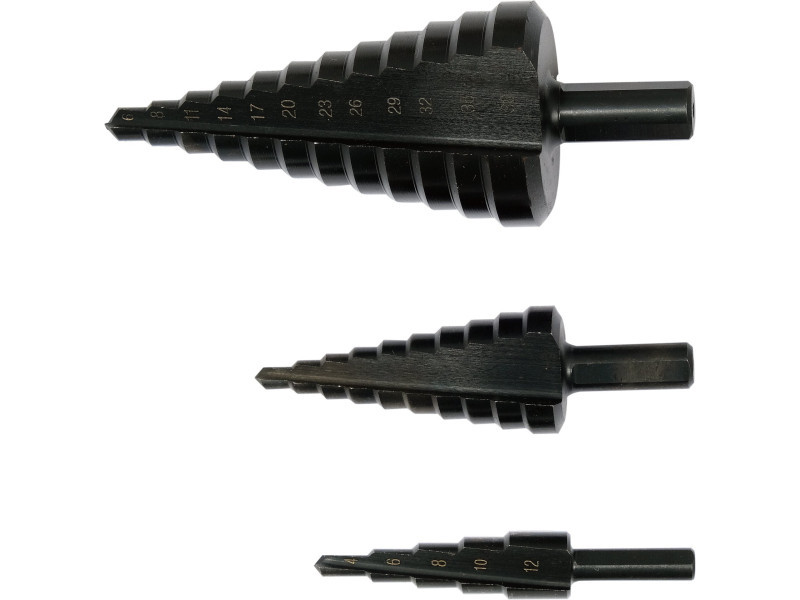

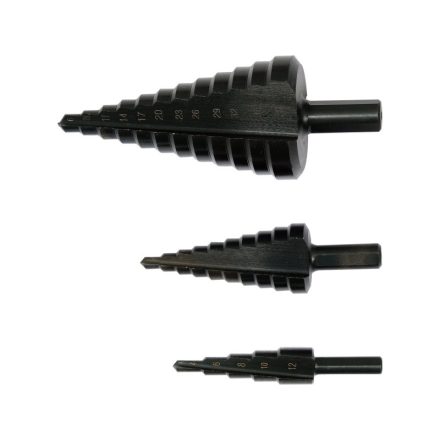

- drill parameters:
- diameter 4-12 (4, 6, 8, 10, 12 mm), working length 43 mm, overall length 64 mm
- diameter 4-22 (4, 6, 8, 10, 12, 14, 16, 18, 20, 22 mm), working length 52 mm, overall length 74 mm
- diameter 6-38 (6, 8, 11, 14, 17, 20, 23, 26, 29, 32, 35, 38 mm), working length 76 mm, overall length 100 mm
- material: HSS4241 steel
- blackened surface
- handle: cylindrical with three flat surfaces
Usage warnings:
Warning! Always use personal safety equipment at work.
