| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |

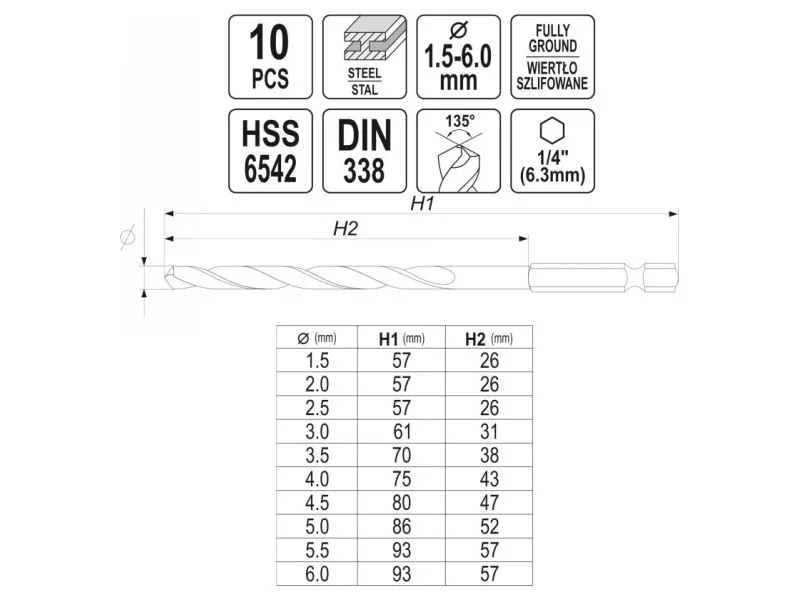

| Diameter | 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 mm |
| Overall length | 57, 57, 57, 61, 70, 75, 80, 86, 93, 93 mm |
| Working part length | 26, 26, 26, 31, 38, 43, 47, 52, 57, 57 mm |
| Holder size | 1/4" (6.3 mm) |
| Toolholder type | hexagonal |
| Material | HSS 6542 |
| Surface finish | polished, polished |
| DIN | 338 |
| Drill bit point angle | 135 ˚ |
| Split point | yes |
| Pcs | 10 |
| Application | stainless steel, high carbon steel, cold rolled steel, cast iron |
| Symbol | YT-44888 |
Designed for professional use: drilling in high-grade stainless steel, structural steel, INOX and cold-rolled steel.
- HSS steel provides several times faster drilling and maintains resistance to damage and dulling, maintaining drill geometry
- cross-blade „split point” with an apex angle of 135° allows drilling without pre-scoring, guaranteeing perfect centering
- dissipate heat quickly when drilling in hard steels, without burning the drill bits
- grinded surface and edges to DiN 338 standard ensure excellent drilling precision and ideal dimensions of the drilled hole
- lower coófriction factor reduces the adhesion of swirlsórós and filings to the drill bits
- made from a single piece of HSS 6542 steel, making them strong and durable
- 1/4" HEX shank (6.3 mm)

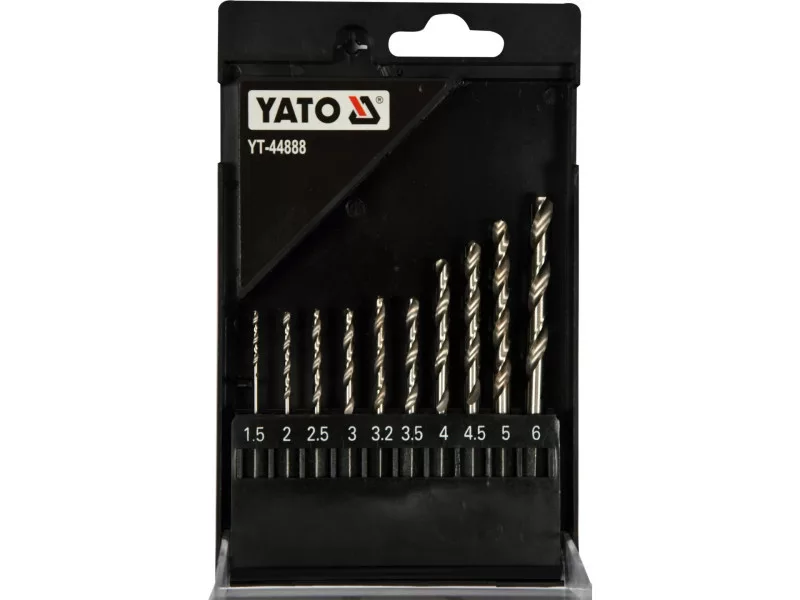

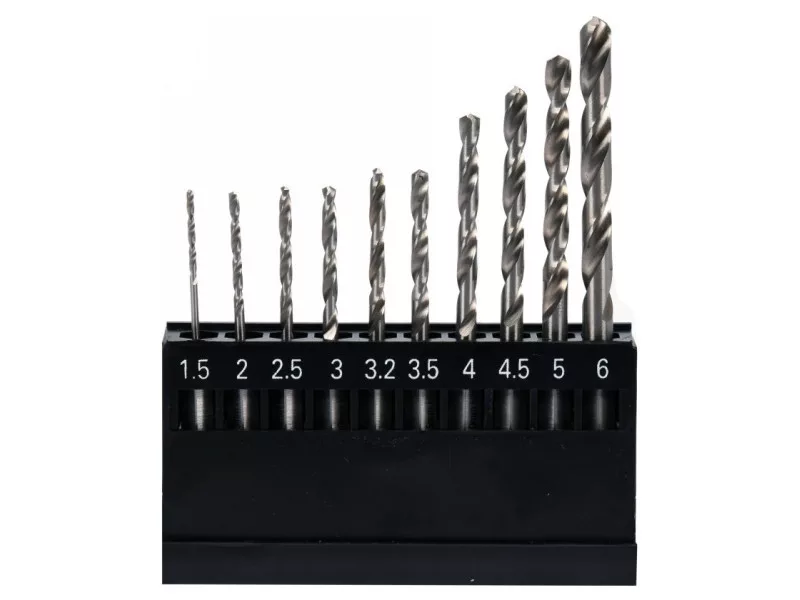

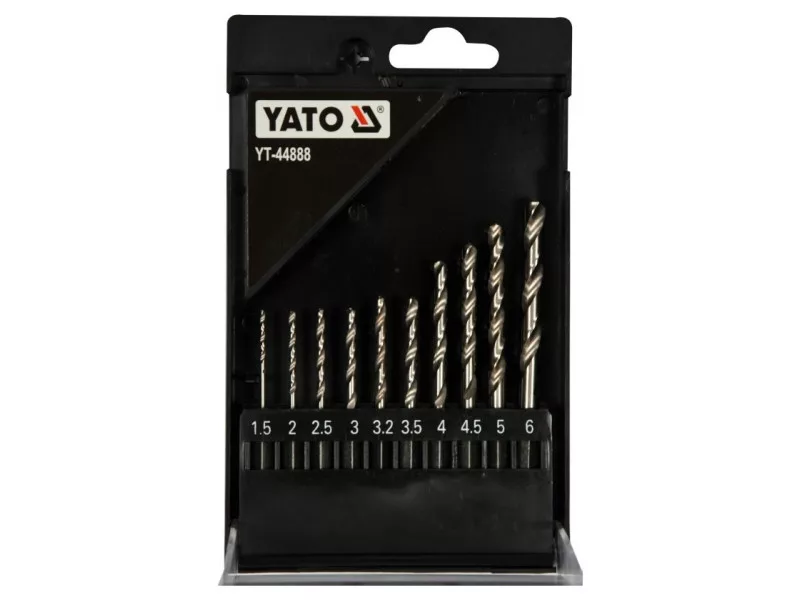

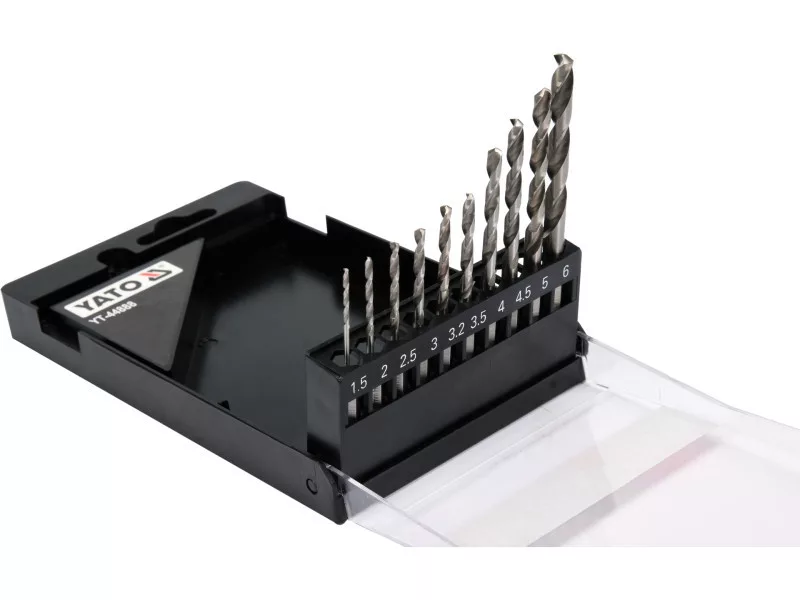

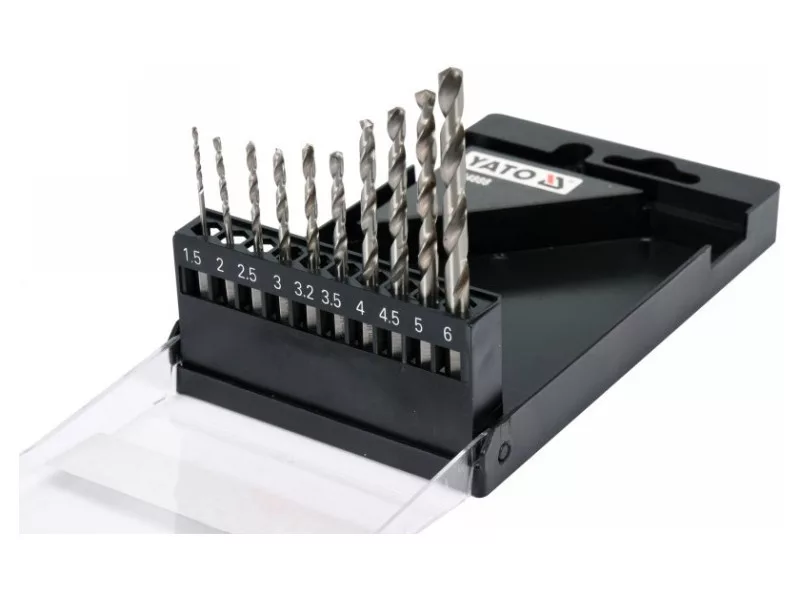

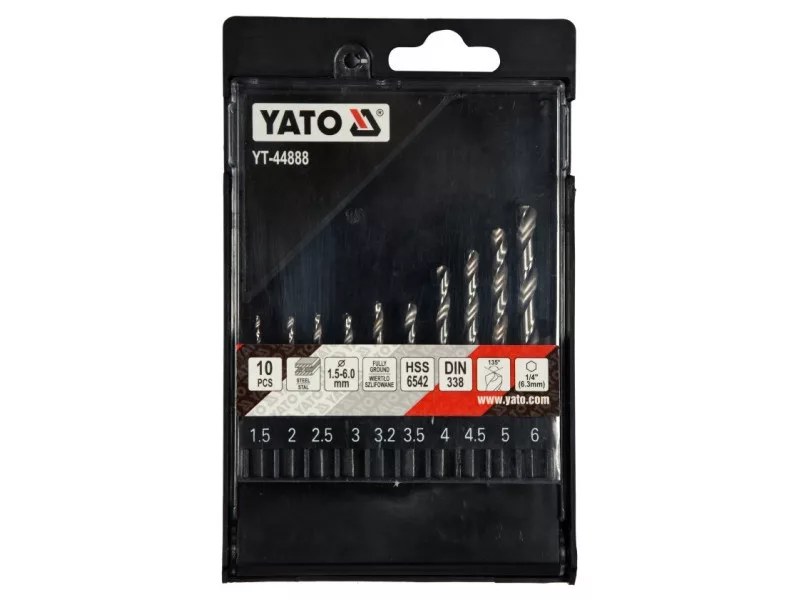

The set includes 10 HSS drill bits with diameters: 1.5, 2.0, 2.5, 3.0, 3.2, 3.5, 4.0, 4.5, 5.0, 6.0 mm, packed in a handy case
Usage warnings:
Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
