| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Length | 125 mm |
| Material | brass |
| Working part material | steel |
| Working part finish | tempered |
| Handle finish | ribbed |
| ρυθμιζόμενο | no |
| Application | marking work and scoring before drilling, wood, metal, PVC |
| Symbol | YT-47160 |

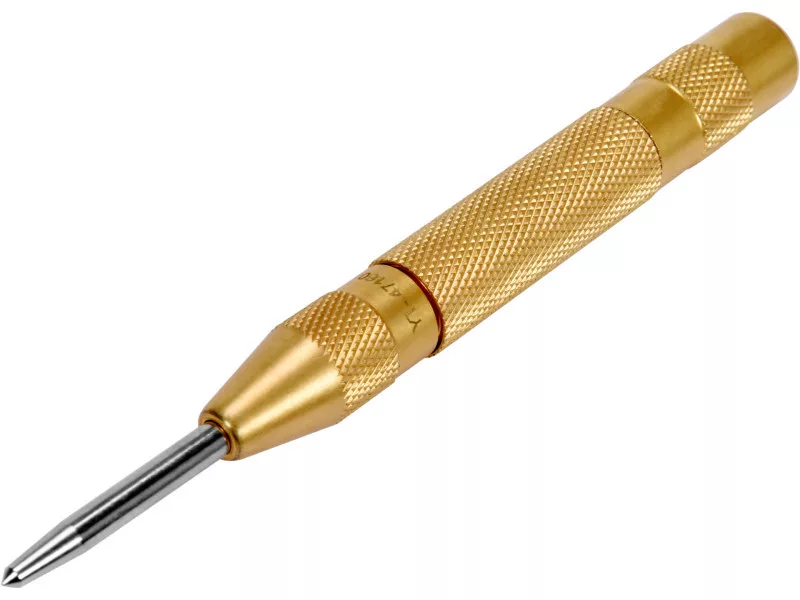

Punches are designed for quick, precise marking of points on the surface of the workpiece, such as wood, metal or plastic. They are most often used to mark a point before starting to drill.
Scoring makes it easier to start drilling by reducing the unfavorable effect of the drill bit sliding on the surface of the material, the so-called drill bit float. The marking is created by striking the sharp end of the punch against the material. The traditional scoring method requires the use of a hammer.
The presented automatic scorers mark the material thanks to the use of a strong internal spring that moves a hardened steel firing pin. Thus, they eliminate the need to carry a heavy hammer. The punch does not require tensioning the spring - this is done automatically. Immediately after pressing the firing pin to the material and striking, we can repeat the action, marking the next point.
The punch has an adjustable impact force used for optimal adjustment to the hardness of the marked material.
Directions for use:
- Attach the punch with the sharp end to the marked material.
- Press firmly with your hand - the needle strikes the point permanently on the material.
- Immediately after pressing the needle to the material and hitting it, you can repeat the operation, marking another point.
Usage warnings:
Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
