| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Mounting type | constantly |
| Jaws range | 70 mm |
| Dimensions | 150x150 mm |
| Height | 55 mm |
| Wall thickness | 13 mm |
| Material | aluminum |
| Surface finish | painted, lacquered |
| Operation angle | 90 ˚ |
| Slot size | 10x32 mm |
| Bolt diameter | 12 mm |
| Application | locksmith, for making connections from strips or boards |
| Symbol | YT-65136 |

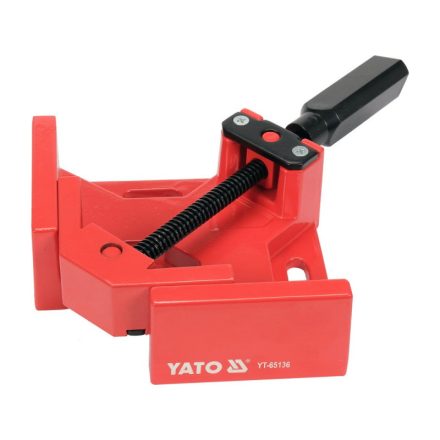

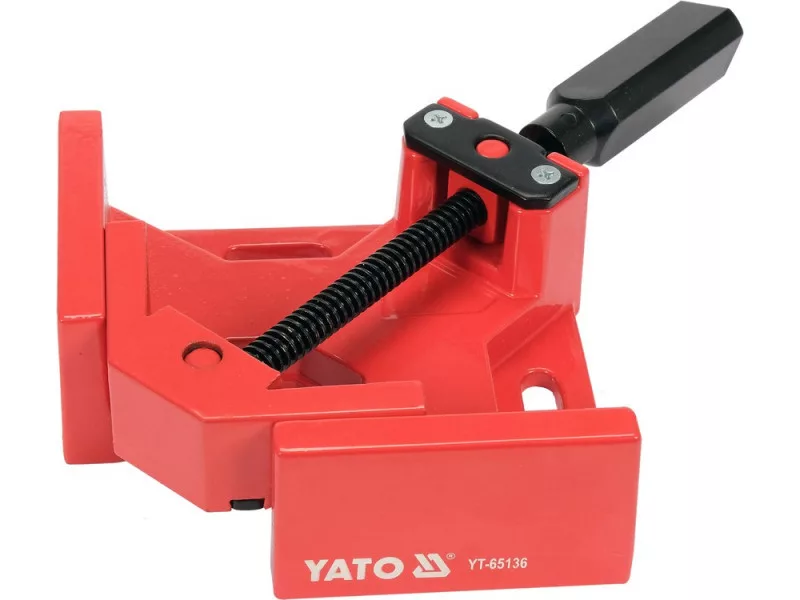

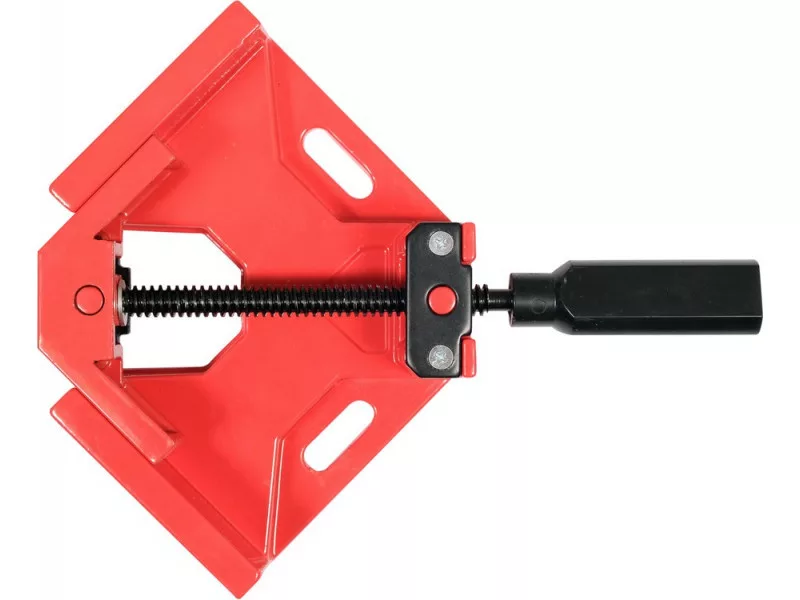

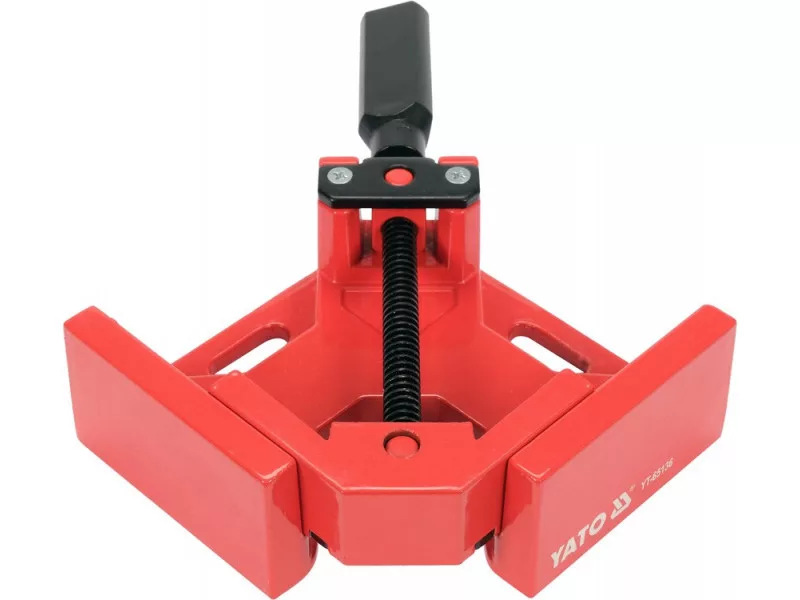

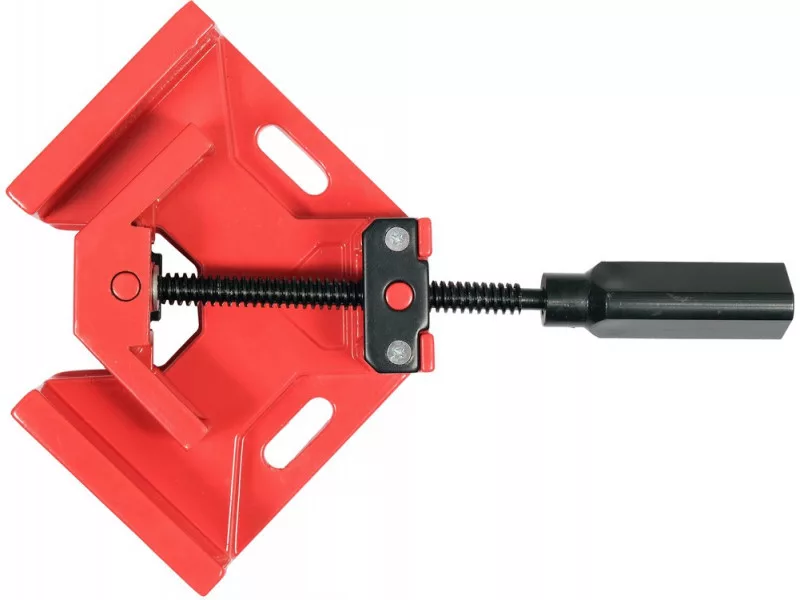

Angle vice for fixing elements at an angle of 90 °. Body made of aluminum base 150 x 150 mm depth /thickness max. Fastened elements approx. 70 mm, wall height approx. 55 mm wall thickness about 13 mm in the base of the holes for fixing 10 mm x 32 mm. The metal screw fired fi 12mm fixed in the joint gives the possibility of changing the fastening angle through the pressure to one wall, plastic knob. For fixing materials at an angle of 90 degrees. Most often for making connections with slats or boards.
Usage warnings:
Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
