| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Type of | rectangular staples, semi-circular staples, nails, sticks |
| Staple dimensions | 6-14x1.2x10.6, 10-14x1.2x7.6 mm |
| Staple length | 6-14, 10-14 mm |
| Staple width | 10.6, 7.6 mm |
| Staple thickness | 1.2 mm |
| Nail dimensions | 10-14x1.2x2 mm |
| Pin size | 14x1.2 mm |
| Material | steel |
| Handle material | PVC |
| Adjustable impact function | yes |
| Application | upholstery, carpentry, finishing works |
| Symbol | YT-7001 |

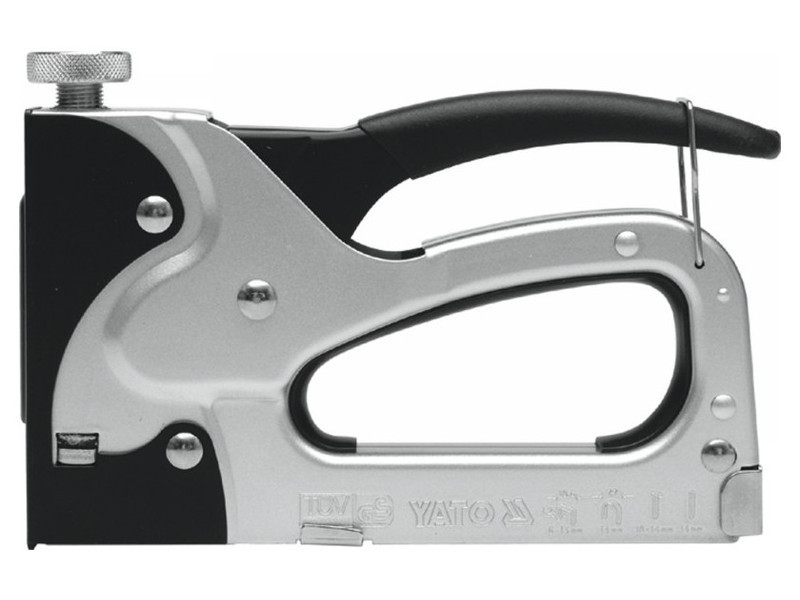

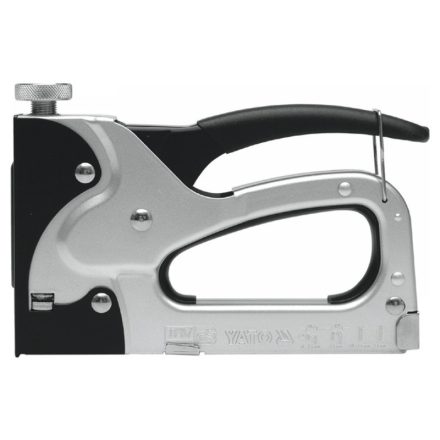

Upholstery stapler designed for quickly joining various materials such as wood with fabrics, cardboard, paper, or leather. Used in upholstery, roofing, decorating, finishing, construction works, etc. It connects materials using a steel staple, nail, or pin driven with great force.
The stapler is designed for driving typical steel, rectangular staples ranging in length from 6 - 14 mm and rounded staples in sizes from 10 - 14 mm intended for securing electrical wires.
An additional useful feature is the ability to drive special nails with a length from 8 to 14 mm and steel pins with a length of 14 mm.
The stapler has an adjustment for the striker spring pressure - adjustable impact force.
Compatible staples:
- YT-7022: dimensions 6 x 1.2 x 10.6 mm
- YT-7023: dimensions 8 x 1.2 x 10.6 mm
- YT-7024: dimensions 10 x 1.2 x 10.6 mm
- YT-7025: dimensions 12 x 1.2 x 10.6 mm
- YT-7026: dimensions 14 x 1.2 x 10.6 mm
Compatible nails:
Usage warnings:
Warning! Always use personal safety equipment at work.
