| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Measured angle range | 0-90 ˚ |
| Dimensions | 165x185x210-290 mm |
| Length | 140 mm |
| Thickness | 8 mm |
| Material | aluminum |
| Metric scale | no |
| Inch scale | yes |
| Application | drawing works, measurement works, marking works |
| Symbol | YT-70783 |

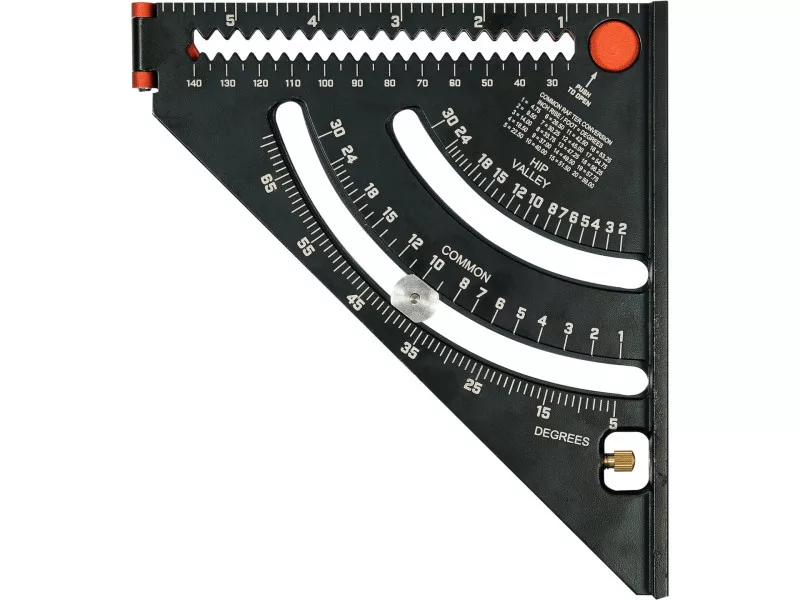

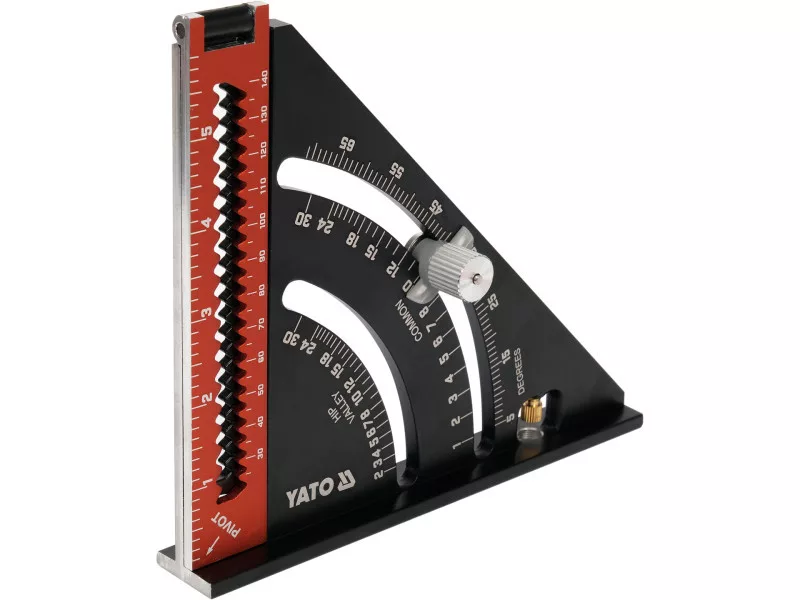

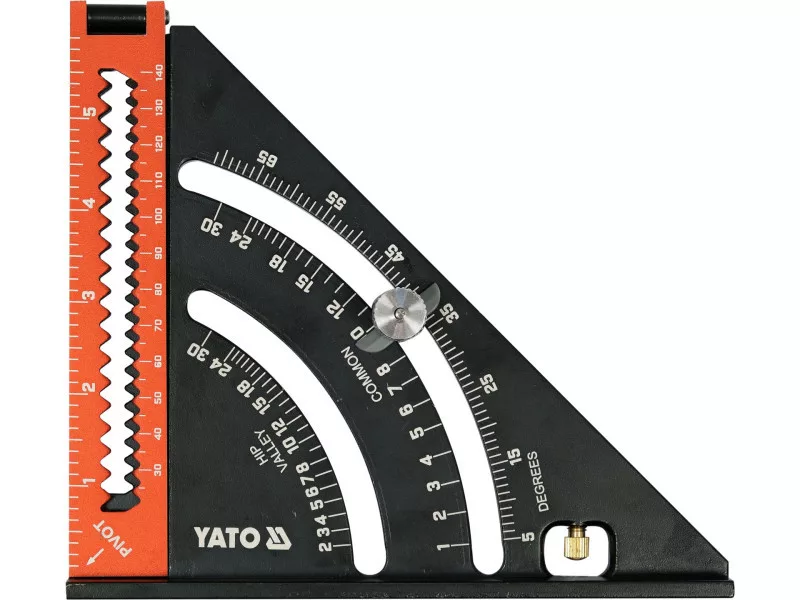

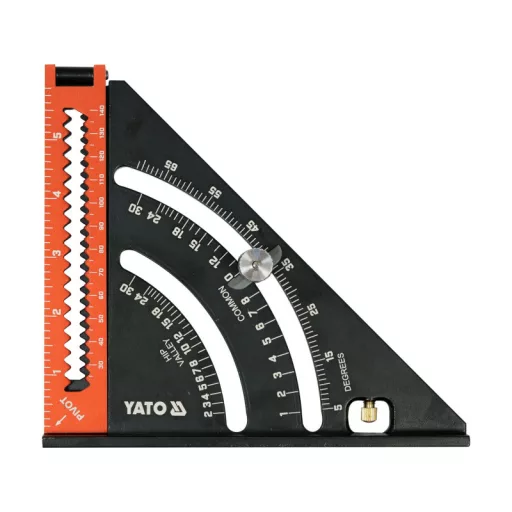

Aluminum angle bracket with foot 140 mm - eccentric
- Total edge length 165 x 185 x 210 mm
- Thickness approx. 8 mm
- inch graduation inch graduation to 6"
- no millimeter graduation
./li> - in the inner part there are cuts with additional graduations
- .in the groove there is a screw that fixes precise indications on the graduation

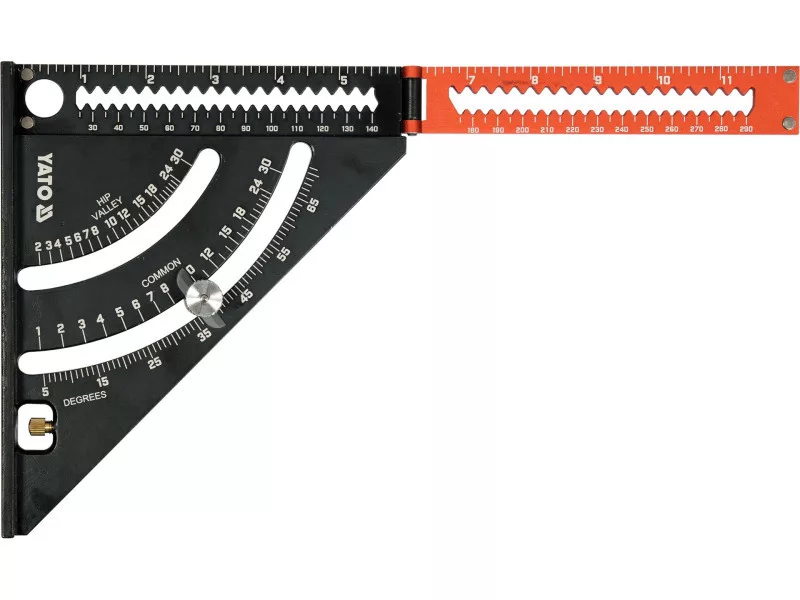

- in the vertical side there is an openable arm extending the side to a length of 12" /approximately 290 mm/
- in the base is mounted a screw-in steel stylus for scribing work
For measuring, drafting, scribing work.
