| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Measured angle range | 10-170, 5-85 ˚ |
| Length | 380 mm |
| Arm length | 170 mm |
| Thickness | 3 mm |
| Material | aluminum |
| Metric scale | yes |
| Inch scale | no |
| Symbol | YT-70853 |

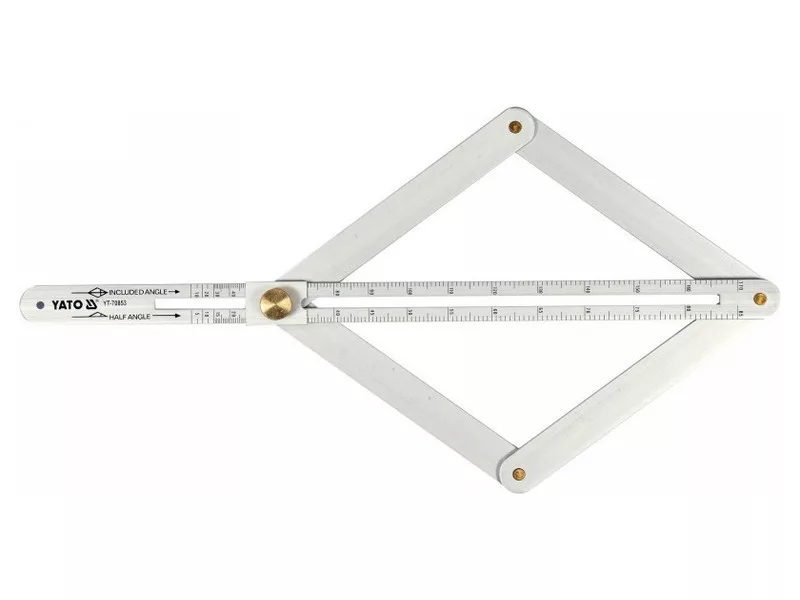

Aluminum angle gauge with movable arms
- Angle measurement from 10-170° and an additional 5-85°
- reading on the center bar
- locking with a brass screw
- locking with a brass screw
./li> - millimeter graduation marked permanently
- length of main bar 380 mm, arms 170 mm each
- thickness approx. 3 mm
For determining , checking , transferring and scribing angles and lines in carpentry and locksmith work.
