| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Measured angle range | 360 (4x90) ˚ |
| Measurement accuracy | 0.01 ˚ |
| Measured angle accuracy | 0 / 90˚: ±0.1˚; 1° - 89°: ±0,2° ˚ |
| Measurement unit | degrees, millimeters / meters, slope percentage, slope in the imperial system of measurement in inches per foot |
| Dimensions | 58x58x32 mm |
| Material | aluminum |
| Magnet | yes, in the base |
| Display type | backlit LCD |
| Illumination | yes |
| Power supply | battery |
| cell type | 2x1.5V; AAA |
| Functions | zeroing and relative angle measurement, saving the measurement result on the screen |
| Auto power off | 3 min |
| Working temperature range | 0~40 ˚C |
| Storage temperature | -10 ~ +50 ˚C |
| Symbol | YT-71000 |

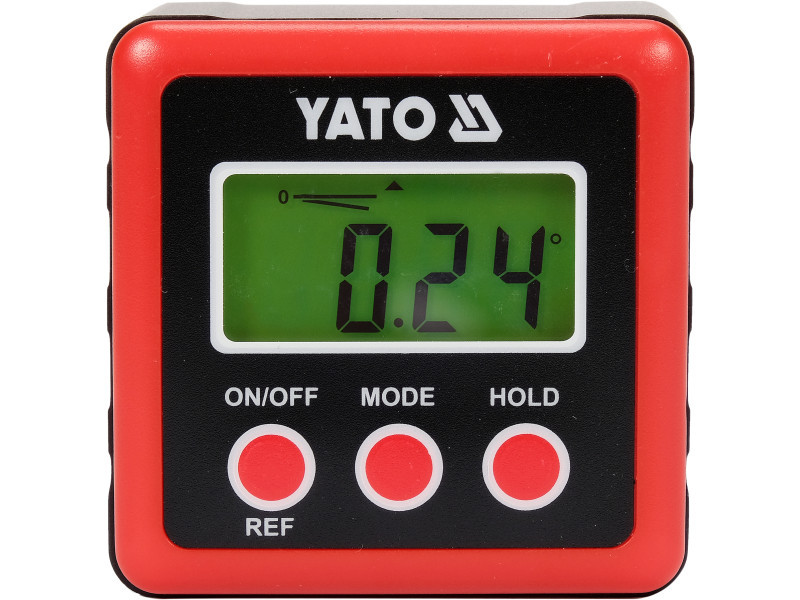

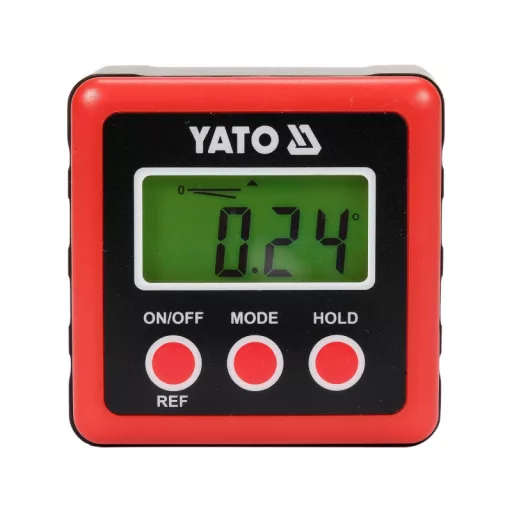

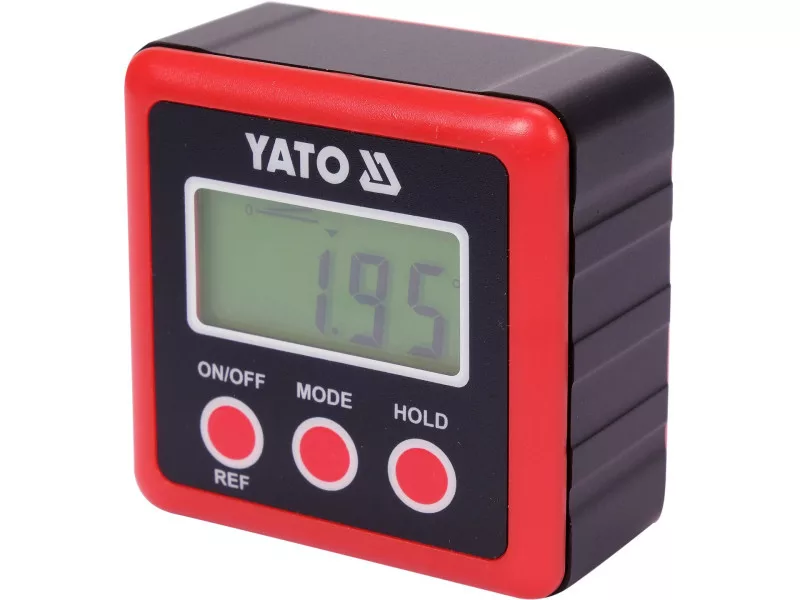

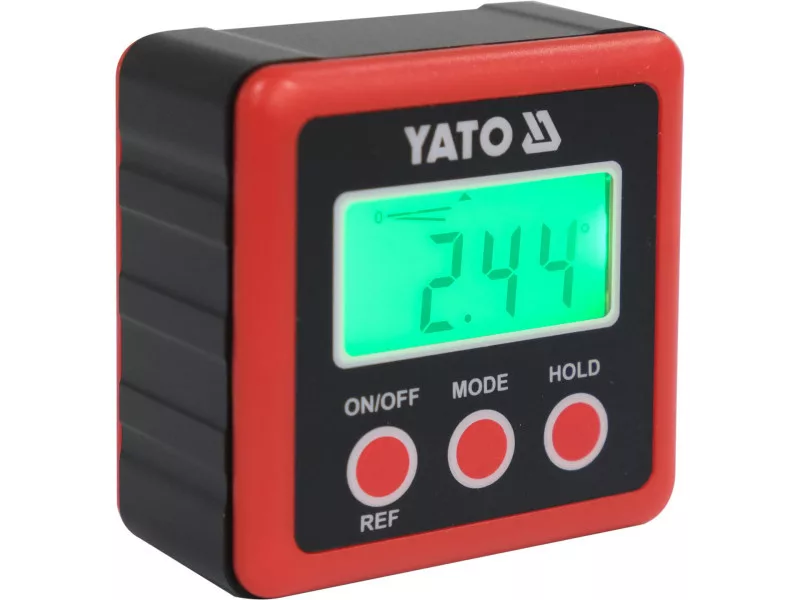

Electronic angle meter with magnet
- body made of aluminum
- strong magnets are mounted in the base
- body dimensions approx. 58 x 58 x 32 mm
- measuring range 4 x 90°
- display resolution +/- 0.01°
- .measurement accuracy +/- 0.1° for 0-90°
- power supply 2 batteries 1.5 v type AAA
- weight 71g
Accessible functions:
- changing units of measurement
- result in degrees, percent, (mm/m, in/ft)
- lighting of the screen
- locking measurement
Magnetic mounting allows for precise alignment of, for example, a circular saw and efficient assembly work on steel structures.
For taking quick and accurate measurements during construction,renovation and assembly work.
Particularly suitable for the use in the construction industry
Particularly for setting up steel structures, machinery or setting up circular saws.
For quick and accurate measurements during construction,repair and installation work.
