| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Length | 300 mm |
| Measured angle range | 360 ˚ |
| Measurement accuracy | ±0.2 ˚ |
| Measured angle accuracy | ±0.2 ˚ |
| Measurement unit | meters, inches |
| Material | steel |
| Metric scale | yes |
| Inch scale | yes |
| Display type | backlit LCD |
| Reading resolution | 0.05 ˚ |
| Power supply | battery |
| cell type | 3V; CR2032 |
| Functions | saving measurement, resetting the indication to zero, manual locking |
| Data Hold | yes |
| Working temperature range | 0~40 ˚C |
| Storage temperature | -10 ~ +50 ˚C |
| Symbol | YT-71004 |

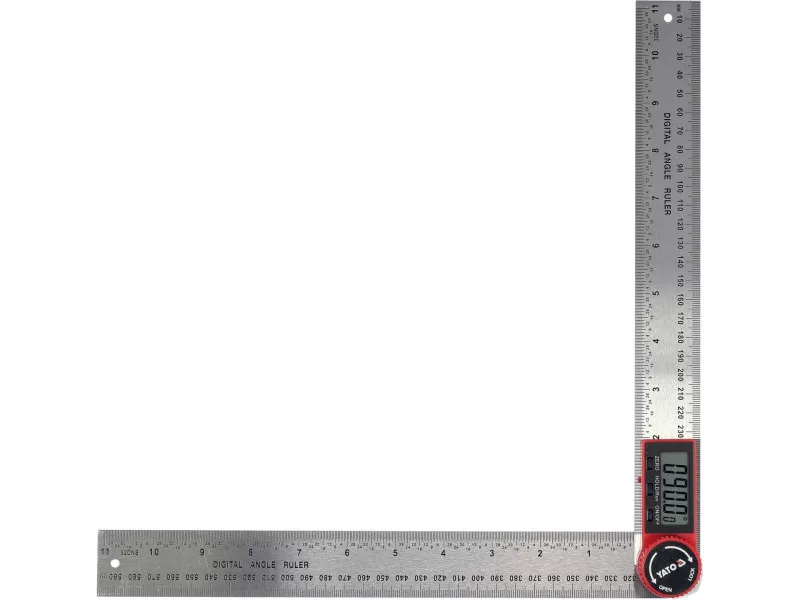

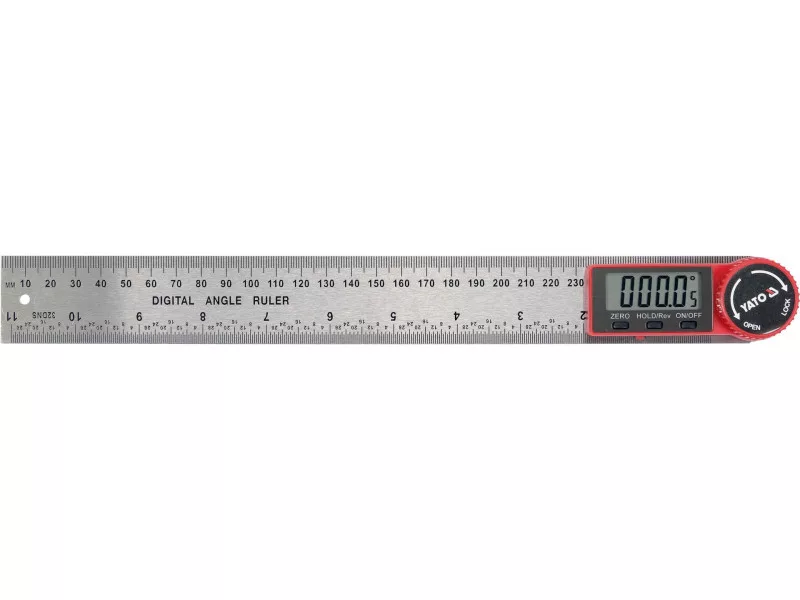

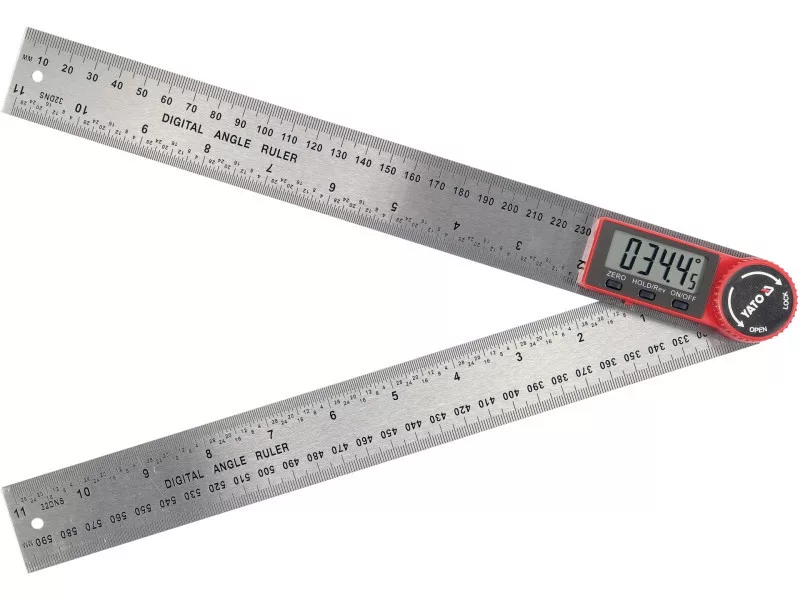

Electronic angle meter with arm length of 300 mm.

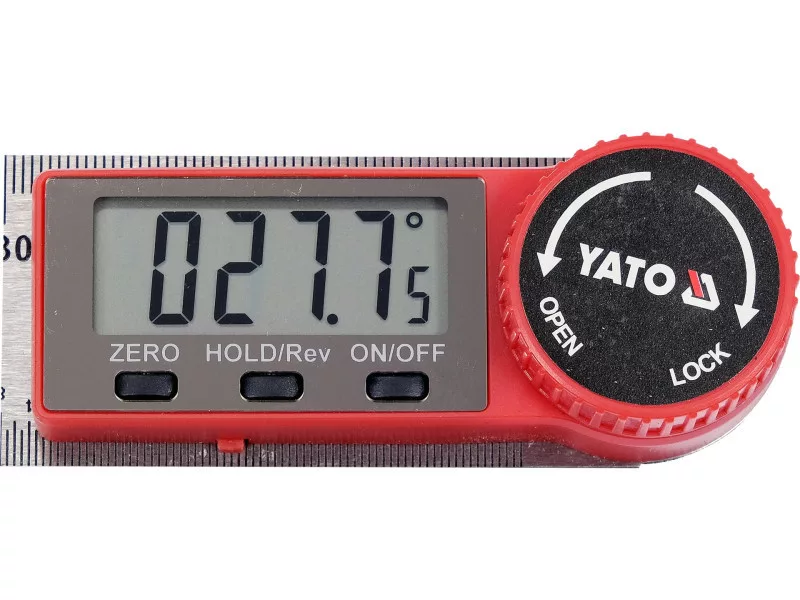

Large screen for reading the results.
- Metal arms
- Locking arm adjustment
- Cut millimeter and inch graduations
- Measuring range: 0-360°
- resolution: 0.05°
- accuracy: +/- 0.2
- power supply: battery CR2032
.
