| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Measuring range | 75-100 mm |
| Measurement accuracy | ±0.01 mm |
| Material | carbon steel, aluminum, PVC |
| DIN | 863 |
| Metric scale | yes |
| Inch scale | no |
| Working temperature range | 5~40 ˚C |
| Symbol | YT-72303 |

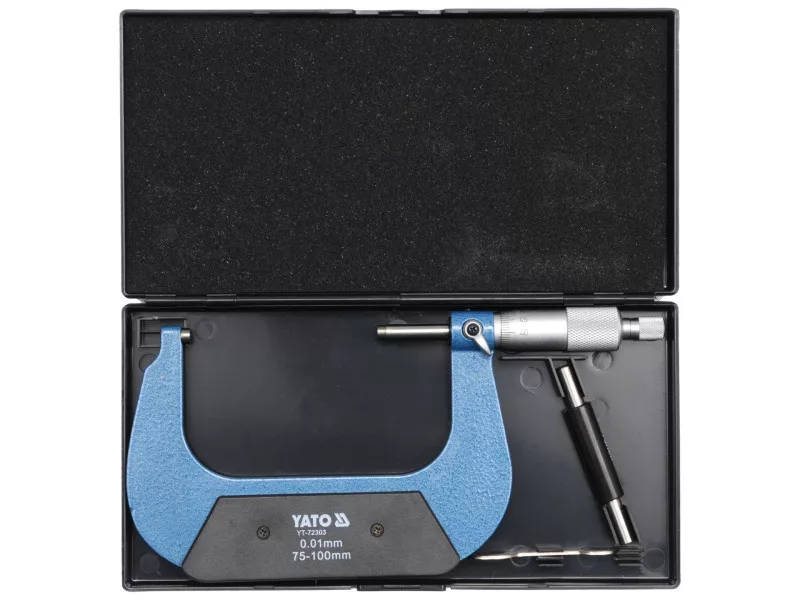

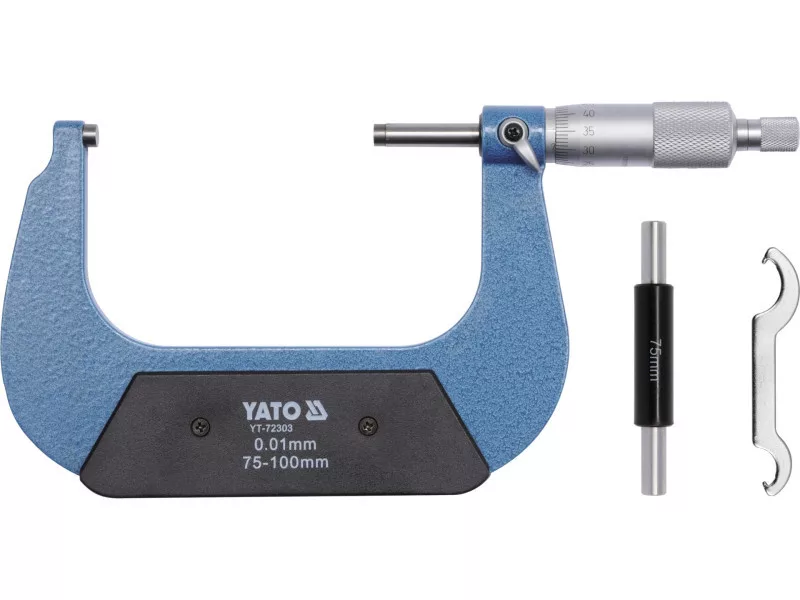

Micrometer 75 - 100 mm
- accuracy: 0.01 mm
- operating temperature: 5oC - 40oC / 41F - 104F
- humidity effect: negligible below 80% relative humidity
- to take precise measurements in the range from 75 to 100 mm
Preparation for use:
- Clean the measuring surfaces and the guide - use a cotton cloth, do not use solvents or acids
- Check the zero position and if necessary adjust with the supplied wrench so that the line labeled "0" on the drum coincides with the horizontal line of the scale
Method of measurement:
- the drum can be rotated only after unlocking the locating clamp
- spread the measuring surfaces to a distance slightly larger than the object to be measured
- then rotate with the drum to roughly set, and then continue tightening by turning the friction clutch knob
- then tighten with the drum. /li>
- stop tightening when the clutch operates, that is, further rotation of the knob will not cause rotation of the drum
- read the measurement result according to the measurement principle shown in the figure
It is recommended to fix the measured part or micrometer before starting the measurement. This will allow you to achieve the highest measurement accuracy.
It is also recommended that several measurements be taken so that an arithmetic average of the results can be obtained.
