| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Measuring range | 0-12.7 mm |
| Measurement accuracy | ±0.01 mm, ±0.0005″ |
| Metric scale | yes |
| Inch scale | yes |
| Reading type | electronic |
| Display type | LCD |
| Reading resolution | 0.01mm, 0.0005" |
| Handle depth | 30 mm |
| Power supply | battery |
| cell type | 1.5V; LR44 |
| Battery capacity | 150 mAh |
| Working temperature range | 5~40 ˚C |
| Storage temperature | -20 ~ +60 ˚C |
| Application | carrying out thickness measurements on materials (sheets, plates, sheets) made of e.g. metal, paper, plastics, glass |
| Symbol | YT-72320 |

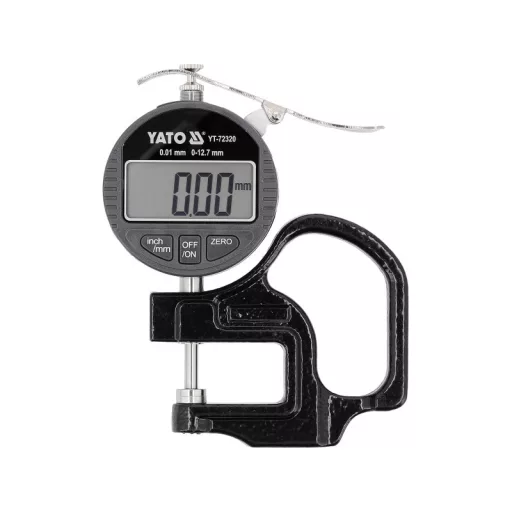

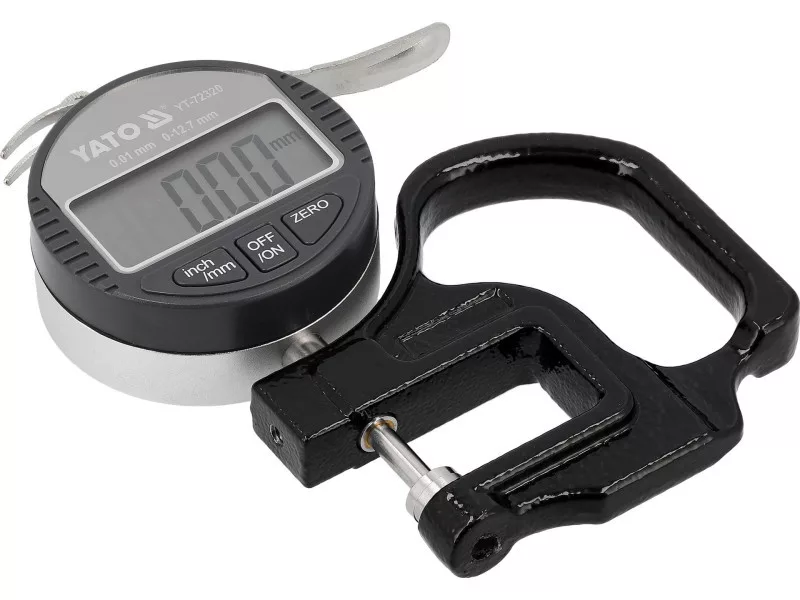

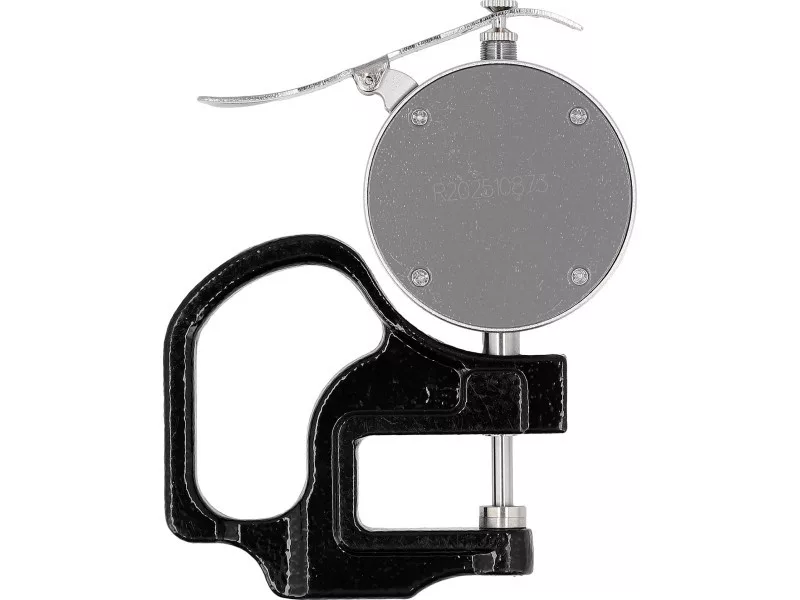

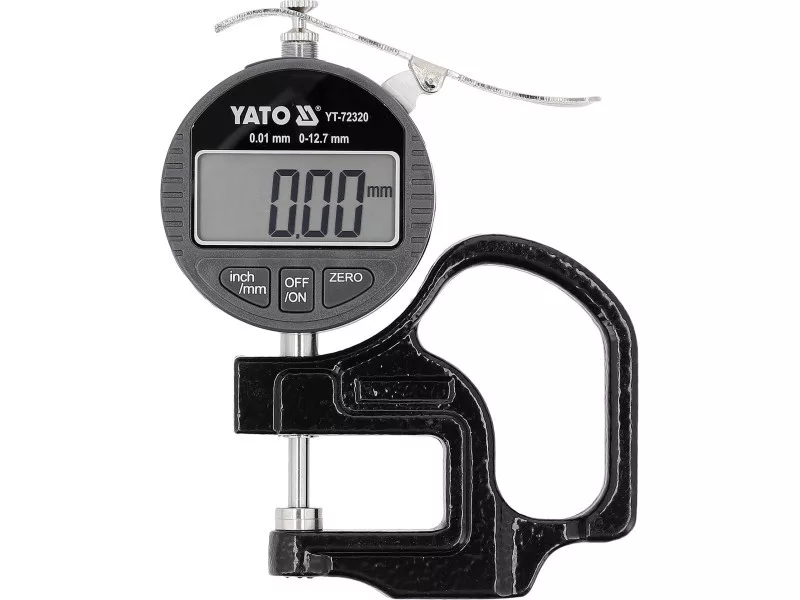

An electronic thickness gauge with an accuracy of ±0.01 mm is a precise measuring tool designed for determining the thickness of various materials, including metal sheets, plates, sheets made of metal, paper, plastics, or glass. It is used in workshops, measurement laboratories, and quality control, where the accuracy and repeatability of measurements are important.
It combines high measurement precision with ease of use, making it an indispensable tool for specialists and people performing measurements in demanding workshop conditions.
Device functions:
- unit conversion - possibility to switch between metric and inch scale
- on/off - allows energy saving and easy device startup
- zeroing - allows for quick setting of the reference point before measurement
Parameters:
- measurement range: 0-12.7 mm
- measurement accuracy: ±0.01 mm|±0.0005″
- reading resolution: 0.01 mm|0.0005"
- display: electronic, on an LCD display, providing fast and clear measurement in metric and inch scale
- depth of the grip: 30 mm
- operating temperature: 5-40°C
- storage temperature: -20-60°C
- power supply: 1.5 V battery (LR44) with a capacity of 150 mAh

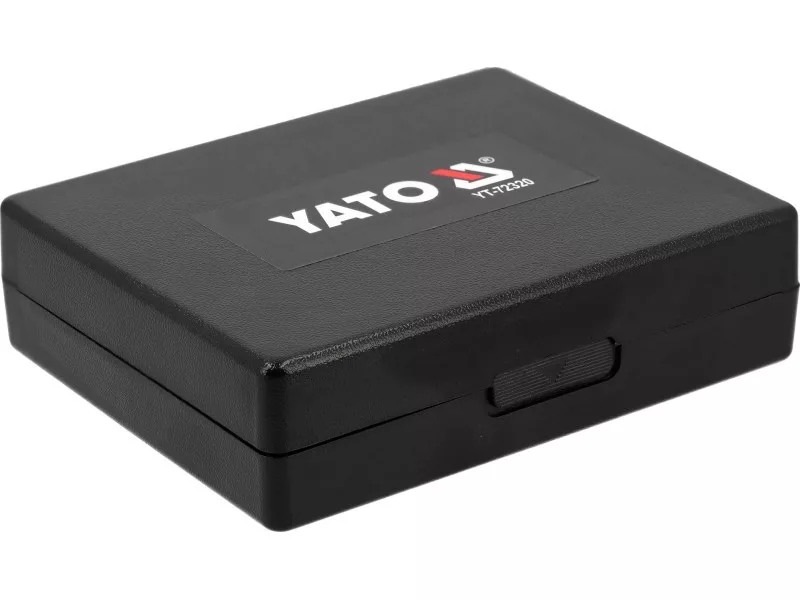

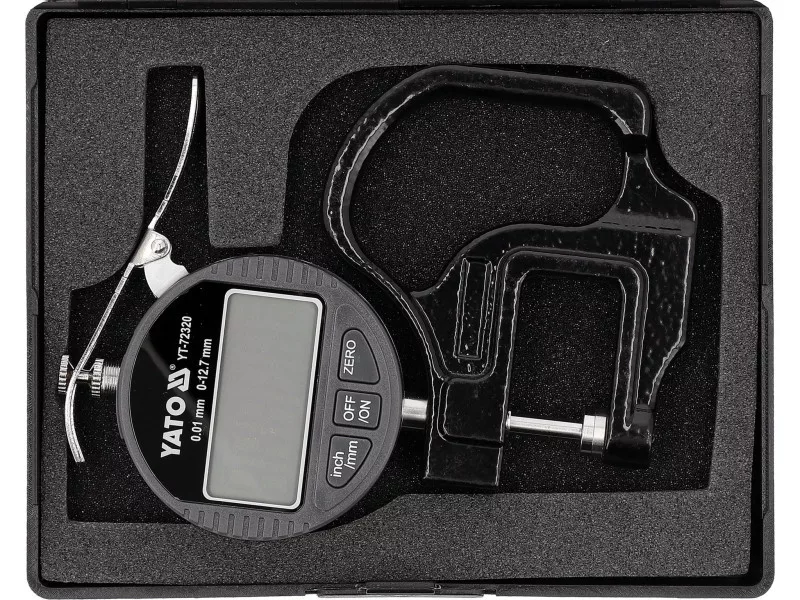

- packed in a convenient carrying case
