| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | ≤0.35 W |
| Working range | 0.25-5 m |
| Temperature measuring range | -15 ~ +150 / -5 ~ +302, 150-550 / 302-1022 ˚C/˚F |
| Operating relative humidity Rh | 10-85 % |
| NETD (thermal sensitivity) | ≤50 @ 25°C mK |
| Temperature measurement accuracy | ±3°C (−15 ~ −10°C), ±2°C or ±2% (−10 ~ 550°C) |
| Functions | operation via a dedicated Android application |
| Measurement modes | point, linear, regional |
| Charger type | USB Type-C |
| Dimensions | 45x36.7x15.4 mm |
| View angle | 56x42 ˚ |
| IFOV | 3.75 mrad |
| Recording format | JPG (images), MP4 (video) |
| Sensor type | VOx (vanadium oxide) microbolometer |
| Color modes | 10 (including rainbow, iron red, warm red, warm white, warm black) |
| Effective resolution | 512x384 px |
| Sensor resolution | 256x192 px |
| Screen refresh rate | ≤25 Hz |
| Menu languages | Polish, English, Ukrainian, Russian |
| Data export | USB Type-C (connection to computer) |
| Input voltage | 5 V d.c. |
| Working temperature range | −10 ~ +75 ˚C |
| Storage temperature | −45 ~ +85 ˚C |
| Weight | 29 g |
| Application | electrical inspections and detection of overheated connections, detection of thermal bridges and heat losses in buildings, servicing HVAC equipment, industrial and preventive inspections, |
| Application contd | car diagnostics and electronics thermal testing |
| Symbol | YT-72931 |

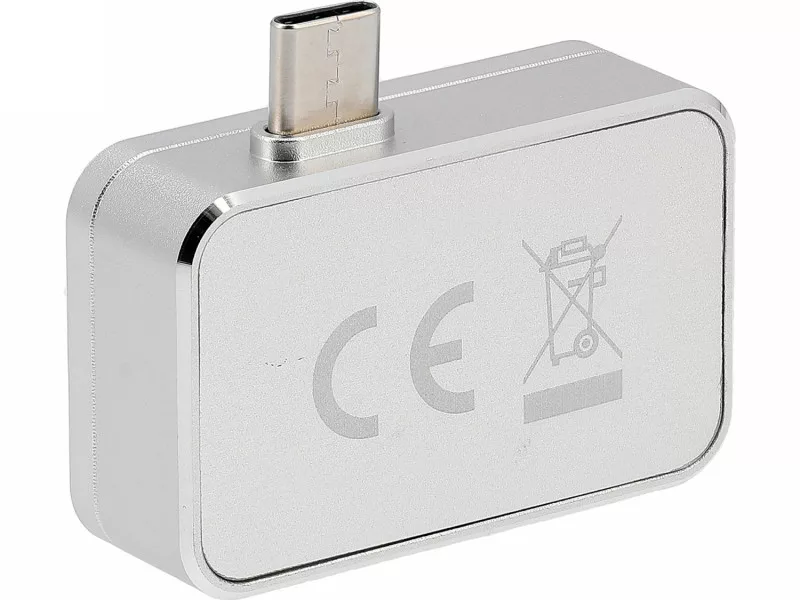

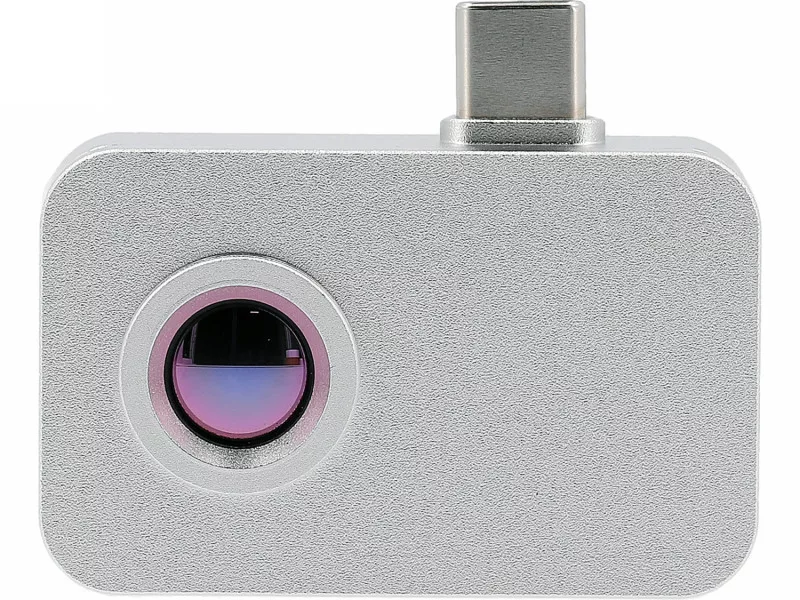

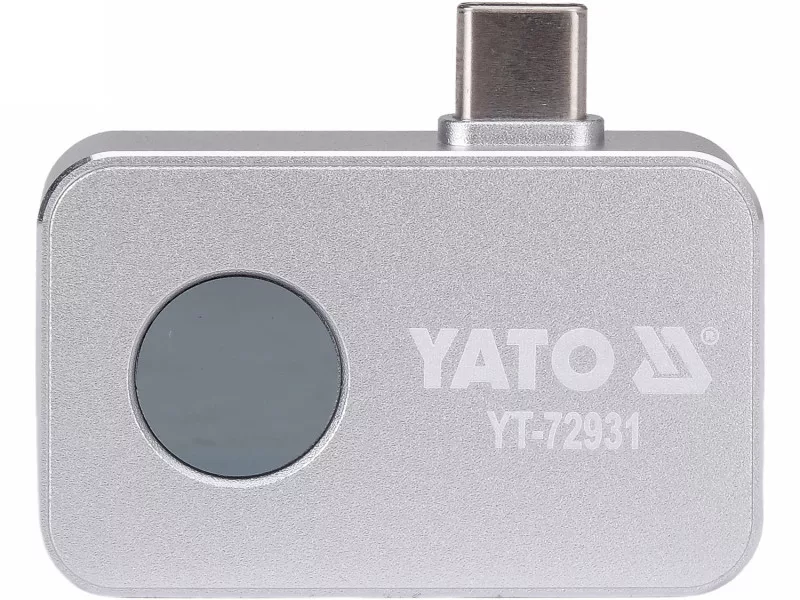

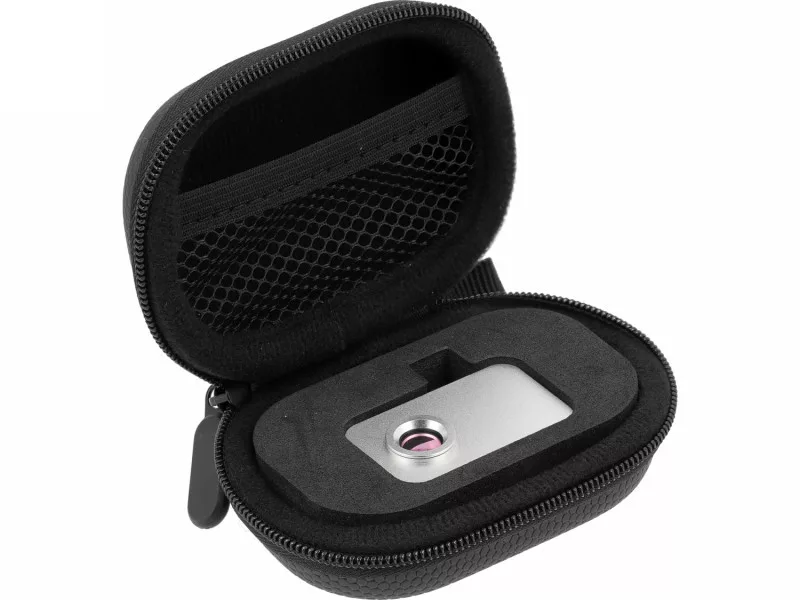

Miniature thermal camera for Android devices with detachable macro lens - high resolution thanks to Super Resolution.
Turn your smartphone into a professional thermal camera. This compact device connected via USB-C allows for advanced temperature measurements and thermal imaging without the need for large, separate equipment. An ideal tool for technicians, service technicians, DIY enthusiasts, and professionals in the construction, electrical, and electronics repair industries.
A new quality of mobile thermography

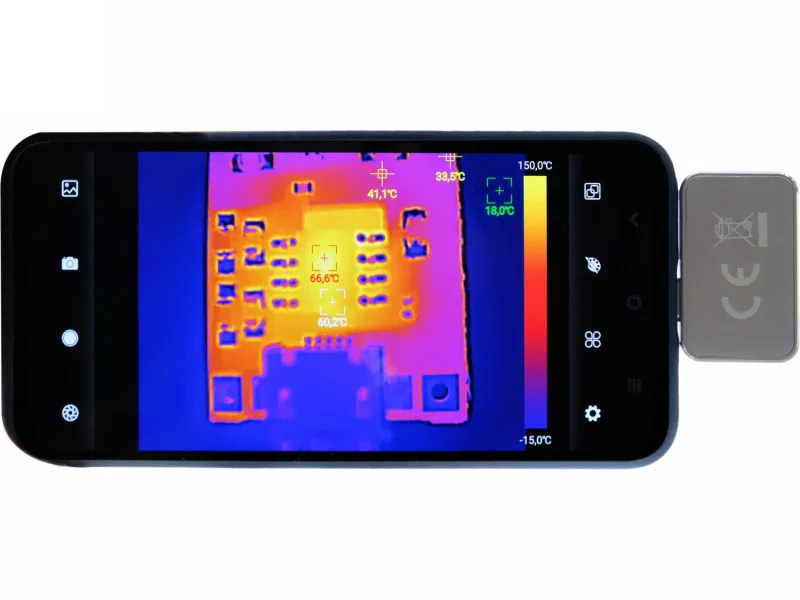

The camera is equipped with a microbolometer with a native resolution of 256 x 192 px, which, thanks to Super Resolution technology, generates an image with an effective resolution of up to 512 x 384 px. This is over 4 times more detail than in the base mode. Combined with a high refresh rate of 25 Hz, you will be able to see the smallest temperature changes in a smooth and visually pleasing way. With the detachable macro lens, you can see changes in heat in the smallest passive elements of smartphones and microprocessors.
Supported by a dedicated Android application
Simply connect the camera to the USB-C port and launch the free app (available for download from the Play Store). With it, you can:

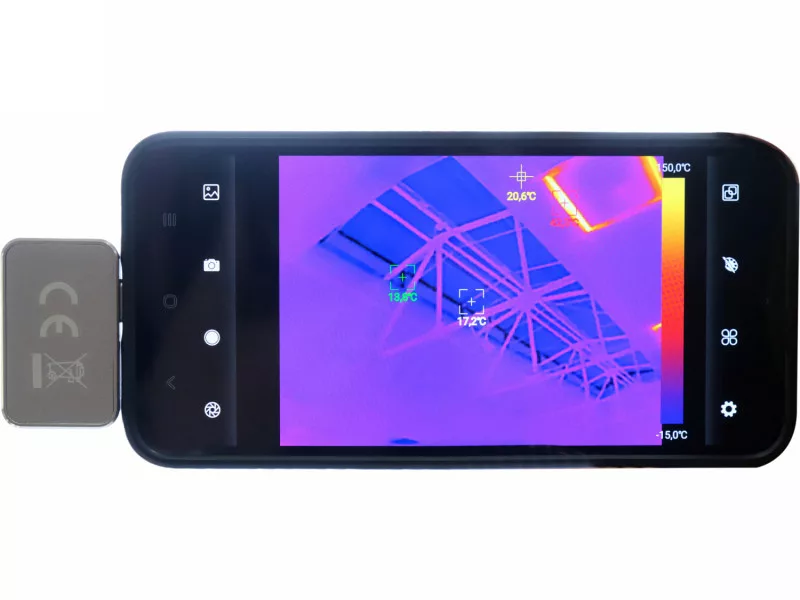

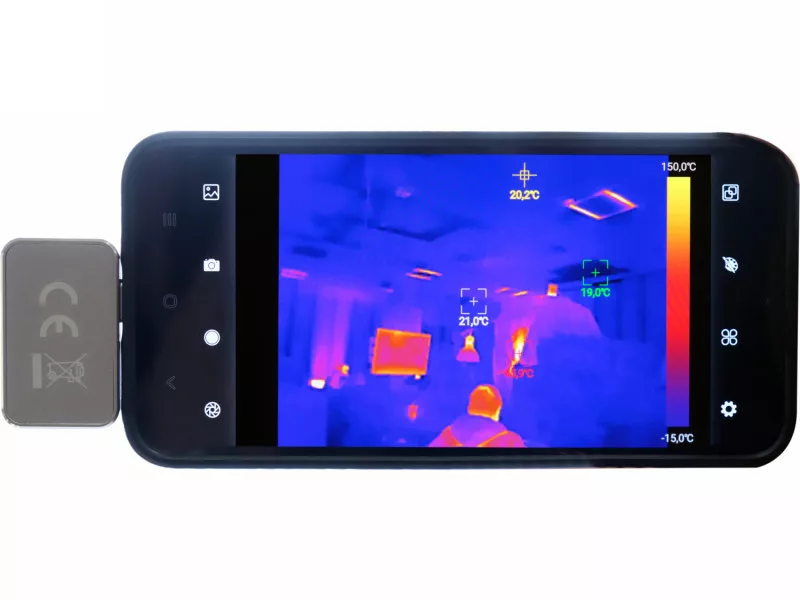

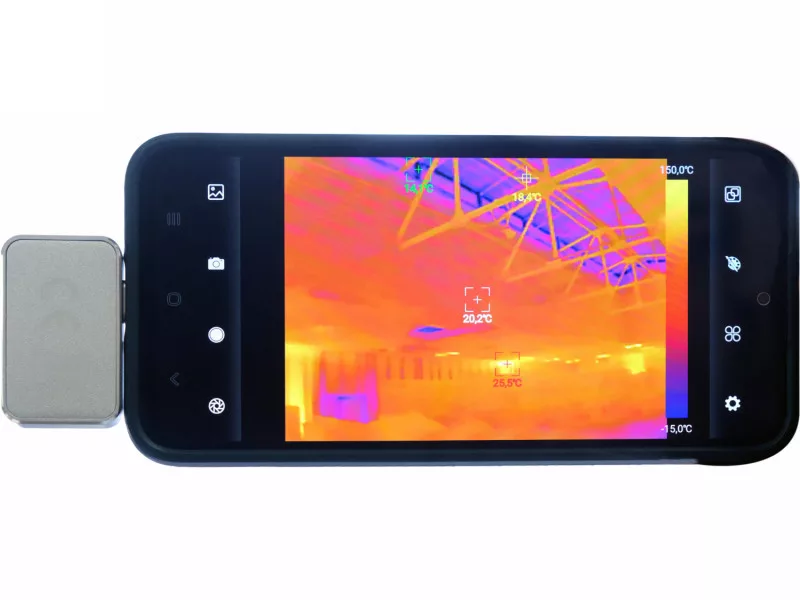

- view thermal images in real-time
- measure temperature point-wise, linearly, or in a selected area (region measurement)
- capture photos and videos (JPG/MP4 format)
- use 10 color modes, including: White Hot, Iron Red, Rainbow, Black Hot
Technical specification:
- sensor: VOx microbolometer (vanadium oxide)
- sensor resolution: 256 x 192 px
- effective resolution with Super Resolution: 512 x 384 px
- pixel size: 12 µm
- NETD: ≤50 mK @ 25°C - high thermal sensitivity
- spectral range: 8-14 µm
- focal length: 3.2 mm (fixed focus)
- field of view (FOV): 56° (H) × 42° (V)
- IFOV: 3.75 mrad
- image refresh rate: up to 25 Hz
Temperature measurement:
- range:
- -15°C ~ 150°C
- 150°C ~ 550°C
- accuracy:
- -15°C ~ -10°C: ±3°C
- -10°C ~ 550°C: ±2°C or ±2%
- measurement distance: from 0.25 m to 5 m
- measurement modes: point, linear, regional
- emissivity: adjustable (0.01-1.00)
Functionality and interface:
- power supply: via USB-C, DC 5V
- power consumption: ≤0.35 W
- storage format: JPG (photos), MP4 (videos)
- language menu: Polish, English, Ukrainian, Russian
- weight: only 15 g
- dimensions: 45 x 36.7 x 11.5 mm
Operating conditions and resistance:
- operating temperature: -10°C ~ +75°C
- storage temperature: -45°C ~ +85°C
- humidity: 10%-85% RH
