| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Measurement category | CAT II |
| Napięcie pomiarowe | 0.3, 0.6 V |
| Measurement frequency | 100 / 1000 / 10000 Hz |
| Pomiar indukcyjności | 10 µH - 60 H |
| Resistance | 10 mΩ - 10 MΩ |
| capability | 1 pF - 20 mF |
| Diode test | yes |
| Functions | ESR (rezystancja kondensatora), dyssypacja (strata energii w kondensatorze), współczynnik Q |
| Data Hold | yes |
| Dimensions | 146x30x18 mm |
| Material | ABS |
| Display range | 9999 |
| Adjustable display | OLED |
| Auto measurement range | yes |
| Sampling frequency | raz na sekundę |
| Bell ring | yes |
| Auto power off | yes, 5-120 min |
| Low battery indicator | yes |
| Battery type | Li-Po |
| Battery voltage | 3.7 V d.c. |
| Battery capacity | 500 mAh |
| Charger included | no |
| Charger type | USB Type-C |
| Working temperature range | 5-35 ˚C |
| Operating relative humidity Rh | 75 % |
| Storage temperature | -10 ~ +50 ˚C |
| Protection grade | IP20 |
| Weight | 37 g |
| Application | do szybkiej oceny stanu elementów bez demontażu i porządkowania diagnostyki układów elektronicznych w codziennej pracy serwisowej |
| Symbol | YT-73074 |

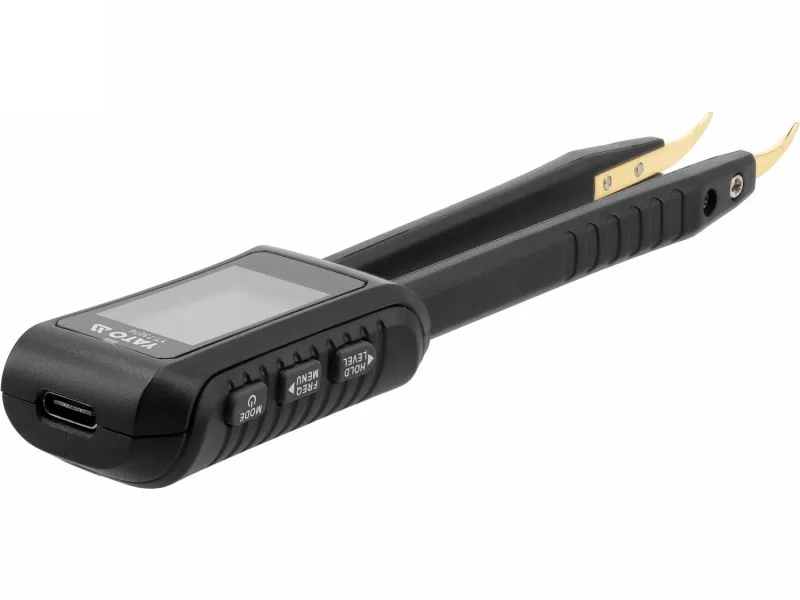

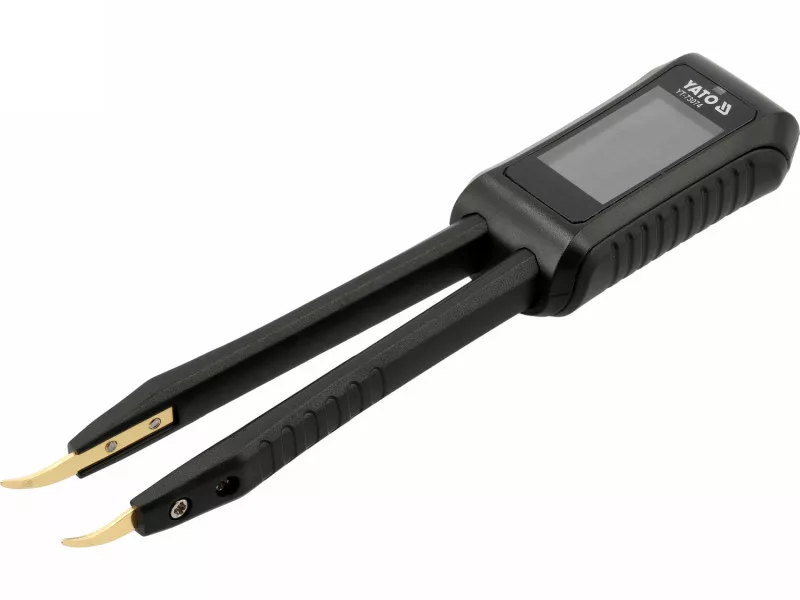

Precision electronic component tester in the form of tweezers is a measuring tool designed to work with SMD and through-hole components. It allows for quick parameter checking without desoldering the element from the board, significantly reducing diagnostics time and minimizing the risk of damage during servicing. The lightweight ABS housing and compact dimensions make the device well-suited for work at the service station, in the workshop, and in the field.
The clear OLED display presents results in real-time, and automatic component recognition selects the correct measurement mode. The tester allows for monitoring both basic parameters and more advanced properties of capacitors or coils, facilitating component evaluation and fault detection.
The device enables a quick assessment of component conditions without disassembly and streamlines electronic circuit diagnostics in everyday service work.
Measurements and component identification:
- automatic measurement range
- automatic selection of component type or manual selection
- testing speed: 1 measurement per second
- DATA HOLD function - result hold on the screen
- resistance: 10 mΩ - 10 MΩ
- capacitance: 1 pF - 20 mF
- inductance: 1 µH - 60 H
- diode test up to 0.6 V
Specialized diagnostics and measurements:
- ESR measurement (capacitor resistance)
- dissipation measurement (energy loss in capacitor)
- coil Q factor
- measurement frequency: 100 / 1000 / 10000 Hz
- measurement voltage: 0.3 V and 0.6 V
Features and settings:
- OLED display
- language selection: Chinese / English
- screen orientation adjustment: left / right
- volume adjustment: 0%-100%
- backlight brightness adjustment: 10%-100%
- calibration settings: 0Ω-10MΩ, open
- factory settings restore
- firmware update
Power supply:
- low battery level indicator
- Li-Po battery 3.7 V, 500 mAh
- USB-C charging port
- automatic shutdown: 5-120 min or off
Construction:
- housing material: ABS
- dimensions: 146 x 30 x 18 mm
- weight: 37 g
- accessories included:

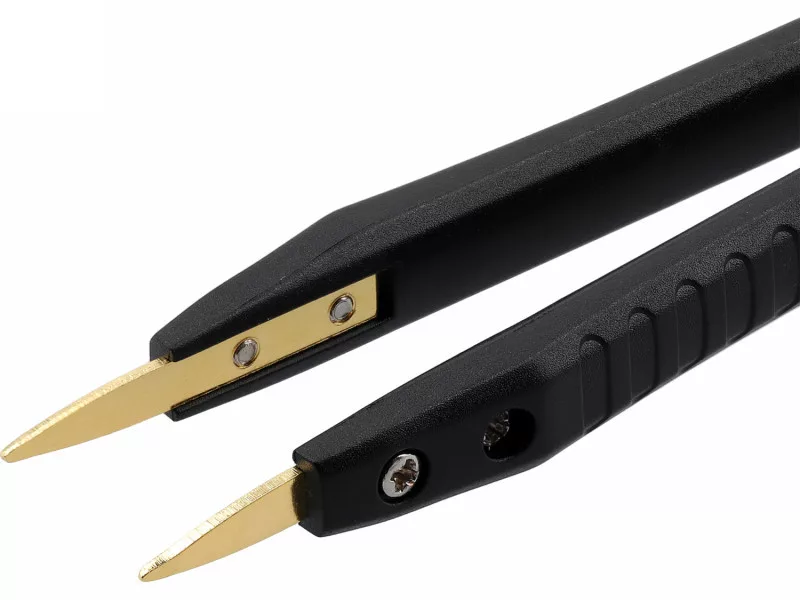

- pair of straight tweezer tips

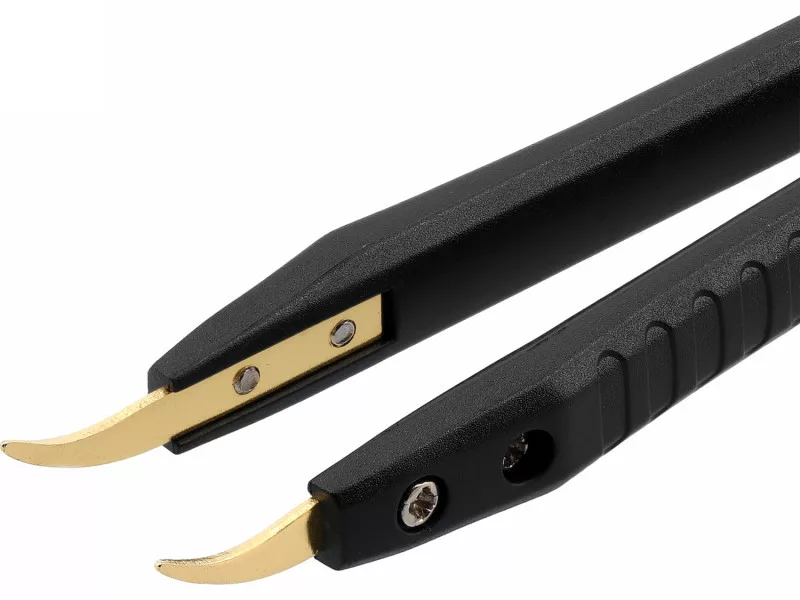

- pair of curved tweezer tips
- USB-C to USB-A cable

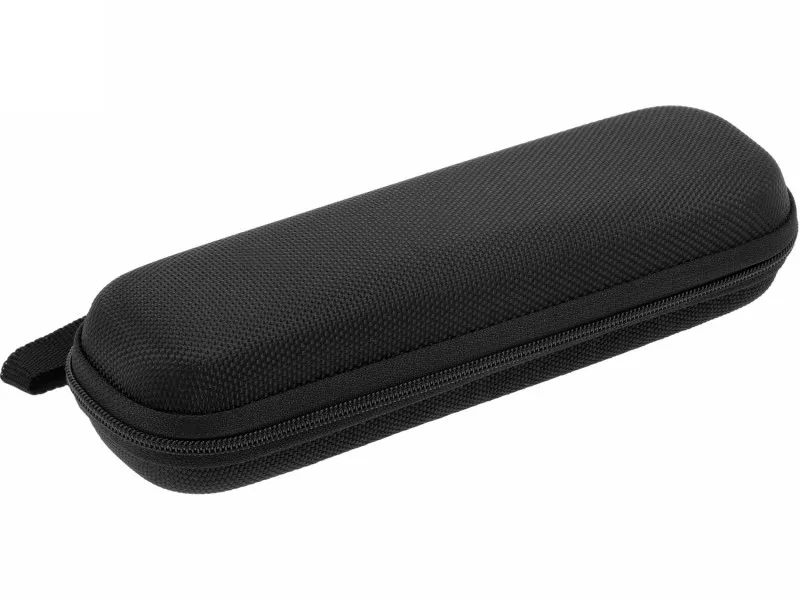

- zippered case
