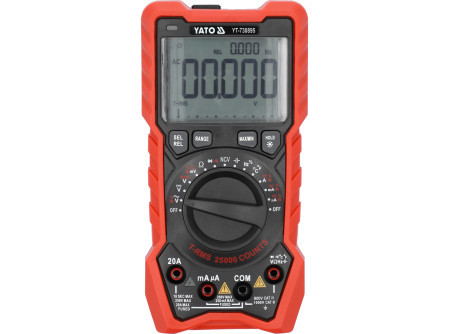

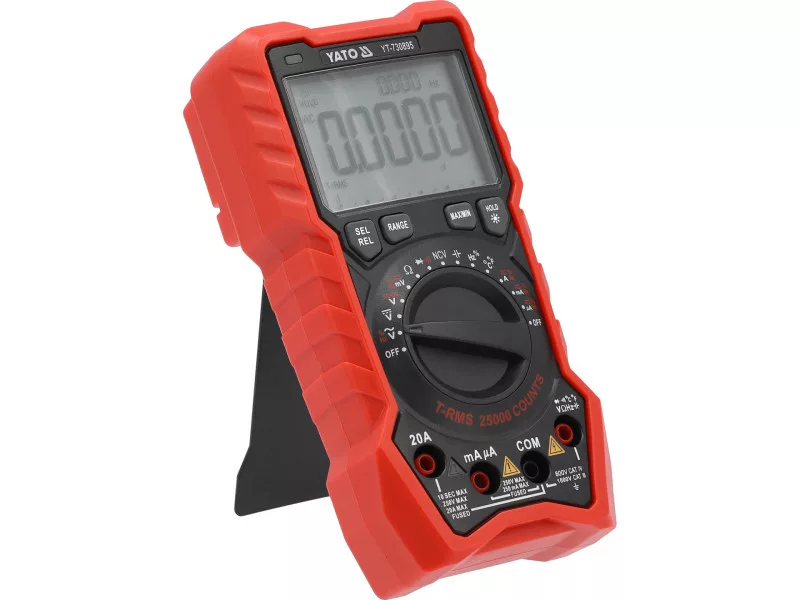

YATO Multimetru digital

Numar articol:
YT-730895
YATO Multimetru digital
YATO Multimetru digital YATO Multimetru digital YATO Multimetru digital YATO Multimetru digital YATO Multimetru digital YATO Multimetru digital YATO Multimetru digital
Date
Marcă:
YATO
Cod EAN:
5906083105814
Ambalare:
1
Depozitare externă:
500
Tipul produsului:
Multiméter
Livrare estimată: 2026.05.22
La comandă
Niveluri de stoc
Depozit propriu 0 buc
Livrăm de aici, produsele din stoc sunt de obicei livrate cu o zi lucrătoare mai târziu
Magazin Miskolc 0 buc
Livrăm și de aici, produsele din stoc sunt de obicei livrate cu o zi lucrătoare mai târziu
Depozit extern propriu 0 buc
Livrăm și de aici, produsele din stoc sunt de obicei livrate cu o zi lucrătoare mai târziu
Depozit furnizor 500 buc
Depozit european, de obicei ajunge la noi în 1-2 săptămâni, apoi îl expediem
Preț fără TVA: 363,59 RON
Preț cu TVA: 439,95 RON
buc
Produse similare
Detalii
BrandYato
Entity responsible for this product in the EUTOYA S.A.More
SeriesGRF
Alternating voltage0-750 V a.c.
Direct voltage0-1000 V d.c.
Alternating current0-20 A
Direct current0-20 A
Resistance0-250 MΩ
capability0-99.99 mF
Regularity0-10 MHz
Temperature-20 ~ +1000 ˚C
Duty cycle1 ÷ 99 %
Continuity test0-50 MΩ
Conduction testyes
Diode testyes
Minimum measurement valueyes
Maximum measurement valueyes
Relative valueyes
TRUE RMSyes
Data Holdyes
Non-contact AC voltage detection NCVyes
Dimensions180x90x50 mm
MaterialABS
Display typeLCD
LED backlightyes
Display range25000
Auto measurement rangeyes
Sampling frequency3 times per second
Bar graph0-100
Bell ringyes
Auto power off15 min
Front lightingno
Low battery indicatoryes
Power supplybattery
cell type3x1.5V; AA
Working temperature range0~40 ˚C
Operating relative humidity Rh75 %
Storage temperature-10 ~ +50 ˚C
Weight0.26 kg
Applicationelectric
SymbolYT-730895


Universal meter for professionals and hobbyists

The YT-730895 digital meter combines measurement precision with incredible functionality. Indispensable in every toolbox!


Precision and versatility:
  • Automatic range measurement for ease and safety of operation
  • LCD display counting up to 25000 digits for maximum reading accuracy
  • TRUE RMS function providing precise measurements for any type of current waveform
  • Durable housing with non-slip PVC holster, increasing device safety and durability

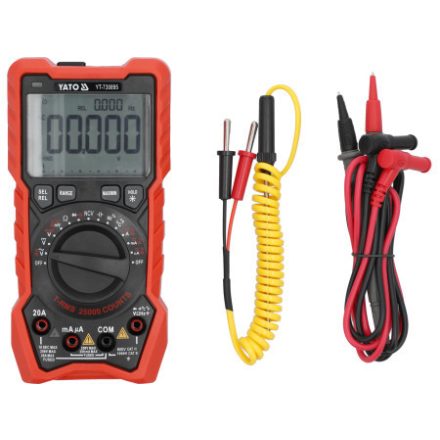

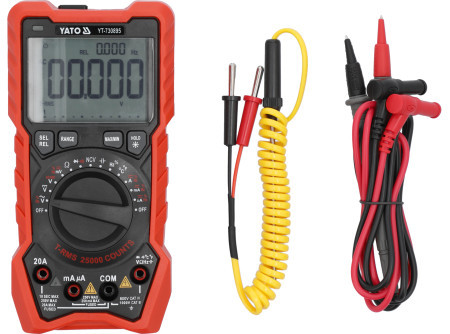

  • Silicone, flexible, and high-temperature resistant measuring probe wires
  • Wide measurement ranges and industrial precision, appreciated by professionals and DIY enthusiasts
  • Non-contact detection of alternating current (NCV) for quick and safe diagnosis
  • Construction with comprehensive overload protections
  • Fast operation speed, ensuring efficient measurement performance
  • Multifunctional display that facilitates data reading in any conditions

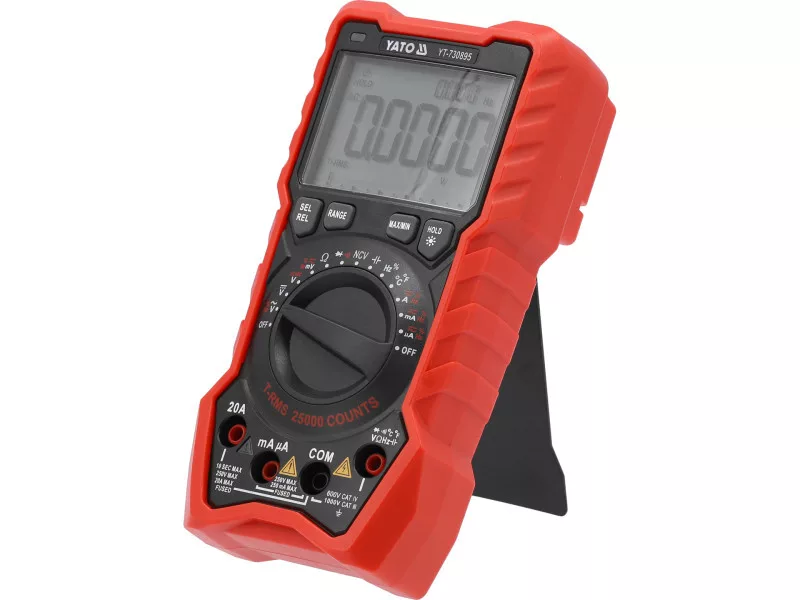

Compact size
Compact size
Measurement precision
Measurement precision

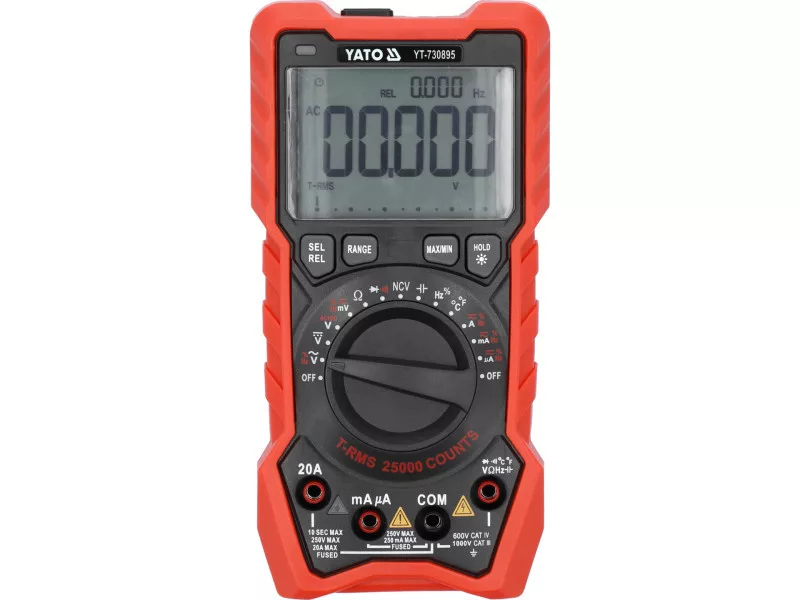

Large LCD display
Large LCD display

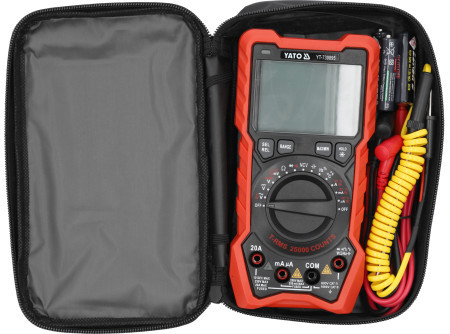

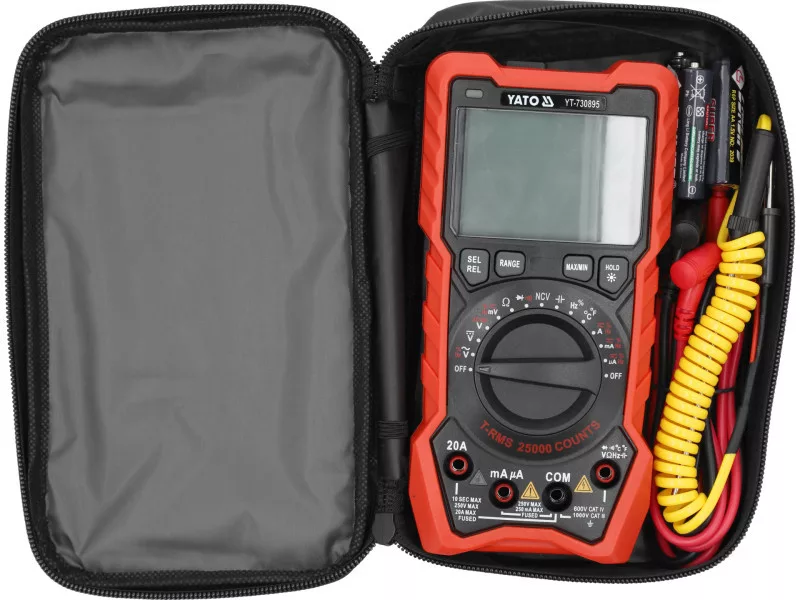

Soft case included
Soft case included
Professional applications
Professional applications


Detailed technical data:
  • Voltage measurements: AC 0-750 V (TRUE RMS), DC 0-1000 V
  • Current measurements: AC 0-20 A (TRUE RMS), DC 0-20 A
  • Resistance: Wide measurement range up to 250 MΩ
  • Capacitance: Precise measurements up to 99.99 mF
  • Frequency measurement: Accurate readings up to 10 MHz
  • Temperature measurement range: From -20°C to 1000°C
  • LCD display: Clear, with a maximum result of 25000 digits
  • Automatic shutdown: After 15 minutes of inactivity (with deactivation option)

Additional advantages and features:

  • TRUE RMS: True effective value for sinusoidal and distorted waveforms, indispensable for switch-mode power supplies or inverter drives.

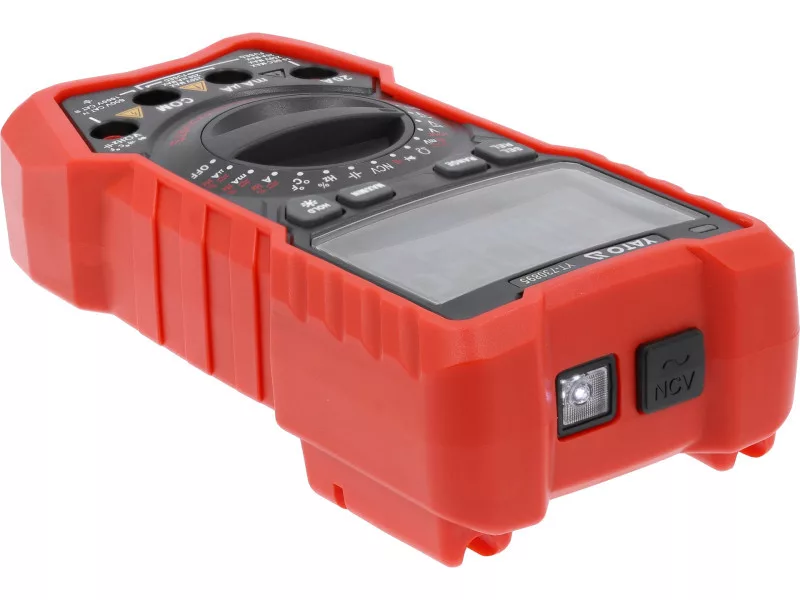

  • NCV (Non-contact voltage): Non-contact detection of alternating current using inductive method, increasing work safety.
  • AUTO: Automatic range adjustment, default for convenience and device protection.
  • RANGE: Manual range change function, useful for serial measurements of components with known values.
  • REL (Relative Measurement): Zeroing the display and measuring the difference relative to a reference value, ideal for quick comparisons.
  • MAX/MIN: Function to retain the maximum or minimum value on the display during measurement.
  • HOLD: Pausing the currently measured value on the display, facilitating reading.
  • Backlit LCD screen for better visibility in difficult lighting conditions.
  • Sound and light signal in continuity test for resistance below 50 Ω.

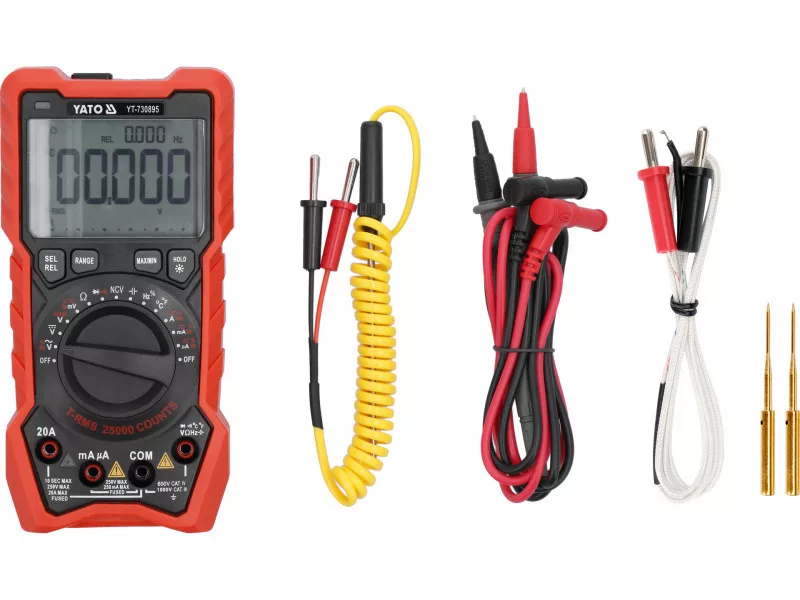

  • Includes two temperature probes: immersion for liquids and point for surfaces.
  • Additional needle tips for precise measurements of small SMD components.

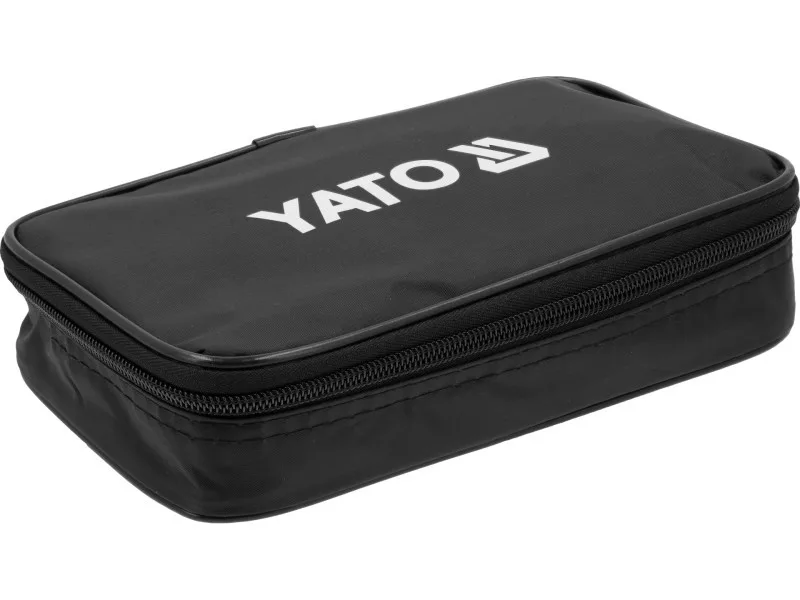

  • Soft zippered case for safe storage and transport.
  • Powered by three 1.5 V (AA) batteries with low battery level indicator.
  • Warning light near current measurement sockets, increasing user safety.
