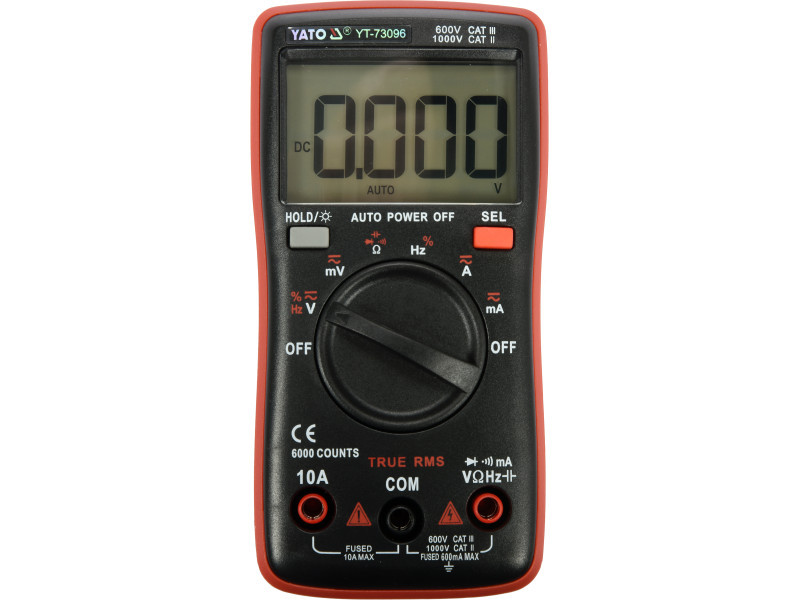

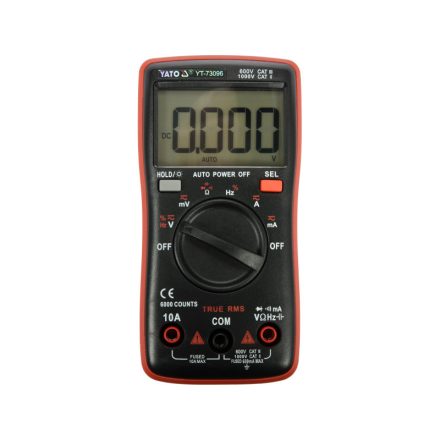

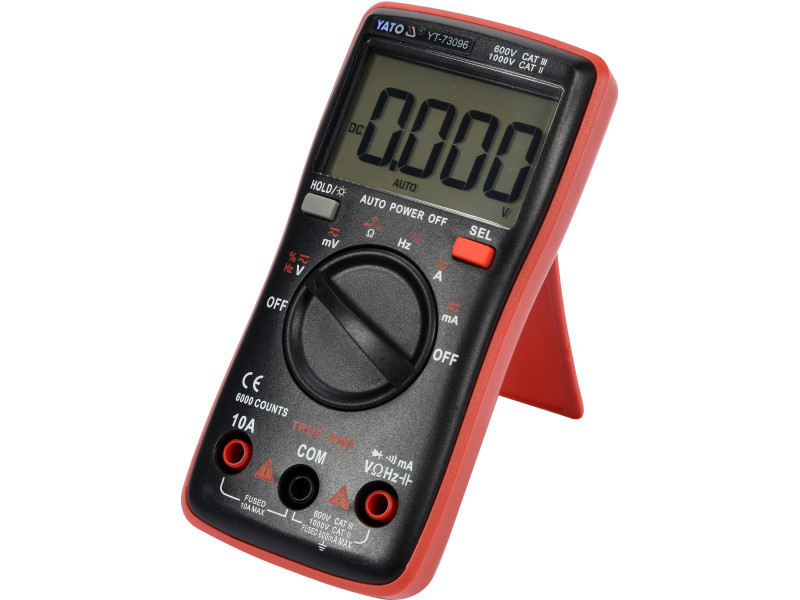

Multimetru digital YATO TRUE RMS

Brand	Yato
Entity responsible for this product in the EU	TOYA S.A.More
Series	GRF
Alternating voltage	0-750 V a.c.
Direct voltage	0-1000 V d.c.
Alternating current	0-10 A
Direct current	0-10 A
Resistance	0-60 MΩ
capability	0-9.999 mF
Regularity	0-9.999 MHz
Duty cycle	1 ÷ 99 %
Continuity test	0-50 Ω
Conduction test	yes
Diode test	yes
TRUE RMS	yes
Data Hold	yes
Dimensions	130x65x32 mm
Material	ABS
Display type	LCD
LED backlight	yes
Display range	6000
Auto measurement range	yes
Sampling frequency	3 times per second
Bell ring	yes
Auto power off	15 min
Front lighting	no
Low battery indicator	yes
Power supply	battery
cell type	2x1.5V; AAA
Working temperature range	0~40 ˚C
Operating relative humidity Rh	75 %
Storage temperature	-10 ~ +50 ˚C
Weight	0.114 kg
Application	electric
Symbol	YT-73096

The YT-73096 universal meter with True RMS function and with an automatic range for each measurement. It enables basic and advanced electrical measurements. A popular housing, small dimensions and a large illuminated display are a combination of high mobility with the convenience of work. The speed, accuracy and repetition of indications, the multimeter owes the modern control of the control board and high -quality measuring probes, whose size and precision will be appreciated by both hobbies and professional service technicians. Basic measurements measurement of alternating voltage: A.C. 0-750V, TRUE RMS DC voltage measurement: D.C. 0-1000V AC MIDEMENT: A.C. 0-10A, TRUE RMS DC measurement: D.C. 0-10A resistance measurement: 0-60mΩ diode test: IF 5MA, UR 3V circumference continuity test: 0-50Ω Additional measurements Capacitor capacity measurements: 0-9.999MF Frequency measurement: 0-9.999MHz Measurement of the filling factor: 1-99% accuracy Measurement example of determining accuracy for measuring AC alternating current. Calculations for the measurement result: 235V Measurement accuracy of the YT-73096 meter for this range is: ± (1.0% + 3), 0.1V resolution calculation of the measurement error Pattern: (measurement result x 1.0%) + 3 x Calculation resolution: (235 x 1.0%) + 3 x 0.1 = 2.35 + 0.3 = 2.65V The actual result taking into account the measuring error for indicating & nbsp = 12 ± 0.09V The result, taking into account the measuring error for indicating the measurement of alternating current: 8a = 8 ± 0.15a, the table with resolution and accuracy for a given measurement is in the user manual. Built -in TRUE RMS functions - a meter with this function calculates the real value of the effective value of alternating current and intensity for both sinusoidal and non -sinusoidal mileage. The device first measures the actual sinusoid value at several intervals → Then the measurement results are raised to a square → sums them in the average → calculates → and finally the average element. The measurement result is a real effective value of alternating current voltage/current even for a deformed sinusoid or rectangular car - automatic matching of the measurement range. In the case of measuring unknown values ​​using a meter with a manual change in the range using the knob, measurements should be made successively from the largest range to the range that gives the most accurate result - otherwise we risk damage to the device. However, in the case of a multimeter with a car function, you just need to make one measurement and the meter will automatically find the optimal range. The meter is launched by default in Auto Sel mode - change of measurement mode, e.g. from AC voltage measurement to DC Data Hold - behavior on the display currently measured value. resistance below 50Ω. Possibility to enable diode tests and circumference continuity. In the set of 14.5 cm long measuring probes, the duct length with probes: 97 cm cable diameter with insulation: 3.5 mm construction with overload protections housing with ABS plastic housing automatic switching off Meter after 15 minutes of inactivity Possibility to turn off the automatic switching mode of the device low battery level power supply: two 1.5V batteries (AAA)
