Termometru laser YATO -50 °C +650 °C UV LED

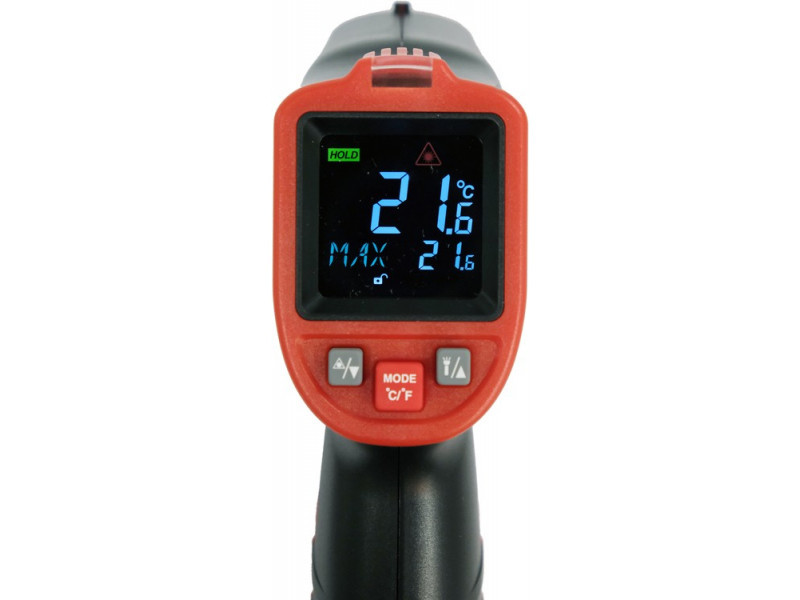

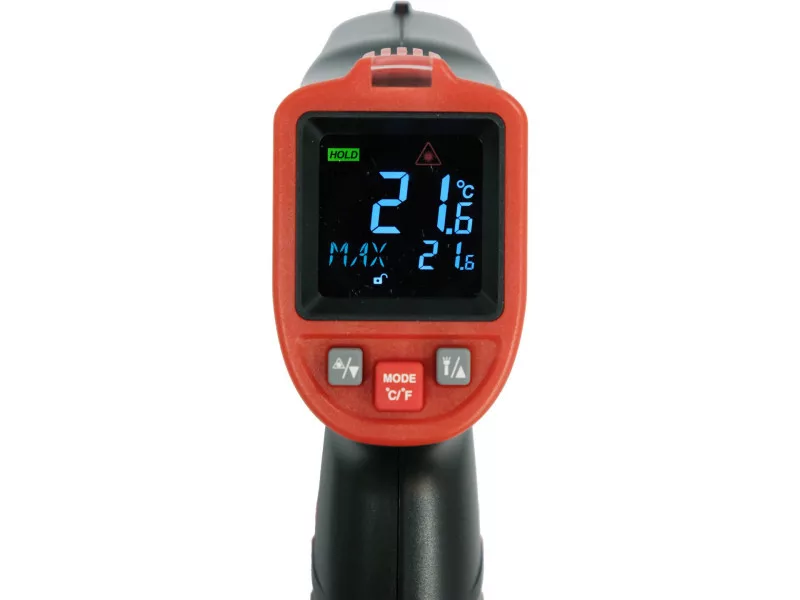

The YT-73201 non-contact infrared thermometer with a large color LCD display, expanded circular laser sight, emissivity adjustment, additional UV light for fluorescent leak detection, and numerous functions for easy operation, including max/min, continuous measurement, and storage of the last 100 measurements. It will find its use in many industries, including construction, automotive, food service, as well as household.

TEMPERATURE MEASUREMENT

• Temperature measurement range: -50°C~+650°C
• measurement accuracy: ± 1.5˚C for T > 0˚C
• measurement resolution: 0.1°C - temperature indication with one decimal digit, e.g. 236.6°C

Other data

• optical resolution: 1:12 - at a distance of 12 cm from the device, the surface temperature will be measured from a circular field with a diameter of 1 cm
• emissivity: adjustable from 0.10-1.00 - factory setting of 0.95
• spectral response: 5-14 μm
• measurement speed: 0.5 s
• operate at ambient temperature: 0°C-40°C (14°F-140°F)

FUNCTIONS

• display of maximum and minimum temperature from a given measurement [MAX], [MIN]
• display of temperature difference result from a given measurement [DIF]./li>
• high and low temperature alarm [HAL], [LAL] - sound signal, display of HIGH and LOW respectively
• .continuous temperature measurement function without holding the trigger [padlock symbol]
• emissivity adjustment [EMS]
• storage of the last 100 measurements [LOG]
• low battery display when battery is below 2.4V [battery symbol]
• automatic shutdown of the instrument after 30 seconds of inactivity

Additional information

• casing material: ABS
• UV diode: 2 pcs
• power supply: 2 x 1.5V AAA
• dimensions : 108*49*177 mm
• weight (including batteries): 200 g

DEFINITIONS

IR Radiation - each object, depending on its current temperature, emits adequate infrared radiation. The IR thermometer, by means of optics, focuses this radiation onto an infrared sensor, which first converts it into heat and then into electrical energy. The energy value is then read and converted into a temperature indication. The entire process in YATO pyrometers takes no longer than 0.5 seconds.

Emissivity - is a parameter that determines the ability of an object to emit thermal radiation. Most organic, varnished and oxidized materials have an emissivity of 0.95, and this is the parameter that is set at the factory. However, some materials such as lead and aluminum have a much lower emissivity, so if there is a need to get a measurement as close to the real thing as possible, the emissivity parameter should be set in advance to the appropriate value for the material. Tables of emissivity should be sought in the scientific literature or on the Internet.

Low and high temperature alarm - a function useful, for example, in locating thermal bridges in cold weather. Measure the temperature at the center of the wall to get a reference point, then depending on the temperature outside, set the low temperature alarm a few degrees lower. The next step is to measure the temperature where thermal bridges are most likely to occur, such as wall-to-ceiling joints, around window frames, etc. If the temperature reading falls below the alarm setting, then you will hear a beep and an additional indication on the display.

Accuracy of measurement - the optics and control electronics in YATO pyrometers ensure high accuracy and repeatability of measurements. However, due to many manufacturer-independent variables, including humidity and ambient temperature at the measurement sites, it is impossible to calibrate the device so that its accuracy is 100% in all conditions. The manufacturer declares the possibility of a measurement error of +-1.5°C in ambient temperatures from 0°C to 40°C for surface temperature measurements above 0°C. This means that with the correct emissivity setting, the measurement result of 100°C should be interpreted as a value in the range of 101.5-98.5°C.
