| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Series | ASTRO |
| Standard | EN 175:1997, EN 379:2003 + A1:2009 |
| Optical characteristic | 1 / 1 / 1 / 1 |
| Dark state | 5-8, 9-13 DIN |
| Light state | 4 DIN |
| Filter type | auto-darkening TRUE COLOR |
| Filter size | 134x124 mm |
| Protection lens size | 270x125 mm |
| Viewing area | 100x68 mm |
| Helmet material | PA6 |
| Lens material | P.C |
| 4 point headgear | yes |
| Arc sensor quantity | 4 |
| Filter test | yes |
| Reaction time | 1/25000 s |
| Functions | grinding, cutting, welding |
| Shade control | yes, external, liquid |
| Brightening time | 0.2-1 s |
| Delay control | yes, external, liquid |
| Auto power on / off | yes |
| UV/IR proof | yes |
| Power supply | solar cell, battery, USB |
| cell type | 1x3.6V; LIR2450 |
| Low battery indicator | yes |
| Working temperature range | -5 ~ +55 ˚C |
| Storage temperature | -20 ~ +70 ˚C |
| Application | joining |
| Welding process | MMA, MIG, MAG, TIG |
| Symbol | YT-73930 |

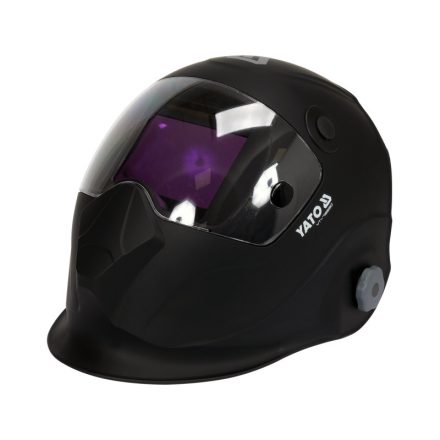

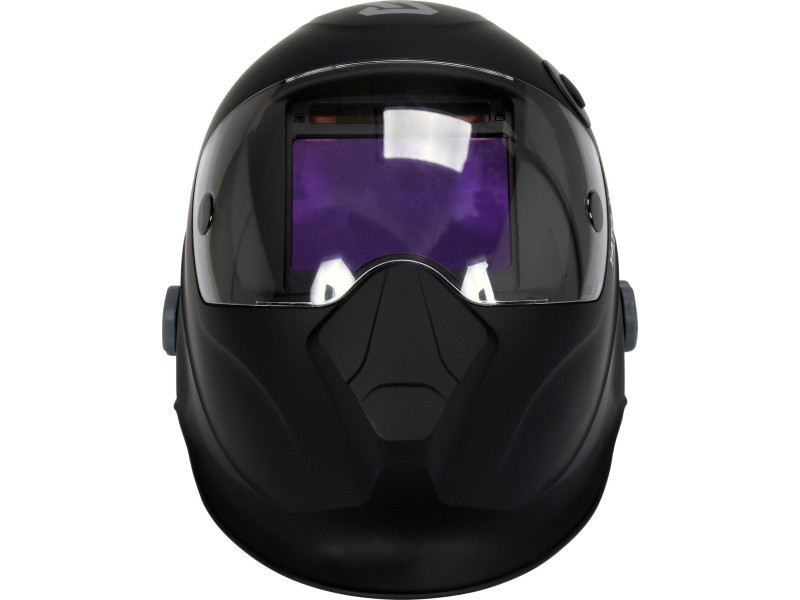

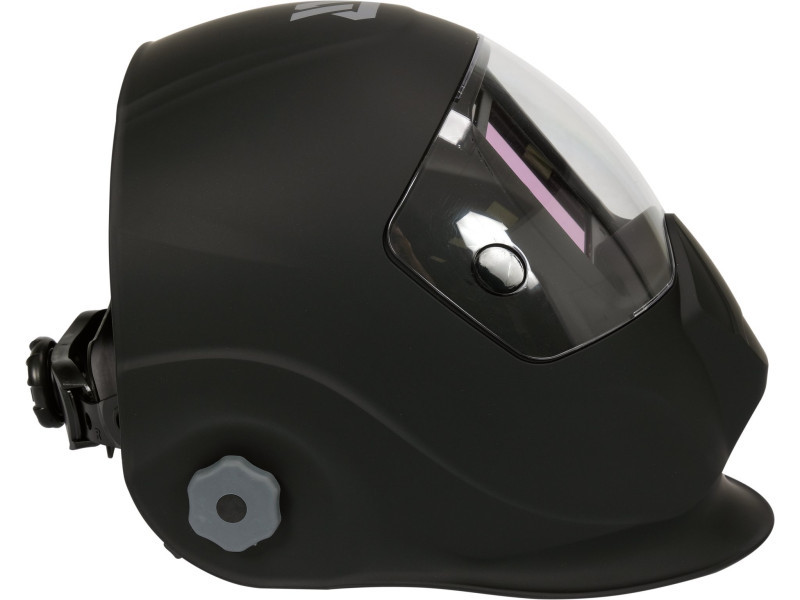

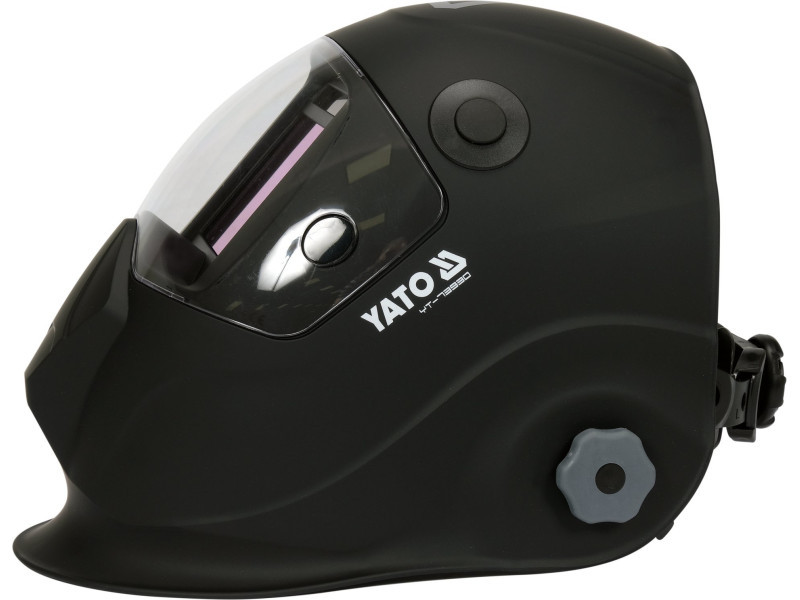

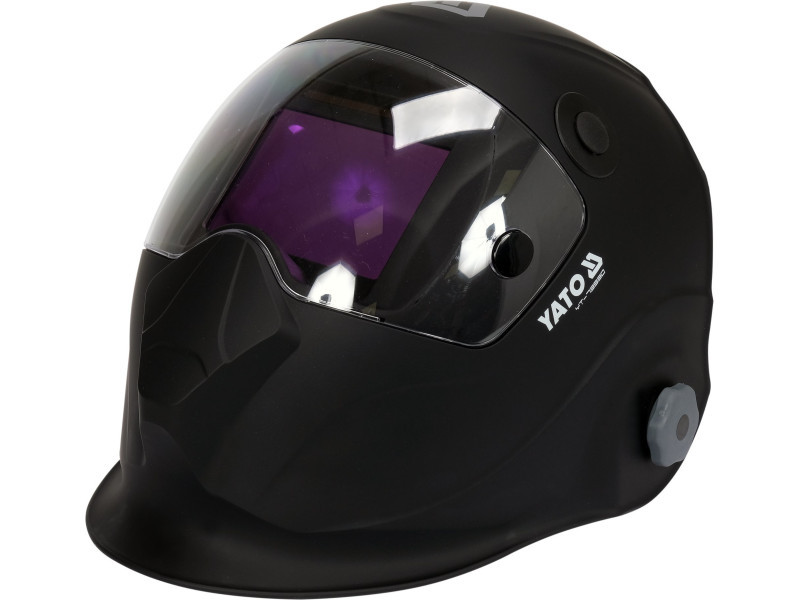

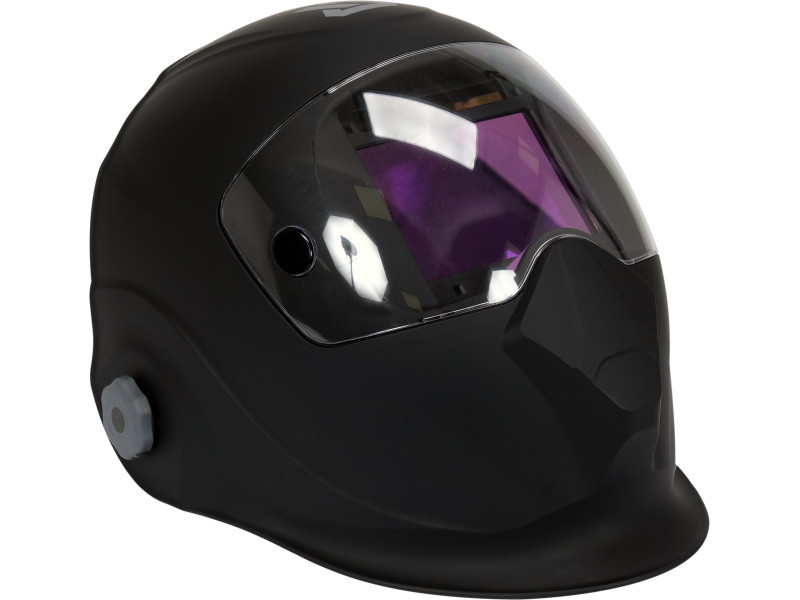

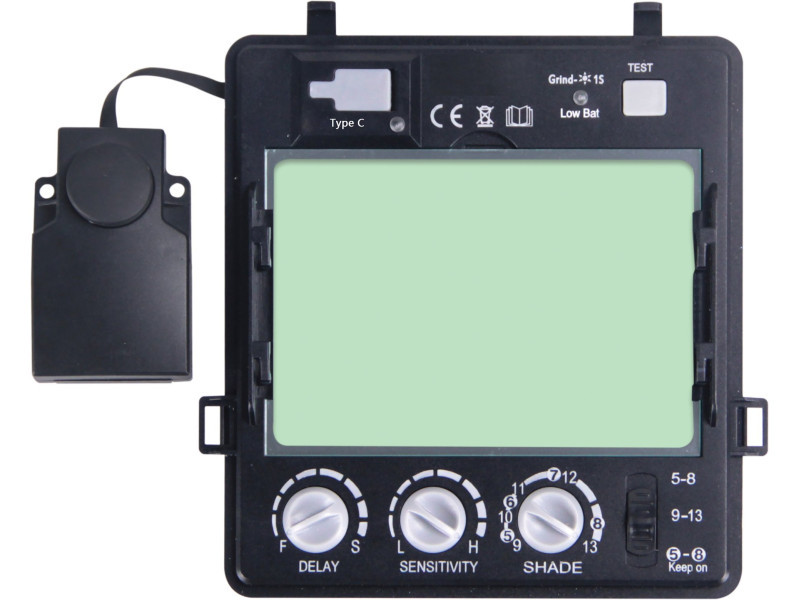

Astro welding helmet with true-colour auto-darkening filter, allowing the welding arc to be observed in true colours. Certified welding filter in the highest optical class 1/1/1/1. The filter provides a large field of view of 100x68 mm and UV/IR protection. The filter is protected from splinters by a pane of durable polycarbonate. Four arc sensors and precision electronics detect an electric arc from a TIG as low as 5A. The filter is powered by a solar cell and an LIR2450 battery that can be recharged via the built-in USB-C port.

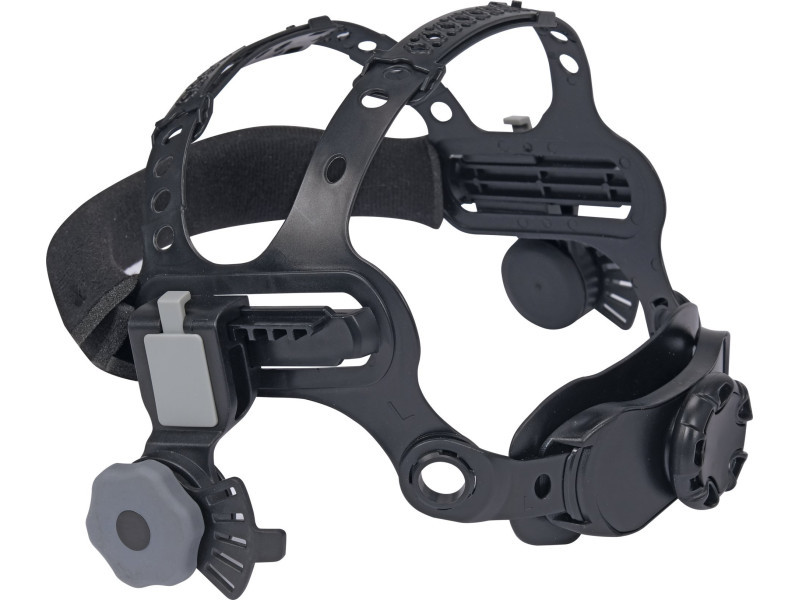

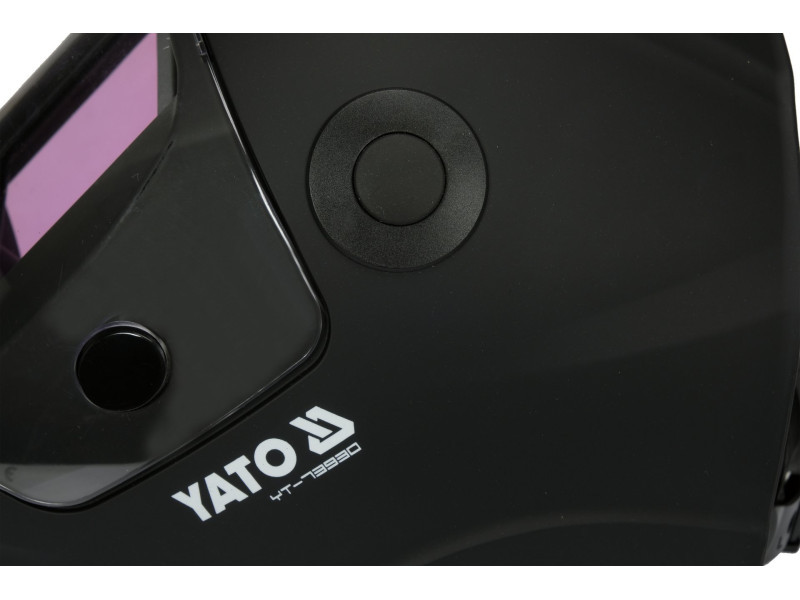

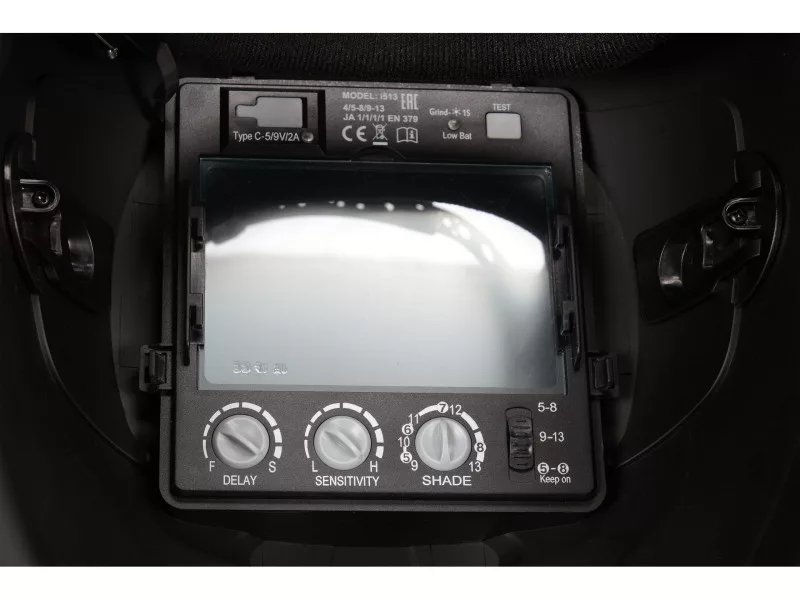

The visor has an adjustable darkness level, adjustable sensitivity to the intensity of the light source, as well as adjustable time for maintaining the dark state after welding. A button on the outer shell disables the dimming function. The helmet can then be used as a means of personal protection against, for example, sparks from cutting or grinding metal. The four-point harness, thrusters, size adjustment system and working angles allow the helmet's position to be adapted to individual requirements and working comfort.
The filters have a TEST button to check the operation of the auto-darkening function. A routine of checking the filter every time will help protect the operator's eyes and health.
- filter type: self-darkening, true colour
- optical properties: 1 / 1 / 1 / 1
- field of vision: 100x68 mm
- filter size: 134x124 mm
- response time: 1/25000 s
- brightening time: 0.2-1 s
- number of arc detectors: 4.
- dark condition: 5-8|9-13 DIN
- bright condition: 4 DIN
- filter test
- sensitivity adjustment
- dimming adjustment
- power supply: solar cell, battery LIR2450, USB
- Operating temperature range: -5 ~ +55 ˚C
