| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Length | 40 m |
| Extension cord type | drum |
| Max. current | 16 A |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Nest type | E |
| Plug type | E & F |
| Earthing | yes |
| Socket quantity | 4 |
| Wire insulation type | H05RR-F |
| Wire section area | 3Gx2.5 mm² |
| Reel material | PVC |
| Color | red |
| Overheat protection | yes |
| Protection grade | IP44 |
| Max. load capacity (completely coiled wire) | 1200 W |
| Max. load (cable fully unrolled) | 3600 W |
| Switch | no |
| Children protection | yes |
| Stand / tripod | yes |
| Weight | 9.9 kg |
| Symbol | YT-8107 |

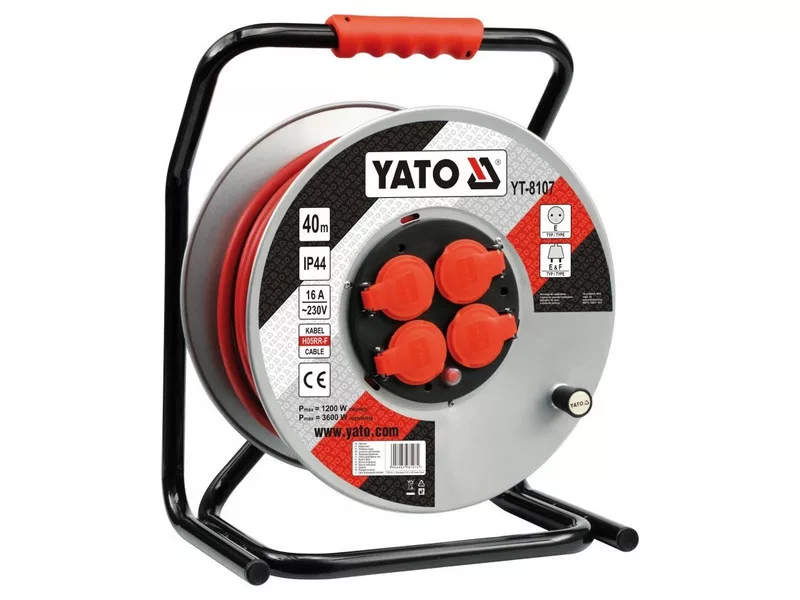

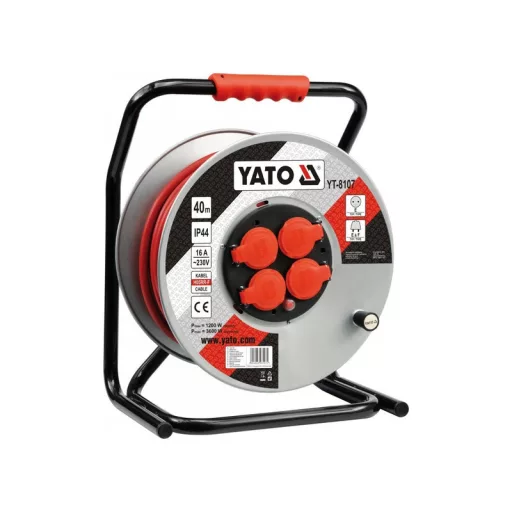

Building and workshop extension cable reel YT-8107 with a length of 40 meters with 4 dust- and splash-proof sockets, thermal protection and child protection. The natural rubber sheathed cable wound on a drum made of durable plastic makes the extension cord suitable for indoor as well as outdoor use, such as construction sites, gardens, yards in front of factories.
The cross-section of the single wires is as much as 2.5 mm², so the voltage drop along the entire length of the extension cord is minimal. This allows you to seamlessly power high-current demanding equipment such as inverter welders, compressors or large wood saws.
The reel is embedded in the reel
The drum is set on a sturdy metal frame with an ergonomic handle. The handle located at the edge of the drum speeds up the retraction, and a rubber element attached to the cable a few centimeters before the plug, allows it to be hooked to the edge of the drum, for example, which makes it much easier to store and transport the retracted extension cord.
The retracted extension cord can also be used as an extension cord.
- Voltage and frequency rating: ~230V/50Hz
- Maximum load: 1200 W - coiled cable, 3600 W - uncoiled cable
- copper three-core cable of 2.5 mm², length 40 m
- .natural rubber insulation is a high resistance to mechanical damage, atmospheric factors (sun, cold), chemical substances (cooling oils, gasoline, or ethyl, methyl alcohols), provides flexibility of the cable and proper protection also during outdoor work
- the dust and splash-proof sockets with IP44 degree of protection guarantee protection against moisture or dust and sand
- the thermal protection will cut off the power supply at the temperature of the cable 56°C +-5°C
- child protection in the form of plastic flaps and a special mechanism makes it difficult to access the socket openings
Designation H05RR-F means a tire cable made according to the harmonized standard (H), for rated voltage of 300/500V (05)., with natural rubber insulation (R), with natural rubber sheath (R) and multi-stranded flexible conductors (-F).
