| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Extension cord type | drum, forceful |
| Max. current | 16 A |
| Voltage | 230, 400 V a.c. |
| Frequency | 50 Hz |
| Nest type | 3P + N + E |
| Plug type | 2P + E x2 |
| Earthing | yes |
| Socket quantity | 1 + 2 |
| Wire insulation type | H07RN-F |
| Wire section area | 5Gx2.5 mm² |
| Reel material | PVC |
| Color | black |
| Length | 25 m |
| Overheat protection | yes |
| Protection grade | IP44 |
| Max. load capacity (completely coiled wire) | 1200 (230 V a.c.), 3000 (400 V a.c.) W |
| Max. load (cable fully unrolled) | 3000 (230 V a.c.), 9000 (400 V a.c.) W |
| Switch | no |
| Children protection | yes |
| Stand / tripod | yes |
| Weight | 11.2 kg |
| Symbol | YT-8120 |

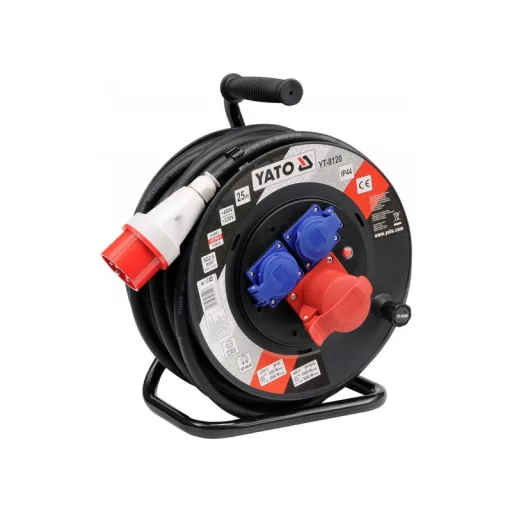

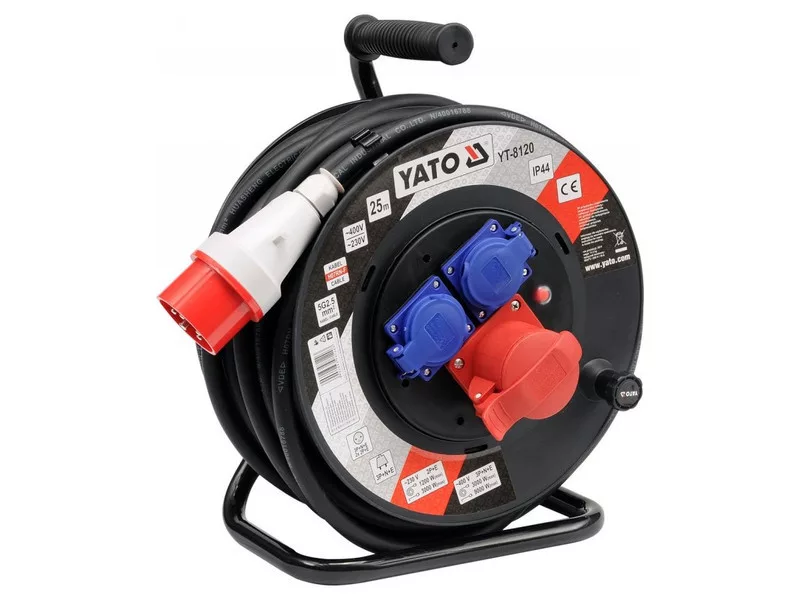

Building and workshop power reel extension cord YT-8120 with a length of 25 meters with 2 sockets for rated voltage ~230V with child protection and a single socket for rated voltage ~400V. The power plug is a 5-pin plug for rated voltage ~400V. Extension cord with thermal protection. Neoprene rubber sheathed cable wound on a drum made of durable plastic makes the extension cord suitable for indoor as well as outdoor use, such as on construction sites, in gardens, in yards in front of factories.
The cross-section of the individual wires is as much as 2.5 mm², so the voltage drop along the entire length of the extension cord is minimal. This makes it possible to seamlessly supply power to devices that require high current, such as welders, compressors or other devices that use, for example, induction motors for their work.
The reel is embedded in the reel
The drum is set on a solid metal frame with an ergonomic handle. The handle located at the edge of the drum speeds up reeling, and the clip attached to the cable a few centimeters in front of the plug makes it possible to attach it, for example, to the edge of the drum, which makes it much easier to store and transport the rolled-up extension cord.
The cable can be used as an extension cord.
- Voltage and frequency rating: ~230-~400V/50Hz
- Maximum load ~230V: 1200 W - coiled cord, 3600 W - uncoiled cord
- maximum load ~400V: 3000 W - coiled cable, 9000 W - unwound cable
- .li>copper five-conductor cable of 2.5 mm², length 25 m
- .External insulation made of neoprene rubber is high resistance to mechanical damage, atmospheric factors (sun, cold) chemical substances (cutting oils, gasoline, or ethyl and methyl alcohols), as well as inertness to flame
-
- .
-
- natural rubber insulation is used for the individual conductors
- dust and splash-proof sockets with IP44 rating guarantee protection against moisture or dust and sand
- .thermal protection will cut off the power supply at a cable temperature of 56°C +-5°C
- child protection for single-phase sockets in the form of plastic flaps and a special mechanism makes it difficult to access the socket openings
The designation H07RN-F denotes a tire cable made according to the harmonized standard (H), for a rated voltage of 450/750V (07), with natural rubber insulation (R), with neoprene sheath (N) and flexible multi-stranded conductors (-F).
Parameters:
- extension cord type: reel
- number of outlets: 1+2
- type of outlets: 2x 2P+T/E; 1x 2P+T/E+N
- type of cable: H07RN-F 5G2.5 mm2
- Rating voltage [V]: 230~ 400
- Rating frequency [Hz]: 50
- maximum load (cable fully coiled) [W]: 1200 (230V); 3000 (400V)
- maximum load (cable fully unwound) [W]: 3600 (230V); 9000 (400V)
- grounding: yes
- length [m]: 25
- cable cross-section: 2.5
- number of conductors [pcs.]: 5
- type of insulation: RN-F
- protection [IP] rating: 44
- weight [kg] 11.2
