| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Socket quantity | 3 |
| Extension cord type | building |
| Max. current | 16 A |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Nest type | E |
| Plug type | E & F |
| Earthing | yes |
| Wire insulation type | H07RN-F |
| Wire section area | 3Gx1.5 mm² |
| Color | black |
| Length | 3 m |
| Protection grade | IP44 |
| Switch | yes |
| Children protection | yes |
| Symbol | YT-81240 |

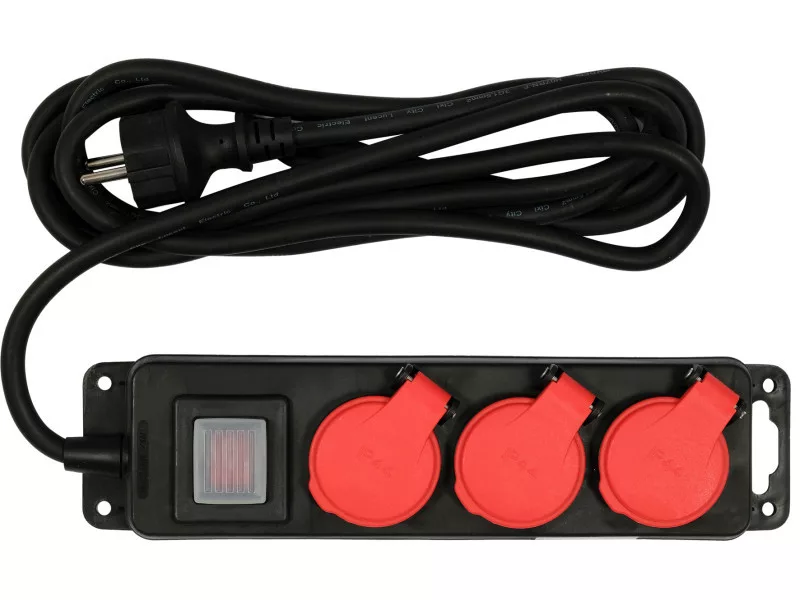

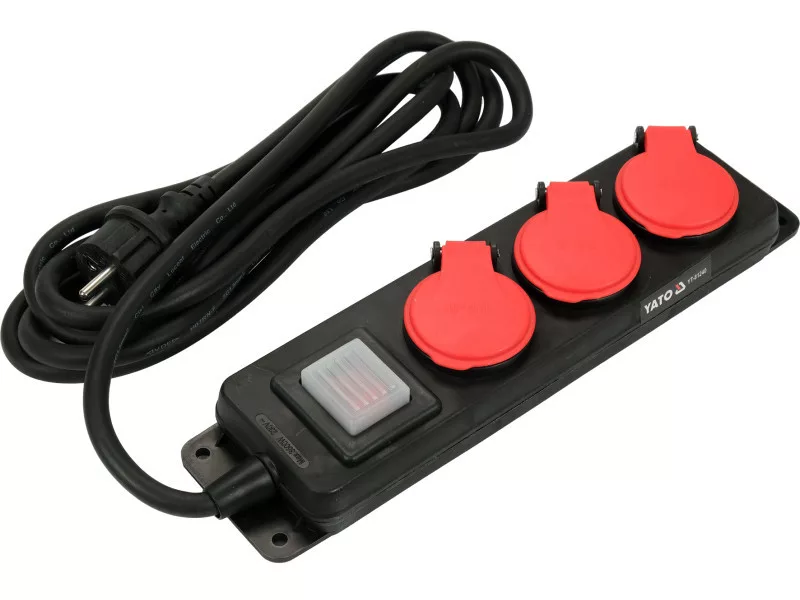

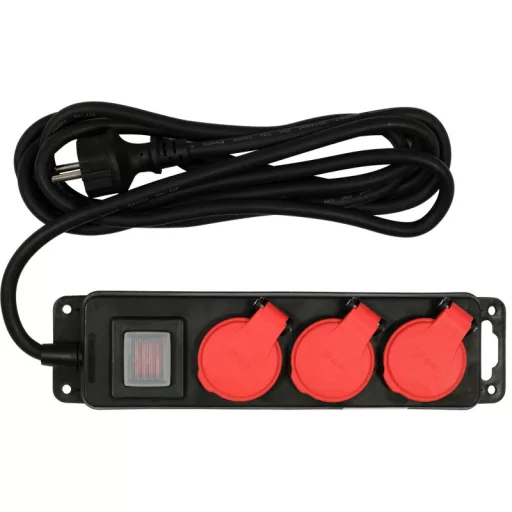

Extension cord YT-81240 in the form of a strip with three grounded sockets. Thick and sturdy cable in neoprene rubber sheath makes the extension cord suitable for indoor as well as outdoor use, such as in the garage, construction site, garden or yards in front of factories. The leak-proof and durable housing and flip-top outlet covers ensure splash-proof and dust-proof construction, while dedicated mounting holes allow the extension cord to be hung, for example, on a wall.
- Voltage and frequency rating: ~230/50Hz
- Maximum load ~230V: 3500 W
- copper three-conductor cable of 1.5 mm²
- .external insulation made of neoprene rubber is high resistance to mechanical damage, atmospheric factors (sun, cold) chemical substances (cutting oils, gasoline, or ethyl and methyl alcohols) as well as inertness to flame
-
- ./li>
- natural rubber insulation is used for the individual conductors
- the dust- and splash-proof sockets with IP44 rating guarantee protection against moisture or dust and sand
- childproofing in the form of plastic flaps and a special mechanism makes it difficult to access the socket openings
The designation H07RN-F denotes a tire cable made according to the harmonized standard (H), for a rated voltage of 450/750V (07), with natural rubber insulation (R), with neoprene sheath (N) and flexible multi-stranded conductors (-F).
Parameters:
- number of outlets: 3
- extension cord type: building
. - grounding: yes
- color: black
- length [m]: 3
- industrial protection [IP]: IP44
- wire cross-section: 1.5 mm²
- no. of conductors [pcs.]: 3
- type of insulation: RN-F
