| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Shrink material | EP |
| Solder material | copper |
| Color | red (x90), blue (x90), yellow (x20) |
| Cross-sectional area | 0.5-6 mm² / 20~10 AWG |
| Shrink melting temperature | 80 ˚C |
| Pcs | 200 |
| Application | for the permanent and waterproof connection of electrical cables |
| Symbol | YT-81461 |

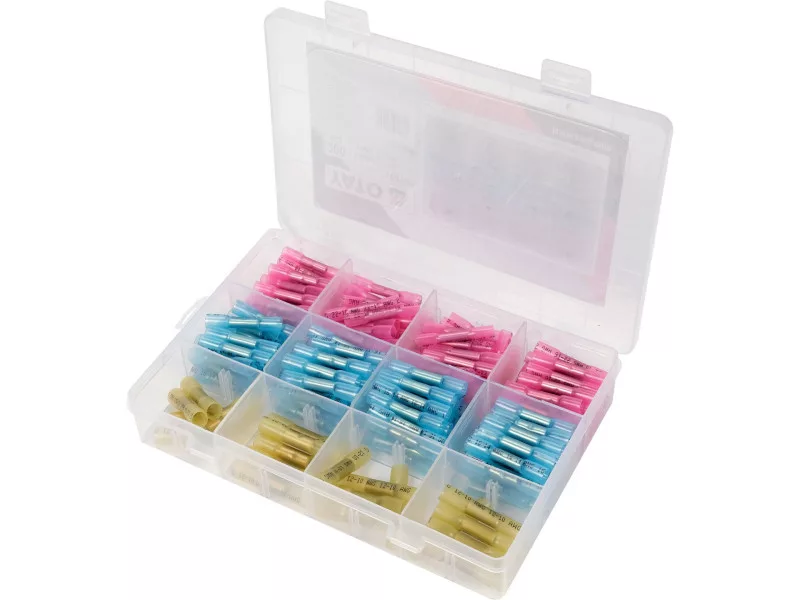

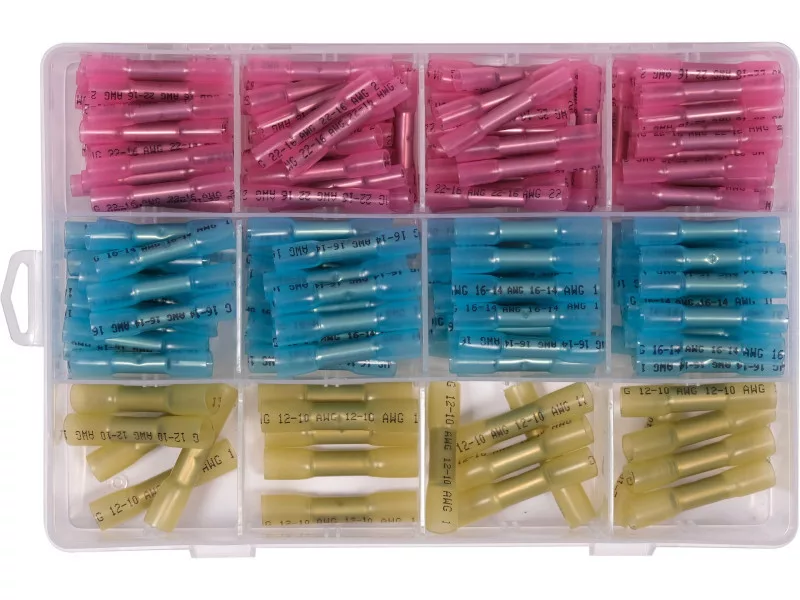

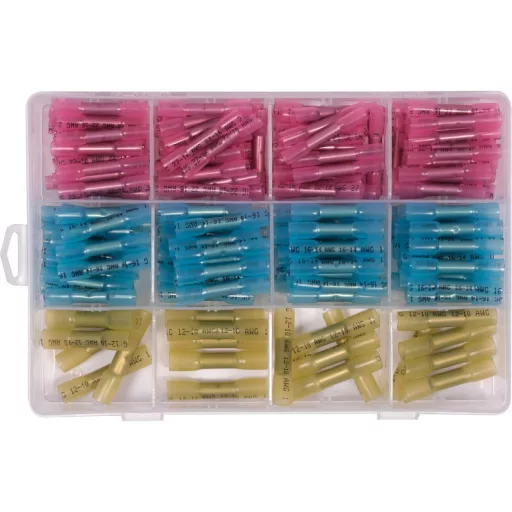

A set of crimped sleeve connectors embedded on a heat-shrinkable tube YT-81461, will find its application primarily in places where too high ambient temperature can adversely affect the connection of wires using traditional soldering (for example, in the engine compartment).
Copper connector, when properly crimped, guarantees the highest conductivity parameters, and thanks to the double-layer heat shrink tube embedded in the connector, we gain an airtight connection and there is no need to use traditional insulation sleeves or tape.
- for wires of cross-section: 0.5-6 mm2, 20-10 AWG
- material of connector: copper
. - material of heat shrink tubing: PE and a layer of hot-melt adhesive on the inside
- shrink tubing temperature: 80°C
- set of 200 pieces
- organizer-type packaging
