| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Functions | shoeing, drilling with impact |
| Toolholder type | SDS-Plus |
| Power | 1100 W |
| Rotations | 850 min⁻¹ |
| Hammering energy | 5 J |
| Impact frequency | 5000 min⁻¹ |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Max. hole diameter in concrete | 32 mm |
| Stroke | yes |
| Rotation switch | no |
| Tool positioning in chuck | yes |
| LED indicators | yes |
| Wire length | 3 m |
| Wire section area | 2Gx1 mm² |
| Wire insulation type | H07RN-F |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 95.0 ± 3.0 dB(A) |
| Acoustic power | 106.0 ± 3.0 dB(A) |
| Vibrations | 14.65 ± 1.5 / 12.77 ± 1.5 m/s² |
| Weight | 5 kg |
| Set includes | hammer drill, additional handle, drilling depth limiter, SDS-Plus drill chuck cover, grease container, drills x3, chisel, punch |
| Application | concrete, natural and artificial stone, marble |
| Symbol | YT-82123 |

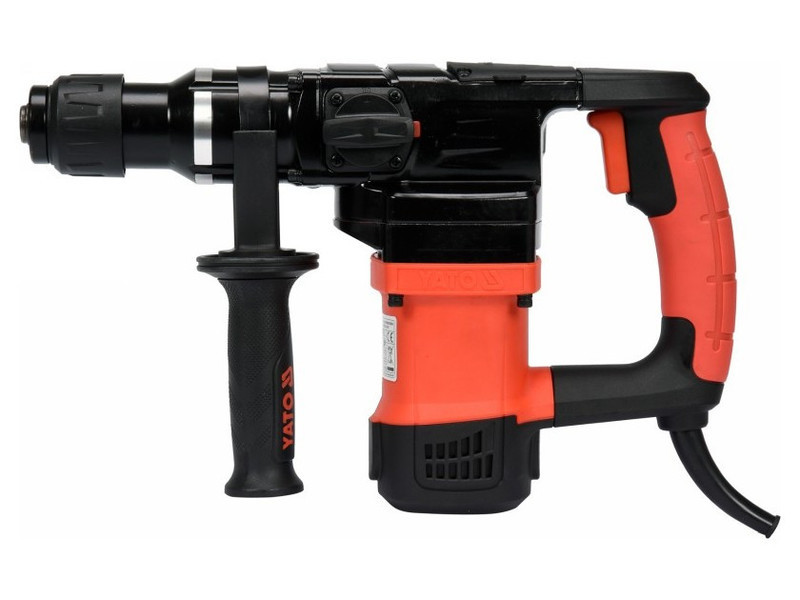

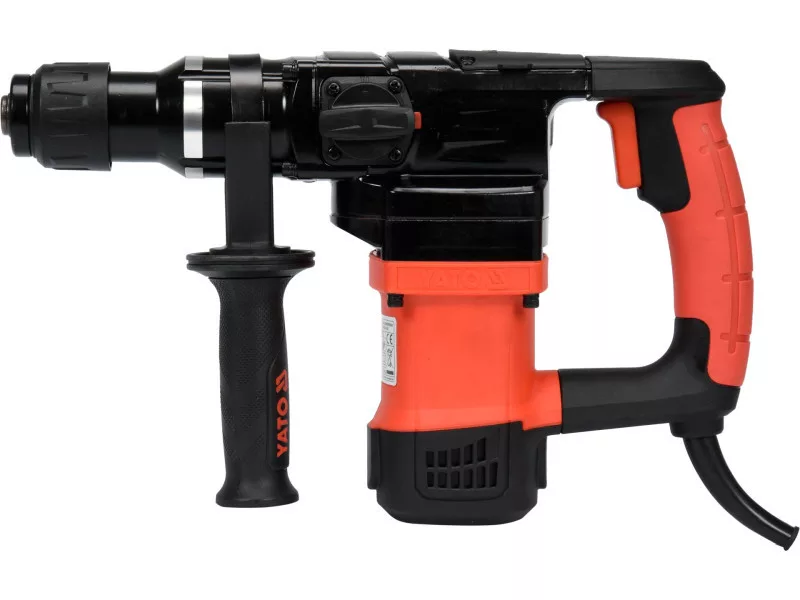

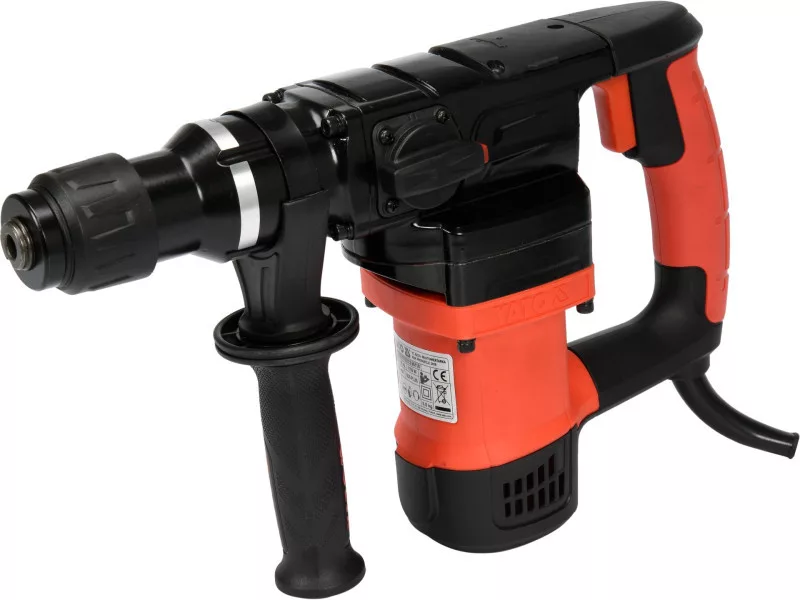

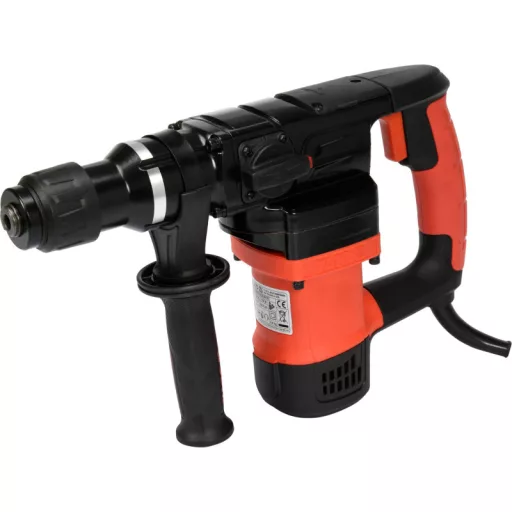

SDS-plus hammer drill with high-performance and durable electro-pneumatic mechanism (5 J and 5000 BPM), grease-cooled. It has a powerful percussion for drilling and forging in concrete and reinforced concrete.
- 2 functions: hammer drilling and forging
- SDS-plus tool-less drill bit change system
- a heavy-duty steel clutch for superior overload protection
- auxiliary assist handle with adjustable 360°
- damage-resistant rubber cable with a length of 3 m

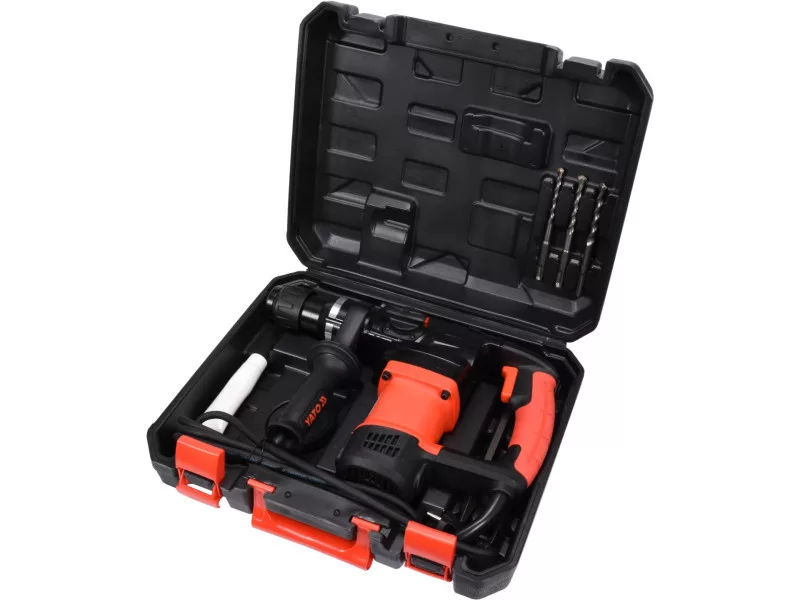

Package contents
- hammer drill
- 3 drill bits
- 2 chisels
- special chuck grease

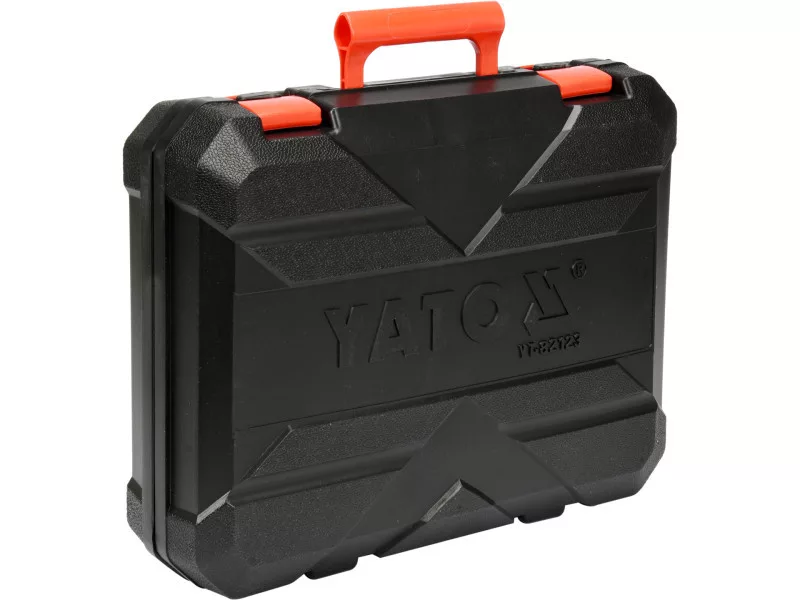

- practical carrying case
