| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 1500 W |
| Rotations | 5500 min⁻¹ |
| Voltage | 230-240 V a.c. |
| Frequency | 50 Hz |
| Max. cutting depth | 63 (90˚), 44 (45˚) mm |
| Cutting disc outer diameter | 185 mm |
| Cutting disc internal diameter | 20 mm |
| Cutting disc max. thickness | 2.8 mm |
| Number of teeth | 24 |
| Cutting angle regulation | 0-45 ˚ |
| Laser | no |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IPX0 |
| Acoustic pressure | 95.0 ± 3.0 dB(A) |
| Acoustic power | 106.0 ± 3.0 dB(A) |
| Vibrations | 3.526 ± 1.5 / 2.905 ± 1.5 m/s² |
| Weight | 3.9 kg |
| Set includes | saw, guide with scale |
| Compatible with | YT-60622, YT-60625, YT-60627, YT-60628, YT-60631 |
| Symbol | YT-82151 |

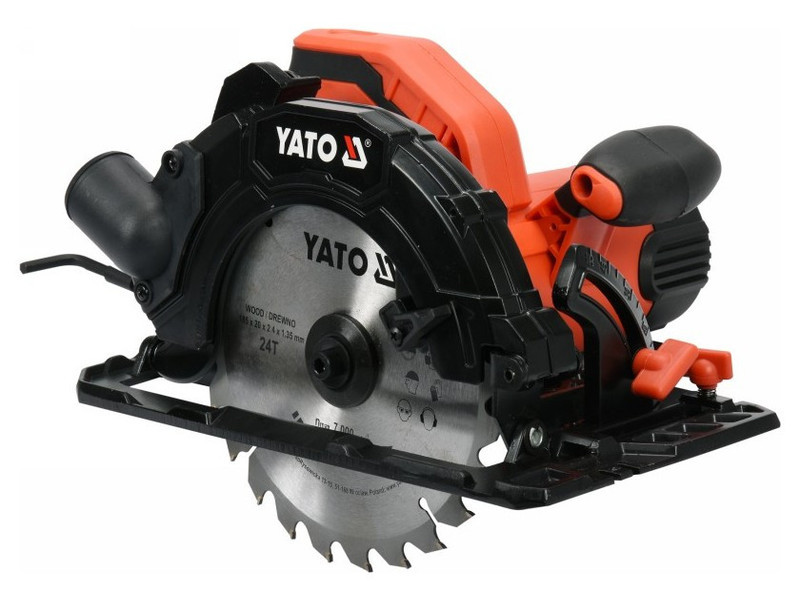

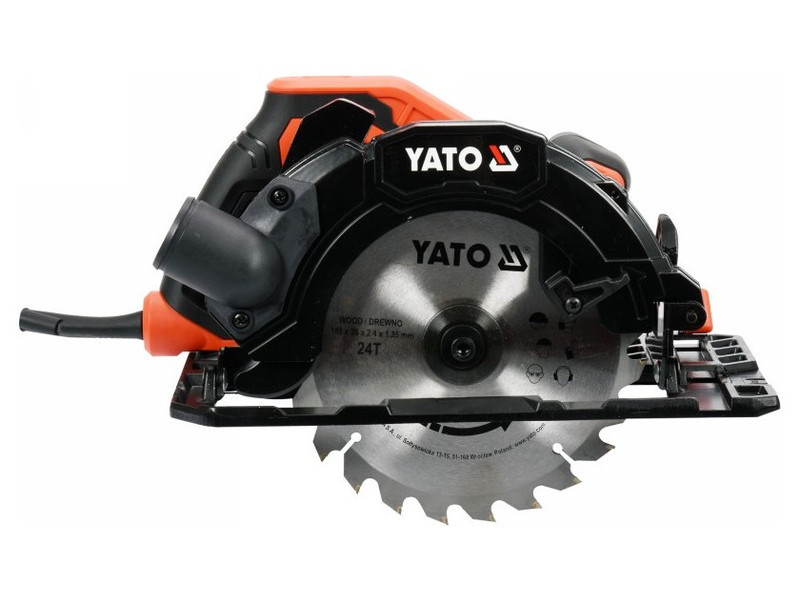

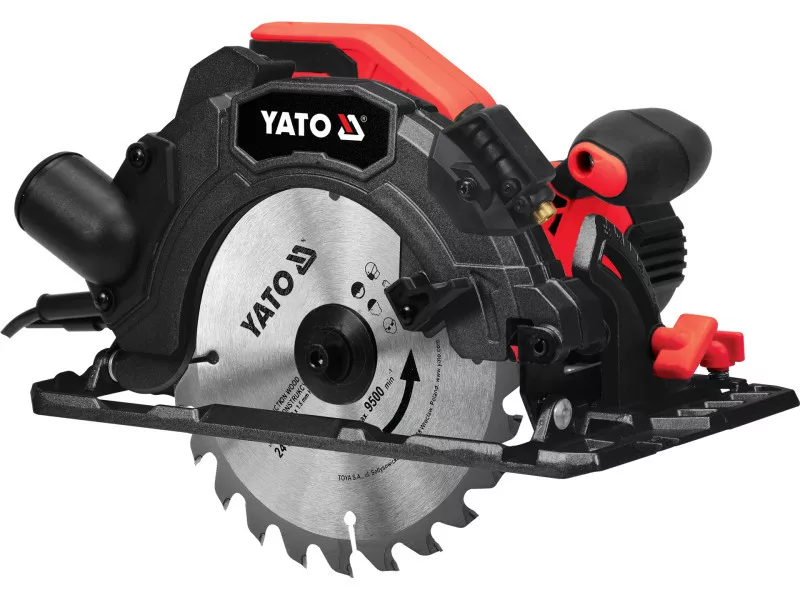

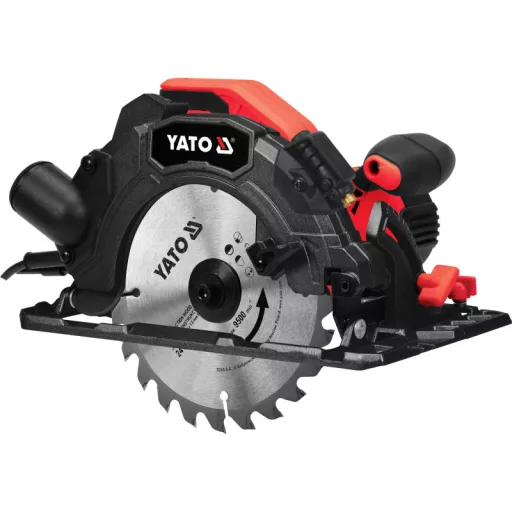

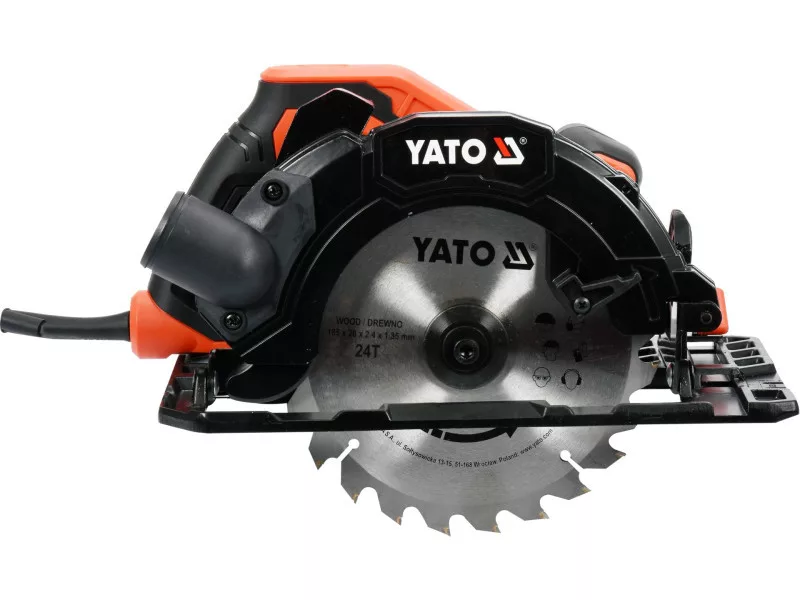

Multifunctional circular saw designed for straight cuts, angled cuts and making rip cuts in hard and soft wood and wood-like materials. Recommended for carpentry and roofing work.
- efficient commutator motor with 1500 W
- high speed: 5500rpm
ensures that the machine can be used at a high speed./min ensures precision and speed of cutting - stable and level duralumin foot
- portable shape ensures comfortable operation of the tool
./li> - comfortable rubber grip
- included cutting wheel with a diameter of 185 mm with 24 teeth, with a standard mounting hole of 20 mm
Possibility to buy spare discs:
- YT-60631 (140T) for laminates (countertops, stairs, panels)
- YT-60628 (14T) for wood with nails
. - YT-60625 (48T) for steel
- YT-60627 (60T) for PVC (cable trays, skirting etc.)
- YT-60907 (60T) for aluminum (skirting boards, profiles, etc.)
Cutting depth adjustment
The saw allows you to adjust the depth of cut, which is facilitated by a graduated guide (located on the back of the tool). To do this, unscrew the lock located on the graduated guide with a screw, set the desired depth of cut and lock with the screw.
Cutting angle adjustment
The tool allows you to cut planes at an angle within the range of 0-45 degrees. To do this, set the desired angle on the scale located on the front of the tool and tighten the locking screw firmly and securely.
Guide
The kit includes a graduated guide, which makes it easier to cut surfaces in a straight line. The guide should be fixed in the base, set the desired cutting width and lock with the screw. This will allow you to make a cut parallel to the edge of the material of the set width.
Parallel cutting line
The saw has two notches on the front of the base, which make it easier to observe the cutting line drawn on the material to be cut. One of the notches is for observing the cutting line at the 90-degree cutting angle setting, and the other is for the 45-degree cutting angle setting.
Dust extraction
The machine has been adapted to be connected to an external dust extraction system, such as an industrial vacuum cleaner.
Dust Extraction

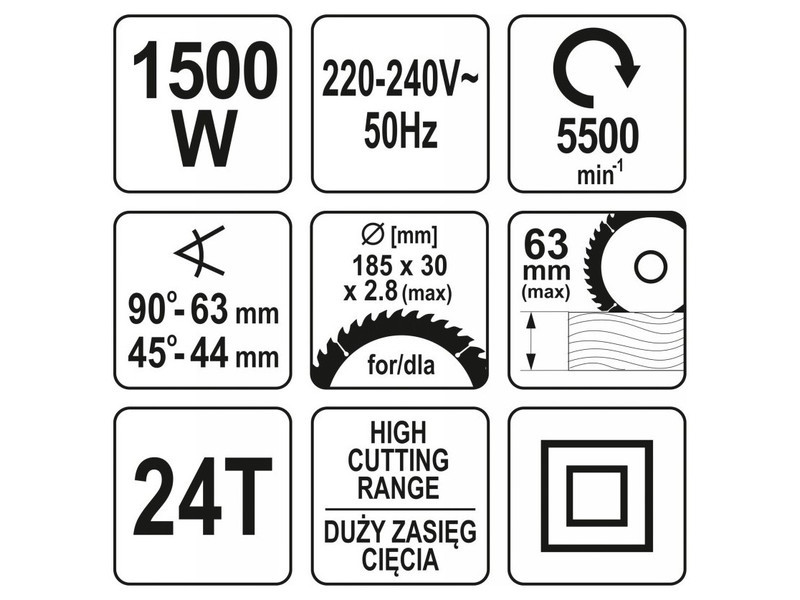

Parameters:
- network voltage [V~]: 230 - 240
- network frequency [Hz]: 50
- rated power [W]: 1500
- insulation class: II
- rated rpm [min-1]: 5500
- disc outside diameter [mm]: 185
- internal disc diameter [mm]: 20
- max. disc thickness [mm]: 2.8
- weight [kg] 3.9
Usage warnings:
Caution: laser radiation. Do not stare into the beam.
Class 2 laser device.
