| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Application | stainless steel, hardened steel |
| Power | 1100 W |
| Rotations | 4000 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Saw blade speed | 0.7-2.4 m/s |
| Length of the blade | 1140 mm |
| Saw blade height | 12.7 mm |
| Saw blade thickness | 0.6 mm |
| Teeth per inch | 14 TPI |
| Cutting range | 127x127 mm |
| Work area lighting | yes |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 89.0 ± 3.0 dB(A) |
| Acoustic power | 100.0 ± 3.0 dB(A) |
| Vibrations | 6.62 ± 1.5 / 6.08 ± 1.5 m/s² |
| Weight | 6.6 kg |

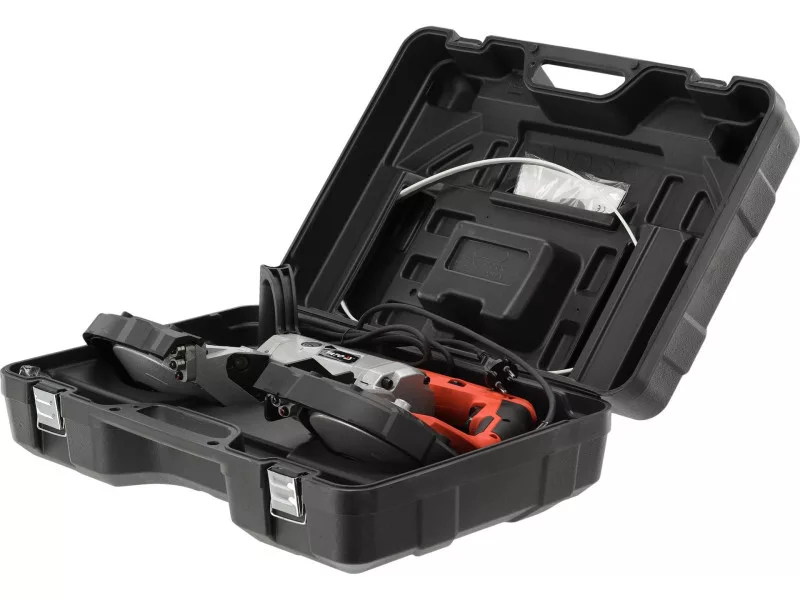

| Set includes | band-saw, base, blade |
| Symbol | YT-82185 |

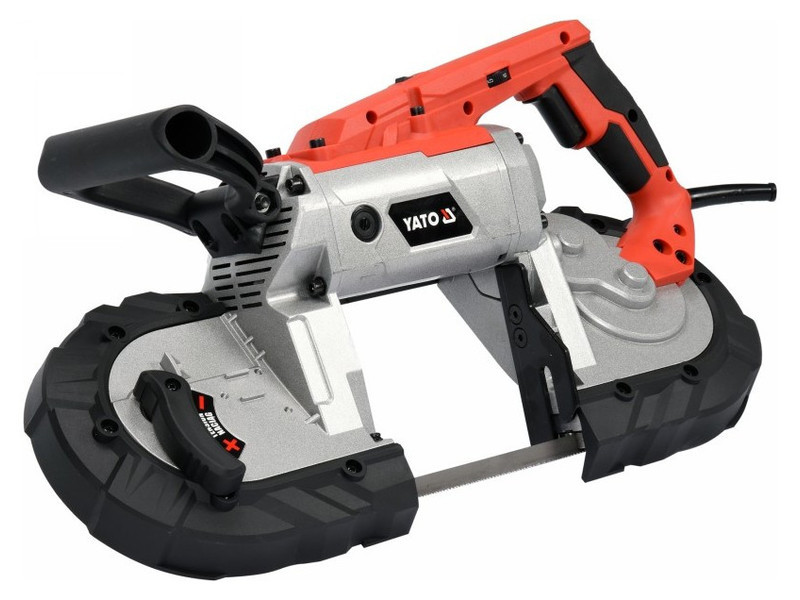

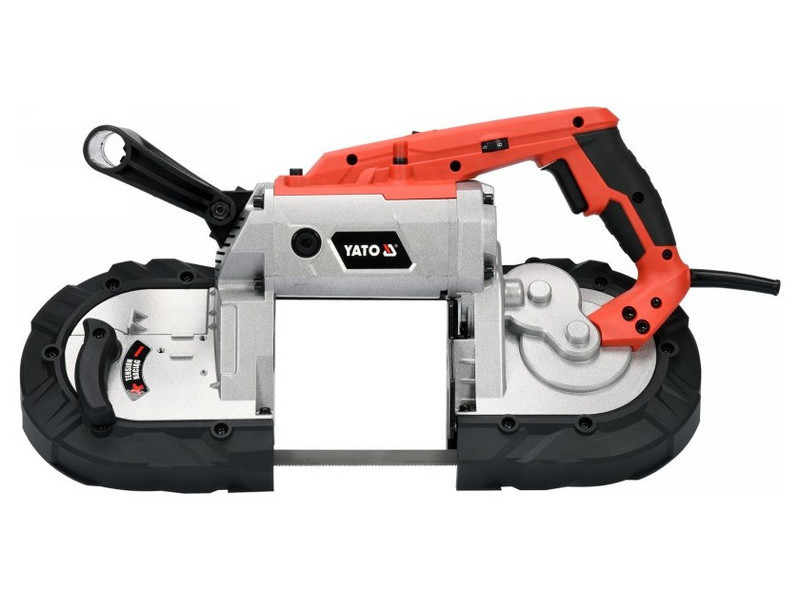

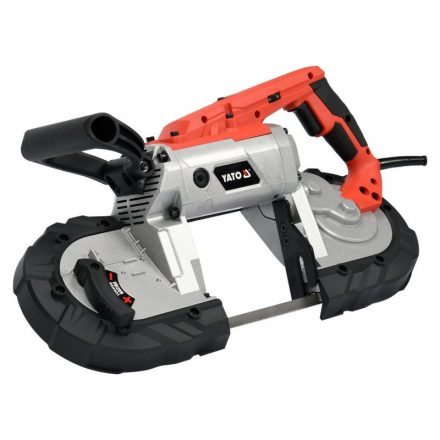

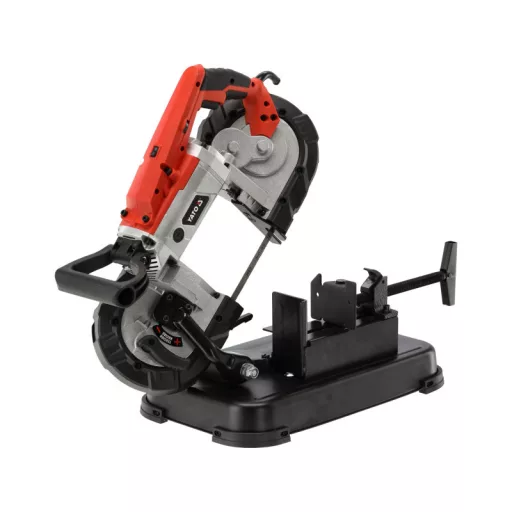

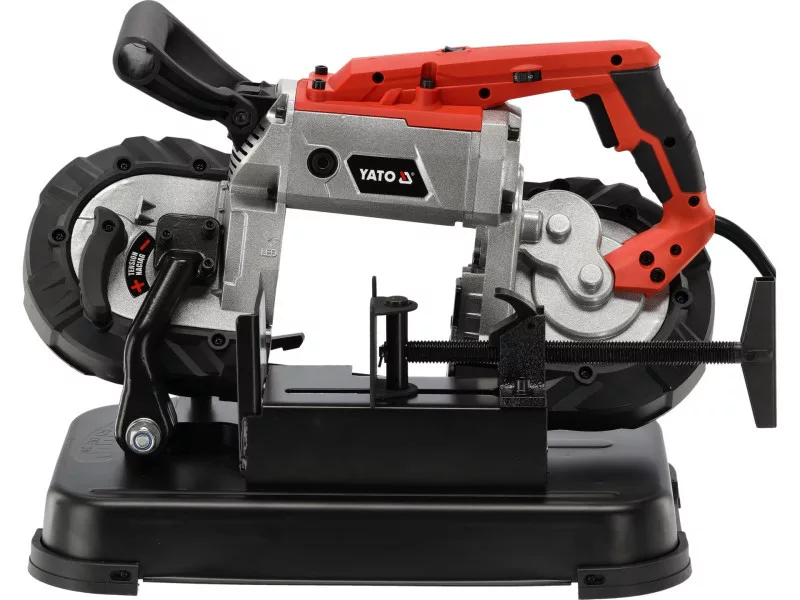

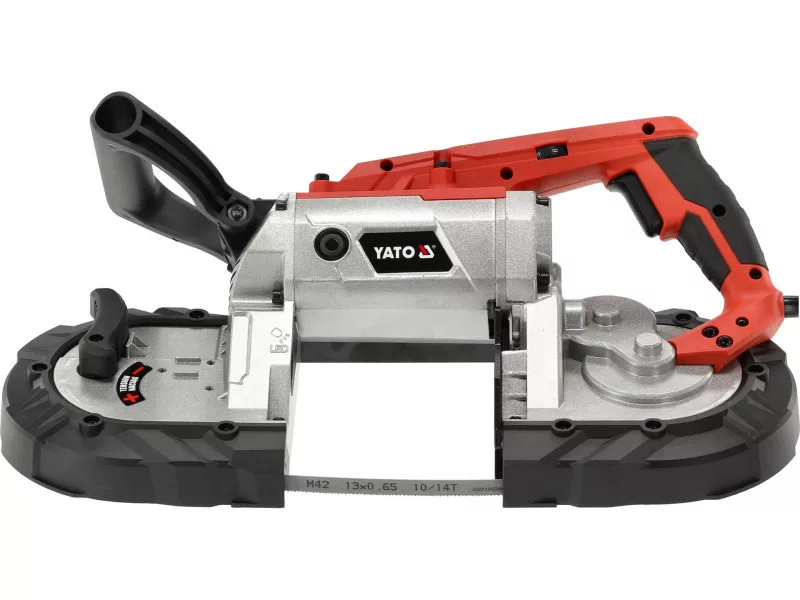

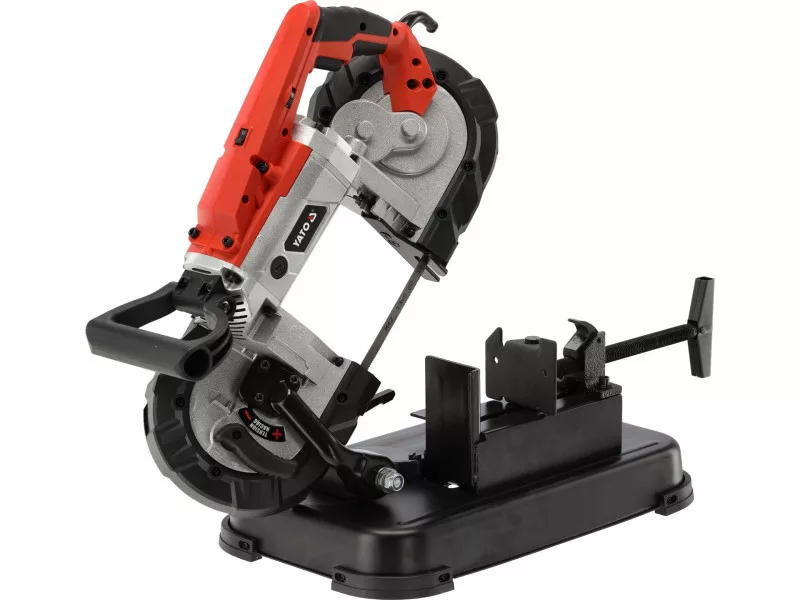

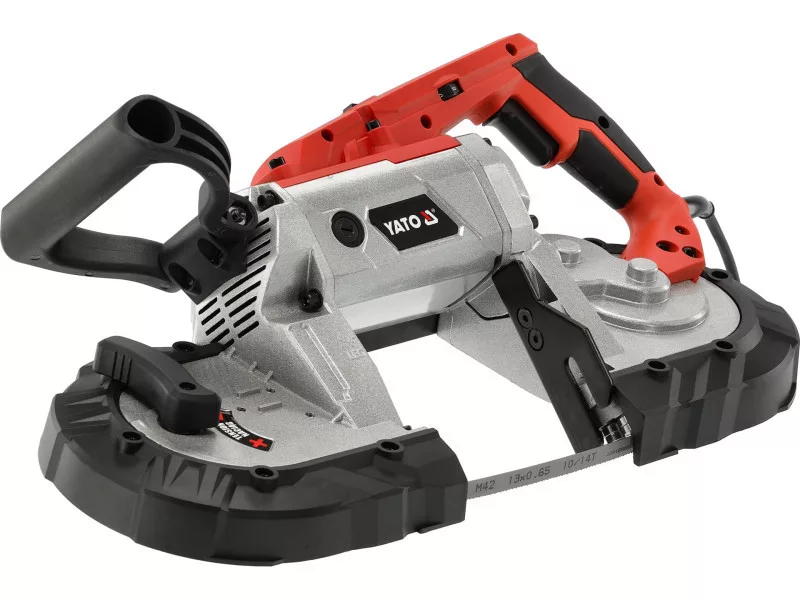

Belt saw with base (removable) 1100w cutting range 127mm x 127mm
Compact belt saw for cutting steel with the possibility of stationary or mobile operation. Indispensable in the automotive workshop and for installers.
Additional information:

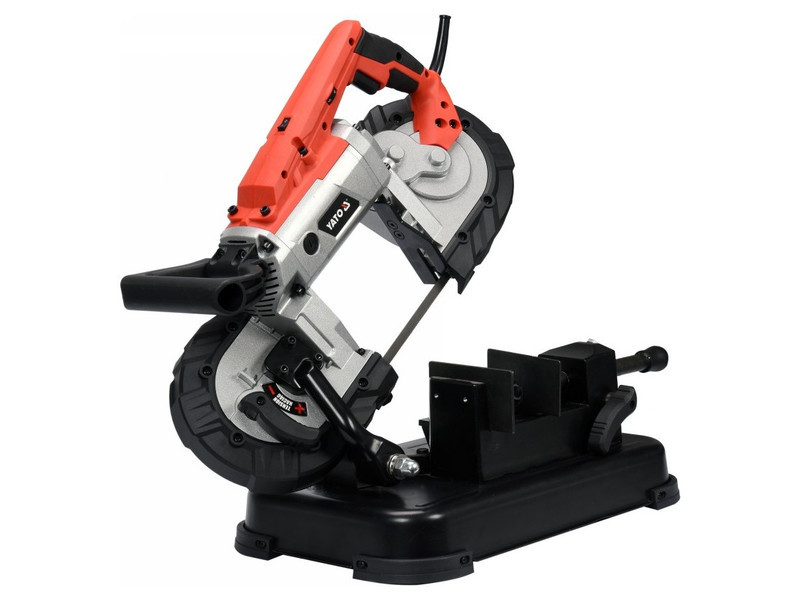

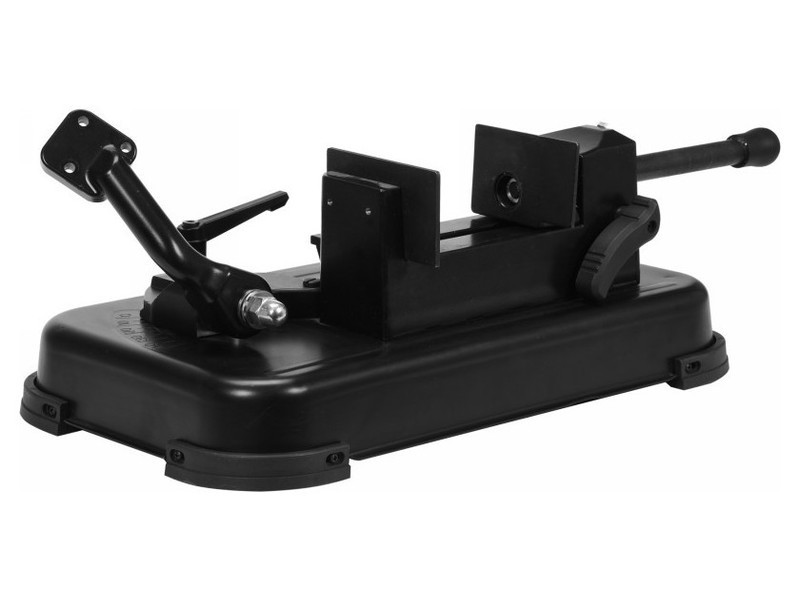

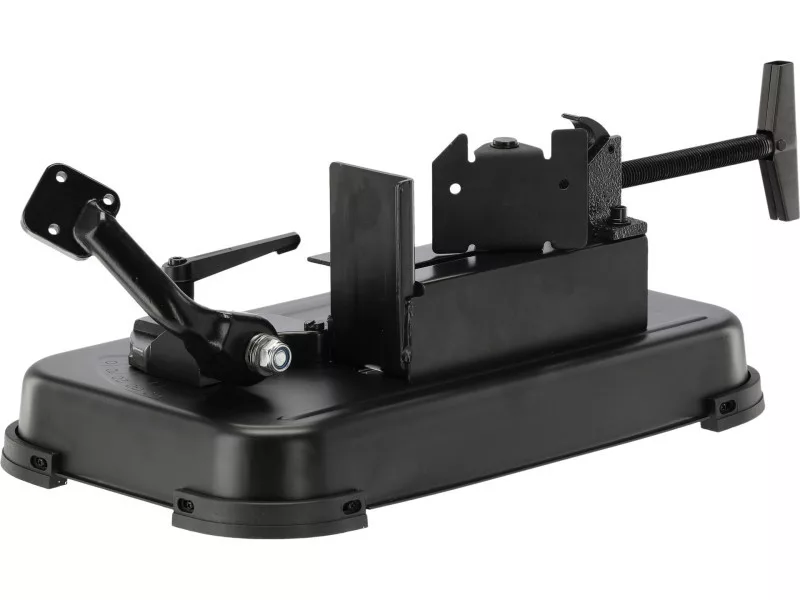

- removable metal base with quick-action jaws and adjustable cutting angle allows use of the saw in stationary work or as a portable tool
. - base with clamping pressure that locks the material being cut increases work safety
- quickly and without sparking cuts through pipes up to 120 mm diameter and steel fence profiles without melting the galvanized layer
- the LED diode integrated into the machine makes it easier to work in underexposed spaces, such as. when cutting exhaust systems or pipes near the ceiling
- durable and easy-to-use tool-free belt mounting mechanism
- adjustable speed blade travel in the range: 0.7-2.4 m/sec
- 3 m rubber cable

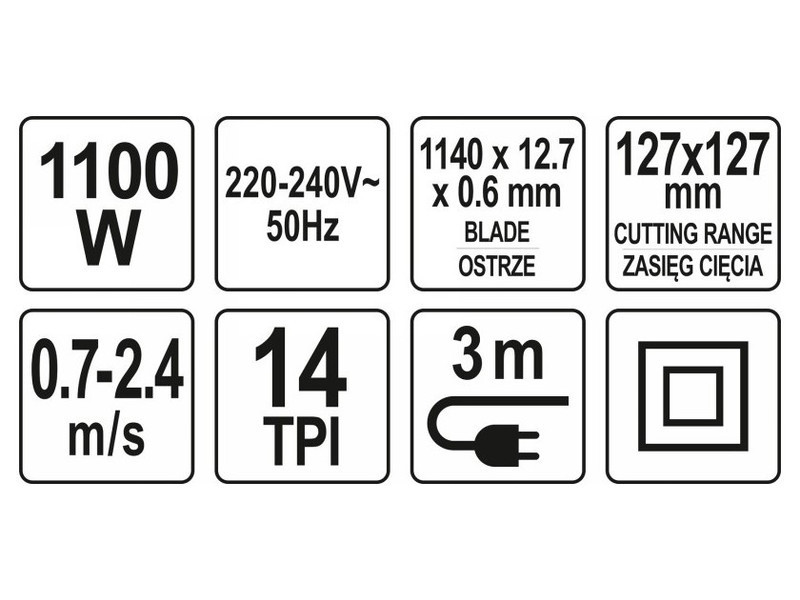

Parameters:
- Rating voltage [V~]: 220 - 240
- Rating power [W]: 1100
- blade speed [m/s]: 0.7 - 2.4
- blade length [mm]: 1140
- blade height [mm] 12.7
- blade thickness [mm]: 0.6
- number of teeth per inch long. Blade (TPI): 14
- cutting reach (H x W.) [mm]: 127 x 127
- weight [kg]: 6.6
.
