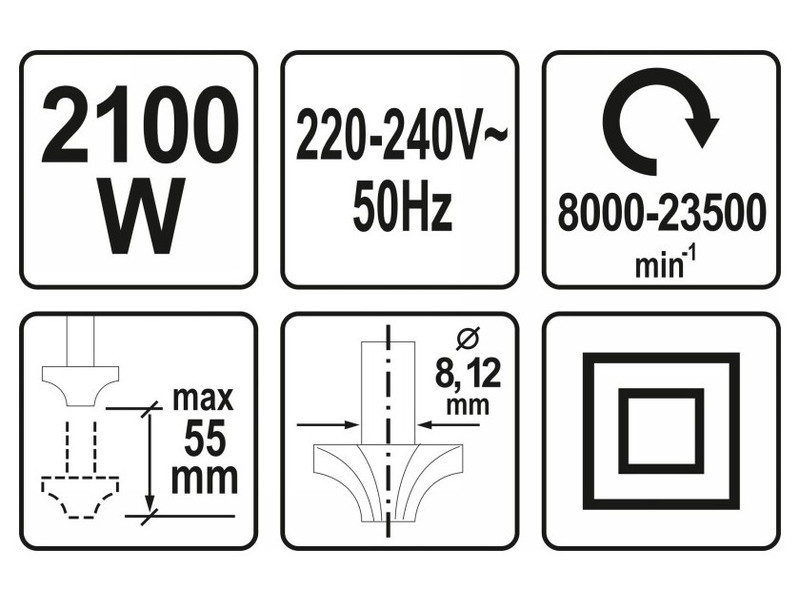

| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 2100 W |
| Rotations | 8000-23500 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Holder size | 8 or 12 mm |
| Cutting unit stroke | 55 mm |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 94.0 ± 3.0 dB(A) |
| Acoustic power | 105.0 ± 3.0 dB(A) |
| Vibrations | 3.41 ± 1.5 m/s² |
| Weight | 6.6 kg |
| Set includes | milling machine, guide x2, dust extraction connection, reducing sleeve |
| Compatible with | YT-6801, YT-6803, YT-68002, YT-68005 |
| Symbol | YT-82380 |

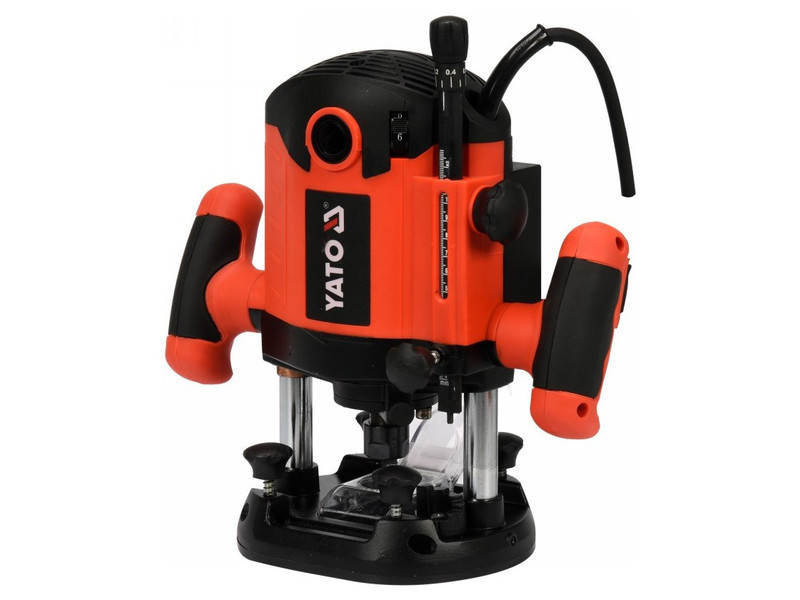

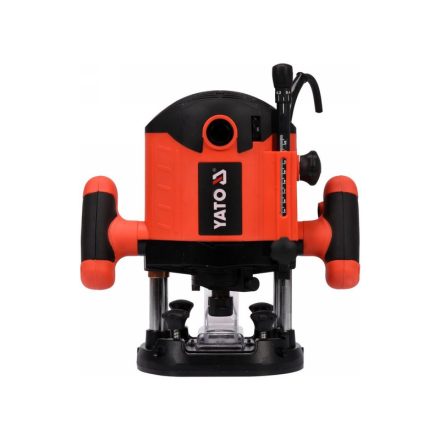

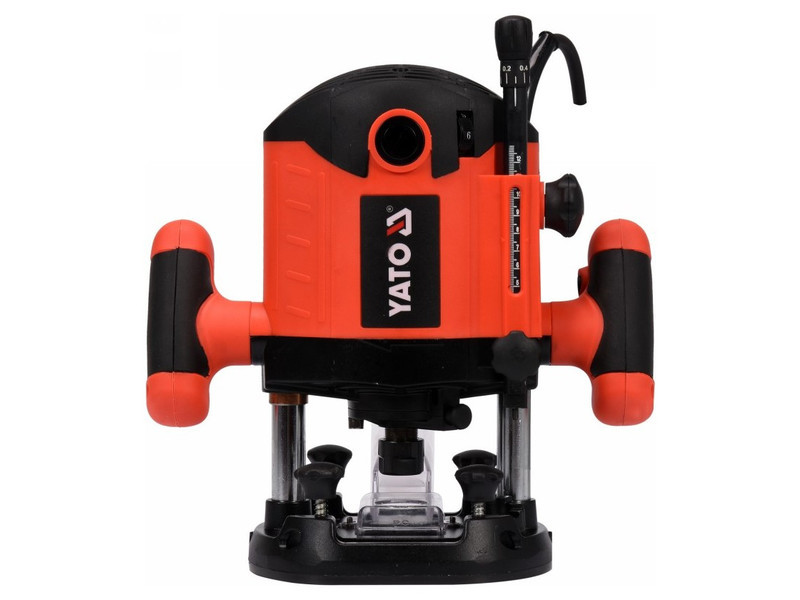

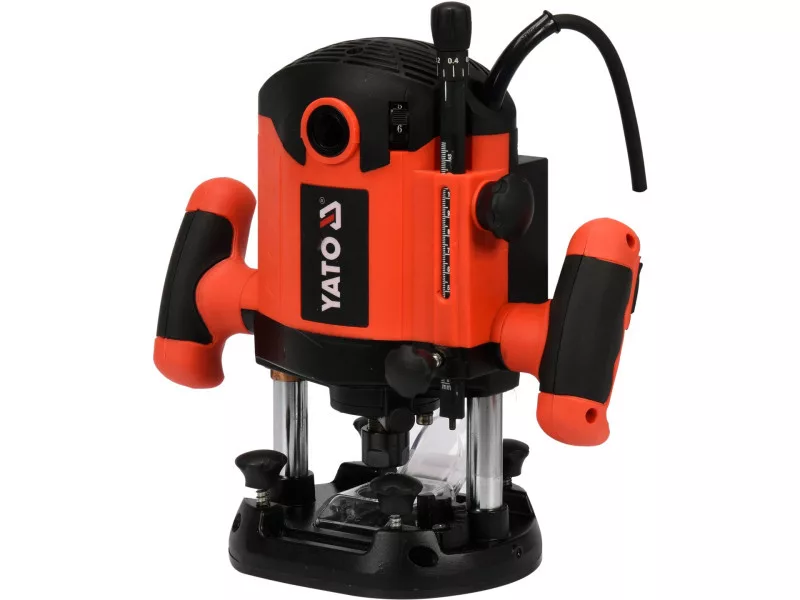

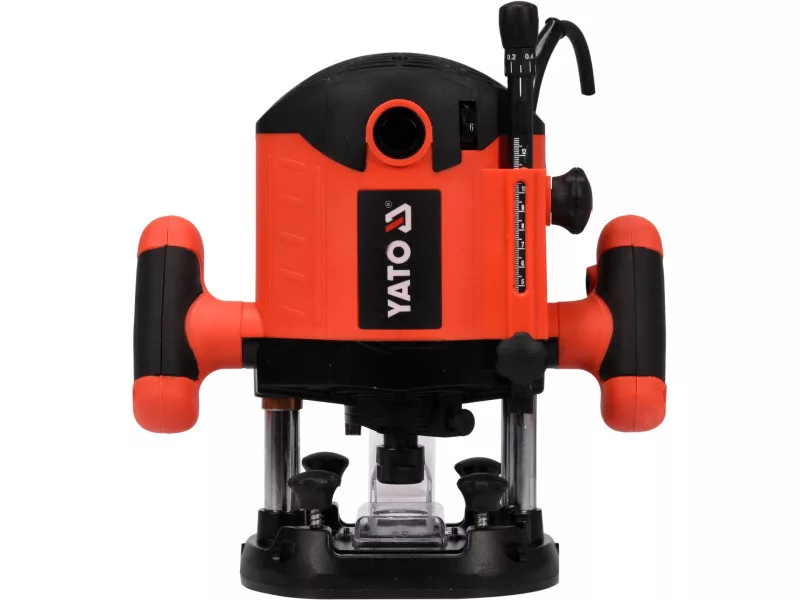

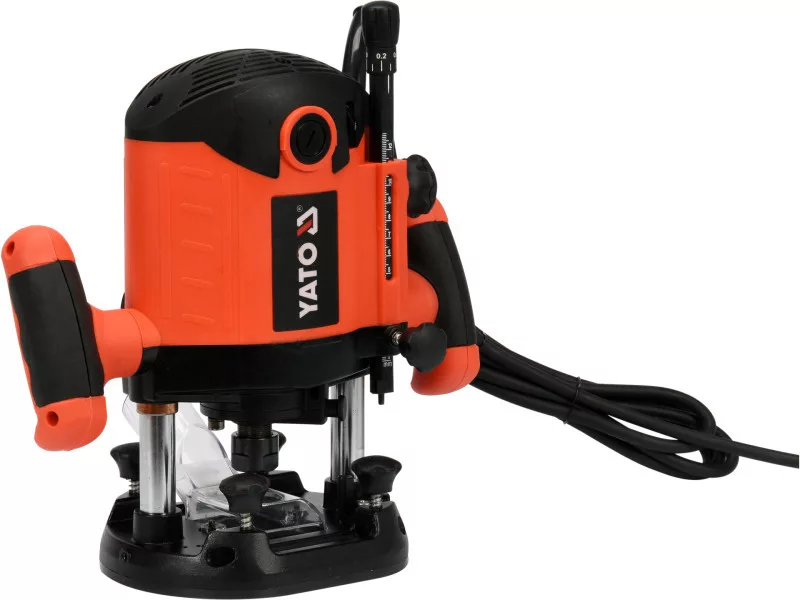

Upper spindle milling machine 2100w
Powerful and durable router designed for edge shaping, groove milling and joinery joints.
It features high-precision workmanship, required in the carpentry industry, and a comfortable grip that allows you to adjust the rotation with your thumb without losing control of the tool.
Equipping the milling machine with guides facilitates straight and curved milling.
Purpose
The tool is used for machining wood with burrs guided from the top of the material along its surface. You can also machine wood-based materials such as MDF, particleboard, plywood, etc.
Dust extraction system
As a dust extraction system, an industrial vacuum cleaner can be used.
The dust installation adapter consists of two components:
- transparent connection for dust extraction installation
- metal mounting plate
Parallel milling guide
The guide facilitates the milling of straight edges or rebates. It consists of a stop plate and two rods.
Parallel milling guide
Guide for milling circles
The guide facilitates the milling of circles and arcs. The guide consists of one rod and a clamp with a needle.
Stroke of the milling unit
The milling unit stroke is used to set the milling depth. The setting value is visible in the housing window.
Micrometer knob
The depth gauge also has a micrometer knob that enables precise milling depth setting using an additional rod that extends from the depth gauge. The rotation of the knob is graduated in millimeters of the length of the rod extension.
Rotation speed adjustment
The milling machine enables infinitely adjustable speed within the range shown in the technical data table. The speed is set with a knob.
The higher the visible number, the higher the speed. The speed should be selected depending on the type of material to be processed and the diameter of the cutter. The smaller the diameter of the cutter and the harder the wood, the higher speed you can set.
Additional information:
- copper insulated winding
- parallel guide, made of perfectly fitted parts, makes it easy to guide the tool
./li> - precise adjustment of the milling depth with locking of the set value ensures perfect machining
- smooth and safe RPM adjustment without taking your hands off the running tool
- .protection for the motor and operator when the cutter is jammed in the workpiece
- connection for dust extraction
- max. number of 23500 rpm ensures fast and accurate work
- max . stroke of cutter unit: 55 mm
- tool holder: 8, 12 mm
- rubber cable length 3 m
- for use with cutters, e.g. YT-6801, YT-6803
.
