YATO Stație de lipit 18 V (fără acumulator și încărcător)
| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Symbol | YT-82500 |

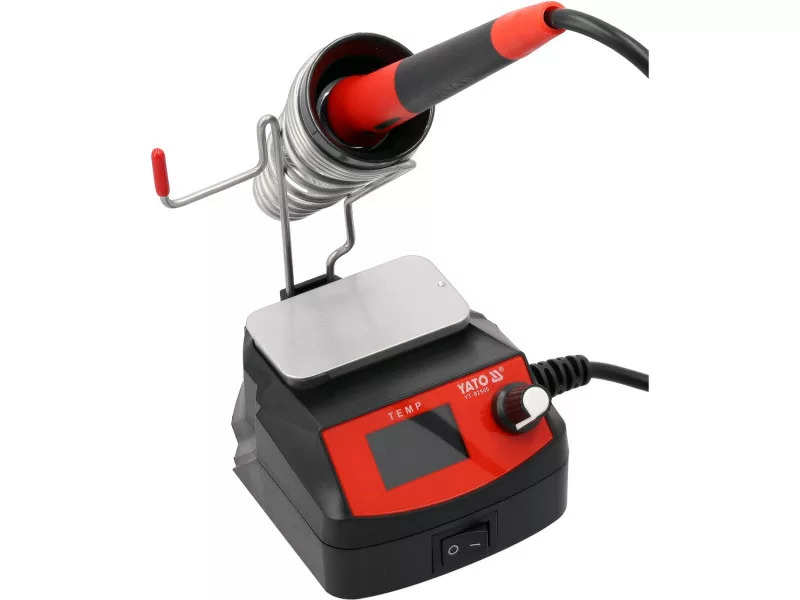

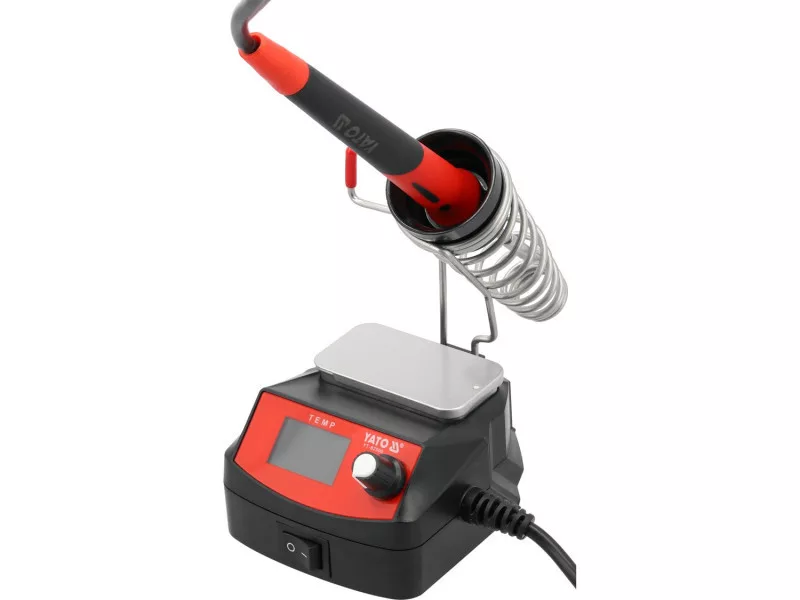

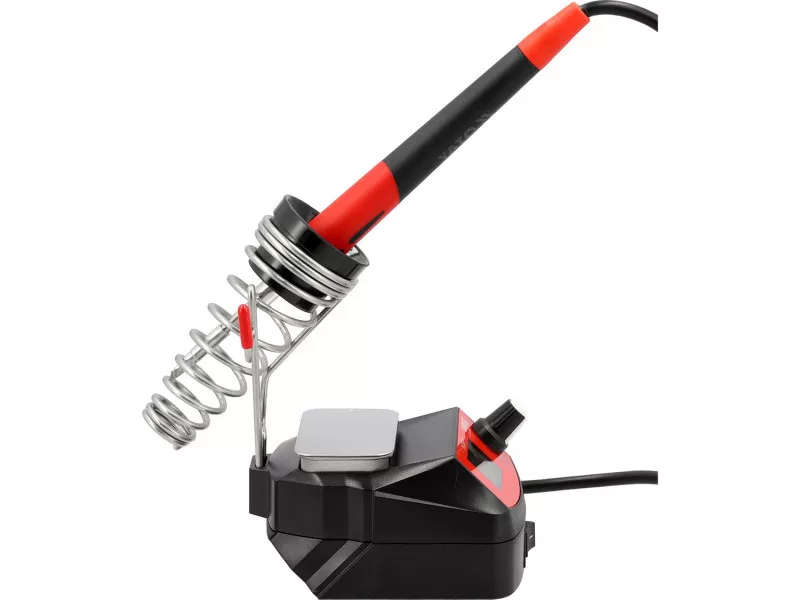

Soldering station for 245 tips designed for mobile work. The device is powered by batteries from the YATO 18 V system, allowing it to operate in locations where access to mains power is limited. The color display enables convenient monitoring of parameters, while temperature adjustment and calibration allow settings to be tailored to the type of components being soldered.
The use of 245 tips ensures very fast heating and efficient temperature stabilization. Heating the tip to 350°C takes less than 5 seconds. The station is also equipped with sleep and automatic shutdown functions, as well as three memory channels for settings, which facilitate quick switching between saved soldering parameters.
The 245 tips, like the T12 tips, combine a resistance wire embedded in ceramic, a temperature sensor, and a high-quality soldering tip. The 245 and T12 tips differ, among other things, in maximum power – the 245 tips are equipped with a heater that is nearly three times more powerful. This means that with the appropriate power and control source, both heating and temperature stabilization are significantly faster.
Key features of the device:
- YATO 18 V battery power allows operation anywhere without access to electrical outlets
- Type 245 tips provide very fast heating and stable temperature during soldering
- High power of 100 W enables efficient work with various types of soldered connections
- Wide temperature range of 90-500°C allows adjustment of working parameters for various service and assembly applications
- Temperature accuracy of ±2°C protects sensitive electronic components
- Temperature stabilization function maintains a constant level during operation
- Temperature calibration from -80°C to +80°C allows precise adjustment of readings to the characteristics of the used tip
- Color display provides clear reading of working parameters and control of settings
- Three memory channels for settings provide quick access to saved data
- Sleep function (20-9999 s) reduces tip and energy consumption during work breaks
- Automatic shutdown function (20-9999 s) increases the safety of using the station
- Fast heating of the tip to 350°C in less than 5 seconds

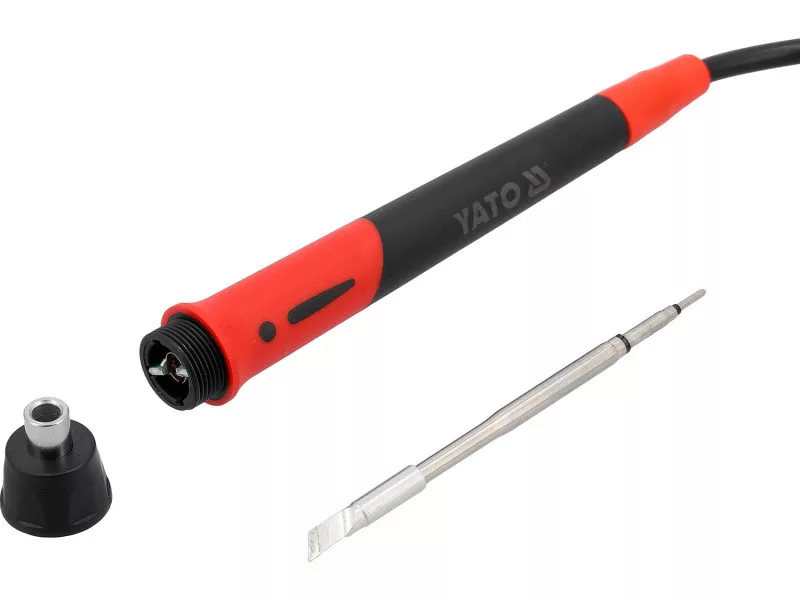

- The handle design allows for easy tip replacement
- Flexible power cord of the handle with silicone insulation is resistant to high temperatures
- Built-in holder for the handle ensures safe placement of the tool during soldering breaks

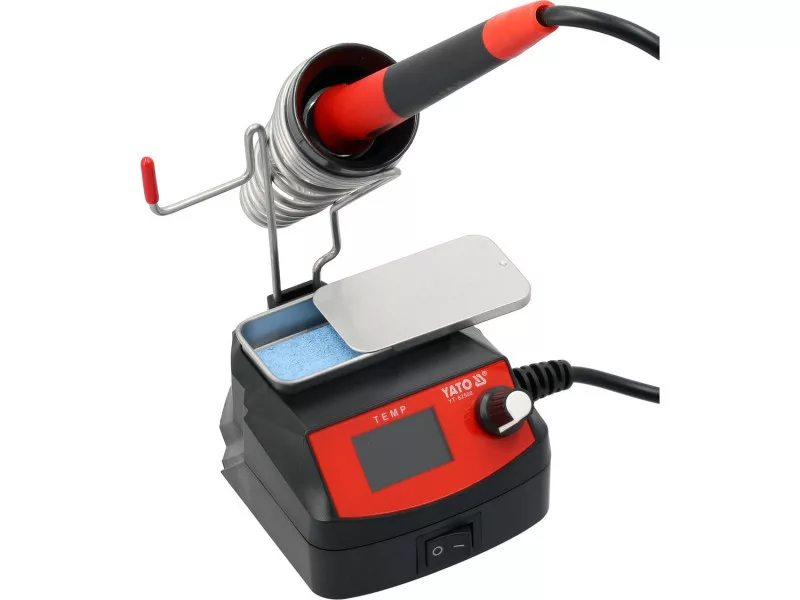

- Wire holder and sponge container facilitate workstation organization and tip cleaning
Technical specifications:
- Power: 100 W*
- Heating element operating voltage: 18 V
- Temperature range: 90-500°C
- Temperature accuracy: +/- 2°C
- Temperature stabilization
- Temperature calibration: -80°C to +80°C
- Sleep function: from 20 to 9999 seconds
- Auto shutdown function: from 20 to 9999 seconds
*Effective heating power depends on the charge level of the used battery.
