| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Working temperature range | 0~35 ˚C |
| Max welding current | 500 A |
| Battery type | Li-Po |
| Battery voltage | 4.2 V d.c. |
| Battery capacity | 6300 mAh |
| Battery energy | 26.46 Wh |
| Input current | 1-1.5 A |
| Output current | 2 A |
| Input voltage | 5 V d.c. |
| Output voltage | 5 V d.c. |
| Display type | LCD |
| Dimensions | 148x86x30 mm |
| Storage temperature | 0~50 ˚C |
| Weight | 0.32 kg |
| Set includes | welding cable x2, welding pin x4, charging cable |
| Application | for spot welding of nickel strips and lithium cells |
| Symbol | YT-82507 |

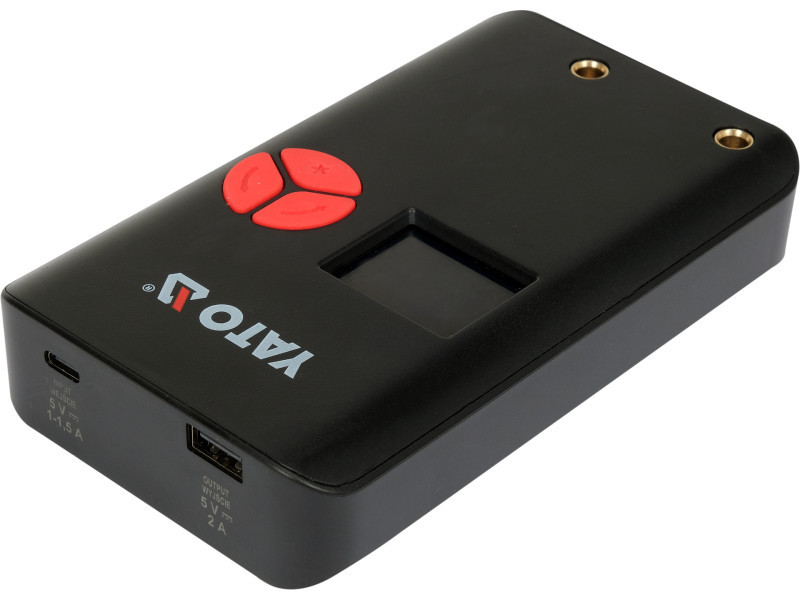

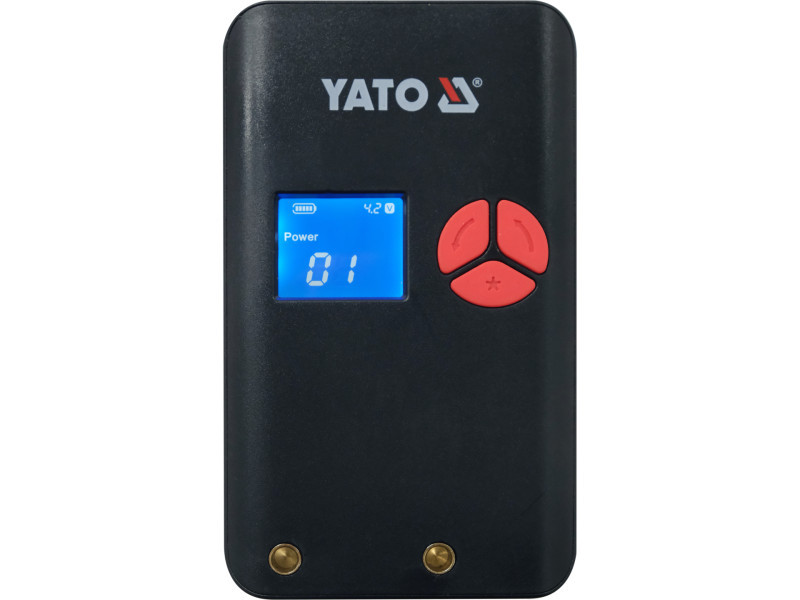

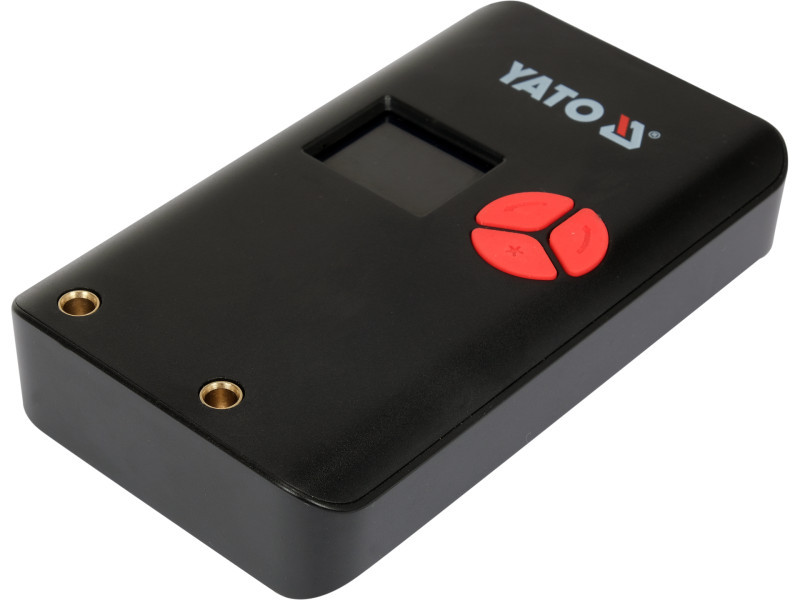

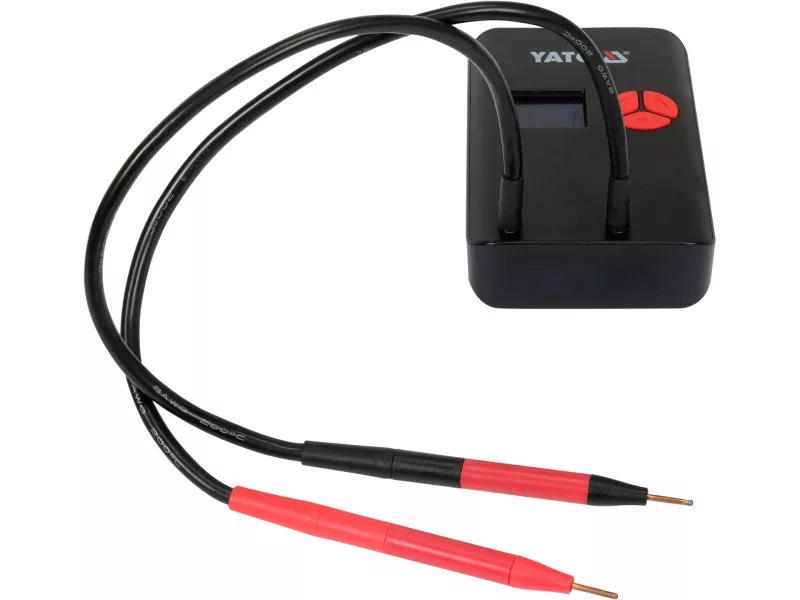

Portable spot welder with powerbank function for permanently bonding 18650 and similar cells using nickel and nickel strip. LCD display with simple, intuitive menus. Ten power levels. Two lithium-polymer cells connected in parallel with a maximum instantaneous discharge current of up to 90 C. 40 cm silicone-insulated copper wires of approximately 10mm2 with replaceable copper terminations.
The device gives a maximum welding current of ~500 A. This is the average real current value measured over a 100 ms period. Some manufacturers quote the current parameters of the mosfets or the peak current value instead of the real welding current. From a technical data point of view, this is true, but in practice it often becomes impossible to achieve a proper weld with 0.15 mm nickel-plated tape. YATO's portable spot-welding machine makes it possible to carry out correct welds using 8 mm wide, 0.20 mm thick nickel-plated tape and 8 mm wide, 0.15 mm thick nickel-plated tape.

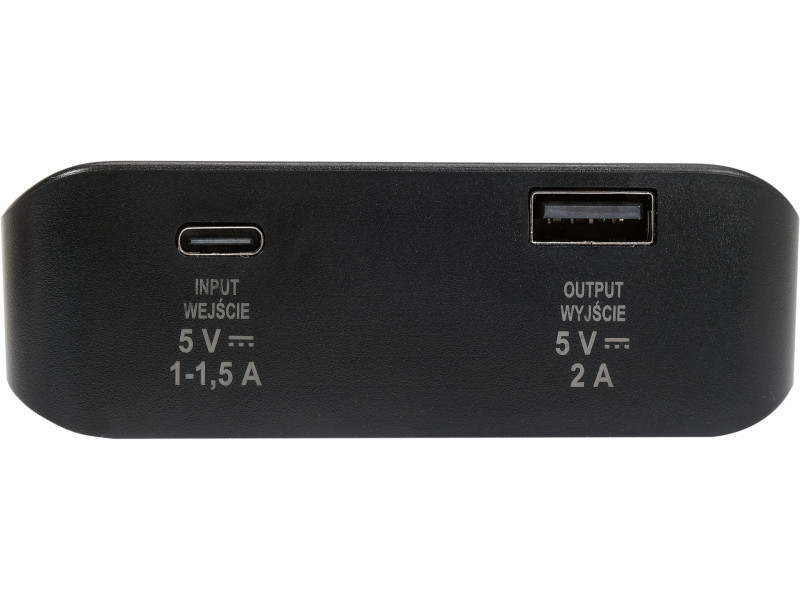

The sealer can be charged with any phone charger using a cable with a USB-C connector. The USB-A socket will allow devices with a demand of 5 V and a maximum current of 2 A to be powered.
- max. welding current 500 A
- input current: 1-1.5 A
- output current: 2 A
- input voltage: 5V
- output voltage: 5V
- Operating temperature range: 0~35 ˚C
- battery type: Li-Po
- battery voltage: 4.2 V
- battery capacity: 6300 mAh
- dimensions: 148x86x30 mm
- display type: LCD
- weight: 0.32 kg

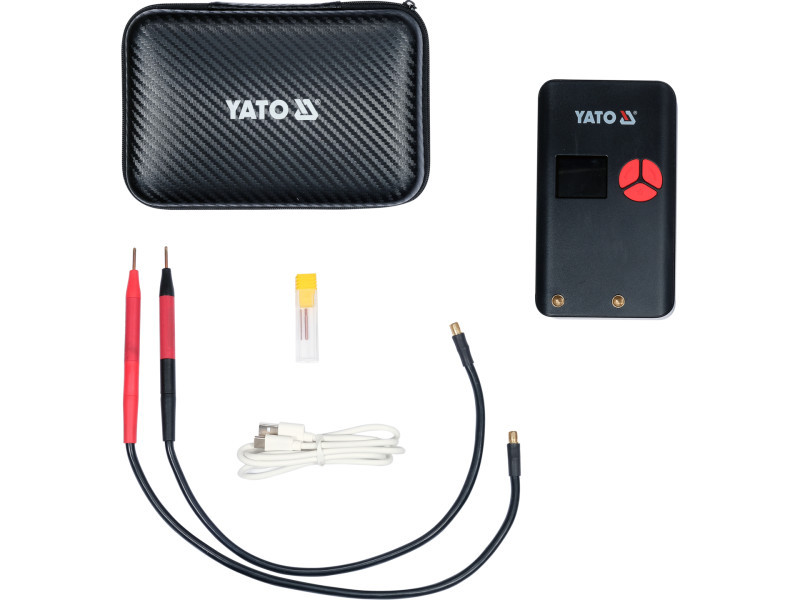

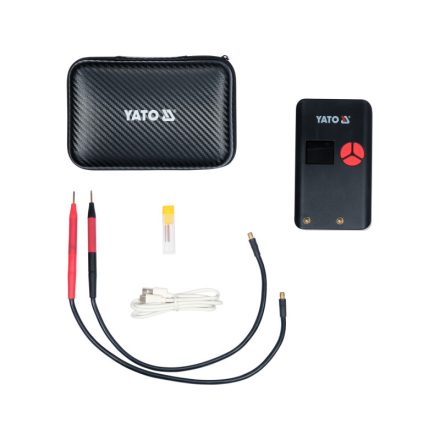

kit contents:

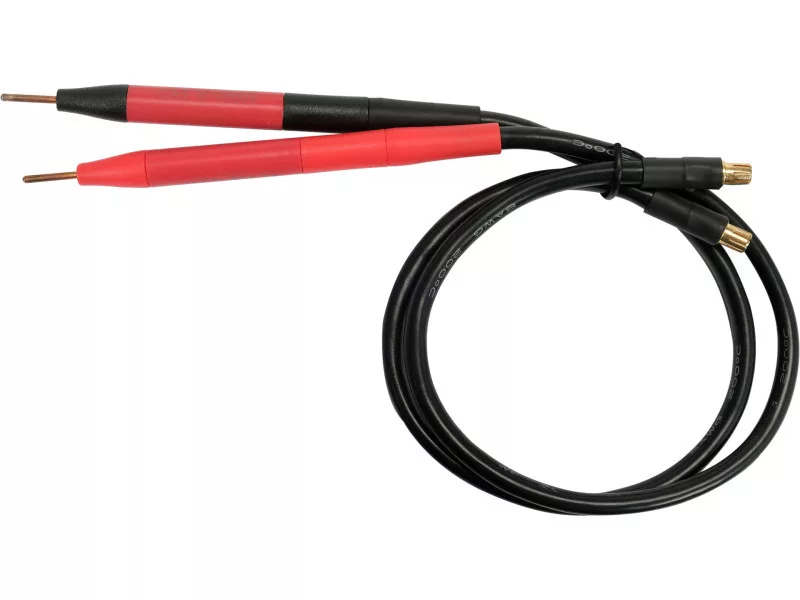

- welding cable 2 pcs
- welding pin 4 pcs
- charging cable
