| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Functions | shoeing, drilling, drilling with impact |
| Toolholder type | SDS-Plus |
| Rotations | 0-1850 min⁻¹ |
| Hammering energy | 2 J |
| Impact frequency | 0-4800 min⁻¹ |
| Voltage | 18 V d.c. |
| Battery type | Li-Ion |
| Battery capacity | 3000 mAh |
| Battery energy | 54 Wh |
| Battery quantity | 1 |
| Charger included | yes |
| Charging time | 1.5 h |
| Max. hole diameter in concrete | 18 mm |
| Max. hole diameter in steel | 13 mm |
| Max. hole diameter in wood | 40 mm |
| Stroke | yes |
| Rotation switch | yes |
| Electronic rotation adjustment | yes |
| Work mode switch | yes |
| Tool positioning in chuck | yes |
| Quick charging | yes |
| Charge level indicator | yes |
| Electric insulation class | III |
| Protection grade | IPX0 |
| Acoustic pressure | 95.6 ± 3.0 dB(A) |
| Acoustic power | 104.0 ± 3.0 dB(A) |
| Vibrations | 5.677 ± 1.5 / 6.334 ± 1.5 m/s² |
| Weight | 2 kg |
| Set includes | hammer drill, additional handle, drills x3, chisel, punch |
| Symbol | YT-82770 |

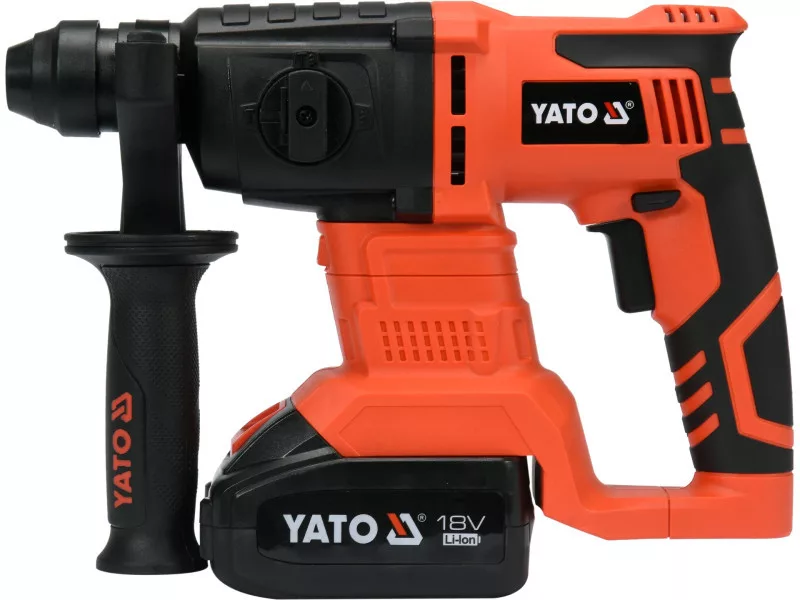

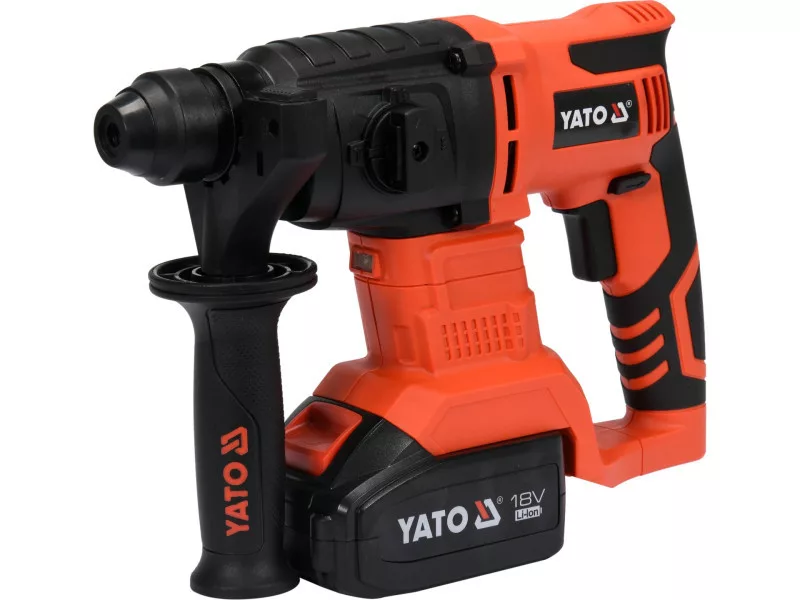

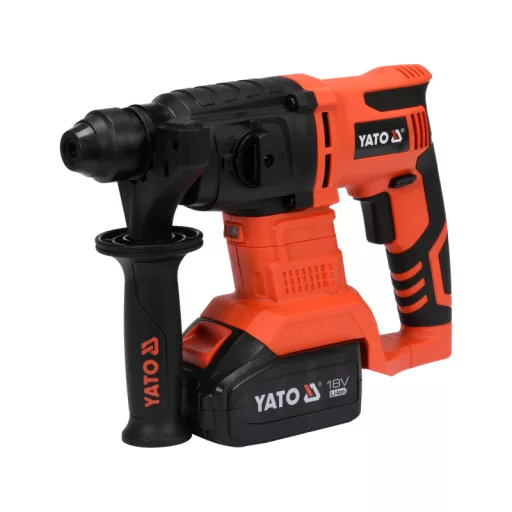

Lightweight and ergonomic cordless hammer drill SDS-plus YATO with shoring function. Thanks to its light weight, short body and powered by a durable battery, it is ideal for installation of suspended ceilings and serial drilling in concrete. Recommended for installers, electricians.
Characteristics:
- Rotational speed: 0-1850 rpm./min
- stroke frequency: 0-4800/min
- stroke energy: 2 J
- voltage: 18 V
- 3 functions: drilling, percussion drilling, shoring
- high performance on a single battery charge (60 holes in concrete for standard 6 x 40 mm dowel pins)
- fast performance
- fast-attaching SDS-plus chuck
- durable body made of fiberglass-reinforced polyamide
- 4-stage battery charge indicator
- protection against overheating of battery cells
- 18-volt system - operation on a common battery, matching a series of devices
- in stock spare batteries with capacities: 2 Ah (YT-82842), 3 Ah (YT-82843), 4 Ah (YT-82844) and 6 Ah (YT-82845)

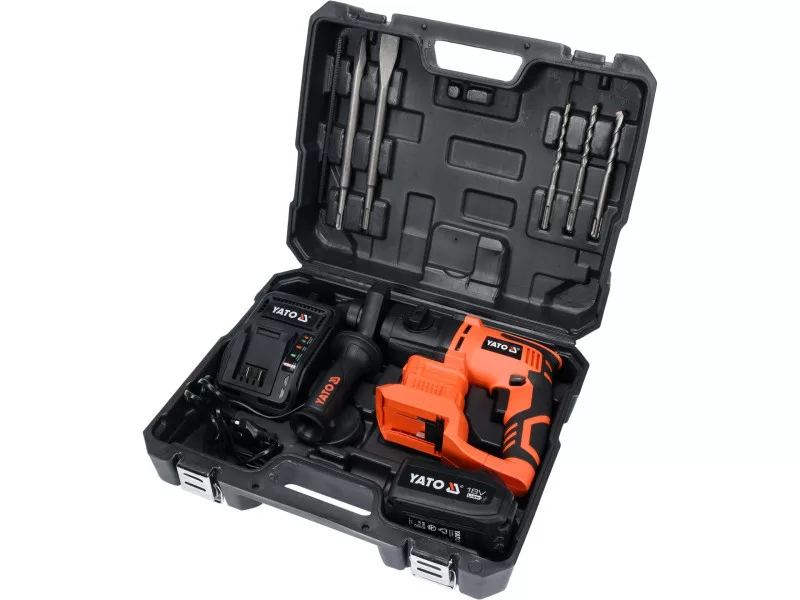

Set includes:
- SDS-plus hammer drill
- Li-Ion 18 V 3 Ah battery
- Li-Ion charger. li>fast charger (1.5 h for 3 Ah battery)

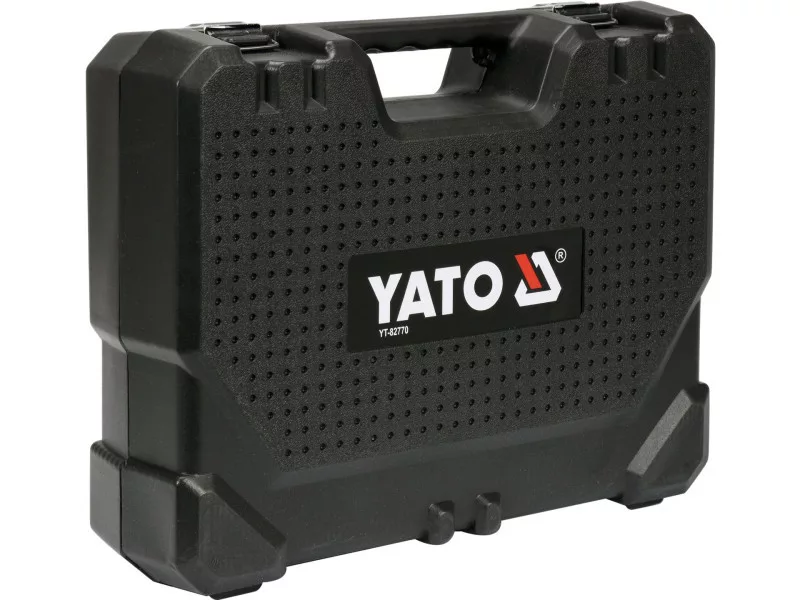

- portable carrying case
SYSTEM 18 V
The 18 V System is a series of YATO cordless tools that are powered by the same durable battery. You can buy the devices in a set with a rechargeable battery and fast charger, or solo, which is ideal when you're expanding your tool set.
Powered with a rechargeable battery gives you freedom and greater comfort. In addition, YATO cordless tools are durable, handy and perfectly balanced. So that working with them is a pleasure.
- Professionalism
Power, modernity, refined solutions - all this is offered in a series of 18 V devices, created for the most demanding users and professionals.
- Saving
No need to buy multiple batteries and chargers for more tools. With the 18-volt system, you save money, space in your home and the environment!
- Choice
As your demands grow, so does the 18-volt collection. With a wide selection of tools for the home, workshop and garden, you can create the kit you really need.
