| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Functions | shoeing, drilling, drilling with impact, chisel positioning |
| Toolholder type | SDS-Plus |
| Engine (motor) type | brushless |
| Rotations | 0-1400 min⁻¹ |
| Hammering energy | 2.5 J |
| Impact frequency | 0-5000 min⁻¹ |
| Voltage | 18 V d.c. |
| Battery type | Li-Ion |
| Battery capacity | 4000 mAh |
| Battery energy | 72 Wh |
| Battery quantity | 1 |
| Charger included | yes |
| Charging time | 2 h |
| Max. hole diameter in concrete | 22 mm |
| Stroke | yes |
| Rotation switch | yes |
| Electronic rotation adjustment | yes |

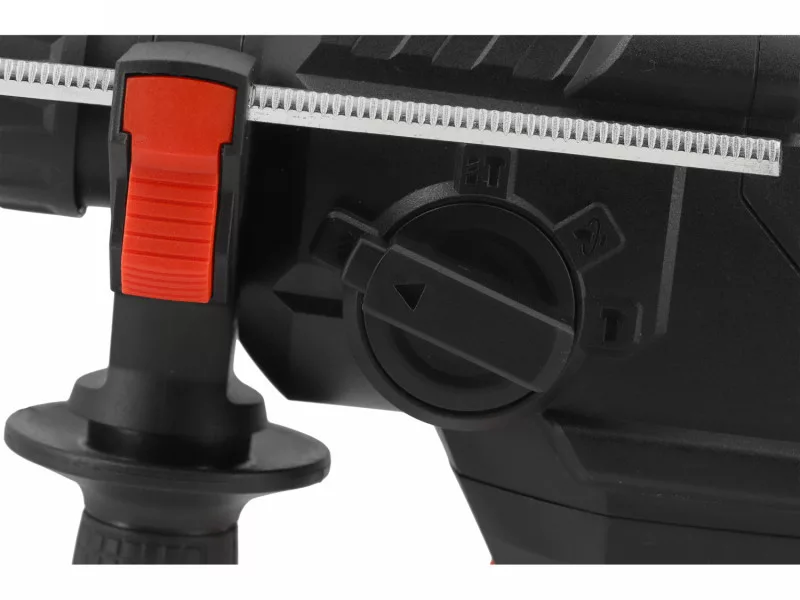

| Work mode switch | yes |
| Tool positioning in chuck | yes |
| Work area lighting | yes, LED |
| Quick charging | yes |
| Charge level indicator | yes |
| Electric insulation class | III |
| Protection grade | IPX0 |
| Acoustic pressure | 94.3 ± 3.0 dB(A) |
| Acoustic power | 102.3 ± 3.0 dB(A) |
| Vibrations | 11.364 ± 1.5 m/s² |
| Weight | 2 kg |
| Set includes | hammer drill, additional handle, drilling depth limiter |
| Symbol | YT-827721 |

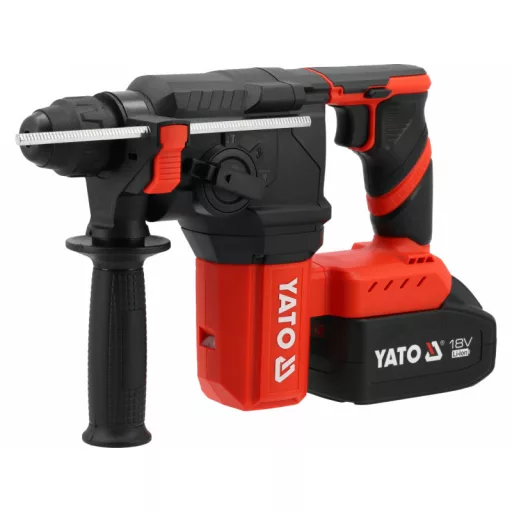

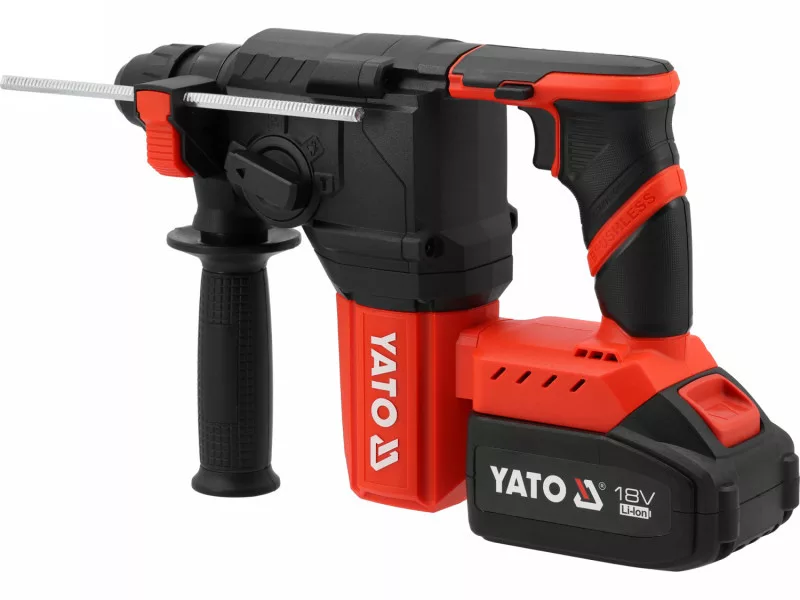

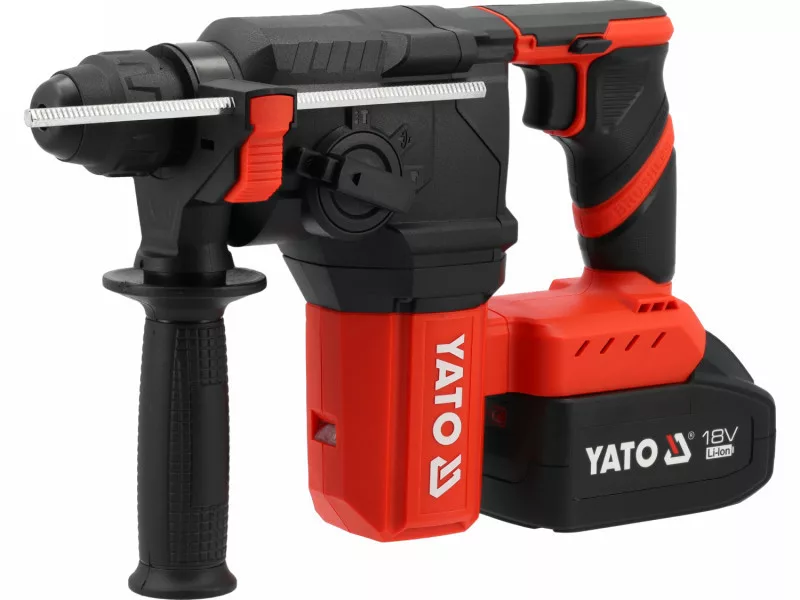

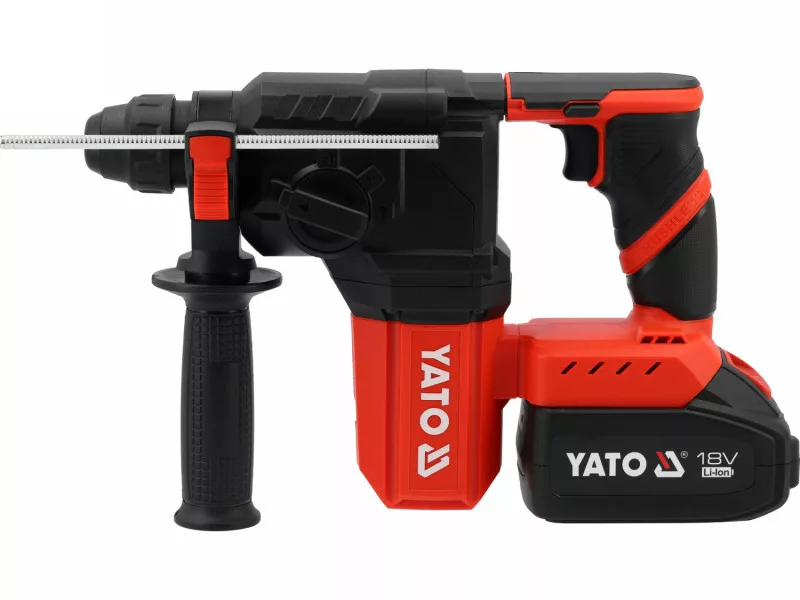

The SDS-plus cordless rotary hammer drill is a versatile tool for assembly and construction work, combining efficient drilling with impact, non-impact drilling, and chiseling. It is useful for installing dowels, making holes for installations, and precise chiseling in hard-to-reach areas. Four operating modes allow you to adjust the work to the material - from classic drilling in wood and metal, through impact drilling in concrete and brick, to chiseling with the ability to set the chisel in the most convenient position.
The brushless motor provides constant power even during prolonged work, which is important when drilling a series of large diameter holes. The efficient impact mechanism with an energy of 2.5 J ensures fast progress in harder substrates, including concrete with large slabs, lintels, and cobblestones.
The design based on an 18 V Li-Ion battery power offers total mobility, long operating time, and stability and continuity of work thanks to fast charging. The SDS-plus handle allows for quick accessory changes, and the built-in LED lighting makes work easier, especially in installation shafts and poorly lit rooms. The set includes an additional handle and a depth limiter, increasing control and accuracy during drilling. The low weight makes working overhead or in forced positions less tiring.
The tool is available in three battery equipment variants, making it easy to adapt to the user's needs.
Main features:
- operating functions - chiseling, drilling, drilling with impact, chisel positioning
- SDS-plus tool holder - quick accessory change and a wide range of compatible accessories

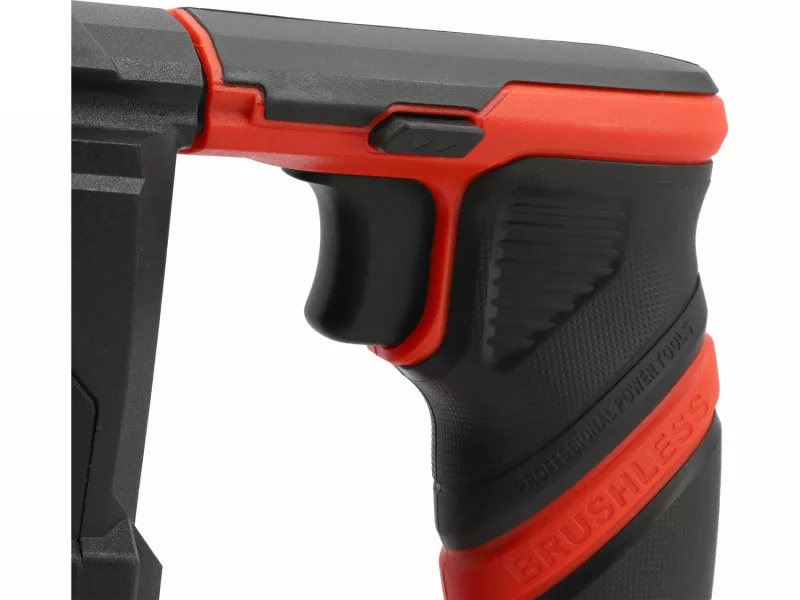

- brushless motor - stable power and durability
- rotational speed 0-1400 min-1 - fast drilling, e.g. in ceilings, and less operator fatigue
- impact energy 2.5 J - efficient drilling in hard concrete and stone
- impact frequency 0-5000 min-1
- max. drilling diameter in concrete: 22 mm
- rotation direction switch
- tool positioning in the handle - control over the chisel angle (when working with a flat chisel)

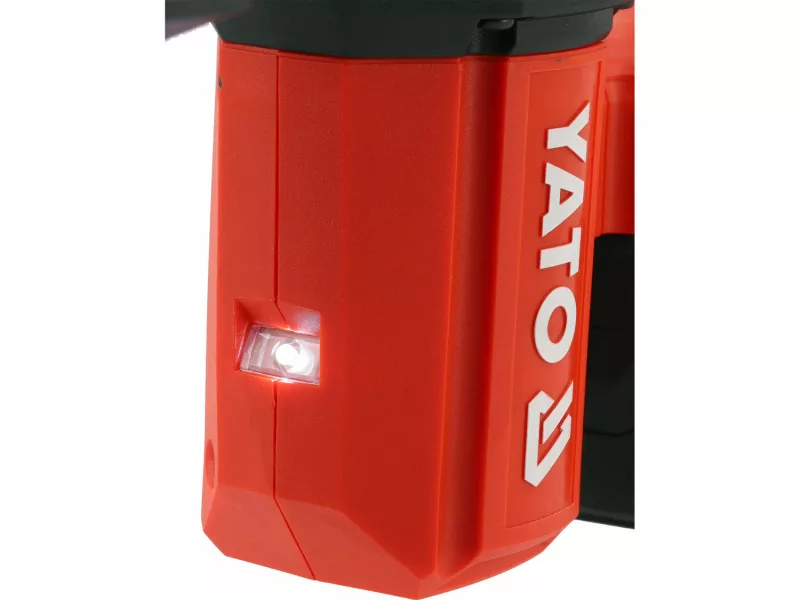

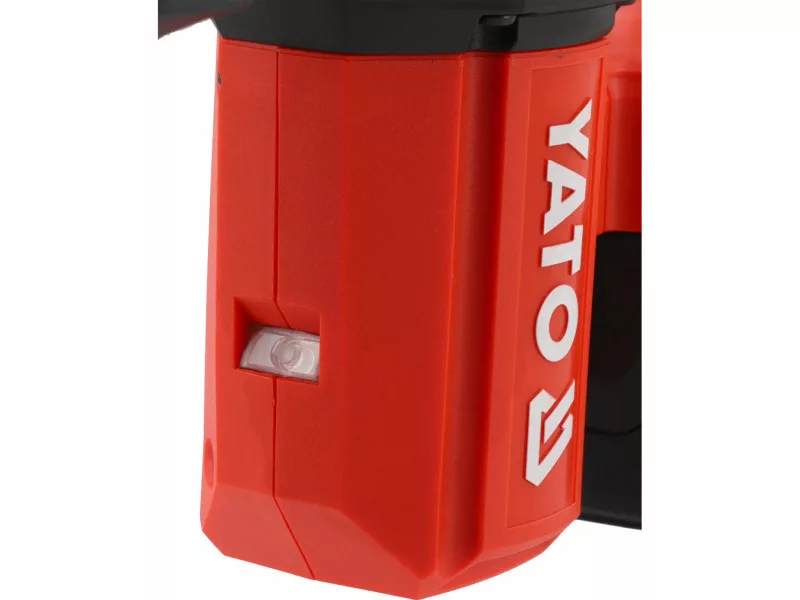

- LED work area lighting - illuminating the drilling point, especially in dark conditions
- short body and vertically positioned motor - optimal center of gravity position
- weight 2 kg facilitates maneuvering while working overhead and serial drilling in ceilings, e.g. for cables or suspended ceiling installation

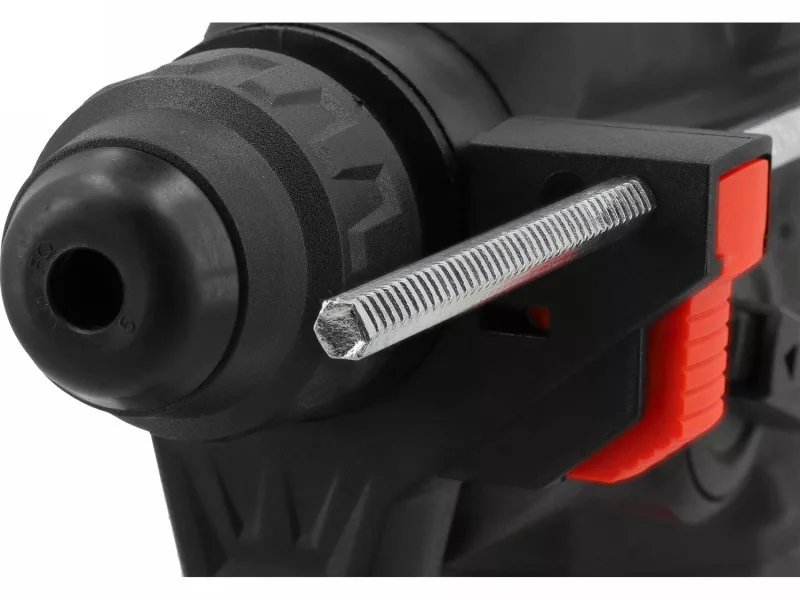

- includes additional handle and drilling depth limiter, increasing stability and ensuring hole repeatability
- powered by an 18 V Li-Ion battery for long work
Available tool versions:

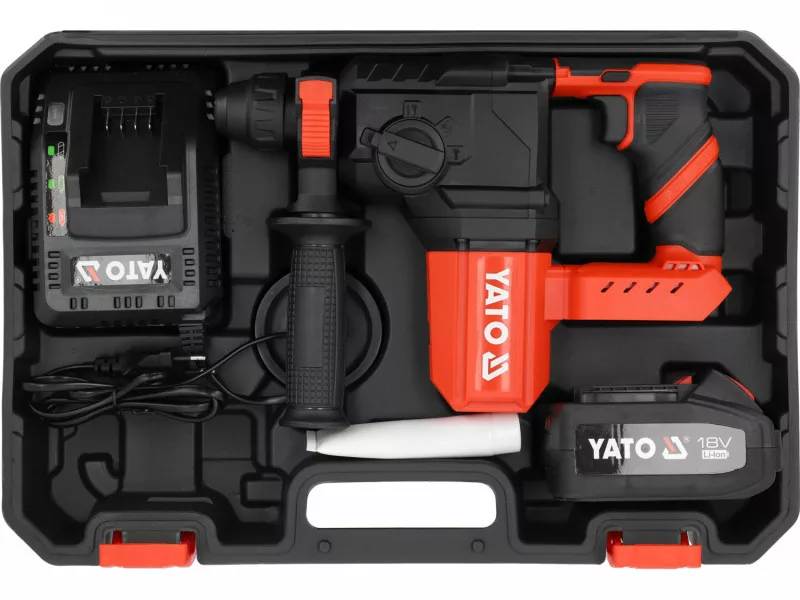

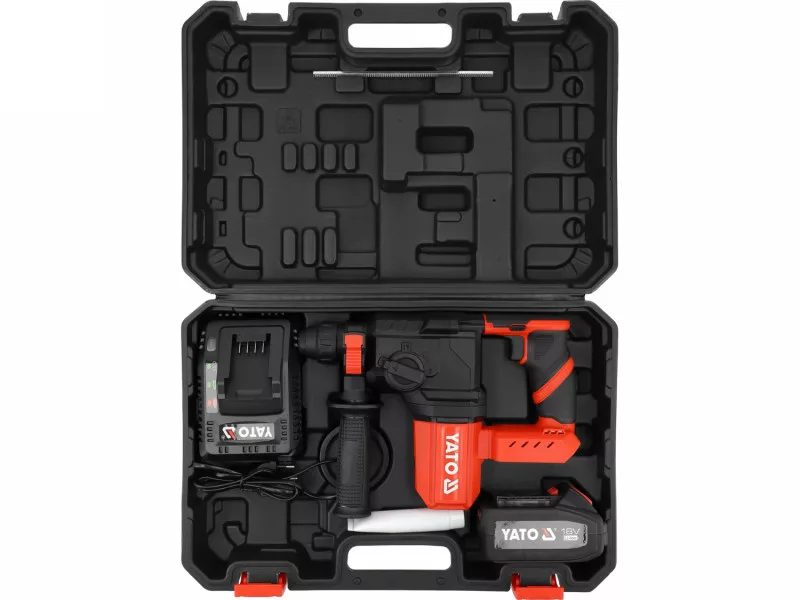

- YT-827721 - tool with a 4 Ah battery and fast charger
- YT-827722 - tool with two 4 Ah batteries and a fast charger
- YT-827723 - tool only
