| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Battery quantity | 2 |
| Functions | screwing, drilling, drilling with impact |
| Max. torque | 120 Nm |
| Rotations | 0-500 / 0-1800 min⁻¹ |
| Impact frequency | 0-8500 / 0-29750 min⁻¹ |
| Voltage | 18 V d.c. |
| Battery type | Li-Ion |
| Battery capacity | 4000 mAh |
| Charger included | yes |
| Charging time | 2 h |
| Engine (motor) type | brushless |
| Stroke | yes |
| Max. hole diameter in wood | 25 mm |
| Max. hole diameter in steel | 10 mm |
| Holder size | 13 mm |
| Toolholder type | self-centering |
| Electronic rotation adjustment | yes |
| Spindle brake | yes |
| Rotation switch | yes |
| Work mode switch | yes |
| Work area lighting | yes |
| Quick charging | yes |
| Charge level indicator | yes |
| Electric insulation class | III |
| Protection grade | IPX0 |
| Acoustic pressure | 82.0 ± 5.0 dB(A) |
| Acoustic power | 90.0 ± 5.0 dB(A) |
| Vibrations | 11.5 ± 1.5 / 1.3 ± 1.5 m/s² |
| Weight | 1.3 kg |
| Set includes | impact drill/driver, additional handle |
| Symbol | YT-8277915 |

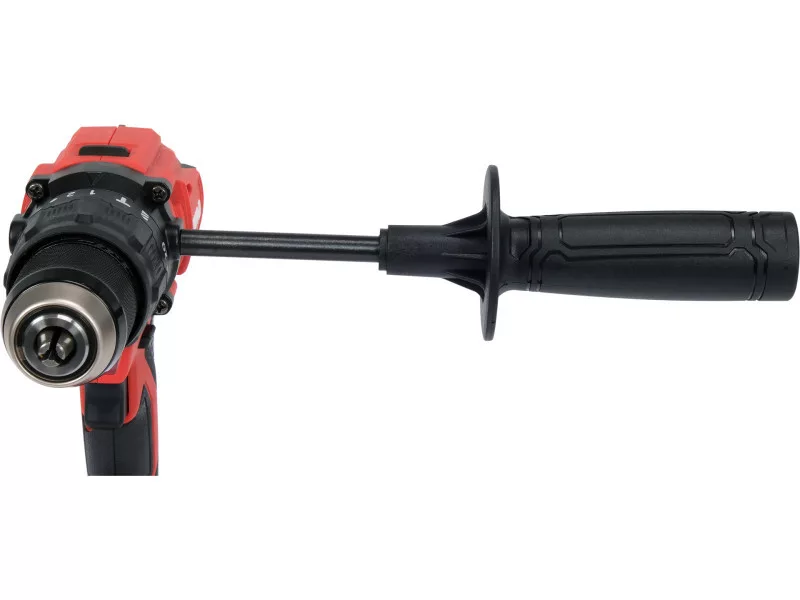

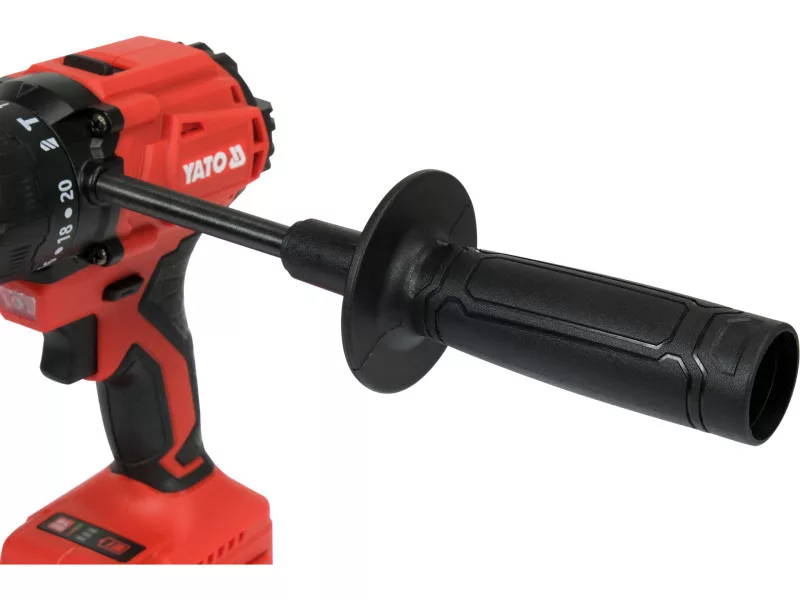

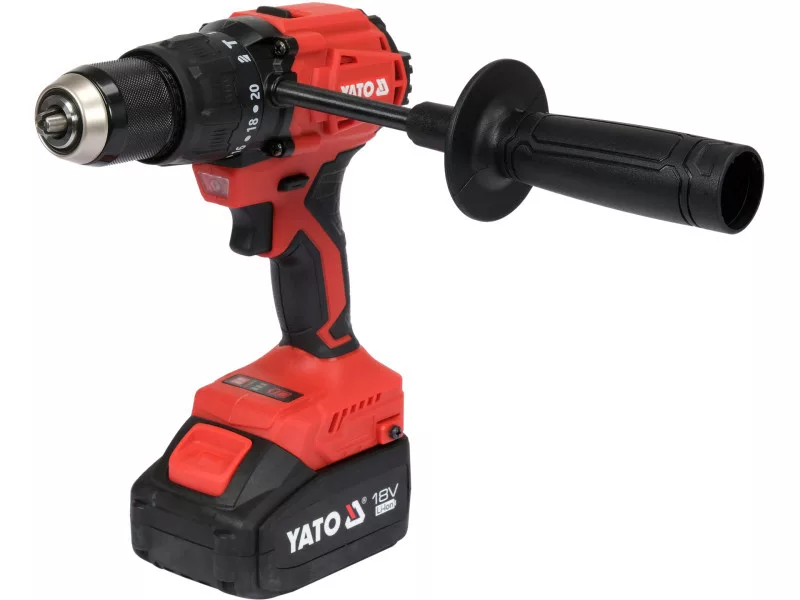

A powerful and lightweight hammer drill-driver with impact function. Perfect for working with auger bits, masonry bits, and even core drill bits. The side handle, screwed into the body, facilitates stable tool grip and strong pressure, very helpful when drilling with a step drill in metal. The ring around the gearbox is used to adjust the tool's torque.
The drill allows for working with masonry bits up to 16 mm in diameter in brick and hard concrete. Drilling in metal is possible with twist bits up to 20 mm in diameter, and spade bits up to 38 mm.
The device has a function to protect the wrist from damage when the tool stops.
- brushless motor
- max. torque: 120 Nm
- speed: 0-500 / 0-1800 rpm
- impact frequency: 0-8500 / 0-29750 bpm
- max drilling diameter in wood: 25 mm
- max drilling diameter in steel: 20 mm
- tool holder size: 13 mm
- type of tool holder: self-centering
- electronically controlled speed
- spindle brake
- rotation direction switch
- type of operation switch
- workplace lighting

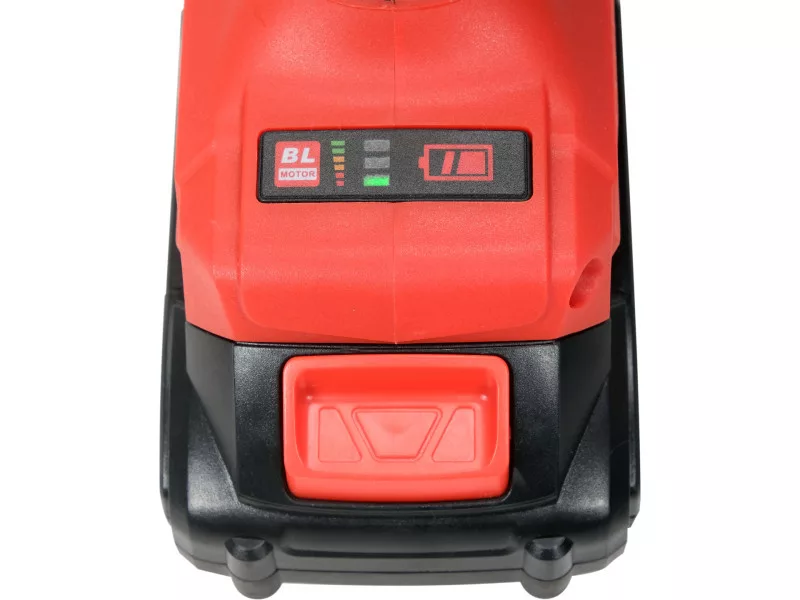

- battery charge level indicator
- 2 Li-Ion 4 Ah batteries and additional handle included
For power supply, you can use one of the Li-Ion YATO 18 V batteries: YT-828461 (2 Ah), YT-828462 (3 Ah), YT-828463 (4 Ah), YT-828464 (6 Ah), YT-828465 (9 Ah).
For charging, you can use YATO chargers: T-828498, YT-828499, YT-828500, YT-828501, YT-828502, YT-828503, YT-828504.
