| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Battery quantity | lack |
| Rotations | 3600 min⁻¹ |
| Cutting disc outer diameter | 185 mm |
| Cutting disc internal diameter | 30 mm |
| Cutting disc max. thickness | 2 mm |
| Voltage | 18 V d.c. |
| Battery type | Li-Ion |
| Charger included | no |
| Number of teeth | 40 |
| Max. cutting height x max. cutting length rotating angle at level 0° / gradient 0° | 51x203 mm |
| Max. cutting height x max. cutting length rotating angle at level 45° / gradient 0° | 51x152 mm |
| Max. cutting height x max. cutting length rotating angle at level 0° / gradient 45° | 35x203 mm |
| Max. cutting height x max. cutting length rotating angle at level 45° / gradient 45° | 35x152 mm |
| Min. dimensions of processed material processed | 200x20x20 mm |
| Laser | yes |
| Laser class | 2 |
| Laser power | ˂1 mW |
| Laser wave length | 650 nm |
| Laser pointer colour | red |
| Electric insulation class | III |
| Protection grade | IPX0 |
| Acoustic pressure | 83.14 ± 3.0 dB(A) |
| Acoustic power | 96.14 ± 3.0 dB(A) |
| Weight | 9 kg |
| Set includes | miter saw, dust collection bag, circular saw, work table clamp, work table locking screw |
| Compatible with | YT-60590 |
| Application | wood, panels, laminates, plastics |
| Symbol | YT-82817 |

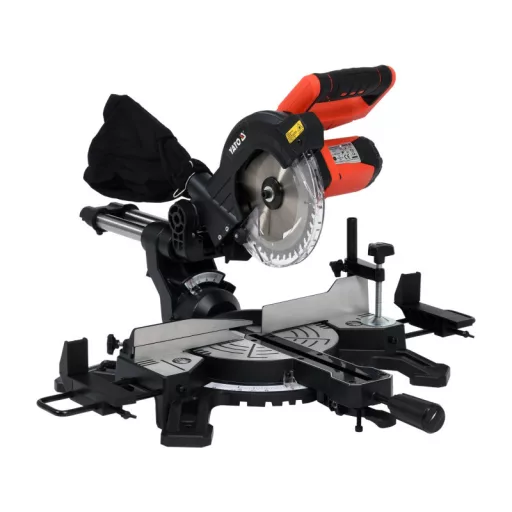

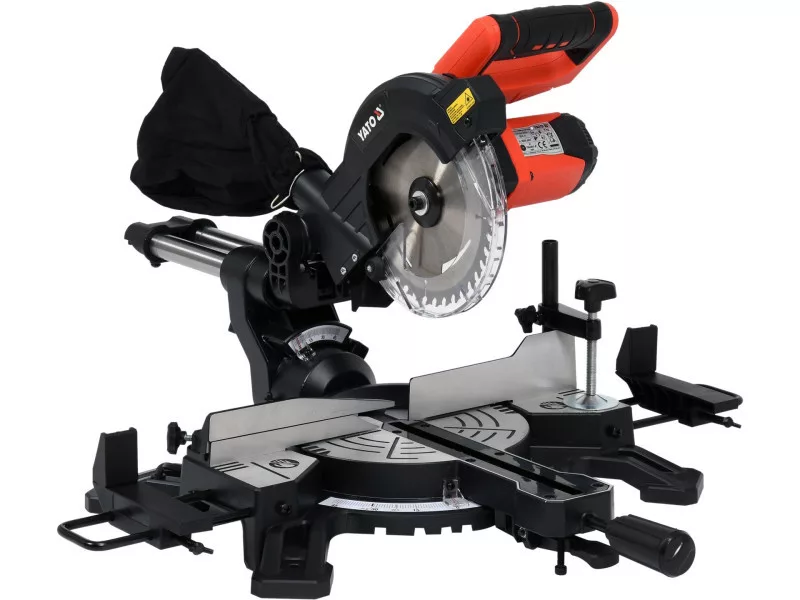

Bevel 185mm 18v without battery
Professional bevel with feed designed for straight and angle cutting. Useful for repair and construction work, such as cutting
- floor skirting boards
- panels
- soffits
- parqueting
- plinth and PVC mouldings
- cable plugs
- scantlings
- battens , etc.
Provides precise and fast processing of materials.
Set without battery and charger.
The bevel allows you to set two types of angles:

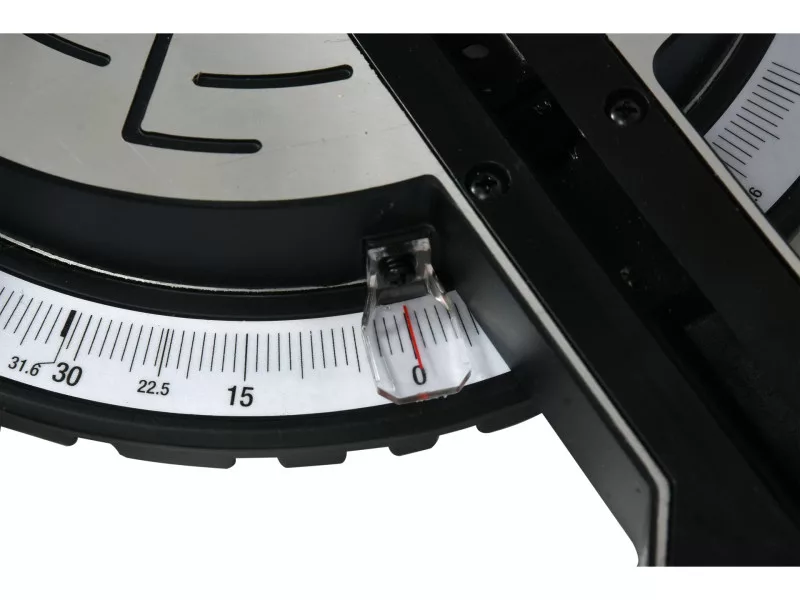

Cutting angle: it is possible to rotate the head within +/- 45 degrees. To make it easier to set the angle of the head, the bevel has a scale with a ratchet that allows easy setting of the head in the most common angles (0; 15; 22.5; 31.6; 45 degrees).

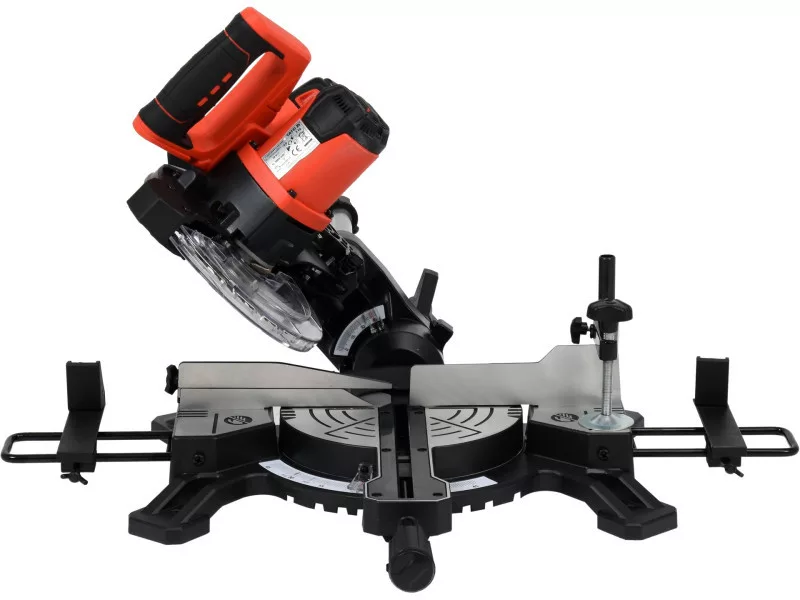

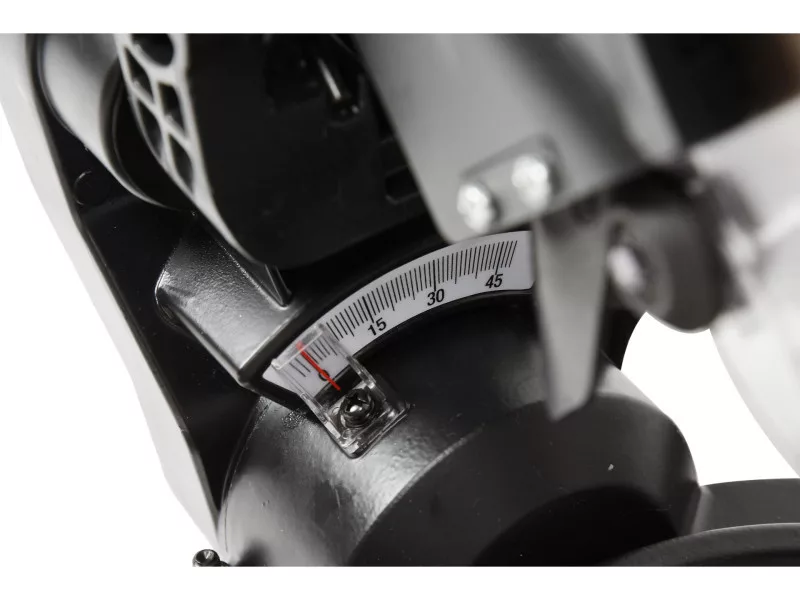

Cross-cutting angle (bevel): it is possible to tilt the cutting head by an angle not exceeding 45 degrees.When setting the angle, you can use the scale marked on the base of the table.
The bevel allows three types of cutting:
- cut, in which the head will move down
- cut, in which the lowered and locked head will move horizontally
- plunge cut, where the head is lowered to a pre-set height, held in that position, and then moved horizontally

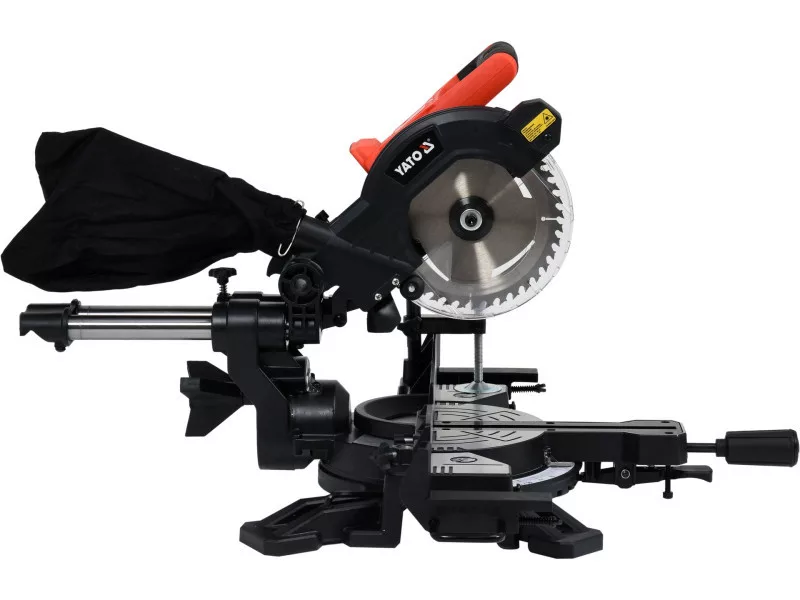

The saw is equipped with a spigot that makes it possible to connect a bag that comes with the slashing machine or an external dust extraction system.
The saw has a laser pointer that shows the cutting line on the material mounted to the table. The pointer is activated by an independent switch.
Features of Yato's bevel machine:
- stable metal base with precise vertical and horizontal cutting angle adjustment.
- lateral slide-out supports make it easy to cut elongated pieces.
- laser cutting line indicator
- bearing cutting blade feed
- smoothly operating pivoting blade guard, integrated with the switch
- .squeeze integrated into the base for safe and fast immobilization of the workpiece
- high performance - more than 100 cuts of 4 x 6 cm patches (with 4 Ah battery)
- readable angle graduation for precise cutting
- high performance - more than 100 cuts of 4 x 6 cm patches (with 4 Ah battery)
- readable angle graduation for precise cutting
- possibility to use a chip bag or connect a vacuum cleaner
- compact dimensions and a transport handle in the central part of the housing ensure proper balance and ease of carrying
Package contents:
- cutter
- shaving bag
- shaving disc 185 mm with 30 mm mounting hole
Parameters:
- Rating voltage [V d.c]: 18
- Rating speed [min-1]: 3600
- saw blade: diam. Outer x clamping diameter x thickness max. [mm]: 185 x 30 x 2.0
- minimum workpiece dimensions: H x L x Thick[mm]: 20 x 200 x 20
- maximum bevel cutting angle [deg.]: 45
- weight [kg]: 9
Max. height x max. cutting length:
- horizontal rotation angle 0 deg. / tilt angle 0 deg[mm]: 51 x 203
- horizontal rotation angle 45 st. / tilt angle 0 st. [mm]: 51 x 152
- horizontal rotation angle 0 st. / tilt angle 45 st. [mm]: 35 x 203
- 45 st. horizontal rotation angle / 45 st. tilt angle [mm]: 35 x 152
Usage warnings:
Caution: laser radiation. Do not stare into the beam.
Class 2 laser device.
