| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Charging battery capacity | 20-1000 Ah |
| Functions | starting assistance |
| Charging voltage | 12/24 V d.c. |
| Charging current | 10/30/52 A |
| Voltage | 230 V a.c. |
| Frequency | 50/60 Hz |
| Max. charging battery capacity | 1000 Ah |
| Charging battery type | wet |
| Power | 2 kW |
| Starting current | 520 A |
| Microprocessor | no |
| Switch | yes |
| Electric insulation class | I |
| Protection grade | IP20 |
| Weight | 23 kg |
| Symbol | YT-83065 |

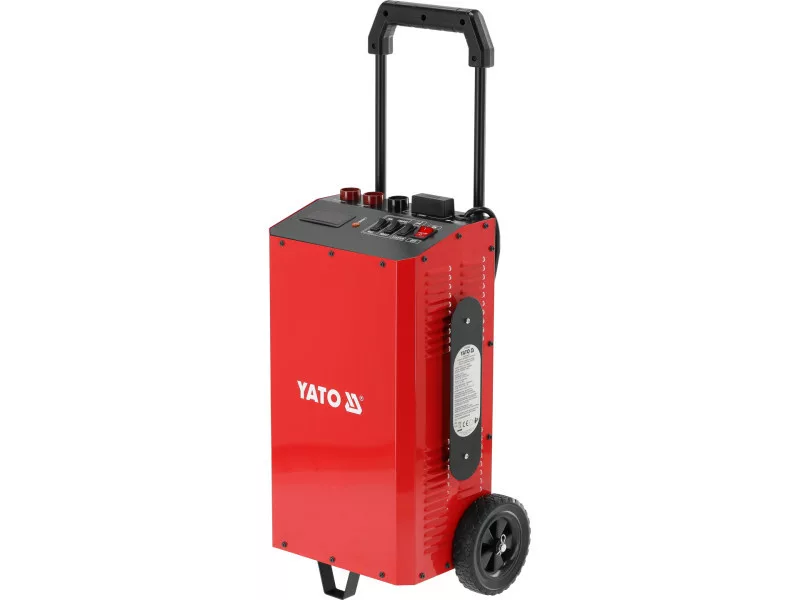

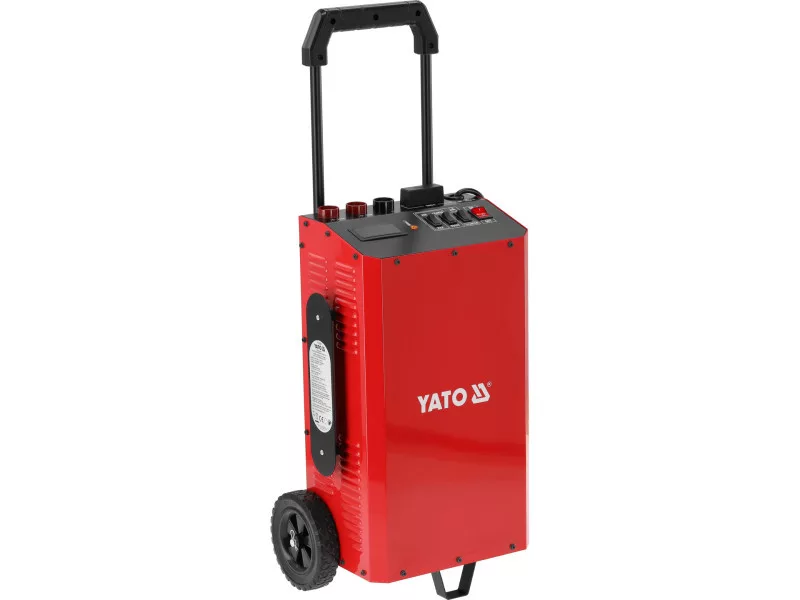

Charger designed for charging and assisting in starting lead-acid batteries in passenger vehicles, delivery vans, and workshop machines. The device operates in two modes, providing versatility for use in service centers, workshops, and technical service points.
Operating parameters:
- charging mode - 12 V/24 V, current 10 A/30 A/52 A allows for efficient charging of batteries of different capacities
- starting mode - 12 V/24 V, current 520 A (intermittent operation - 3 s on, 120 s off) - fast engine starting assistance function, effective even in low temperatures
- temperature control - automatic temperature control system protects the system from overheating, increasing durability and safety of operation
- starting voltage range > 0 V enables charging completely discharged batteries
- IP20 protection class ensures adaptation of the design for operation in dry workshop areas
- device works with all types of 12 V and 24 V lead-acid batteries, 20-1000 Ah
- year-round use in workshops and garages at ambient temperatures from 0°C to +40°C

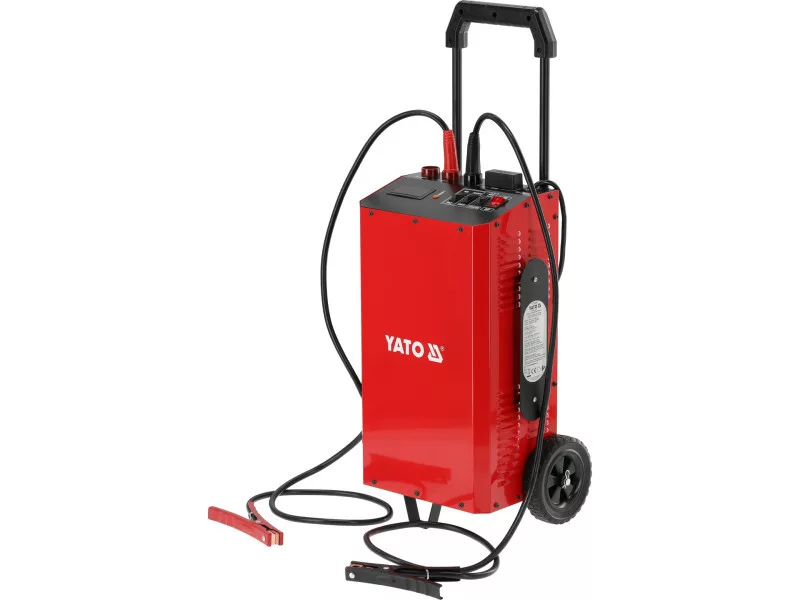

- the set includes cables with clamps (so-called crocodile clips) ensuring a secure connection to the battery terminals
Usage warnings:
Disconnect the supply before making or breaking the connections to the battery.
Warning!Explosive gases. Prevent flames and sparks.
Provide adequate ventilation during charging.
