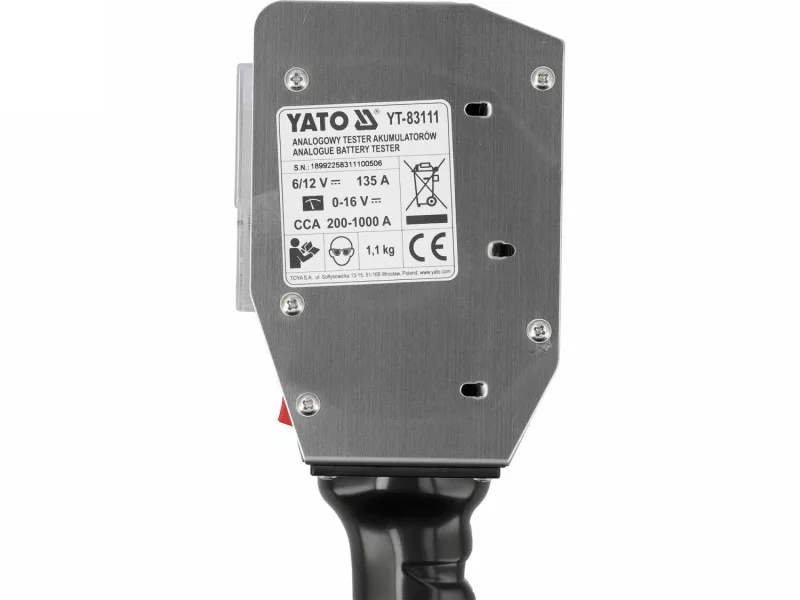

| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Operating voltage | 6, 12 V d.c. |
| Voltage range | 0-16 V d.c. |
| CCA range | 200-1000 A |
| Load measurement current | 135 A |
| Load test time mode | 10 s / 5 min |
| Tested accumulators type | lead-acid |
| Voltage indicator type | analog |
| Working temperature range | 0~40 ˚C |
| Storage temperature | 0~55 ˚C |
| Weight | 1.1 kg |
| Application | checking the battery charge and wear status |
| Symbol | YT-83111 |

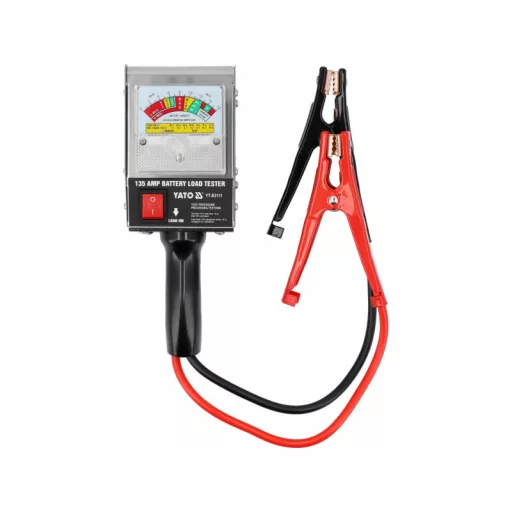

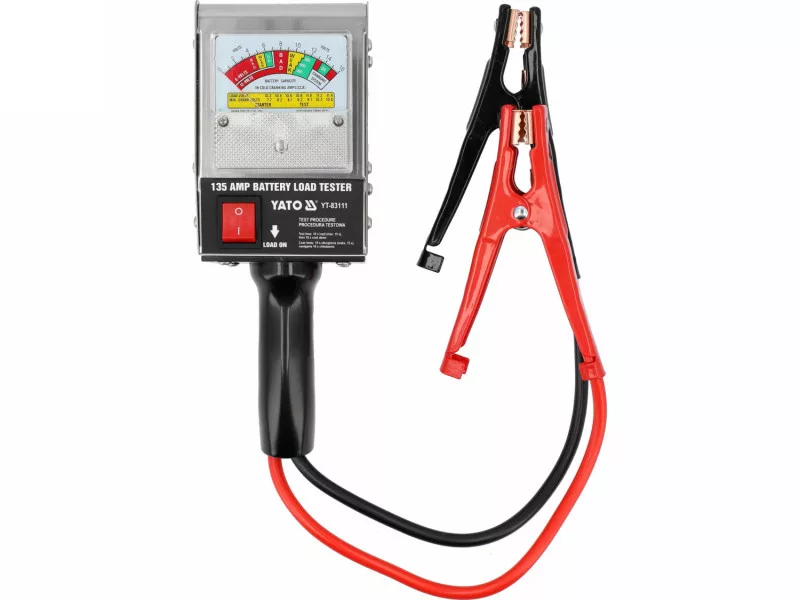

Analog battery tester designed for quick and reliable diagnosis of the state of charge and level of battery exploitation. Allows for evaluation of their actual performance through a test under real load, especially useful in workshops and technical services.

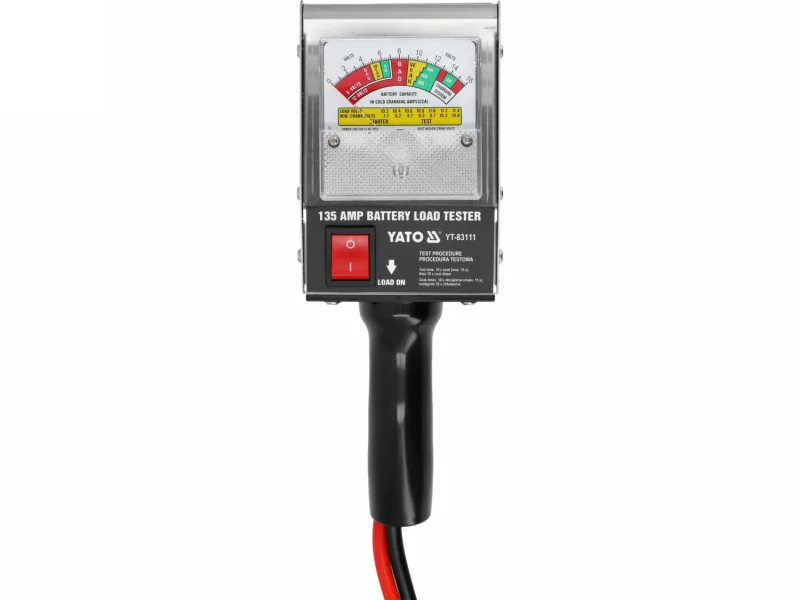

It supports 6 V and 12 V DC installations, enabling control of lead-acid batteries with a capacity of 30-135 Ah, as well as 12-volt lithium batteries. The applied analog voltage indicator ensures an immediate reading without delays.
Features and functions:
- enables diagnostics of 6 V and 12 V lead-acid batteries with a capacity of 30-135 Ah and 12 V lithium batteries
- load current at 135 A ensures a reliable test of cell condition
- the applied temperature compensation mechanism corrects voltage by ±0.1 V for each ±10°C relative to the base temperature of 70°C, increasing measurement reliability in variable working conditions
- test under real load allows for evaluating the battery's ability to deliver starting current
- the device offers two time modes for load testing:
- 10 seconds - quick diagnosis of current state
- 5 minutes - in-depth test, useful for evaluating used or problematic batteries

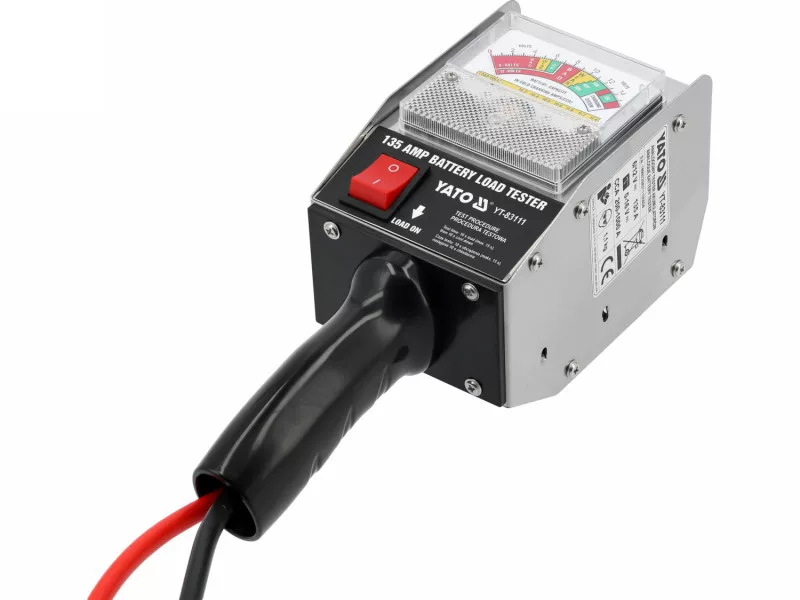

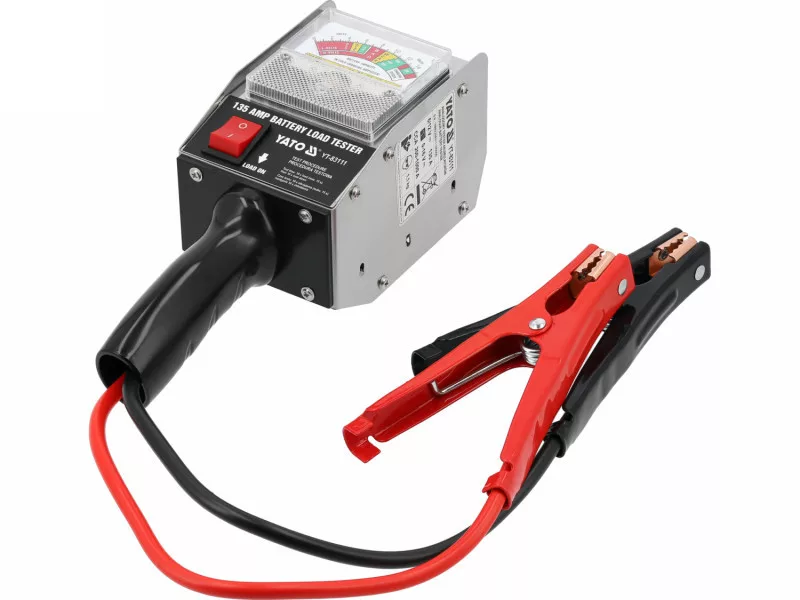

- the stainless steel metal housing increases mechanical resistance and device durability
- high-temperature resistant microporous plate insulation improves safety during load tests
- ventilation hole in the lower part of the housing effectively dissipates heat

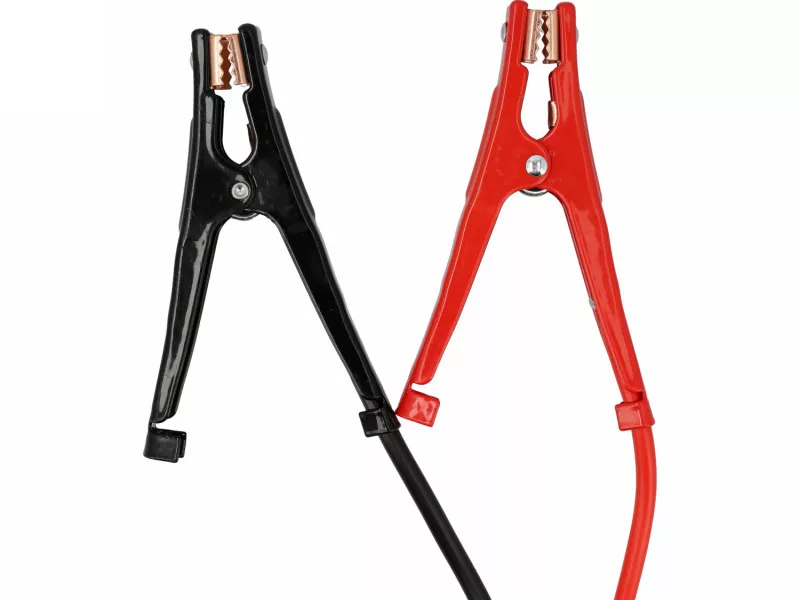

- measurement cables with an effective length of 330 mm and a cross-section of 8 mm² limit voltage drops and stabilize measurements
- CCA measurement range from 200 to 1000 A allows evaluation of both standard and high-power sources
Technical data:
- operating voltage: 6 / 12 V DC
- voltage range: 0-16 V DC
- CCA measurement range: 200-1000 A
- load measurement current: 135 A
- load test time mode: 10 s / 5 min
- type of tested batteries: lead-acid
- voltage indicator: analog
- operating temperature: 0-40˚C
- storage temperature: 0-55˚C
- weight: 1.1 kg
